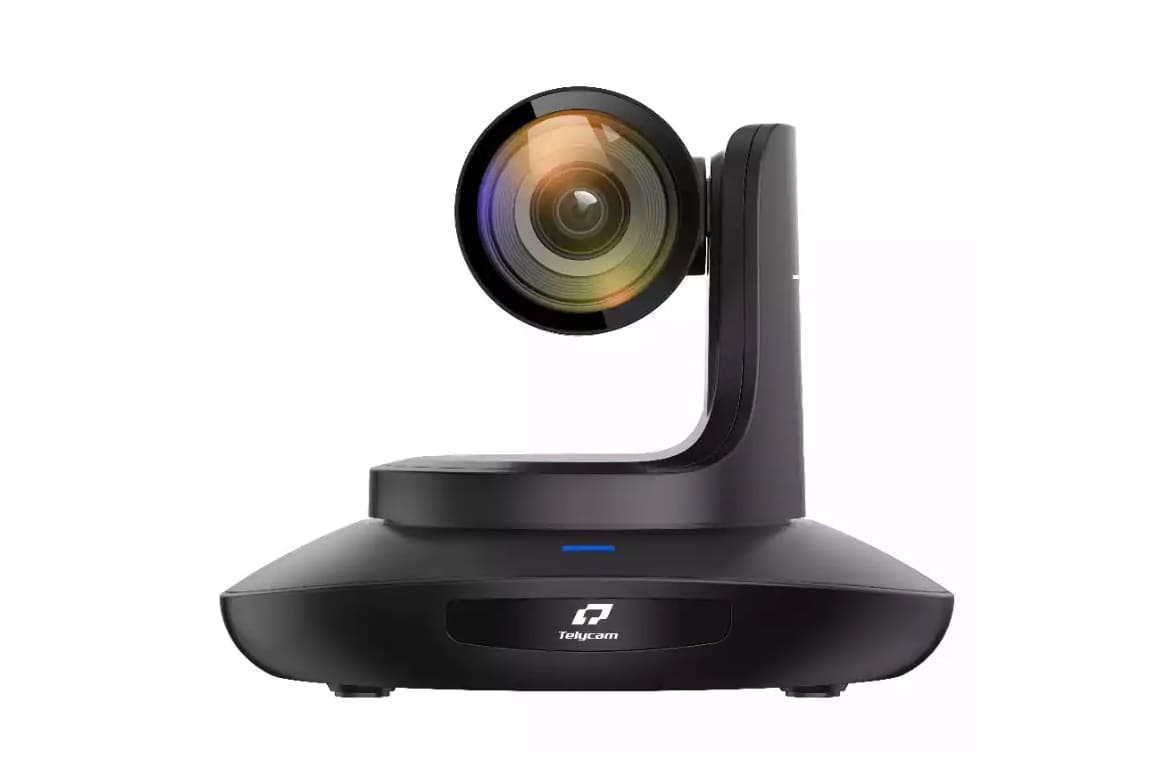

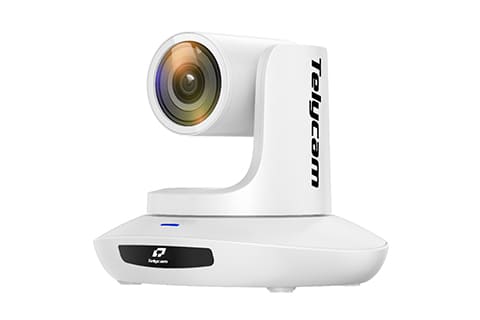

Vision+ N3

NDI ®|HX3 Auto Tracking Live Streaming PTZ Camera
Product Highlights
  • 1080p60 FHD resolution
  • 20x/30x optical zoom
  • Built-in auto tracking function
  • NDI ®|HX3 /3G-SDI/HDMI/USB-C Available
  • Audio output via HDMI, NDI®|HX3 and 3G-SDI
  • SRT supported
  • Power over Ethernet
  • Overview
  • Tech Specs

Vision+ N3 is the premium NDI® | HX3 1080p60 PTZ camera series from Telvcam, built-in with the latest NDI®SDK , and equipped with American most advanced image processing solution to deliver high definition and crystal clear image.

It has smooth PTZ mechanical design, to make accurate and stable pan, tilt, and zoom movement. NOI® | HX3, HDMI, SDI, and USB2.0 output Full HD resolution, ideal for professional live streaming applications.

With 20x and 30x optical zoom available, the Vision+- N3 can flt seamlessly Into any production scenario.

Line in audio input, the audio can output with video simultaneously from NDI® | HX, HDMI2.0, SDI.

1080p60 resolution
Equipped with premium image processing solution and Sony sensor, to deliver high definition and crystal-clear image.

Built-in auto tracking function
With built-in auto-tracking function, you don’t need any third-party software or device, just turn on with one click on the WebUI, matching remote control or Telycam’s control keyboard, and you can track the target accurately and smoothly without any outside interference. You can also switch the target talent, or set the target area, or change the target size.

20x/30x optical zoom
It shoots with a 20x/30x optical zoom lens with a 60 degree FOV, and a proprietary focusing algorithm enable fast and precise focus performance when zooming or moving, to capture every detail of the scene.

3G-SDI/HDMI/USB2.0 Available
In addition to NDI®|HX3, 3G-SDI, HDMI, and USB2.0 output images simultaneously as well.

3G-SDI and HDMI are for conventional video production workflow, and USB output can be used as a high-end webcam.

Support NDI®|HX3
Comply with NDI® |HX3 certification, provide extremely low latency and visually lossless compressed image. Flexible support to both H.264 and H.265 compression.

Camera Vision+ N3 20x
Part Number Vision+ N3
Sensor 1/2.8 inch, 2.4MP UHD CMOS Sensor
Zoom 20x optical zoom
Lens f = 4.9 ~ 98mm, F1.5 ~ F3
Horizontal View Angle 60°(Wide) ~ 3.2°(Tele)
Vertical viewing angle 32.2° ~ 1.8°
Diagonal viewing angle 61° ~ 3.64°
Minimum Working Distance 1.0m
S/N Ratio ≥50dB
Video Format HDMI: 1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080160/50/59.94; 1280*720P60/50/30/25/59.94/29.97

NDI®|HX3:Main Stream: 1920*1080@15~60;1280*720@15~60;1024*576@15~60
Sub Stream: 640*360@15~30

3G-SDI:1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080160/50/59.94; 1280*720P60/50/30/25/59.94/29.97

USB Type-C:NV12 :1920*1080p5;1280*720pl5;1024*576P25;800*448P30;
YUY2:1920*1080p5;1280*720pl0;1024*576P15;800*448P30;
MJPG:1920*1080P30; 1280*720P30; 1024*576P30; 800*448P30
H.264/HEVC: 1920*1080P30; 1280*720P30; 1024*576P30; 800*448P30
Image Parameters
Noise Reduction 2D&3D
Minimum lux 20x: 0.7lux (50 IRE Max AGC,1/30,F1.8)
White Balance Auto/Manual/Auto tracking/Push/Indoor/Outdoor/Color Temperature
Exposure Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
Anti-Flicker OFF,50Hz,60Hz
Image Flip Support
Mirroring Support
Focus Auto/Manual
Iris Auto/Manual
Electronic-shutter Auto/Manual
Gamma Support
Backh ht Com ensation Support
IP Streaming
Video Encoding H.264/H.265
Bitrate Control Variable bitrate(VBR), Constant bitrate(CBR)
Bitrate Range 1024Kbps~61440Kbps
Network Port Speed 1000M
Protocol NDI®|HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP, TCP, UDP, VISCA, PELCO P/D, HTML5, Webrtc, RTP Multicast
Pan/Tilt Movement
Preset Remote controller: 10; Serial port: 128; Accuracy:0.1°
Pan Rotation Angle -170° ~+170°
Tilt Rotation Angle -30° ~+90°
Pan Rotation Speed 0.1°~120°/s
Tilt Rotation Speed 0.1°~80°/s

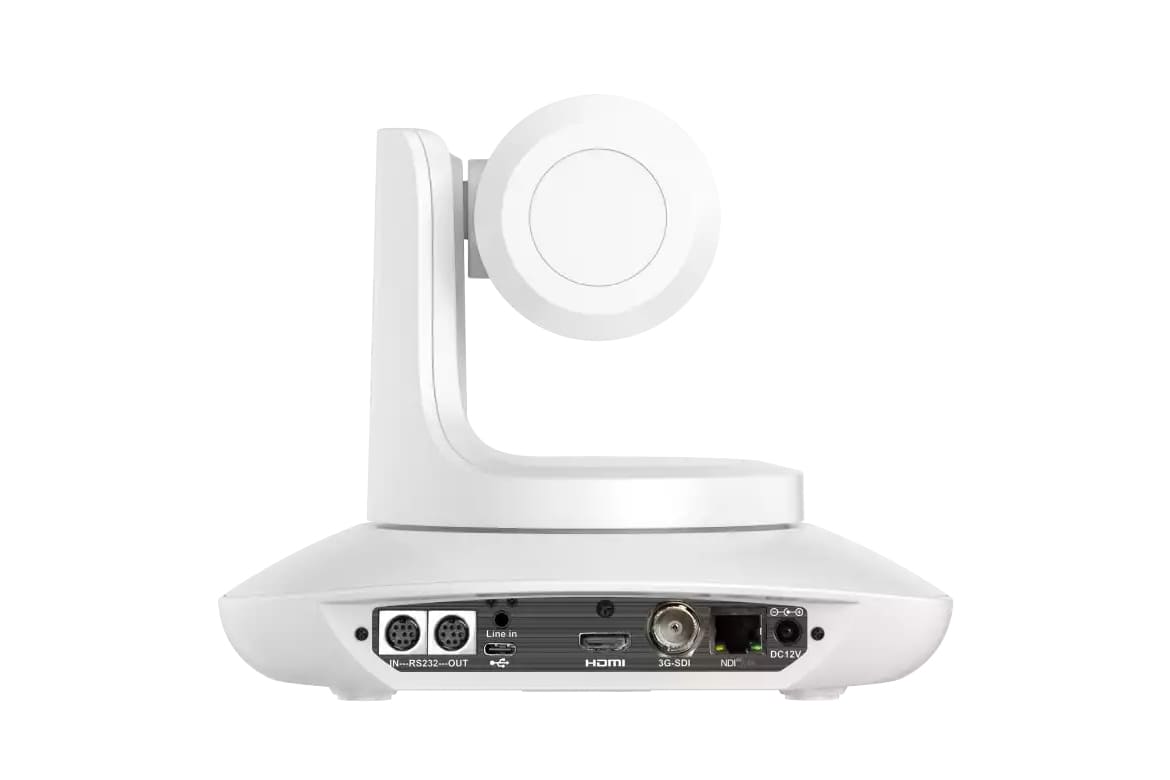

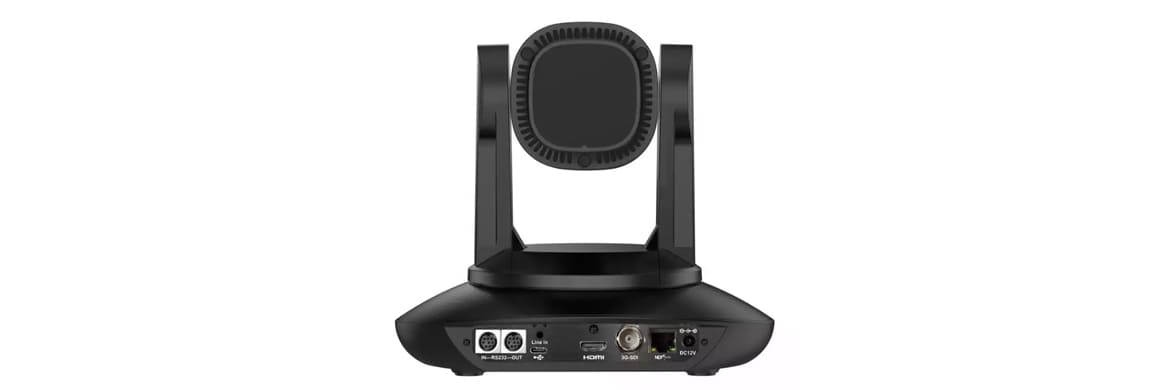

I/O Interface
Control Port RS232(RS485), NDI®|HX3
Video Port NDI®|HX3, HDMI, 3G-SDI, USB Type-C
Audio Port Dual 3.5mm linear inputs
Tally Support
POE+ Support
Daisy Chain Support
General
Input Voltage DC12V, POE+(IEEE802.3at)
Operating Temperature -10°C~ 50°C
Operating Humidity ≤80%
Color Black/White

Dimension
  • 220mm×190mm×173mm

Net Weight
  • 1.5kg(3.3LBS)
