Broad Compatibility

• Supports multiple protocols NDI, VISCA over IP, Serial VISCA, ONVIF, PELCO P/D,
• Users can control multiple cameras with different protocols with one keyboard, or multiple keyboards controlling one camera through a network interface.
• It supports up to 7 cameras of daisy chain control.

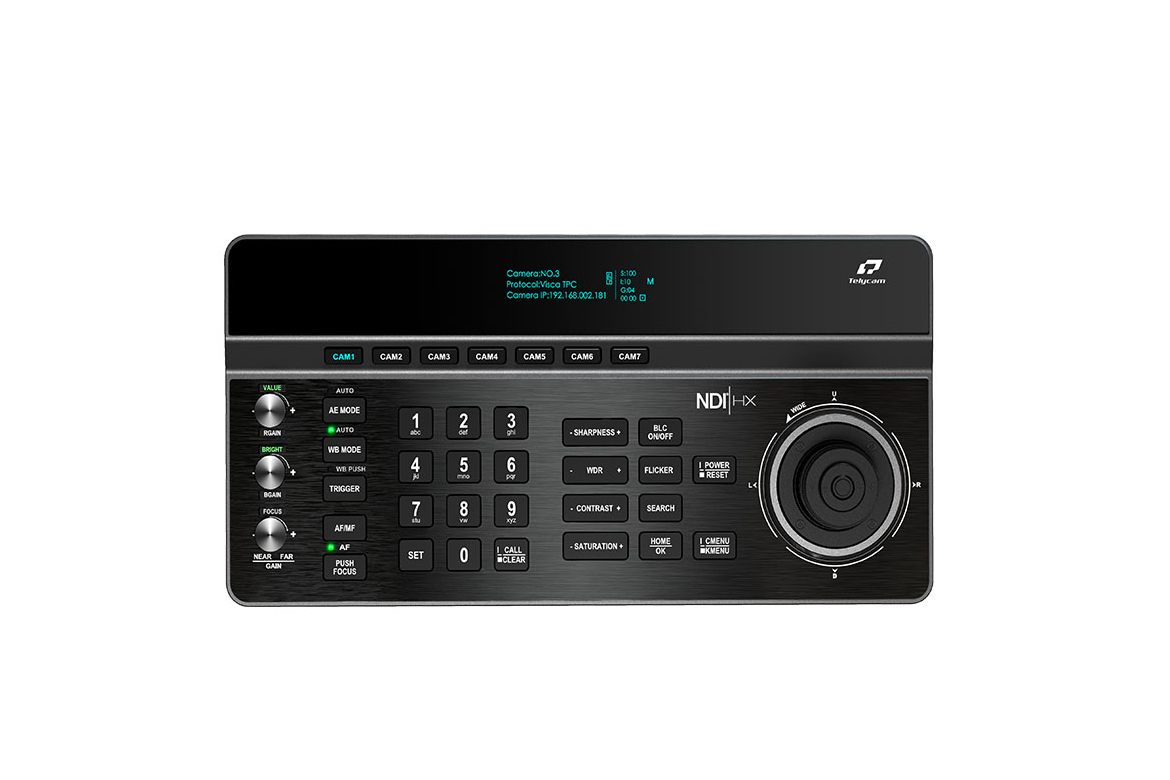

Simple and Clear Layout

• A high-definitionscreen to show detailed camera and control status.
• With a four-dimensional joystick controller to make smooth control of the camera’s all-around rotation and zooming.

Intuitive Control Indication

• The control buttons and function knobs allow to set the camera’s exposure mode, white balance mode, and focus mode, as well as adjusting image parameters according to your preferences and scene applications.
• 128 preset positions can be set, recalled, and cleared via the numerical button area.
• Comes with 7 camera shortcut control buttons, to switch control between multiple cameras.

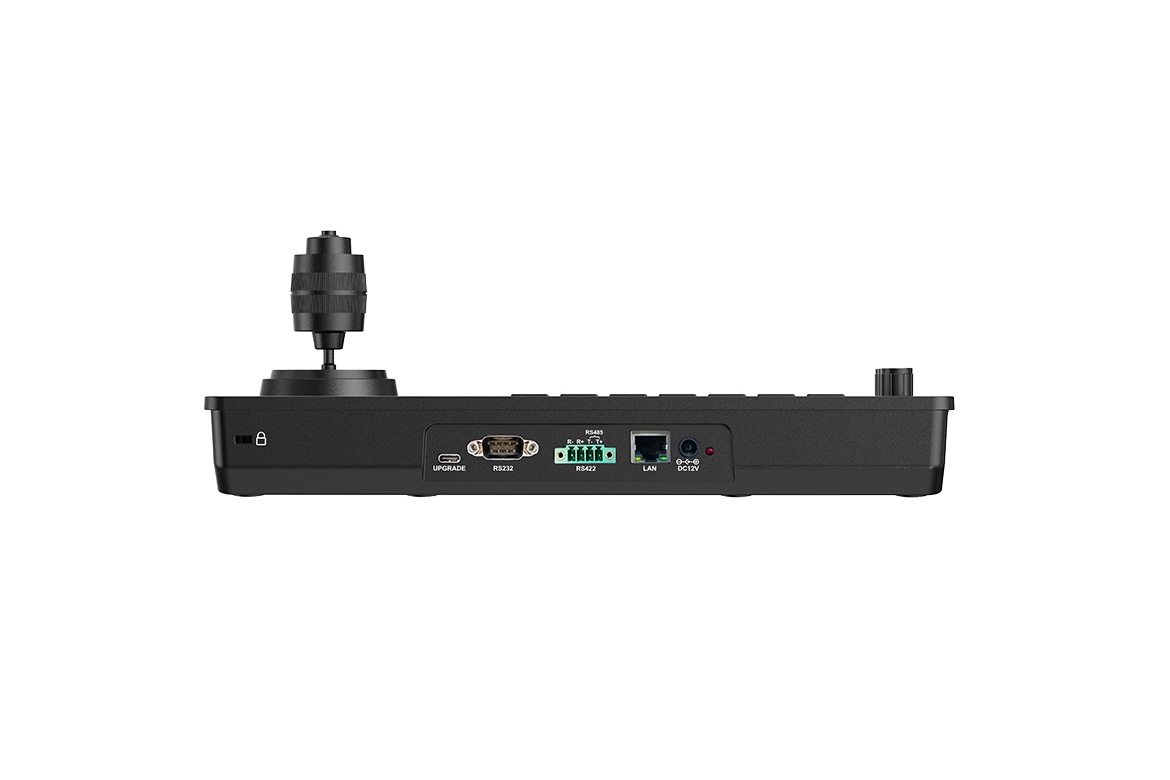

Various Control Port

• Whether need RS232, RS485, RS422, or even RJ45 control, the TLC-50TC can meet all requirements.
• TLC-50TC can be connected to all these interfaces simultaneously.
• TLC-50TC supports POE and supports 10M, 100M, 1000M adaptive network RJ45 connection.

Model	TLC-50TC(NDI)
Control Ports	NDI|HX, RS232, RS422, RS485
RJ45	Ethernet port, POE（IEEE802.3af
RS232	DB9 Male heFirst Name
RS422	3.81 Spacing terminal, T＋, T－, R＋, R－
RS485	3.81 Spacing terminal ,T＋, T－
Control Protocols	NDI®;|HX, VISCA, VISCA over IP, VISCA TCP, VISCA UDP, ONVIF, PELCO-P, PELCO-D,
Upgrade Port	Type-C
LCD Screen	3.12-inch OLED screen, blue light, 256×64 pixel
Working Power	12V, 1A
Working Temperature	-10°C~50°C
Working Humidity	20%~80%
Storage Temperature	-20°C~60°C
Storage Humility	0~90%
