TLC-700-IP-30(NDI)-AB
Telycam

NDI®|HX3 Camera TLC-700-IP-30(NDI)-AB

Product Highlights
  • 1080p60 UHD video resolution
  • 30x optical zoom
  • NDI ®|HX3 /HDMI/3G-SDI/USB2.0 video interface
  • Audio output via HDMI, NDI®|HX3 and 3G-SDI
  • SRT supported
  • Power over Ethernet
  • Overview
  • Tech Specs

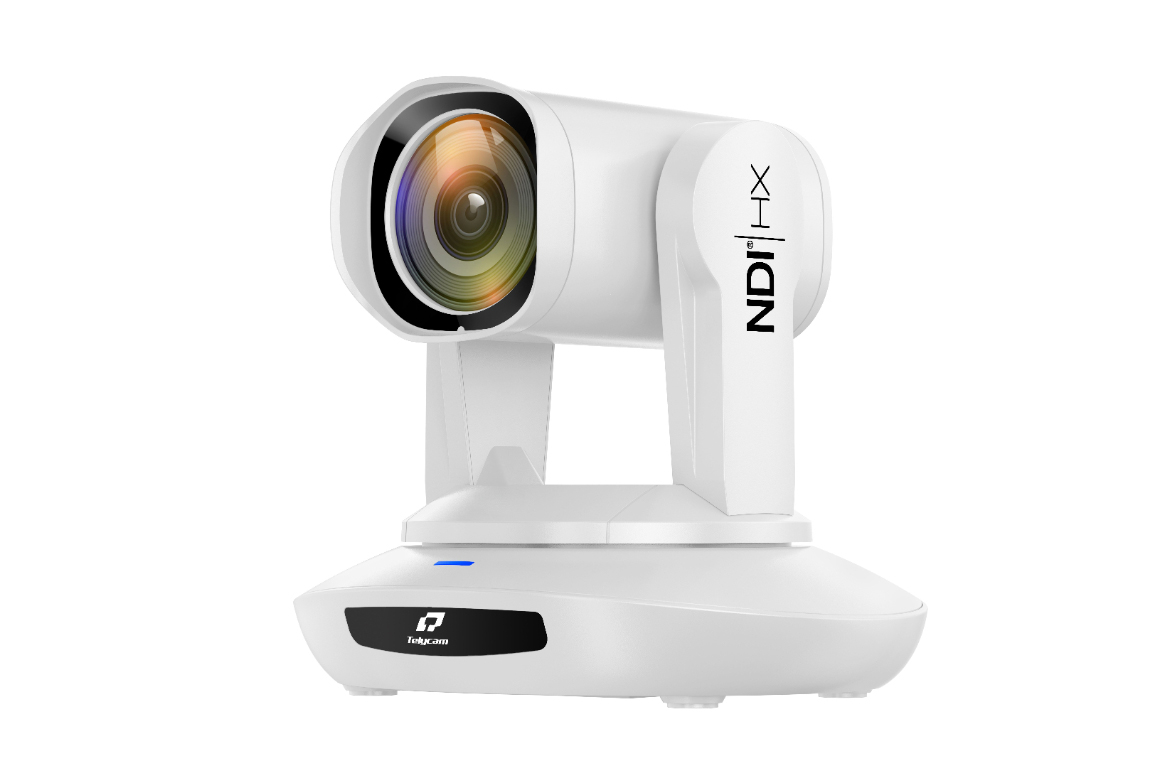

TLC-700-IP-30 (NDI)-AB is a premium NDI ® |HX3 1080p60 30X PTZ camera, integrated with latest the NDI® 5.5 SDK, equipped with American most advanced image processing solution, Sony 1/1.8-inch 12MP sensor, to deliver high definition and crystal clear image. It has smooth PTZ mechanical design, to make accurate and stable pan, tilt, and zoom movement. NDI®|HX, HDMI, SDI, and USB2.0 simultaneously output Full HD resolution, ideal for professional live streaming applications.

Support NDI®|HX3
Comply with NDI®|HX3 certification, provide extremely low latency and visually lossless compressed image.

FHD resolution
Equipped with premium image processing solution and Sony sensor, to deliver high definition and crystal-clear image.

30x optical zoom
Shoot with a 30x optical zoom lens, along with silent movement, and accurate focus to capture full details on air.

H.264 and H.265
Flexible support to both H.264 and HEVC compression.

3G-SDI/HDMI/USB3.0 Available
In addition to NDI ®|HX, 3G-SDI, HDMI and USB3.0 output image simultaneously as well. 3G-SDI and HDMI are for conventional video production workflow, and USB output can be used as a high-end webcam.

SRT supported
SRT enables the delivery of high-quality and secure, low-latency video across the public Internet. SRT optimizes streaming performance across unpredictable networks with secure streams and easy firewall traversal, bringing the best quality live video over the worst networks.

RTMP
RTMP stands for Real-Time Messaging Protocol. This protocol facilitates the transmission of audio, video, and data in real-time. It is a key component of live streaming technology because of its ability to maintain low-latency connections. RTMP/RTMPS enables live-streaming to YouTube Live, Facebook live and other platforms directly.

Power over Ethernet
A single cable to realize power, video, control and Tally for the camera.

Program and Preview Tally
The indicator light can work as Tally when receive tally notification from the NDI® devices, to show the live is on or off.

High Quality Audio
Built in professional level audio in for line in input.

Video Format
  • HDMI: 11920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
  • NDI ® |HX3: Main Stream：1920*1080@15~60;1280*720@15~60;1024*576@15~60
    Sub Stream：640*360@15~60
  • 3G-SDI: 1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
  • USB2.0 (Bulk): NV12 :1920*1080p5;1280*720p15;1024*576P25;800*448P30;
    YUY2:1920*1080p5;1280*720p10;1024*576P15;800*448P30;
    MJPG:1920*1080P30; 1280*720P30; 1024*276P30; 800*448P30
    H264/:1920*1080P30; 1280*720P30; 1024*576P30; 800*448P30

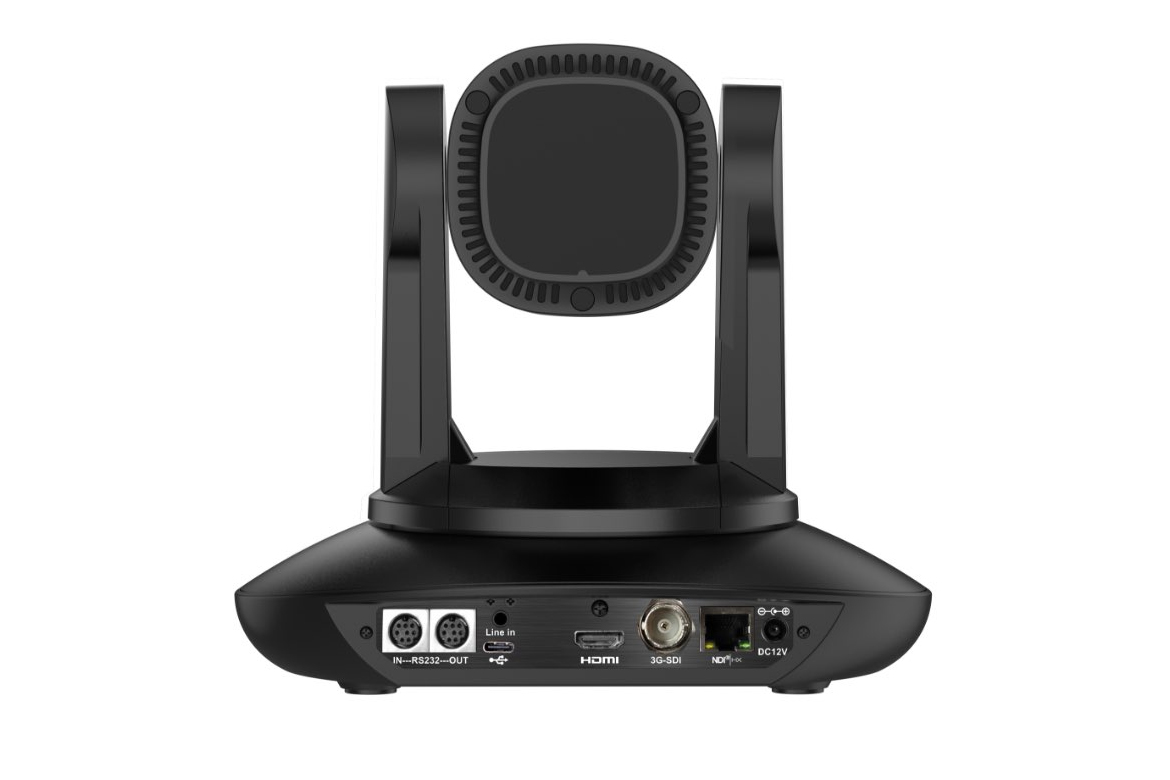

Video Interface HDMI / 3G-SDI / USB Type-C / NDI®|HX3
Audio Interface Dual 3.5mm linear inputs
Sensor Sony 1/1.8-inch high quality, 12MP UHD CMOS sensor
Lens 6.91～214.64mm，F1.35 – 4.6，Viewing angle: 59° (Wide) – 1.98° 9(Tele)

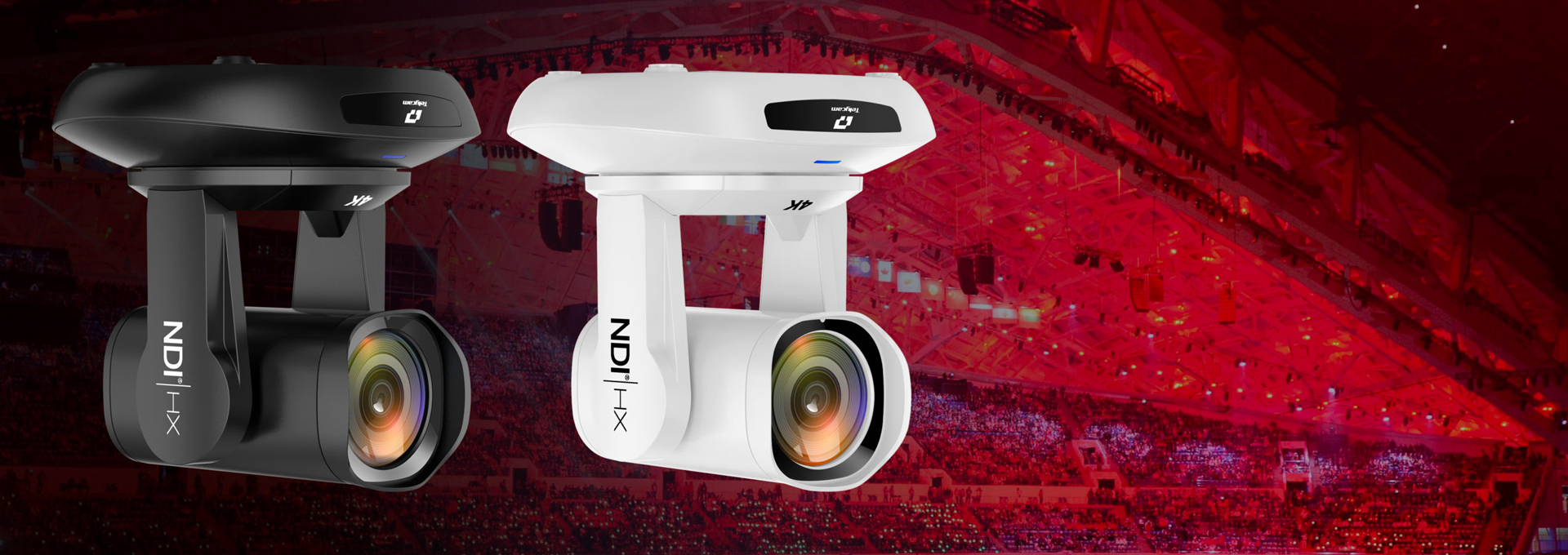

Pan/Tilt Rotation Range Pan:±170°； Tilt：-30°~+90°， Up-side down supported
Pan/Tilt Rotation Speed Pan：0.1°-120°/s； Tilt：0.1°80°/s
Preset 10 via remote controller，128 via serial，accuracy：0.1°
Control Port RS232,RS485, NDI ®|HX3
Network port speed 1000M
Encode Standard H.264/H.265
Bitrate Control Variable Bitrate, Constant Bitrate
Video Bitrate 1024kbps~16384Kbps
Supported Protocol TCP/IP，NDI® HX3, HTTP，RTSP，DHCP，RTMP，ONVIF，VISCA over IP(TCP&UDP)，HTML5，VISCA，PELCO P/D
POE+ Supported
Daisy Chain Supported
Min Lux 0. 1lux
White Balance Auto/Manual/Auto Tracking/One Push/Indoor/Outdoor
Exposure Auto/manual/shutter priority/iris priority/brightness priority
Focus/Iris/Shutter Auto/Manual
Gamma /WDR/Backlight compensation Supported
2D/3D noise reduction Supported
Anti-Flicker OFF/50Hz/60Hz
Pan/Tilt Flipping Supported
Power Supply DC12V/POE+(IEEE802.3at)
Color Black/White

Learn More
Dimension
  • 220mm×190mm×173mm

Net Weight
  • 1.35kg
