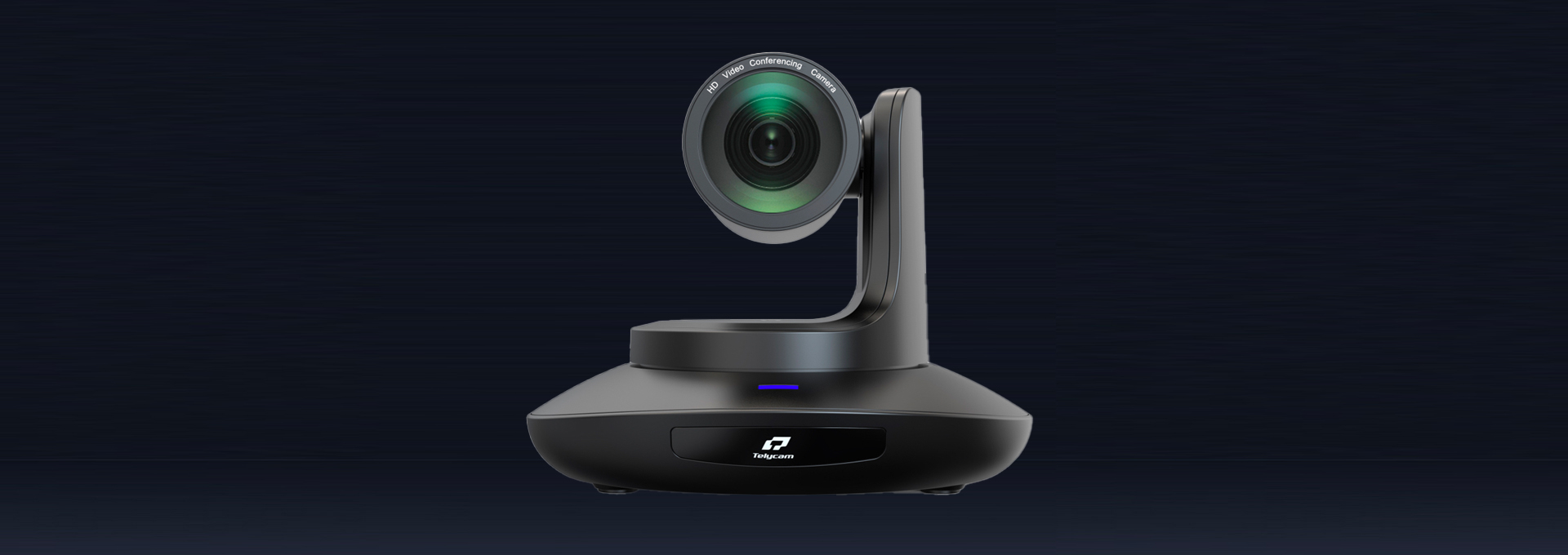

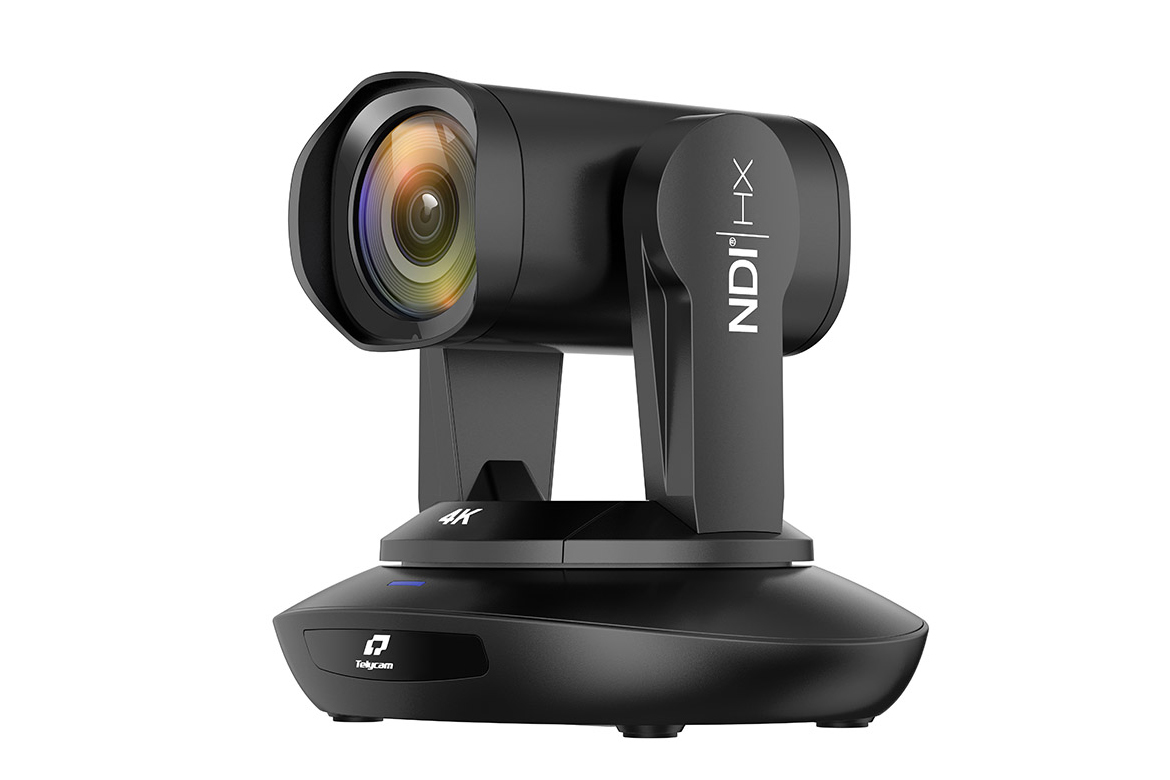

4K NDI® Camera TLC-700-IP-30-4K(NDI)-AB
Product Highlights
- 4K60 UHD video resolution
- 30x optical zoom
- NDI ®|HX /HDMI2.0/3G-SDI/USB2.0 video interface
- Embed the Latest NDI ®5.5 SDK
- SRT supported
- Power over Ethernet
- Overview
- Tech Specs
TLC-700-IP-30-4K(NDI)-AB is a truly 4K60 30X PTZ camera, integrated with the latest NDI ® SDK, equipped with the American most advanced image processing solution, Sony 1/1.8-inch 12MP sensor, truly 4K 30x lens, to output 4K60 sharp image. It has a smooth PTZ mechanical design, to make accurate pan, tilt, and zoom movement. NDI®|HX, HDMI, SDI, and USB2.0 simultaneously output 4K UHD and Full HD resolution, ideal for professional live streaming applications.
Ultra HD 4Kp60/59.94 Resolution
TLC-700-IP-30-4K(NDI)-AB features a state-of-the-art image processor, Sony 1/1.8” inch 12-megapixel sensor, and outputs an ultra-high-definition video resolution of 3840*2160 p59.94/60 to display clear, sharp, and lifelike images to users, even in low-light working environments.
30x optical zoom
It shoots with a 4K 30x optical zoom lens with a 60-degree field of view, and a proprietary focusing algorithm enable fast and precise focus performance when zooming or moving, to capture every detail of the scene.
Smooth and Quiet PTZ Movement
Perform real-time pan, tilt, and zoom camera movements with motor-driven PTZ camera control and configurable preset positions. Focus, white Balance, exposure, iris can be adjusted automatically or manually. 128 presets supported; Exposure parameter and white balance parameter can be saved in presets (in manual mode).

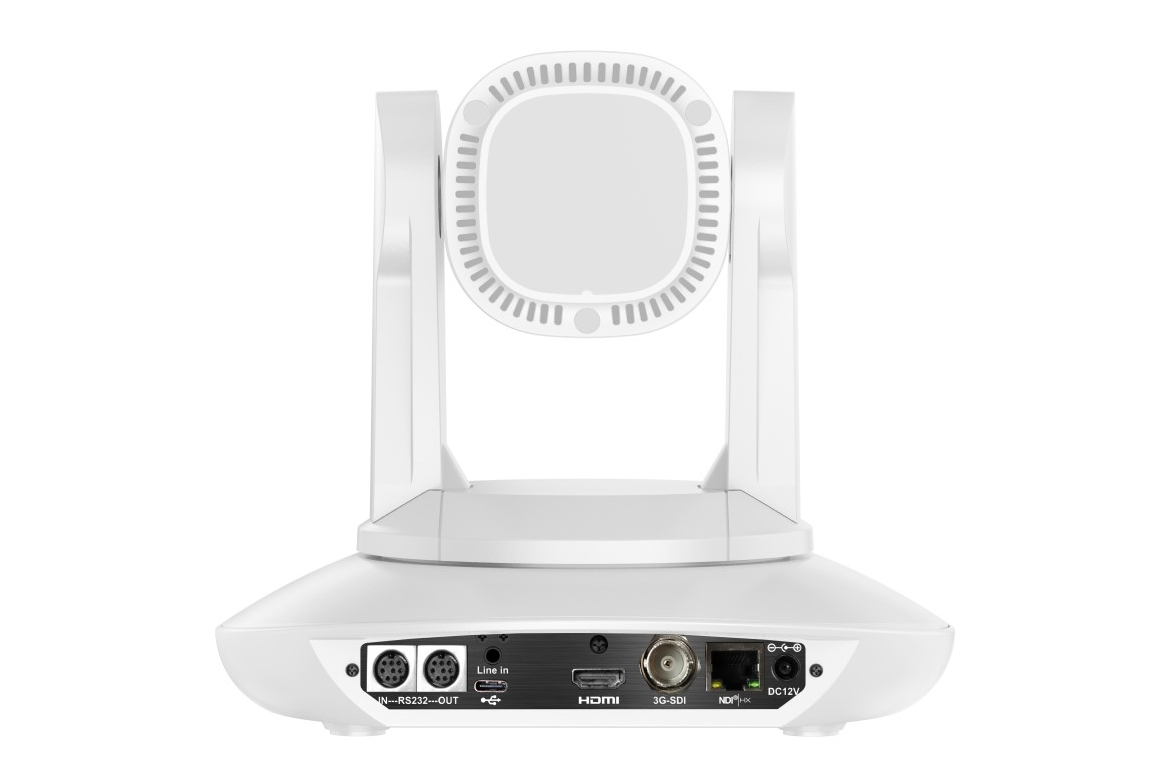

NDI|®HX , HDMI2.0, 3G,-SDI and USB various video output interface
With full video output interface, NDI®|HX and HDMI2.0 output max up to 4Kp60/59.94 resolution simultaneously, 3G-SDI (both level A and level B) and USB-C output max up to 1080p60/59.94 at the same time.
Embed the Latest NDI ®5.5 SDK
Newtek’s NDI® creates a plug-and-play environment for various products and platforms in live streaming, making it possible to produce abundant and diverse live content.
SRT supported
SRT enables the delivery of high-quality and secure, low-latency video across the public Internet. SRT optimizes streaming performance across unpredictable networks with secure streams and easy firewall traversal, bringing the best quality live video over the worst networks.
RTMP
RTMP stands for Real-Time Messaging Protocol. This protocol facilitates the transmission of audio, video, and data in real-time. It is a key component of live streaming technology because of its ability to maintain low-latency connections. RTMP/RTMPS enables live-streaming to YouTube Live, Facebook live and other platforms directly.
Power over Ethernet
A single cable to realize power, video, control and Tally for the camera.
Program and Preview Tally
The indicator light can work as Tally when receive tally notification from the NDI® devices, to show the live is on or off.
High Quality Audio
Built in professional level audio in for line in input.
Video Format |
|
Video Interface | HDMI2.0,3G-SDI,IP(NDI),USB2.0 |
Audio Interface | Dual 3.5mm linear inputs |
Sensor | Sony 1/1.8-inch high quality, 12 MP UHD CMOS sensor |
Lens | 6.91~214.64mm,F1.35 – 4.6,Viewing angle: 59° (Wide) – 1.98° (Tele) |
Pan/Tilt Rotation Range | Pan:±170°; Tilt:-30°~+90°, Up-side down supported |
Pan/Tilt Rotation Speed | Pan:0.1°-80°/s; Tilt:0.1°-60°/s |
Preset | 10 via remote controller,128 via serial,accuracy:0.1° |
Control Port | RS232, RS485, NDI ®|HX RJ45 (VISCA over IP)、USB2.0(UVC1.1) |
Network port speed | 1000M |
Encode Standard | H.264/H.265 |
Bitrate Control | Variable Bitrate, Constant Bitrate |
Video Bitrate | 1024kbps~61440kbps |
Supported Protocol | TCP/IP, NDI ®|HX, HTTP, RTSP,DHCP, RTMP,ONVIF, VISCA over IP(TCP&UDP), HTML5,VISCA, PELCO P/D |
POE+ | Supported |
Daisy Chain | Supported |
Min Lux | 0. 1lux |
White Balance | Auto/Manual/Auto Tracking/One Push/Indoor/Outdoor |
Exposure | Auto/manual/iris priority/brightness priority |
Focus/Iris/Shutter | Auto/Manual |
Gamma /WDR/Backlight compensation | Supported |
2D/3D noise reduction | Supported |
Anti-Flicker | OFF/50Hz/60Hz |
Pan/Tilt Flipping | Supported |
Power Supply | DC12V/POE+(IEEE802.3at) |
Color | Black/White |
Dimension
- 220mm×190mm×173mm
Net Weight
- 1.35kg
