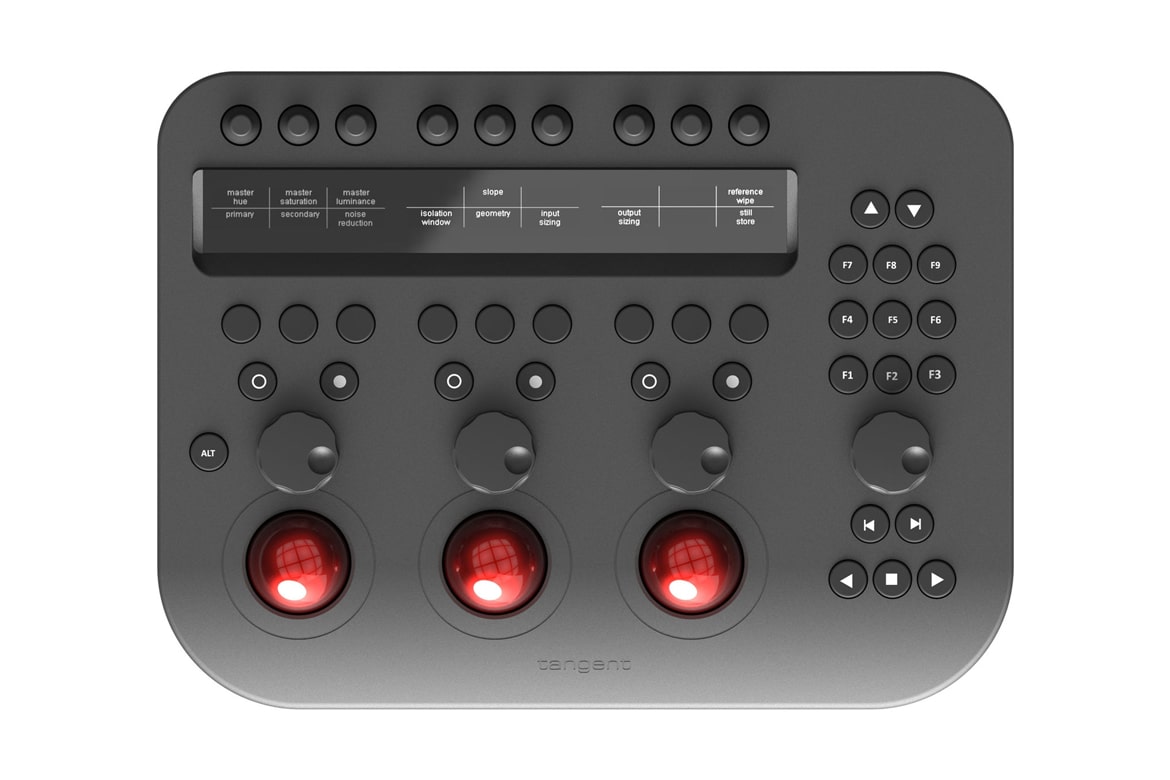

Wave2 Panel

When you need an all-in-one control surface, the Wave2 has it all.
Features
  • Compact form with durable finish
  • High resolution, long-life trackerballs with optical pickups
  • High resolution, long-life knobs with optical pickups
  • Knobs have a built-in "press to reset" switch
  • Displays to indicate mode and function of many controls

USB for communication and power
  • USB plug-and play (HID device therefore no drivers are required)
  • USB powered (so no need for external power supply)
  • A single USB cable

  • Overview
  • Tech Specs

The Wave2 offers a comprehensive range of controls on a compact panel.

Precise and portable
The Wave2 has been designed to offer maximum functionality for the minimum of desk space. This means it's equally at home on a desk or on-set. The panel features crisp, easy to read, ice-white OLED displays to label many of the controls which will be used to operate multiple functions. The trackerballs and knobs both use non-contact, high resolution optical pickups for responsiveness and long life. As all controls are designed to be context-sensitive you'll be able to keep your most needed controls at your fingertips. The Wave2 will increase your productivity, leaving you to get on with what you're best at doing - being creative!

Widely supported
Most of Tangent's software partners have released versions of their applications which support the Wave2. The majority of these applications also support the Tangent Mapper* which means that you can even customise your control layouts.

Interface USB 2.0
Controls Trackballs: 3 x optical
Knobs: 3 x optical
Buttons: 9 x programmable
Function Buttons: 9 x programmable
Jog Dials: x 4
Transport Controls: x 5
Power USB 2.0, minimum 500 mA
Dimensions (HxWxD) 15.3 x 11.4 x 1.9" / 388 x 289 x 47 mm
Weight 3.2 lb / 1.45 kg

Controls
  • 3x Programmable trackerballs with Master dials
  • Individual reset buttons for ball and dial
  • 2x Additional buttons for SHIFT / ALT etc.
  • 9x Programmable buttons
  • 9x Programmable knobs with integral push button resets
  • 3x Displays to label programmable knobs and buttons
  • 9x Programmable function buttons
  • Standard transport controls with jog dial

Dimenssions
  • Dimenssion
    15.3 x 1.8 x 28.9 in / 38.8 x 4.7 x 28.9 cm
