Control and Connect

Easy Access to Mac Studio and PCIe Card Expansion Module

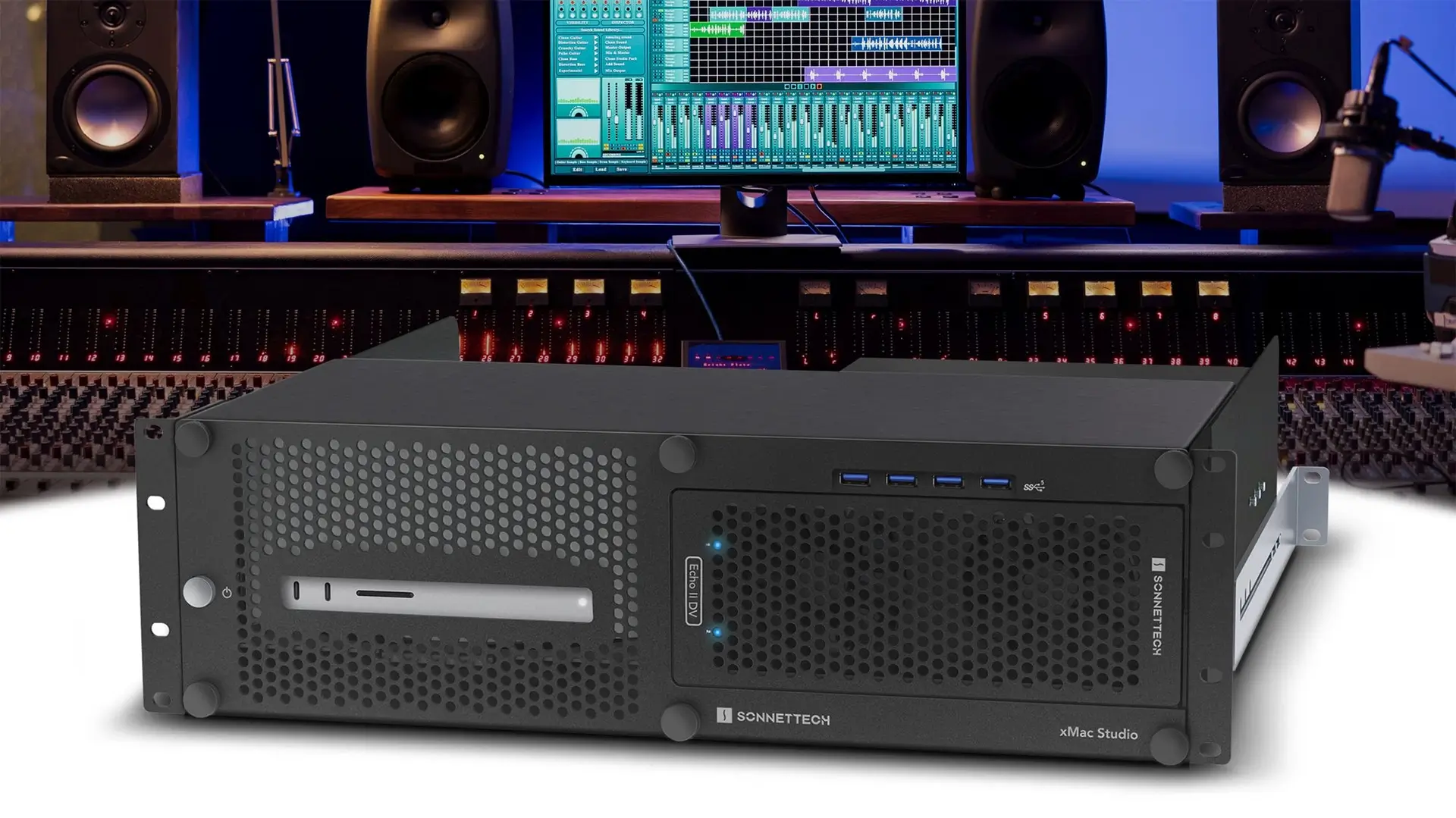

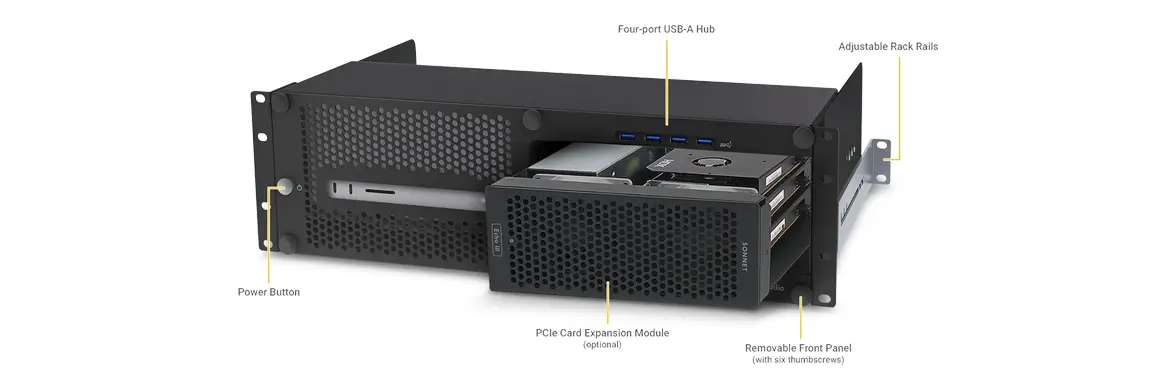

xMac Studio is a rugged steel 3U rackmount enclosure for securing a Mac Studio with optional PCIe card expansion module in a rack, placing the Mac Studio behind a quick and easy to remove front panel. Convenient front panel operation allows you turn Mac Studio on with its own dedicated front power button, connect USB devices through a 4-port USB-A hub, and access the computer’s front ports and SD card slots.

An opening on top of xMac Studio ensures hindrance-free wireless signal access. The xMac Studio is designed to allow normal WiFi and Bluetooth wireless operation in most configurations (depending on rack type and position in rack), so you can use wireless devices and iOS^® device control apps.

Cool Design

Go with the Airflow – Supports the Mac Studio Thermal Design

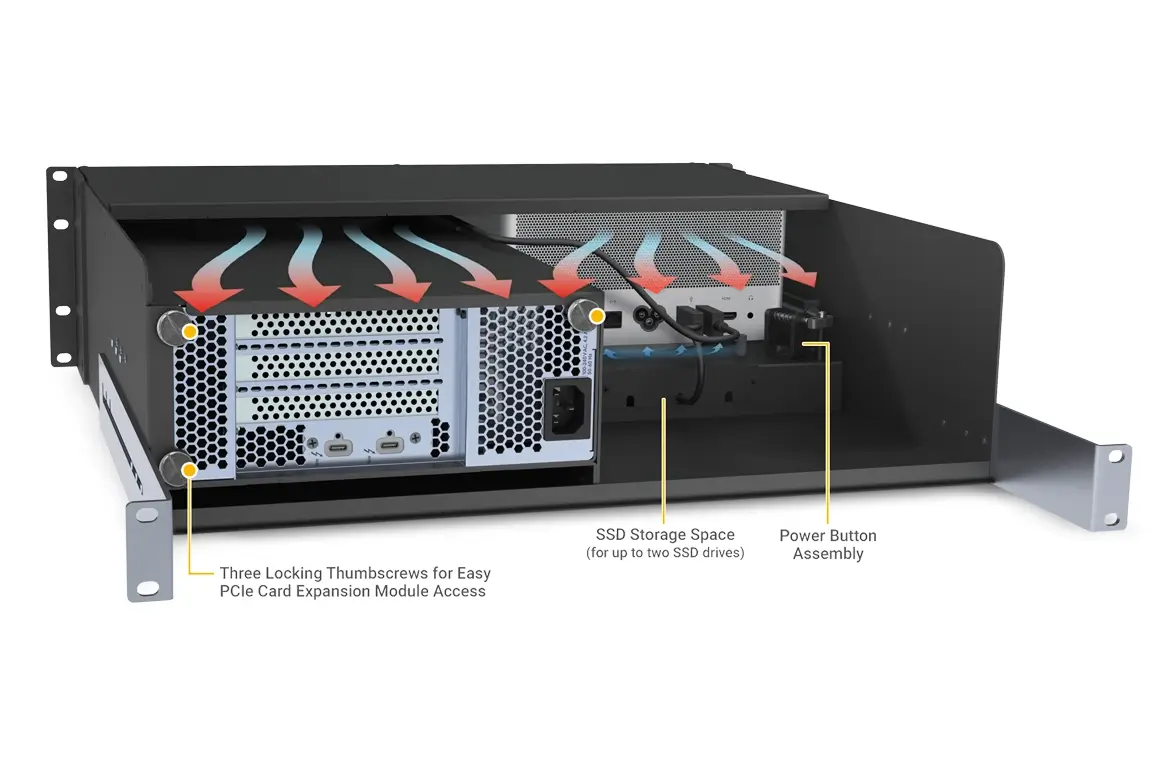

xMac Studio secures your Mac Studio without trapping in recirculating hot rack air, supporting its thermal design to keep it as cool in a rack as out on a desk. Ventilation holes on the enclosure’s front panel plus an enclosed chamber beneath the Mac Studio ensures the computer’s ability to draw in cool air through its base, while a completely open back enables it to expel warm air out the back unimpeded.

Space for SSDs

Secure Two Thunderbolt or USB SSDs Under the Mac Studio

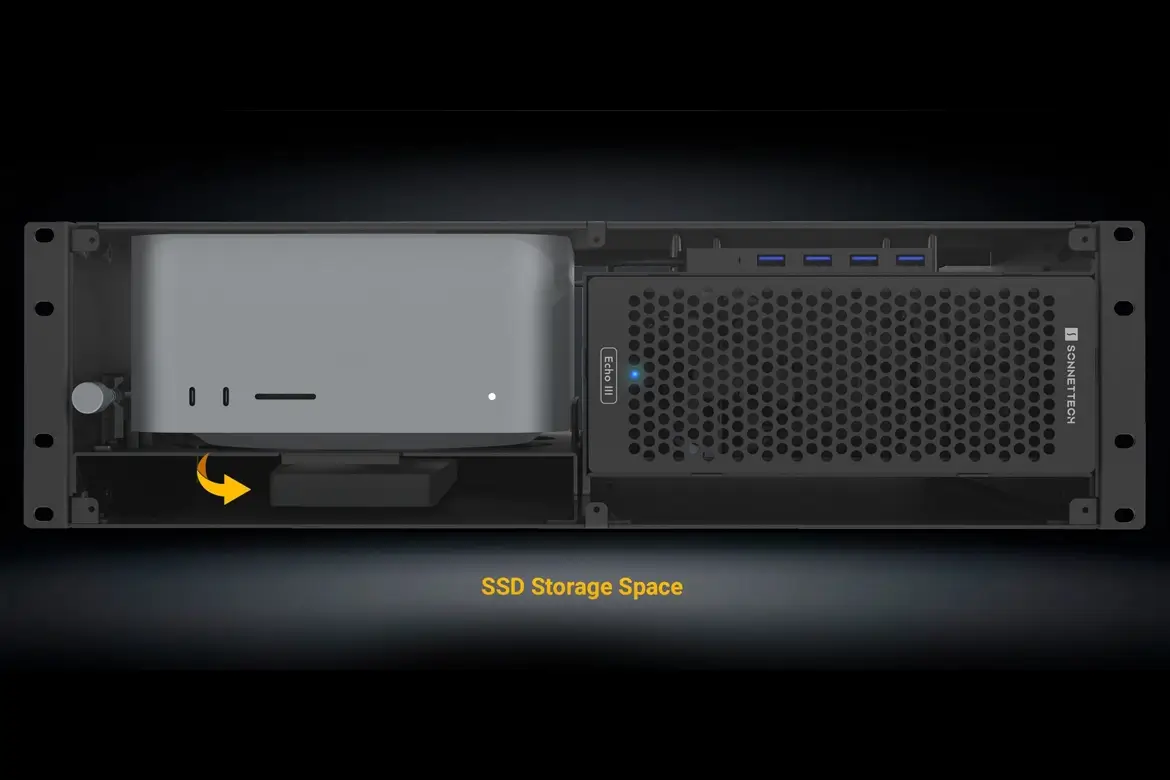

xMac Studio provides space beneath the computer to house two Thunderbolt or USB SSDs (sold separately) up to 3.2 inches wide by 0.75 inch tall. Simply remove the rear access panel, apply the supplied adhesive-backed magnet to the bottom of the SSDs, insert the SSDs and connect them to the computer, and then reinstall the panel. The space is also suitable for other thin, bus-powered devices.

Part Number	XMAC-STD-IIDVT5
Hardware
Form Factor	3U rackmount enclosure
External Connectors	Four USB-A ports
Included Echo II DV T5 Module
External Connectors	Four Thunderbolt 5 ports Power (C14-type)
Thunderbolt 5 Computer Ports	Cables Supported - Thunderbolt 5 or Thunderbolt 4 cables Cables Not Supported - Thunderbolt optical cables
Thunderbolt Peripheral Ports	Connectivity With USB-C connector Peripherals Supported Thunderbolt 5, 4, 3 devices USB4, 3, 2, 1 devices Thunderbolt 5, 4, 3, and USB-C monitors DisplayPort and HDMI monitors
Internal Connector	Two auxiliary power; each provides up to 75W of power for PCIe cards that require supplemental power
Expansion Slots	Two x16 mechanical (x4 electrical) PCIe 4.0
PCIe Cards Supported	Two full-length, full-height, single-width PCIe cards
Power Supply	Universal 400W, 115-230V AC, 50-60 Hz
Operating Temperature	0°C to 35°C (32°F to 95°F)
Dimensions (WxDxH)	19 x 16.5 x 5.2 in. (48 x 41.9 x 13.3 cm)
SSD Maximum Height	0.7 in. (18 mm) inserted from rear 0.9 in. (23 mm) inserted from front
Weight	21 lbs (9.53 kg)
