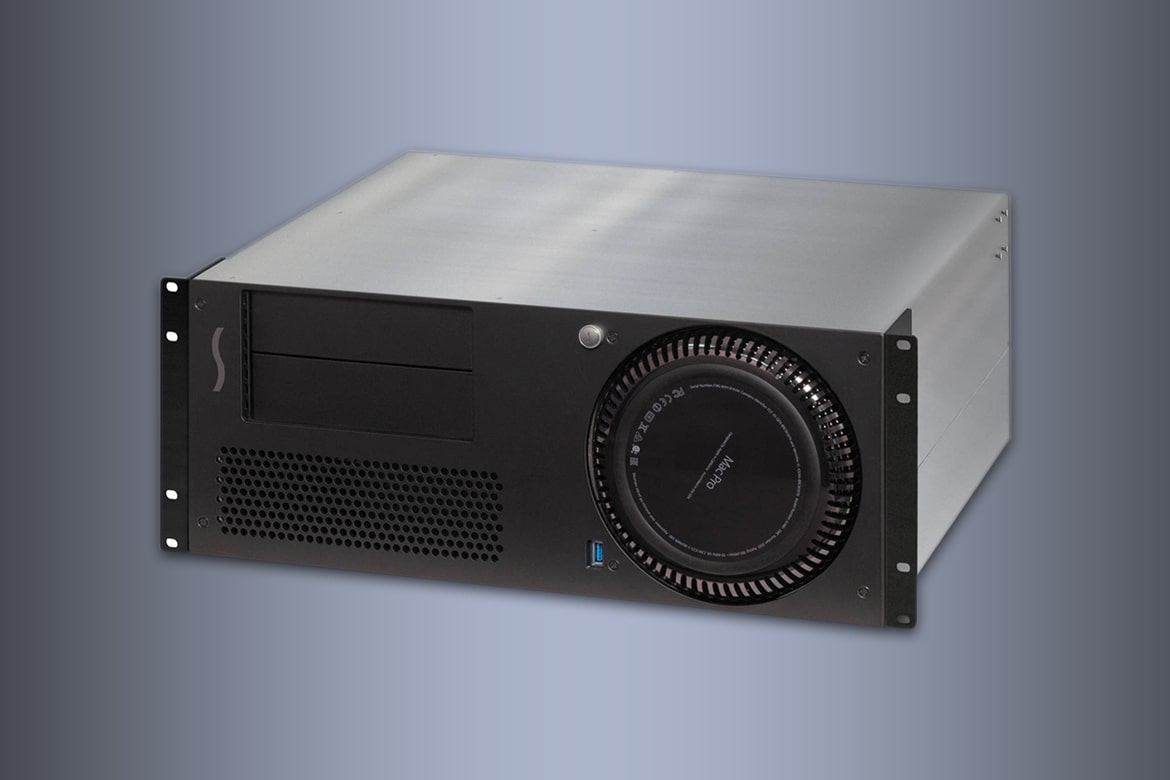

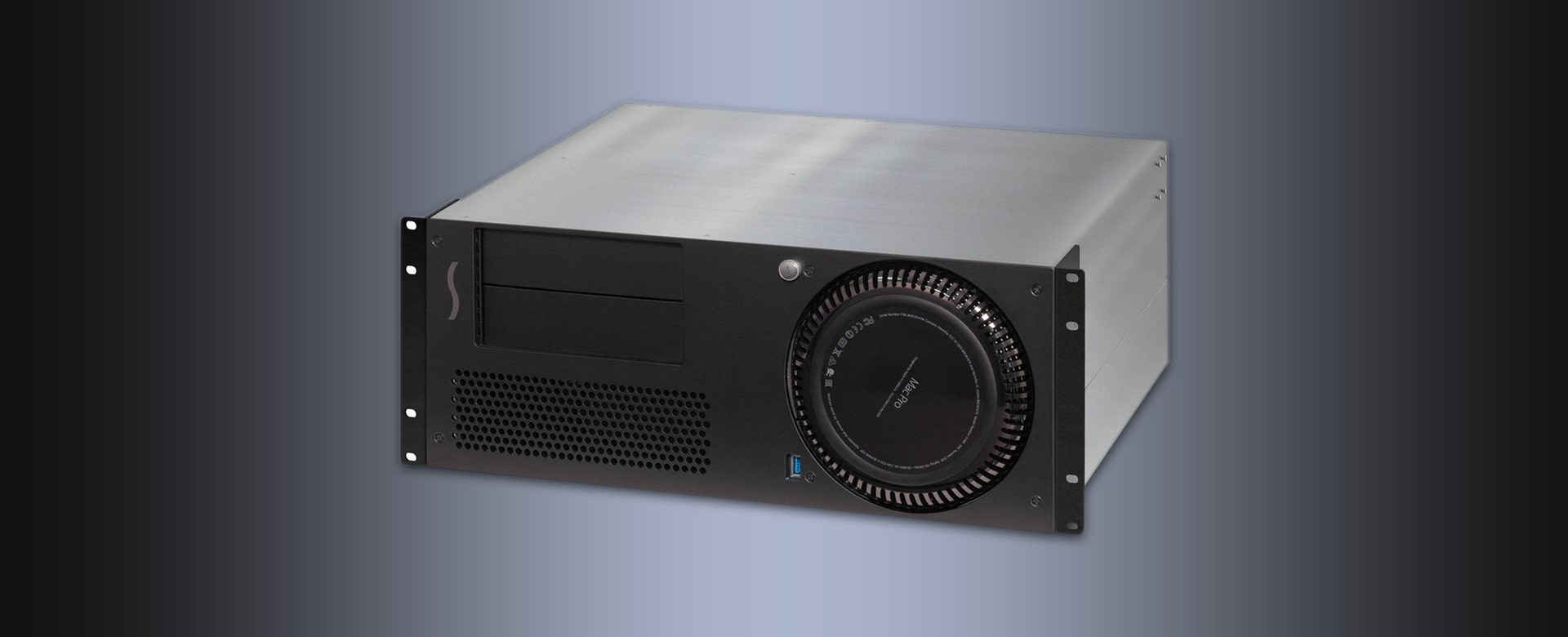

Sonnet xMac Pro Server

PCIe 2.0 Expansion System/4U Rackmount Enclosure for New Mac Pro with Thunderbolt 2 Ports

Key Features

Provides PCIe Card Expansion for Mac Pro—Use high-performance PCIe cards with the latest Mac Pro
Makes Your a Pro Road-Ready—4U rackmount enclosure securely holds the computer and PCIe cards in place, adding mobility to your Mac
Three PCIe Slots—Supports three full-length, full-height, single-width cards, or one double-width card plus one single-width card
Thunderbolt 2 Interface—Maximum performance with Mac Pro; backward compatible with devices equipped with 10Gbps Thunderbolt technology
Improved Design—New captive thumbscrews and two faceplates enable easier computer and PCIe card installation, and simpler cable access
Power for High Performance PCIe Cards—Integrated 300W power supply provides plenty of power for any cards you install; 75W auxiliary PCIe power connector enables use of power hungry cards.
Provides Space for Additional Devices—Using optional Mobile Rack Device Mounting Kits, you can install HDDs, SSDs, a tape or optical drive, and more inside the xMac Pro Server's enclosure
Remarkably Quiet—Temperature-controlled, variable-speed fans automatically and quietly cool installed PCIe cards
Front Panel Operation, Rear Panel Connectivity—Front panel power button activates power switch on Mac Pro; USB 3.0 port enables connection of peripheral devices such as a keyboard, mouse, thumb drives; two Gigabit Ethernet, three USB 3.0, and HDMI ports are mounted at the rear of the chassis for easy connectivity
Energy Efficient—Variable-speed fans automatically adjust to the unique needs of each configuration, and the auto power on/off feature ensures there is no energy wasted with cards powered on when the Mac Pro is sleeping or off
Supports Thunderbolt Expansion—Enables daisy chain connection of additional Thunderbolt technology devices when other Mac Pro Thunderbolt ports are in use
Every Thunderbolt-Compatible PCIe Card Supported—Works with every Thunderbolt-compatible PCIe card, regardless of length or height
Thunderbolt Cable & ThunderLok Included—Includes Thunderbolt cable and ThunderLok Thunderbolt connector retainer clip to secure cable from accidental disconnections
Locking HDMI Cable Included—Includes Sonnet-exclusive HDMI cable with locking connector at one end to secure cable from accidental disconnections from xMac Pro Server

Overview
Tech Specs
Videos

Expand & Secure Your Mac Pro
Sonnet’s xMac^™ Pro Server PCIe 2.0 expansion system/4U rackmount enclosure addresses these issues and increases a Mac Pro’s potential in a big way. With amazing expansion capabilities, an easy to maintain modular design, and support for a wide range of popular mobile racks, carts and portable rack cases, xMac Pro Server is the perfect solution for expanding the power of your Mac Pro.

Designed for the Mac Pro

Securely Enclose Your New Mac Pro and PCIe Cards

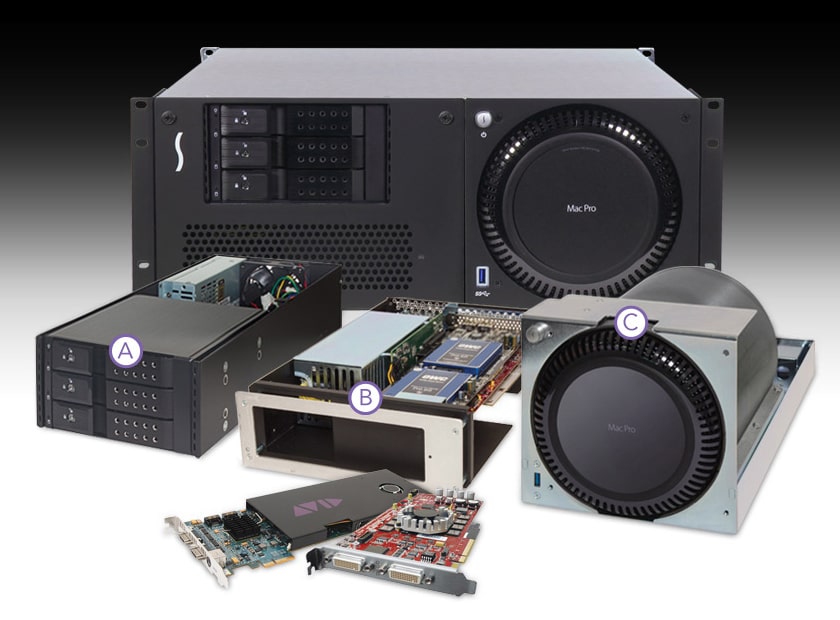

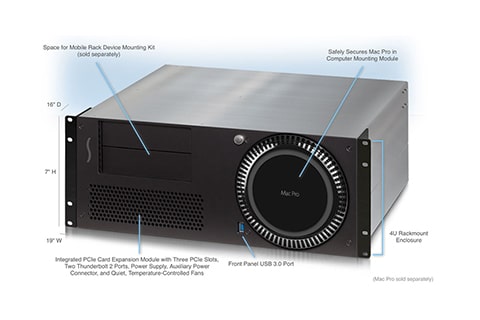

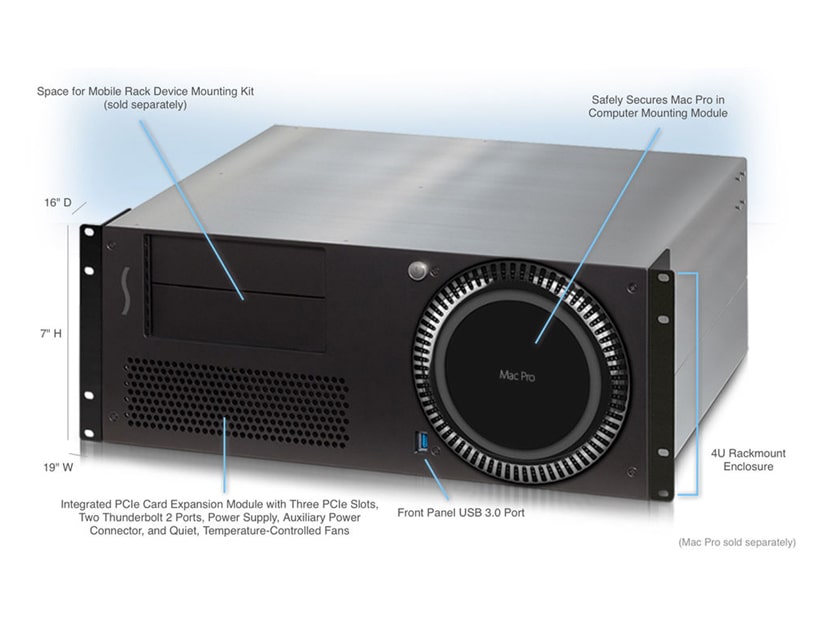

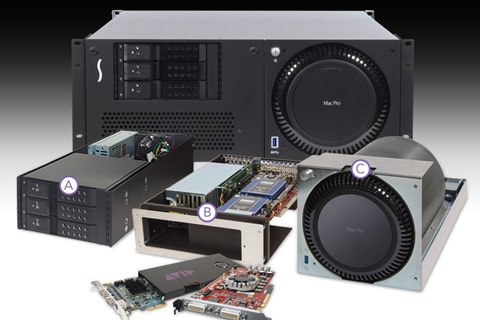

Constructed of heavy-duty steel, xMac Pro Server’s outer 4U rackmount enclosure provides secure mounting and protection for the Mac Pro and PCIe cards installed inside. Hidden behind a handsome front panel, both the computer and PCIe card expansion system reside in separate modules to simplify setup and maintenance, allowing you to work with the computer or cards individually. We know that your Mac Pro is a beautiful, gleaming cylinder, so we constructed a protective enclosure for the computer out of steel, and covered it with soft touch padding to hold the Mac Pro firmly in place while protecting its mirror finish. The remaining space in the enclosure is perfect for installing a Mobile Rack Device Mounting Kit with additional equipment such as HDDs and SSDs, a tape drive or optical drive, or even a Twin 10G Dual-Port 10 Gigabit Ethernet Thunderbolt 2 Adapter.

Features Thunderbolt 2 Technology

High Speed Connectivity
Thunderbolt provides fast external connections to high-speed peripherals and high-resolution displays, all through one port. Combining the power of PCI Express (PCIe) technology and DisplayPort connectivity, Thunderbolt provides a gateway for your Mac to a world of external expansion systems, storage, video capture solutions and 4K displays.

Through one connector, Thunderbolt 2 provides two channels of 20Gbps of throughput in both directions. That's more than enough bandwidth to daisy chain up to six high-speed peripherals, including a 4K display, without the need for external power or hubs.

Thunderbolt 2 incorporates DisplayPort 1.2 protocol which allows video streaming to a single 4K video monitor or dual QHD monitors. Thunderbolt 2 is backwards compatible with earlier Thunderbolt devices, connectors, and cables at 10Gbps speeds.

Broad PCIe Card Support

Connect Up to Three PCIe Cards to Your New Mac Pro
The latest Mac Pro's compact size makes it more transportable and rack space efficient than the older tower, but it doesn't accommodate onboard PCIe cards or storage expansion. Sonnet’s xMac Pro Server supports three full-length PCIe cards through its PCIe Card Expansion Module. It integrates a universal 300W power supply and includes a 75W PCIe power connector for cards that require supplementary power. Even with all that power, xMac Pro Server is enviro-friendly; it automatically powers the PCIe expansion system on or off whenever the connected computer powers on or wakes, or powers off or sleeps, respectively.

Price: Upon Request

Part Number	XMAC-PS
Hardware
Dimensions (WxDxH)	19 x 16 x 7 in. (48.3 x 40.6 x 17.8 cm)
Weight	32.5 lbs (14.7 kg)
Rack Depths Supported	16 to 26 in. standard 22.5 to 32.5 in. with optional Extension Rails
External Connectors	Two RJ-45 Gigabit Ethernet port extensions Four USB 3.0 port extensions (one front-mounted, and three rear-mounted) One HDMI port extension One 3.5 mm audio (in or out) extension One C-13 power port extension
Internal Connectors	One 6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard; provides up to 75W of power for PCIe cards that require supplemental power) One C-13 power
PCIe Expansion Slots	Top to Bottom One x8 mechanical (x4 electrical) PCIe 2.0 One x16 mechanical (x8 electrical) PCIe 2.0 One x8 mechanical (x8 electrical) PCIe 2.0
PCIe Cards Supported	Three full-length PCIe cards, or One full-length, double-width PCIe card, plus one single-width card
Compatible PCIe Cards	Up-to-date PCIe cards listed on Sonnet's supporting PCIe Card Thunderbolt Compatibility Chart
Power Supply	Universal 300W, 115-230V AC, 50-60 Hz
Operating Temperature	0® C to 35® C (32® F to 95® F)
RoHS Compliant	Yes

Price: Upon Request

Learn more

Compatibility

Mac Pro (Late 2013)
OS X® 10.9.5+
macOS Mojave compatible

PCIe Card Compatibility

For up-to-date PCIe card compatibility see Sonnet's PCIe Card Thunderbolt Compatibility Chart
macOS Mojave compatible
