Maximize Your Workflow

Connect Demanding Audio and Video Cards to Your Mac mini
The latest Mac mini delivers exceptional processing power, rivaling systems many times its size and cost. Yet in professional environments, raw performance alone isn’t enough — workflows often require secure rack mounting and expanded connectivity beyond what the Mac mini provides out of the box.

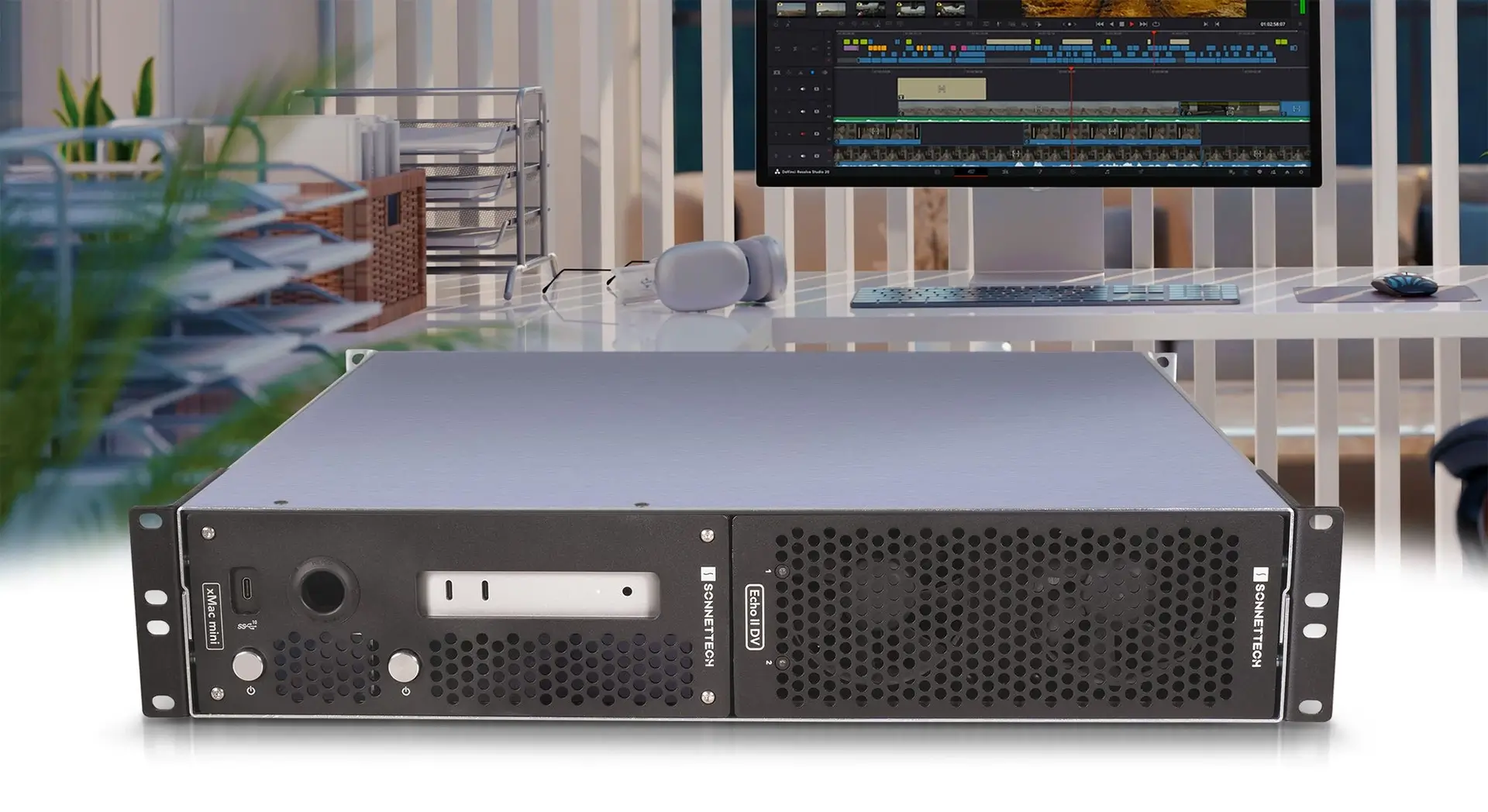

xMac mini (2024+) systems solve this challenge, seamlessly integrating one or two Mac minis into a rugged, compact 2U steel rackmount enclosure. Each system combines a dedicated computer mounting module with a Thunderbolt to PCIe card expansion module, delivering the connectivity, flexibility, and reliability demanded by today’s most intensive audio, video, and broadcast production workflows.

Control and Connect

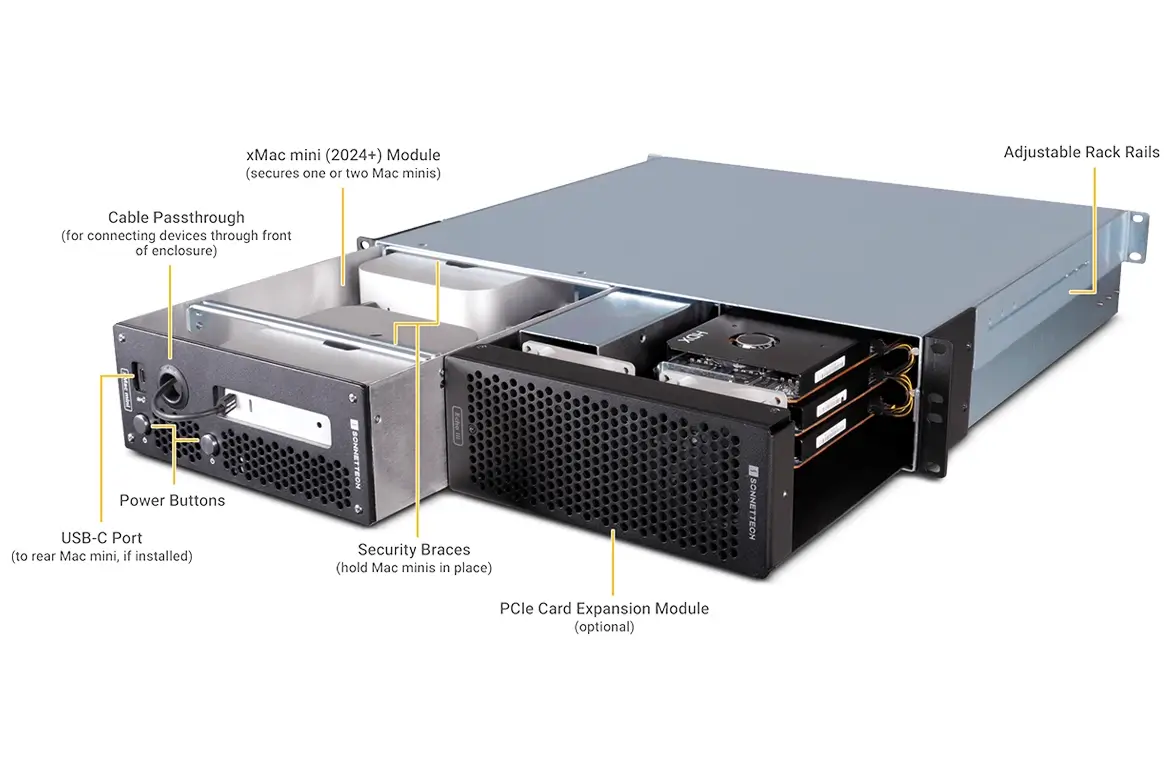

Easy Access to Mac minis and PCIe Card Expansion Module

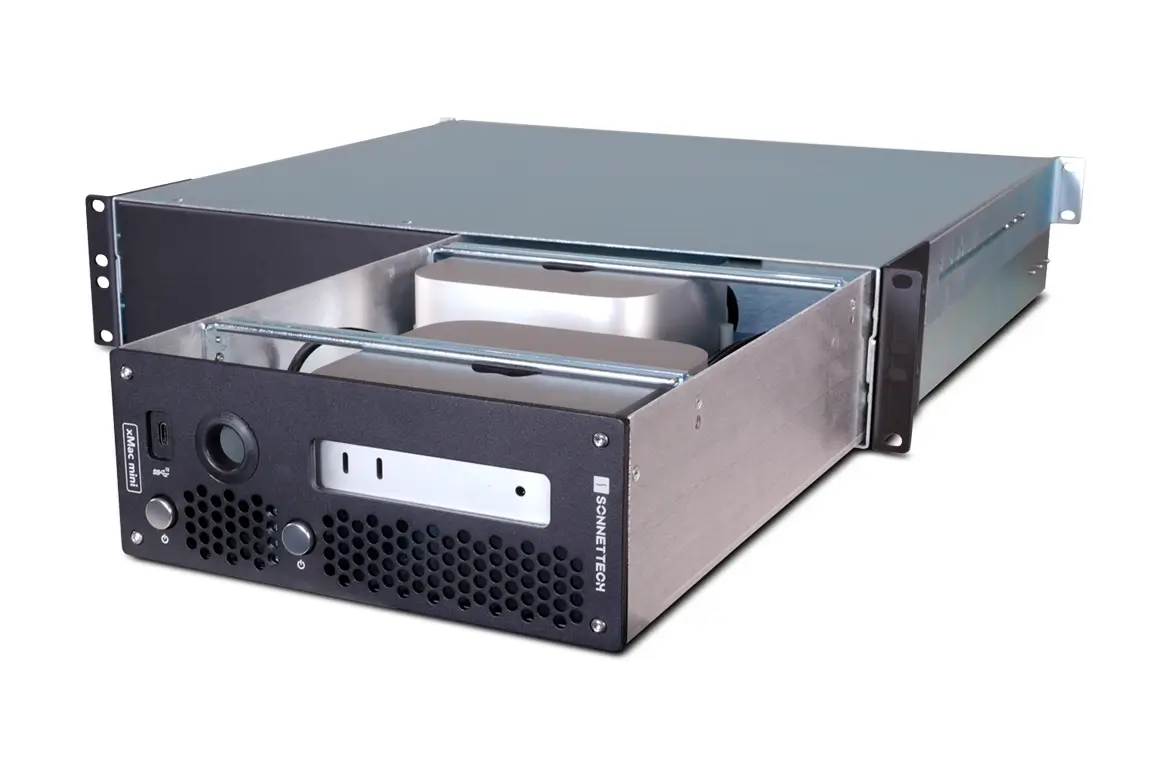

xMac mini (2024+) keeps your Mac minis safely tucked away while providing easy-to-use power buttons for each one — so you can turn them on with just a press. Access is provided to the front ports on the mini mounted in front. A USB-C port provides a connection to the mini mounted in the rear, while a cable passthrough on the front panel enables connection of front computer’s USB connectors to the rear of the rack. The computer mounting and PCIe card expansion modules are secured with two rear panel thumbscrews each, enabling you to easily pull out and access the modules and installed computers and PCIe cards through the front of the enclosure. The xMac mini (2024+) design enables you to connect and disconnect cables without needing to remove the computers from the module.

Designed for Expansion

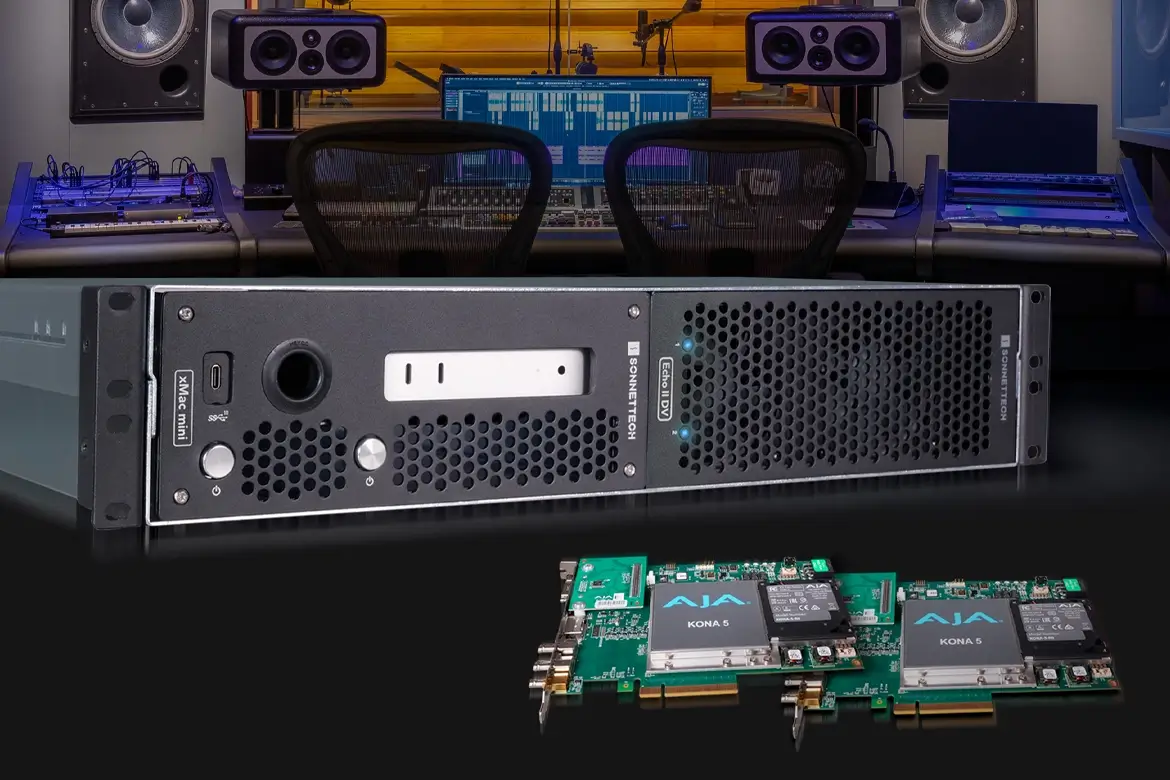

Connect Specialty Audio and Video Cards

Preconfigured
Systems Tailored to Your Workflow.

For many creative professionals, connecting a Thunderbolt to PCIe card expansion system to their computer is essential for utilizing specialized hardware — such as audio I/O and DSP cards, video capture and playback cards, NVMe SSD storage, and other high-performance adapters – required for their demanding workflows. With a Sonnet preconfigured system, choose a configuration with the PCIe card expansion module that best fits your needs.

Flexible
Prefer Options? Add Your Own Module.

xMac mini (2024+) enclosure system is available without a PCIe card expansion module, allowing you to install one later or use an Echo II DV, Echo II DV T5, or Echo III expansion module you may already own from an existing Sonnet Thunderbolt expansion system.

Maximum Expansion
Need to Maximize Mac mini Density?

Mount four Mac minis in just 2U of rack space with by configuring an xMac mini (2024) system with an additional xMac mini (2024+) Module.

Well Ventilated

Supports the Mac mini Thermal Design
xMac mini (2024+) enclosure system secures your Mac minis without trapping them in recirculating hot rack air, supporting their thermal design to keep them as cool in a rack as out on a desk. Ventilation holes on the xMac mini module’s front panel plus enclosed chambers beneath the computers ensures their ability to draw in cool air through their bases, while a completely open back enable them to expel warm air out the back unimpeded.

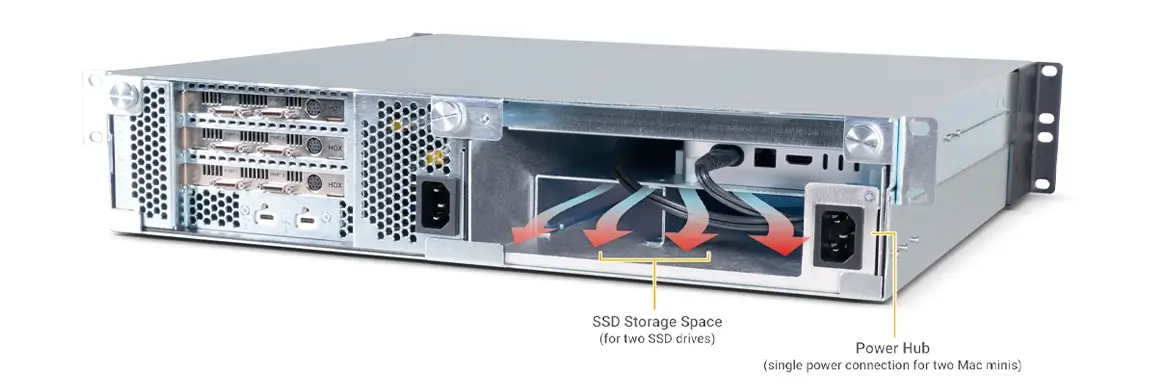

SSD SpaceSecure Two Thunderbolt or USB SSDs Beneath the Mac minisSpace is provided beneath the computers to store two Thunderbolt or USB SSDs (sold separately) at maximum size of 3.2 inches wide by 0.75 inch tall. The space is also suitable for other thin, bus-powered devices.

Ready for the Road

Your Workflow Made Mobile
Do you need to take your workflow on the road? xMac mini (2024+) is a perfect travel solution. Its 16.5-inch mounting depth – plus brackets with firm rubber cushions that securely hold your Mac minis in place during transport – make xMac mini (2024+) perfect for use in molded rack cases from Gator Cases, fly racks from SKB Cases, or most any travel rack.

Part Number	XMM-SYS-0
Form Factor	2U rackmount enclosure
Dimensions (WxDxH)	19 x 16.5 x 3.6 in. (48.3 x 41.9 x 9.1 cm)
Weight	24 lbs (10.89 kg)
