Blazing-Fast 10GBASE-T Connectivity, Cool Price

With recent advances in technology, plus increasingly affordable gear, the transition to capturing and outputting content at 4K and higher resolutions has happened fast—the need for faster than Gigabit Ethernet speeds to transfer all that data has accelerated equally fast. For post-production shared storage workgroups and other bandwidth-intensive workflows, 10Gb Ethernet is the new data transfer standard. Speeding its adoption, very affordable 10Gb Ethernet switches with RJ45 (copper) have significantly reduced the cost of setting up 10GbE infrastructure, but the price of adding client connectivity has remained a barrier for some. Now, there is an equally affordable 10Gb Ethernet interface for your desktop and workstation computers—Sonnet’s Solo10G™ PCIe Card, a powerfully simple solution for adding blazing-fast 10GBASE-T 10GbE network connectivity to Mac®, Windows®, and Linux® computers at a price that’s sure to please.

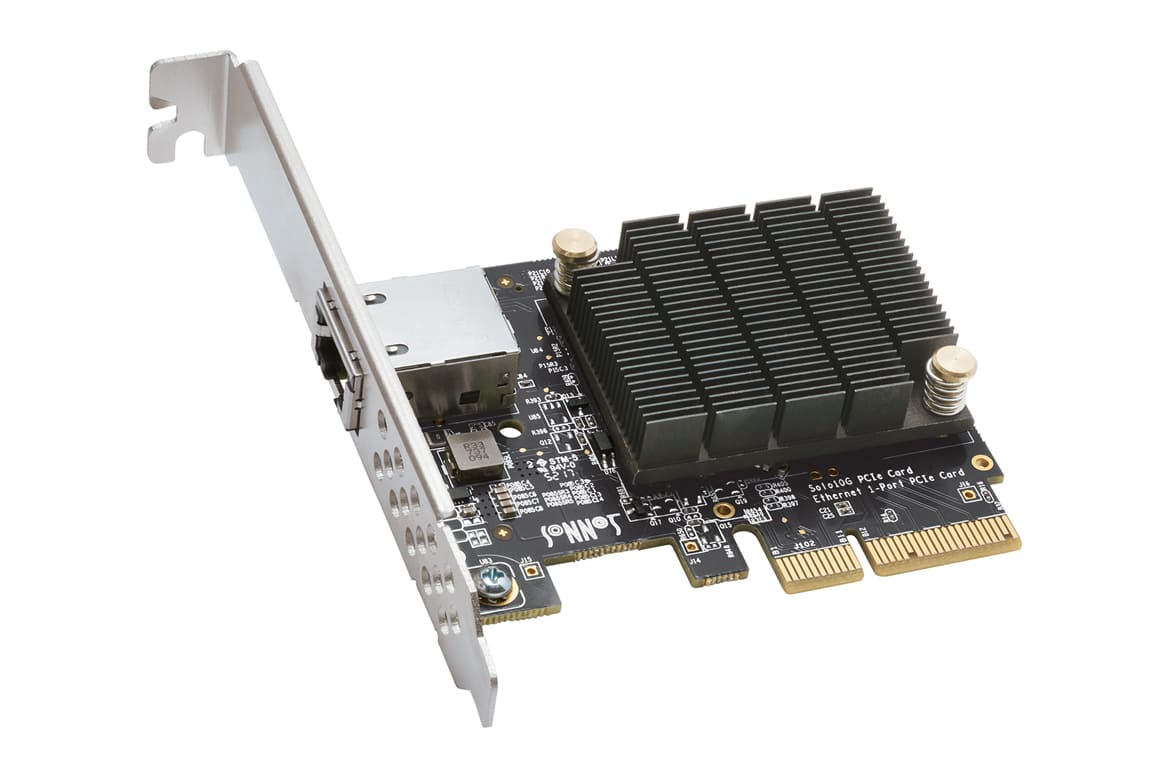

The Solo10G PCIe Card is equipped with a single RJ45 socket, enabling you to connect your computer to 10GbE infrastructure via inexpensive CAT 6 cabling at distances up to 55 meters, or CAT 6A cabling at up to 100 meters.

Faster Transfers Across Existing Cabling Made Possible with NBASE-T Technology

Does your facility have CAT 5e wiring installed already? You can still get a great performance gain—up to 500 percent over Gigabit Ethernet speed—without rewiring! The Solo10G PCIe Card supports the NBASE-T™ standard of 2.5/5 Gb link speeds over CAT 5e (or better) cabling when used with a Multi-Gigabit switch or router. This capability allows you to deploy the same card across an organization for users supported by different Ethernet cabling infrastructures.

Advanced Feature Support

The Solo10G PCIe Card’s high throughput performance and low host-CPU utilization are attained through functions such as flow control, 64-bit address support for systems using more than 4GB of physical memory; and stateless offloads such as TCP, UDP and IPv4 checksum offloading. These processes enable your computer to perform better while large files transfers or high I/O operations take place.

Simple Setup

How simple? Install the Solo10G PCIe Card in your computer or Thunderbolt expansion system, connect to the network switch or directly to 10GbE-enabled storage, and configure the card’s settings through operating system network device configuration tools.

AVB Support

Audio Video Bridging (IEEE 802.1Qav, AVB) support(2) makes the Solo10G card perfect for use in pro audio and video applications where synchronization of data streams is critical.

Includes Two Mounting Brackets

The Solo10G PCIe Card is packaged with both full-height and low-profile mounting brackets, enabling installation of the card into any PCIe slot.

Optimized for Thunderbolt

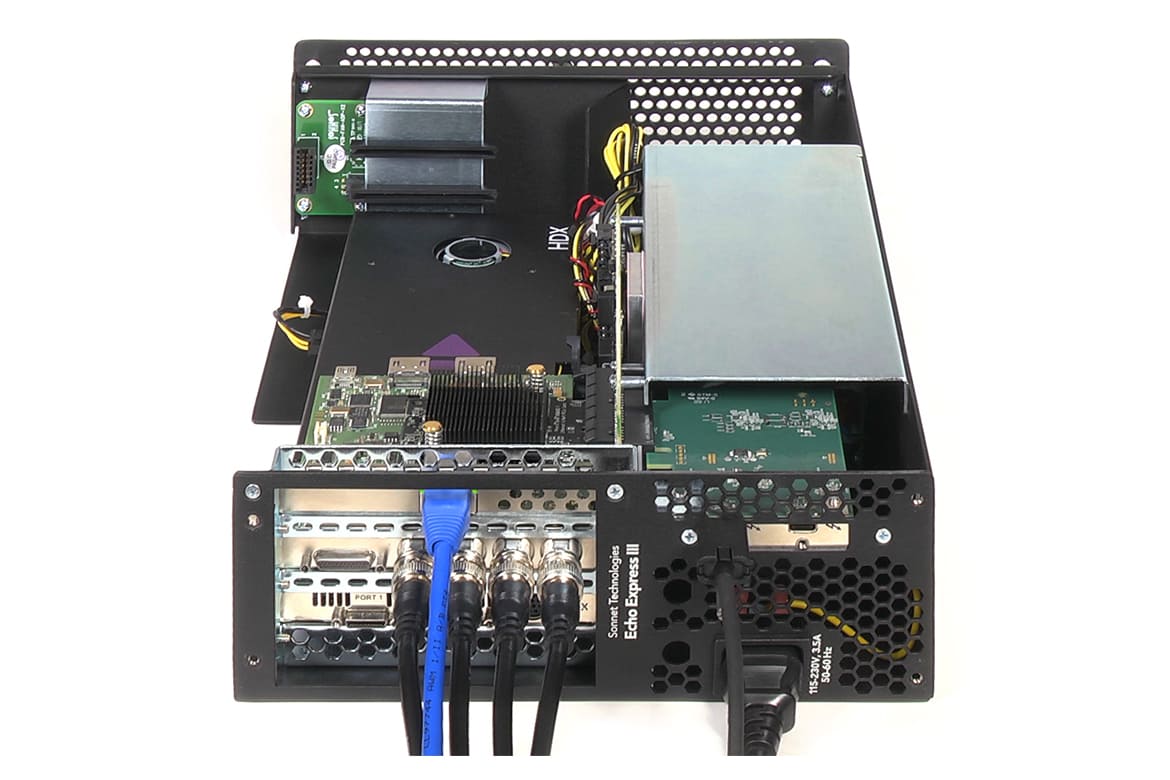

Got a Thunderbolt connection, but no PCIe slot? Solo10G PCIe Card is ideal for use in one of Sonnet’s Echo™ Express or xMac™ Thunderbolt-to-PCIe card multi-slot expansion systems—the combo enables you to add an ultra-fast 10GbE network connection to any Mac® with Thunderbolt 2 or Thunderbolt 3 ports, or Windows PC with Thunderbolt 3 ports. You may also want to consider Sonnet’s Solo10G Thunderbolt 3 Edition adapter—it’s compact, rugged, and bus-powered, and perfect for use with Mac and Windows computers with Thunderbolt 3.

Perfect for the Extra Slot in Your Multi-Slot Thunderbolt Chassis

Have a multi-slot Thunderbolt 2 or Thunderbolt 3 to PCIe card expansion chassis with an open slot? Installing a Solo10G PCIe Card is an excellent way to inexpensively add 10GbE connectivity to your computer.

Part Number	G10E-1X-E3
Hardware
Form Factor	Low-profile PCIe computer card
External Connector	One RJ45 port
Bus Interface	PCI Express v3.0, x4
10GbE Controller	Marvell AQC107S
Network Support	10GBASE-T 100 meters using CAT6A cabling 55 meters using CAT6 cabling 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX 100 meters using CAT 5e (or better) cabling
Packets	Maximum packet size: 16352 bytes (jumbo frames) 9000 bytes under macOS
Data Rates Supported	10 Gb/s, 5 Gb/s, 2.5 Gb/s, 1 Gb/s, 100 Mb/s
Advanced Features	Flow control support MSI (Message Signaled Interrupts) RSS (Receive-Side Scaling) Interrupt coalescing Multicast filtering Energy-Efficient Ethernet (IEEE 802.3az) 64-bit address support for systems using more than 4GB of physical memory Wake-on-LAN supported
Stateless Offloads	TCP, UDP and IPv4 checksum offloading TSO (TCP Segmentation Offload, AKA Large Send Offload) LRO (Large Receive Offload) RSS (Receiver Side Scaling)
Compliance	RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2
Package Contents	Solo10G PCIe Card Two mounting brackets (full-height and low-profile) Documentation
