Sonnet Solo10G PCIe Card

Key Features
  • Adds 10GBASE-T 10GbE Connectivity—Adds an RJ45 10 Gigabit Ethernet port to your computer with PCIe slots
  • Cost-Effective—Low-cost PCIe card connects to 10GbE infrastructure via inexpensive CAT 6 or CAT 6A cables at distances up to 55 or 100 meters, respectively
  • Features NBASE-T Technology—5 Gb/s and 2.5 Gb/s speeds supported over existing CAT 5e (or better) cabling at distances up to 100 meters
  • Supports AVB—Audio Video Bridging (IEEE 802.1Qav, AVB)
  • Optimized for Thunderbolt—Ideal for use in Sonnet’s Echo Express and xMac Thunderbolt-to-PCIe card expansion systems
  • Easy Setup—Configure using your computer’s operating system network device configuration tools
  • Overview
  • Tech Specs

10GBASE-T 10 Gigabit Ethernet PCI Express 3.0 Adapter Card with NBASE-T Ethernet Support

Blazing-Fast 10GBASE-T ConnectivityThe Solo10G PCIe Card is equipped with a single RJ45 socket, enabling you to connect your computer to 10GbE infrastructure via inexpensive CAT 6 cabling at distances up to 55 meters, or CAT 6A cabling at up to 100 meters.

Faster Transfers Across Existing Cabling Made Possible with NBASE-T Technology
Does your facility have CAT 5e wiring installed already? You can still get a great performance gain—up to 500 percent over Gigabit Ethernet speed—without rewiring! The Solo10G PCIe Card supports the NBASE-T standard of 2.5/5 Gb link speeds over CAT 5e (or better) cabling when used with a Multi-Gigabit switch or router. This capability allows you to deploy the same card across an organization for users supported by different Ethernet cabling infrastructures.

Advanced Feature Support
The Solo10G PCIe Card’s high throughput performance and low host-CPU utilization are attained through functions such as flow control, 64-bit address support for systems using more than 4GB of physical memory; and stateless offloads such as TCP, UDP and IPv4 checksum offloading. These processes enable your computer to perform better while large files transfers or high I/O operations take place.

Simple Setup
Install the Solo10G PCIe Card in your computer or Thunderbolt expansion system, connect to the network switch or directly to 10GbE-enabled storage, and configure the card’s settings through operating system network device configuration tools.

AVB Support
Audio Video Bridging (IEEE 802.1Qav, AVB) support makes the Solo10G card perfect for use in pro audio and video applications where synchronization of data streams is critical.

Includes Two Mounting Brackets
The Solo10G PCIe Card is packaged with both full-height and low-profile mounting brackets, enabling installation of the card into any PCIe slot.

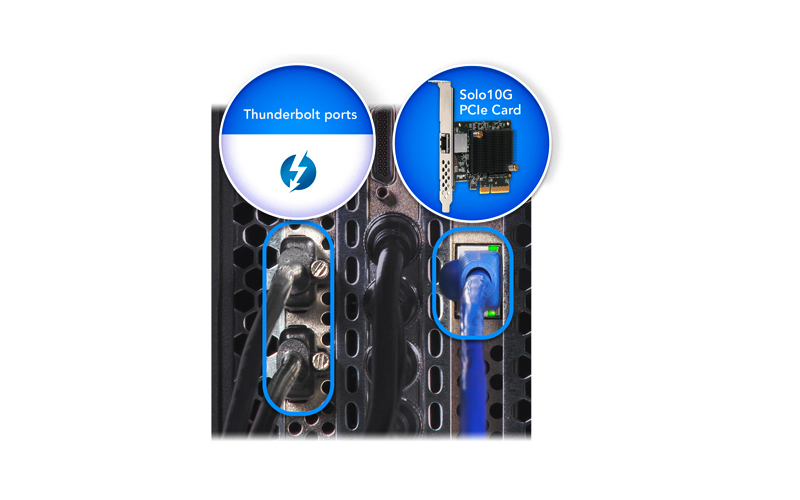

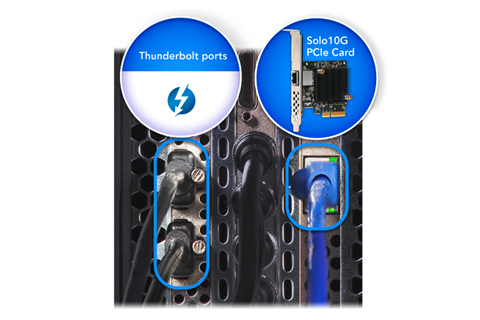

Optimized for Thunderbolt
Got a Thunderbolt connection, but no PCIe slot? Solo10G PCIe Card is ideal for use in one of Sonnet’s Echo Express or xMac Thunderbolt-to-PCIe card multi-slot expansion systems—the combo enables you to add an ultra-fast 10GbE network connection to any Mac® with Thunderbolt 2 or Thunderbolt 3 ports, or Windows PC with Thunderbolt 3 ports. You may also want to consider Sonnet’s Solo10G Thunderbolt 3 Edition adapter—it’s compact, rugged, and bus-powered, and perfect for use with Mac and Windows computers with Thunderbolt 3.

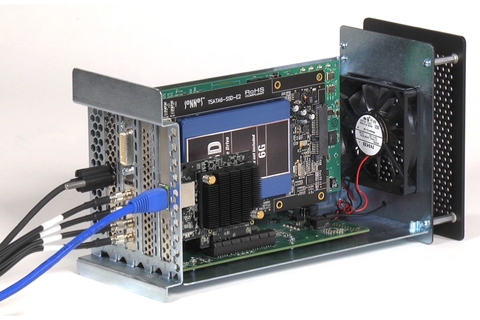

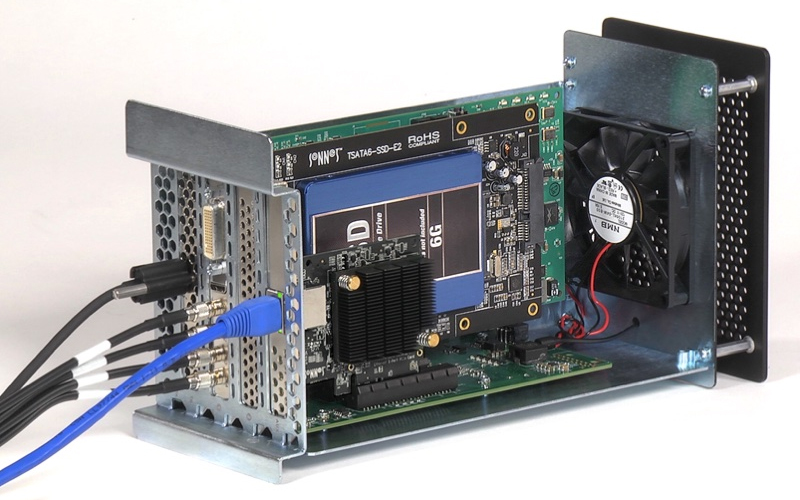

Perfect for the Extra Slot in Your Multi-Slot Thunderbolt Chassis
Have a multi-slot Thunderbolt 2 or Thunderbolt 3 to PCIe card expansion chassis with an open slot? Installing a Solo10G PCIe Card is an excellent way to inexpensively add 10GbE connectivity to your computer.



Price: AED 695*

Part Number G10E-1X-E3
Hardware
Form Factor Low-profile PCIe computer card
External Connector One RJ45 port
Bus Interface PCI Express v3.0, x4
10GbE Controller Aquantia AQC-107S
Network Support 10GBASE-T
  • 100 meters using CAT6A cabling
  • 55 meters using CAT6 cabling


5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX
  • 100 meters using CAT 5e (or better) cabling
Packets Maximum packet size: 16352 bytes (jumbo frames)
9000 bytes under macOS
Data Rates Supported 10 Gb/s, 5 Gb/s, 2.5 Gb/s, 1 Gb/s, 100 Mb/s
Advanced Features
  • Flow control support
  • MSI (Message Signaled Interrupts)
  • RSS (Receive-Side Scaling)
  • Interrupt coalescing
  • Multicast filtering
  • Energy-Efficient Ethernet (IEEE 802.3az)
  • AVB (IEEE 802.1Qav, Audio Video Bridging)
  • 64-bit address support for systems using more than 4GB of physical memory
  • PCIe networking cards cannot support Wake-on-LAN
Stateless Offloads
  • TCP, UDP and IPv4 checksum offloading
  • TSO (TCP Segmentation Offload, AKA Large Send Offload)
  • LRO (Large Receive Offload)
  • RSS (Receiver Side Scaling)
RoHS Compliant Yes




Price: 695*

Computer Compatibility

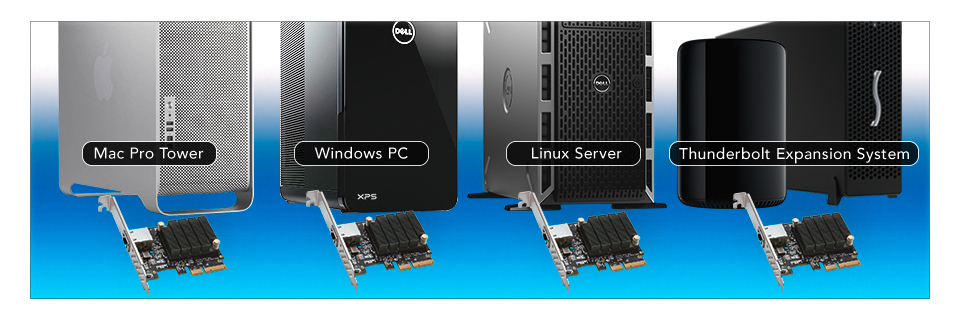

  • Mac Pro® (Mid 2010 or newer), PC desktop, or server with full-height or low-profile PCIe slots

OS Compatibility
  • macOS® High Sierra (10.13.6+)
  • macOS Mojave compatible
  • Windows® 10, 8, 7; Server 2016, 2012
  • Linux®

Thunderbolt Compatibility
  • Mac via a Thunderbolt 2 or Thunderbolt 3 to PCIe card expansion system
  • Windows computer running Windows 10 Build 17039 or newer (64-bit edition), via a Thunderbolt 3 to PCIe card expansion system
