Sonnet

SF3 Series - RED MINI-MAG Pro Card Reader

Professional Dual-Slot CFexpress 2.0 Type B/XQD Card Reader for Computers with Thunderbolt 3 Ports
Key Features
  • Superior Performance —Ingests footage from RED MINI-MAG cards at maximum supported speeds to Mac, Windows and Linux computers
  • Cuts Ingest Times in Half —Dual card slots enable simultaneous ingest of footage from two cards for greater efficiency
  • Compact, Rugged, Stackable —Rugged aluminum enclosure for reliable operation. Stackable design enables multiple SF3 Series card readers to occupy same footprint.
  • 40Gbps Thunderbolt 3 Interface —Features dual Thunderbolt 3 ports; second port supports daisy chaining of up to five additional Thunderbolt peripheral devices, including additional SF3 Series pro card readers
  • Thunderbolt Cable & ThunderLok Included —Includes 0.5-meter Thunderbolt 3 (40Gbps) cable and ThunderLok 3 Thunderbolt connector retainer clip to secure cable from accidental disconnections
  • Backward Compatible With Thunderbolt 2 and Thunderbolt Macs —When used with an Apple® Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter and a Thunderbolt cable (both sold separately)
  • Ready for Racking —Threaded mount points enable secure attachment of two readers side-by-side on a rack tray in just 1U of rack space
  • Overview
  • Tech Specs

Featuring a dual-port, 40Gbps Thunderbolt™ 3 interface, this RED APPROVED reader ingests footage from RED MINI-MAG memory cards to any Mac®, Windows®, or Linux® computer with Thunderbolt 3 ports—on location, in the studio, or in the edit suite—at the fastest speeds the cards will support.

Dual Card Slots, Less Waiting
The SF3 Series - RED MINI-MAG Pro Card Reader can ingest files simultaneously from two cards at up to 1060 MB/s—more than double the average ingest speed of other RED MINI-MAG card readers—to cut your ingest times in half.

Part Number SF3-2RMM
Hardware
Form Factor Portable card reader
Bus Interface 40Gbps Thunderbolt 3
External Connector

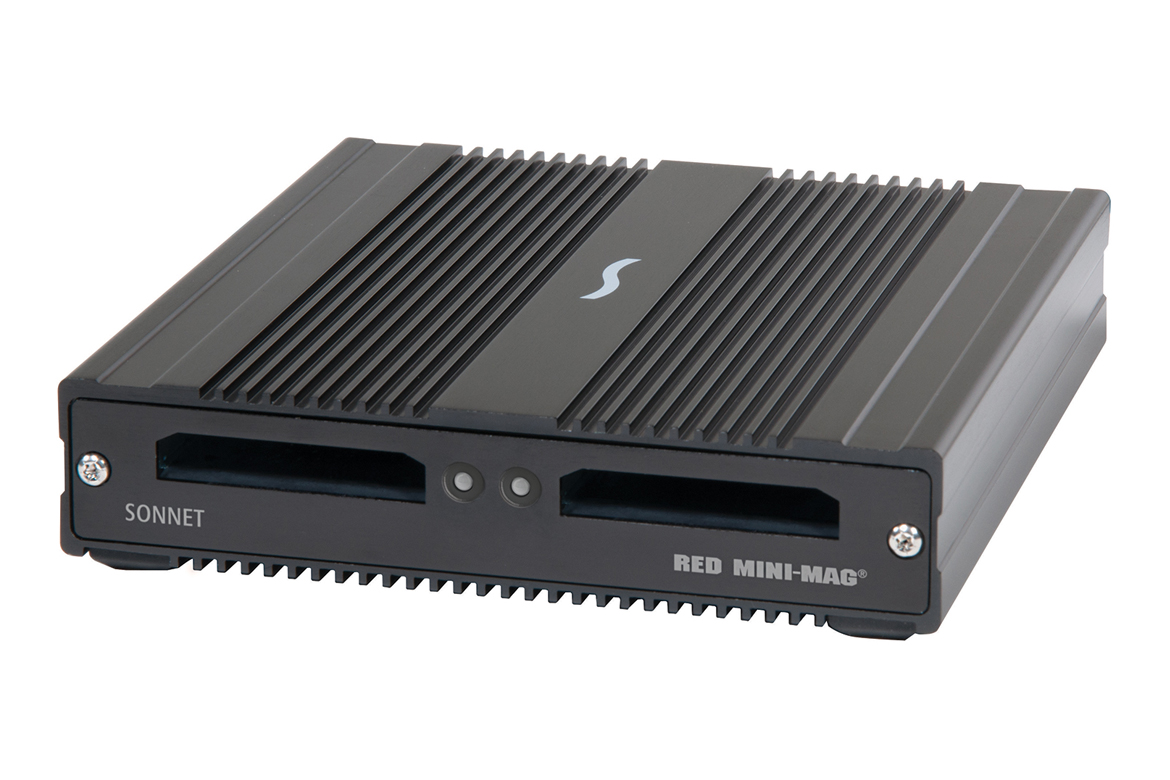

  • Two RED MINI-MAG slots

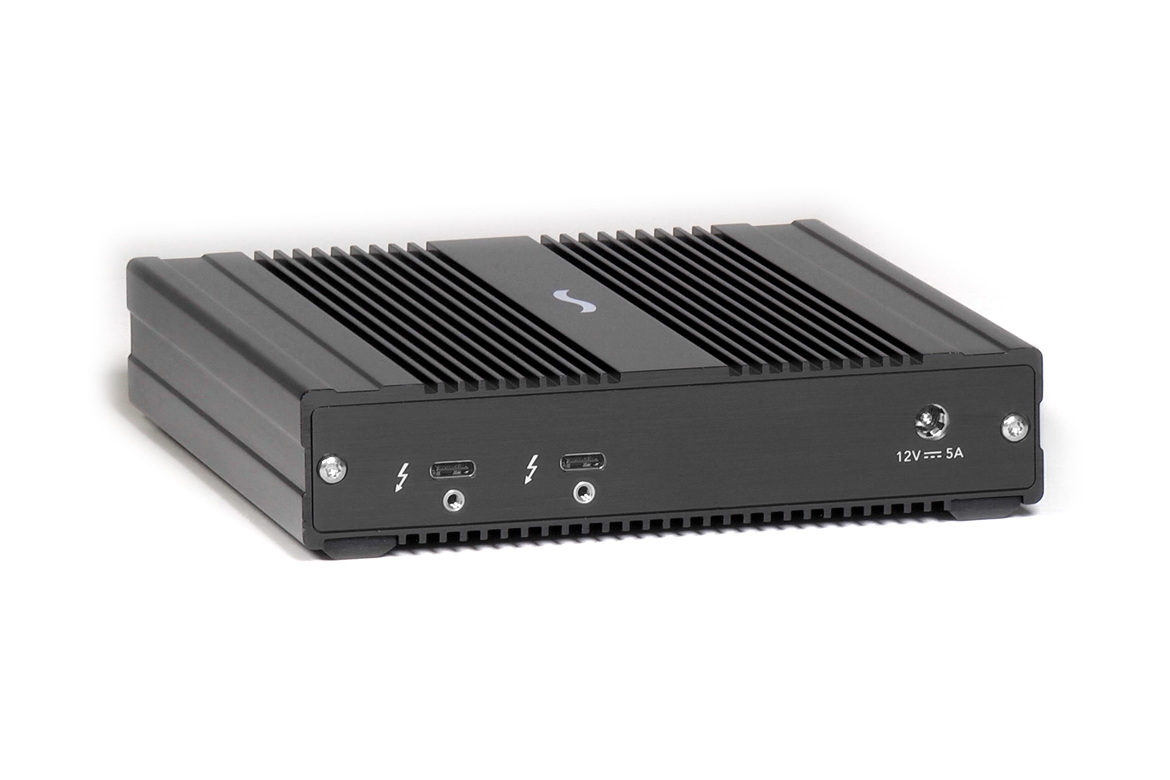

  • Two Thunderbolt 3 ports
  • Power port
Power Adapter Universal 60W, 100-240V AC, 50-60 Hz
Supported Media RED MINI-MAG
RoHS Compliant Yes

Learn more
Package Dimensions (WxDxH)
  • 9.2 x 6.8 x 3.5 in (233 x 173 x 89 mm)

Reader Dimensions (WxDxH)
  • 5.75 x 6.1 x 1.4 in. (145 x 155 x 36 mm)

Package Contents
  • Sonnet SF3 Series - RED MINI-MAG Pro Card Reader
  • Power adapter
  • Region-specific Power cable for US, Australia, Europe, Japan, or Switzerland
  • 0.5-meter Thunderbolt 3 cable
  • ThunderLok 3 Thunderbolt Connector Retainer Clip
  • Documentation
