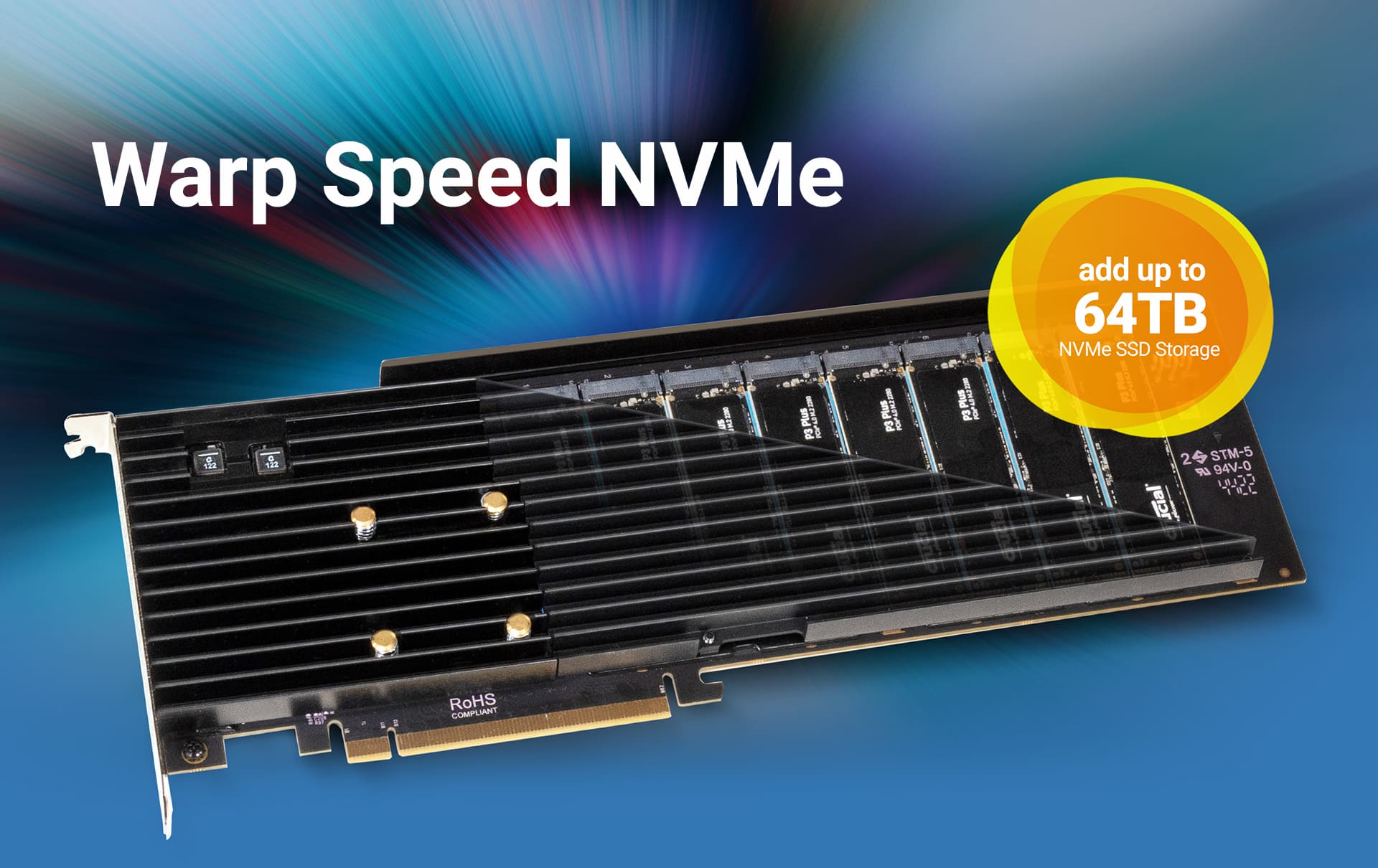

Add up to 64TB of SSD Storage In One Card Slot!!

Ultra-fast Gen4 SSD Data Transfers
Speed or capacity? Not too long ago, you had to make a choice between the two. The problem is, for many professional workflows, both are critical. Everyone knows M.2 NVMe PCIe SSDs offer great performance, but limited capacity. Hard drives offer great capacity, but very slow speeds by comparison. What if you could create increased SSD capacity? We make it possible — the Sonnet M.2 8x4 Silent Gen4 PCIe® Card enables you to mount up to eight NVMe SSDs into a single x16 PCIe card slot and combine their capabilities for ultra-performance. This card can transform your workflow.

Eight M.2 NVMe Slots
Add up to 64TB of storage with your own high performance M.2 NVMe SSDs

Blazing Transfers
Get amazing performance from Gen 4 SSDs

For Professional Workfows
Install in a computer or Thunderbolt expansion system x16 PCIe slot

One Slot. One Card. 64TB of Fast NVMe Storage.

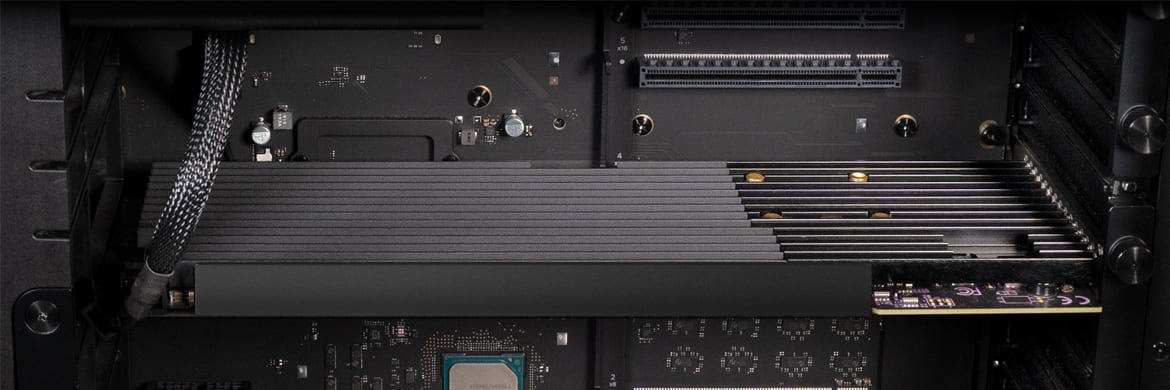

Mac Pro^® Computers
Up to 64TB of blazing-fast SSD Storage:
2023 M2 – Up to 30,000 MB/s
2019 Intel – Up to 14,000 MB/s

Windows^® or Linux^® Computer
Create an incredibly fast media storage or scratch drive.

Thunderbolt^™ Expansion Systems
Connect eight SSDs to your computer via a single cable, with maximum performance of 2800 MB/s.

Gen 4 PCIe Slot RAID 0 Performance

Install the M.2 8x4 Silent Gen4 PCIe card with your SSDs into your computer’s x16 PCIe 4.0 slot to achieve superior storage performance with four SSDs configured as RAID 0.

Gen 3 PCIe Slot RAID 0 Performance

Install the M.2 8x4 Silent Gen4 PCIe card with your SSDs into your computer’s x16 PCIe 3.0 slot to achieve outstanding storage performance with four SSDs configured as RAID 0.

Sonnet Max-Performance Design

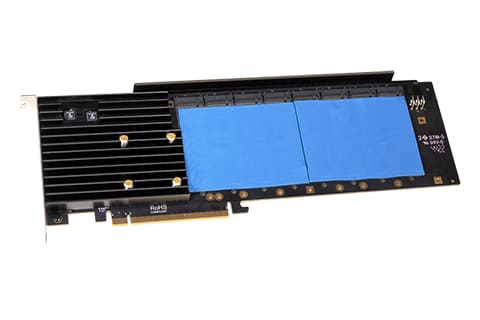

Sonnet M.2 8x4 Silent Gen4 PCIe Card is a full-height, full-length PCIe 4.0 card with a 48-lane PCIe 4.0 switch and x16 interface, designed to support maximum performance. Sonnet M.2 8x4 card features:

48-lane PCIe 4.0 Switch
x16 slot bandwidth is available to all x4-connected SSDs, facilitating maximum speed with any combination of M.2 SSDs used

Self-contained
This Sonnet card doesn’t require a specific motherboard to operate or specific SSDs to support RAID features – no PCIe bifurcation required

Universal Compatibility
Compatible with Mac, Windows, and Linux computers with an x16 PCIe slot

Broad M.2 NVMe SSD Support
Works with a wide variety of M.2 NVMe Gen4 and Gen3 SSDs

Adobe After Effects User?

Pro SSD Storage Performance
Are you an Adobe® After Effects user? Imagine being able to perform 4Kp60 work in 32-bit linear, or even 4Kp24 with high channel count EXRs (or effects in 8K) where your computer’s onboard storage couldn’t keep up! Sonnet M.2 8x4 Silent Gen4 PCIe Card makes it possible.

Not Quiet…Silent

Sonnet Silent Cooling Thwarts Thermal Throttling

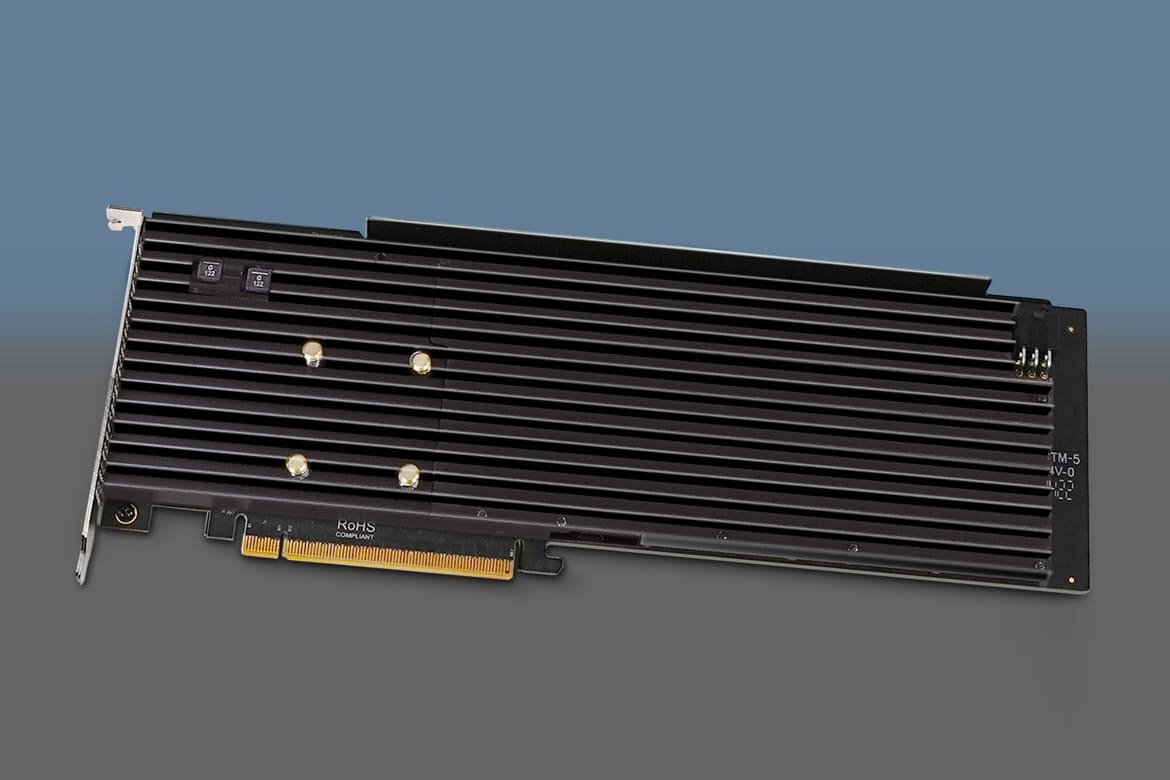

Sonnet designed the M.2 8x4 Silent Gen4 PCIe Card with an effective passive cooling solution – instead of relying on fans that can get loud, Sonnet silent cooling effectively presents thermal throttling, enabling SSDS to maintain sustained peak performance without a peep.

Thunderbolt Port?

Connect Eight SSDs Through One Cable

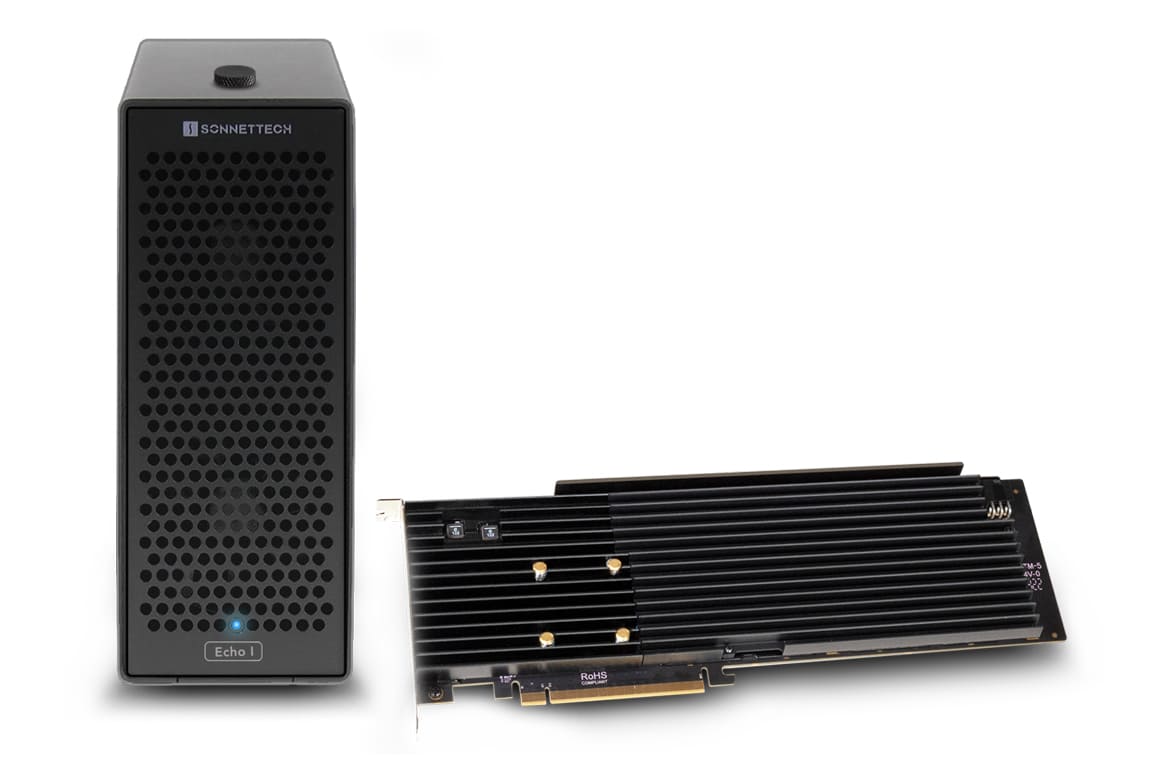

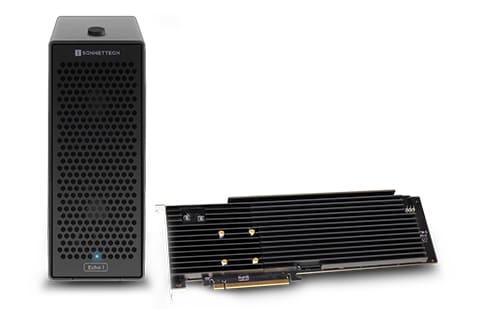

Got a Thunderbolt connection, but no PCIe card slot? Sonnet M.2 8x4 Silent Gen4 PCIe Card is ideal for use in our Echo I Desktop PCIe Expansion System. The combo effectively enables you to add up to eight SSDs to any Mac (M series or Intel), Windows, or Linux computer with Thunderbolt ports.

Simple and S.M.A.R.T.

Easy System Integration
Integrating a Sonnet M.2 8x4 Silent Gen4 PCIe Card into your system is easy — NVMe compliance ensures the necessary drivers are installed automatically. The M.2 8x4 uses your computer’s operating system’s built-in drive formatting utilities to format the SSDs. SSD health monitoring is supported through S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) data reporting, too.

Part Number	FUS-SSD-8X4-E4S
Form Factor	Full-length, full-height computer card
Internal Connectors	Eight M-keyed (NVMe) M.2 sockets 6-pin PCIe auxiliary power connector
SSDs Supported	Single-sided and double-sided M.2 2280 NVMe PCIe SSDs M.2 NVMe SSDs Compatiblity Western Digital PCIe Gen4 SSDs NOT compatible
Boot Support (From a Single SSD)	macOS - Mac Pro 5,1 or Mac Pro 7,1 - Any Thunderbolt Mac Windows, Linux - Computers with UEFI BIOS
RAID Support	macOS, Windows, Linux - RAID 0, 1, and 10
NVME Support	Yes
SSD Power/Activity Indicators	Yes
S.M.A.R.T. Status Data Reporting Support	Yes
RoHS Compliant	Yes
Package Contents	Sonnet M.2 8x4 Silent Gen4 PCIe Card Thermal transfer pads 6-pin to 6-pin auxiliary power cable for Mac Pro Documentation
