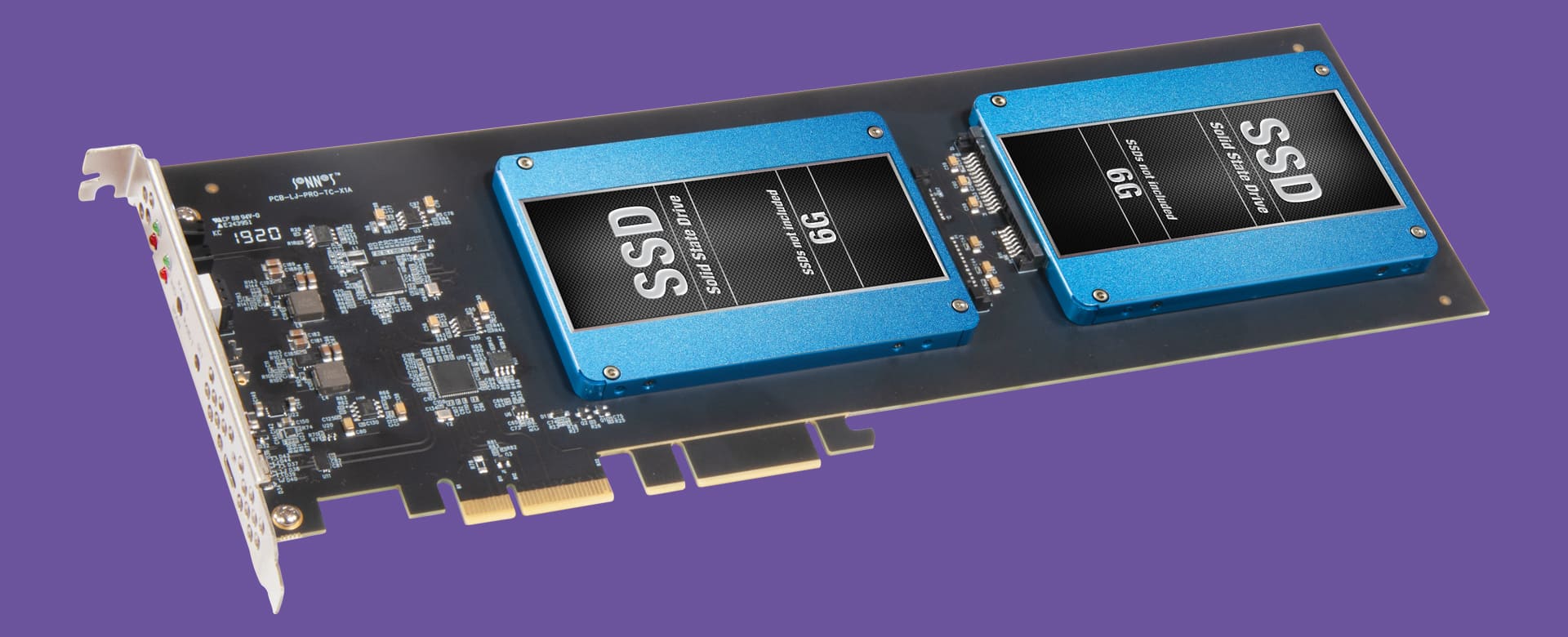

Fusion Dual 2.5-inch SSD RAID
Dual 2.5-inch SSD PCIe 3.0 card with hardware RAID controller, plus 10Gbps USB-C port • Add your own SSDs
Product Highlights
- Add up to 16TB of SSD Storage - Mounts two cost-effective 2.5-inch SATA SSDs (sold separately) in a full-length PCIe slot.
- Great SSD Performance - Supports data transfers speeds up to 1000 MB/s.

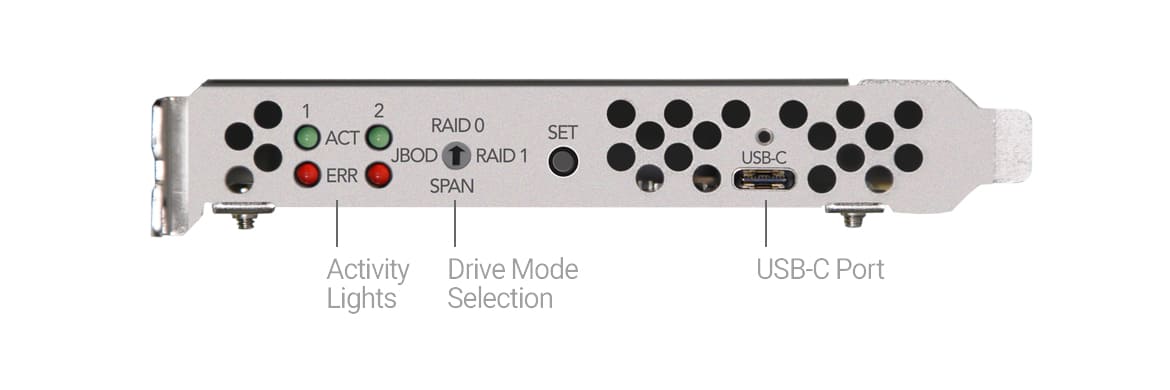

- Onboard Hardware RAID Controller - Supports RAID 0, RAID 1, Span, and JBOD configurations in macOS®, Windows®, and Linux®.
- USB 3.2 Gen 2 USB-C Port - Includes SuperSpeed USB-C 10Gbps port to connect a fast external drive.
- Great USB Performance - Supports data transfers speeds up to 1000 MB/s.
- Power for Peripherals - Supports a USB bus-powered SSD, SSD RAID, or hard drive device with up to 15W power.
- Overview
- Tech Specs
Install Two 2.5-inch SATA SSDs into a PCIe Card Slot
With recIf you need faster, high-capacity internal storage for your desktop computer or server, 2.5-inch SATA SSDs are the cost-effective choice. Sonnet’s Fusion™ Dual 2.5-inch SSD RAID PCIe card enables you to upgrade your system in a flash, mounting one or two SSDs (sold separately) with up to 16TB capacity in a single full-length PCIe card slot, with no power or data cables, adapters, or mounting trays required.| Part Number | FUS-SSD-2RAID-E |
| Hardware | |
| Form Factor | Full-height, full-length PCIe card |
| Bus Interface | PCI Express 3.0 x2 |
| Internal Connectors | Two SATA for 2.5-inch SSDs |
| External Connector | One USB-C port (10Gbps USB 3.2 Gen 2) |
| SSDs Supported | SATA 6 Gb/s |
| Boot Support | No |
| Supported Drive Configurations | RAID 0 RAID 1 Span JBOD |
| S.M.A.R.T. Status Data Reporting Support | No |
| USB-C Port Specifications | |
| Peripherals Supported | Industry standard USB 3.2 Gen 1, 2 & 2x2; USB 3.1 Gen 1 & 2; USB 3.0, 2.0, and 1.1 Thunderbolt 3-only peripherals are NOT supported |
| Bus-powered Peripherals Supported | HD, SSD, SSD RAID 3.0A advertised using USB CC (Channel Configuration) Up to 15W for operation or charging |
| Cables Supported | USB-C 10Gbps USB-C 5Gbps Thunderbolt 3 40Gbps (0.5- and 0.7-meter only) Thunderbolt 3 20Gbps |
| USB Chipset | ASMedia 3142 ASMedia 1352R |
| USB Standard | Complies with OHCI (Open Host Controller Interface), EHCI (Enhanced Host Controller Interface), and xHCI (eXtensible Host Controller Interface) standards |
| UASP | USB attached SCSI protocol supported under macOS 10.12+, Windows 10 |
| Number of Devices Supported | Up to 31 |
| Hot Plug | Supports hot-pluggable and hot swappable device connection |
| Boot Support | No computers support booting at this time |
| Compliance | RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 Safety |
| Package Contents | Fusion Dual 2.5-inch SSD RAID PCIe Card Drive mounting screws Documentation |
Compatibility

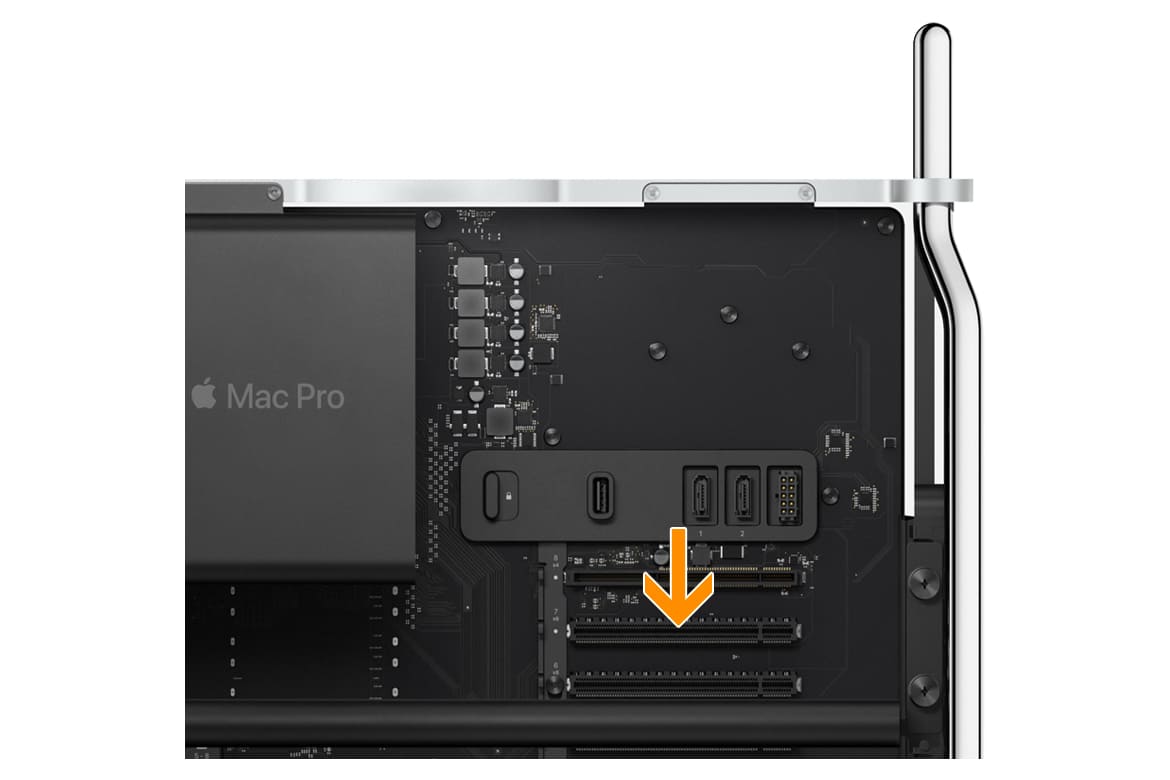

Mac Compatibility- Mac Pro 8,1 (2023)
- Mac Pro 7,1 (2019)
- Mac Pro 5,1 (Mid 2010 & Mid 2012)
- macOS 10.12.6+
- macOS Ventura Compatible
Windows Compatibility
- Windows computer with available full-length, full-height PCIe slot (PCIe 3.0 slot is preferred)
- Windows 11 and 10
- Windows Server 2019 and 2016 (64-bit editions)
Linux Compatibility
- Linux computer with PCIe slots
- Linux Kernel 5.4.0+
- Ubuntu 20.04.1+

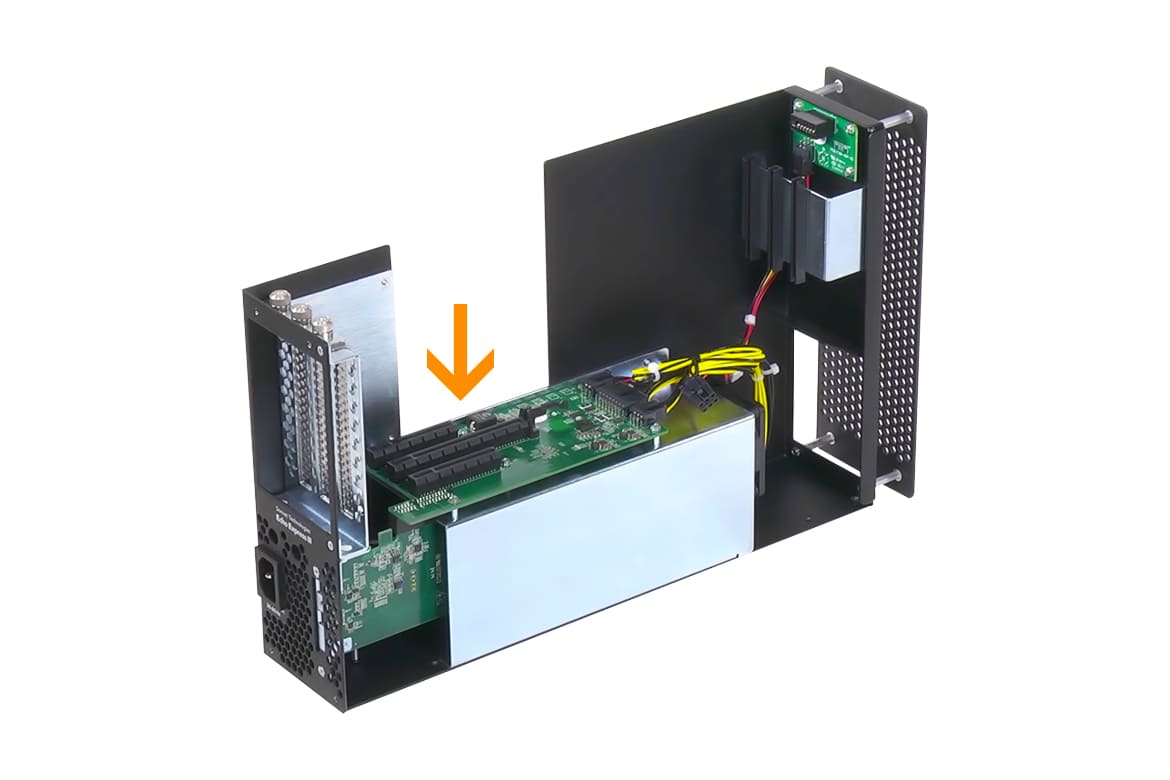

Thunderbolt Compatibility
- Mac (M1, M2, M1 Pro, M1 Max, M1 Ultra, and Intel®) computer via a Thunderbolt PCIe card expansion system with available full-length PCIe slot
- Windows computer via a Thunderbolt PCIe card expansion system with available full-length PCIe slot
- Linux computer via a Thunderbolt PCIe card expansion system with available full-length PCIe slot
