Sonnet eGFX Breakaway Puck Radeon RX 560
Key Features
- Connects a High Performance External GPU (built in) to Your Computer with Thunderbolt 3 Ports—Connects an AMD Radeon 560 GPU to your eGFX-compatible computer with Thunderbolt 3 ports, to substantially uplift graphics performance
- Small and Highly Portable—Measuring a compact 6 inches wide by 5.1 inches deep by 2 inches tall, the Puck has a minimal footprint on the desktop, fits easily into a computer bag or backpack
- Provides 45W of Power Delivery—The Puck powers and charges your computer(2) while connected, even when not in use, allowing you to leave your computer’s power brick behind
- VESA Mounting Bracket Kit Available—Optional mounting kit enables a zero desktop footprint installation, securing the Puck to the back of a monitor or multi-display stand and connecting it with an included DP cable
- Multi-Display Graphics Dock for Ultrabooks—With its three DisplayPort ports and one HDMI port, the Puck can support up to four 4K displays
- 40Gbps Thunderbolt 3 Interface with One Thunderbolt 3 Port—Ensures full 2750 MB/s of PCIe bandwidth is dedicated to the GPU
- Radeon RX 560 offers the best value and portability for gaming, and ideal for use as a graphics dock for multi-display support
- Overview
- Tech Specs
Extremely Portable, High-performance External Graphics Acceleration
Extremely Portable, High-performance External Graphics Acceleration
Sonnet’s eGFX Breakaway™ Puck is an extremely-portable, high-performance, all-in-one external GPU for Thunderbolt 3 computers that provides accelerated graphics and multi-display connectivity. With a Puck connected to your computer, you can dramatically accelerate popular graphics-intensive games and pro applications anywhere.
Highly Portable

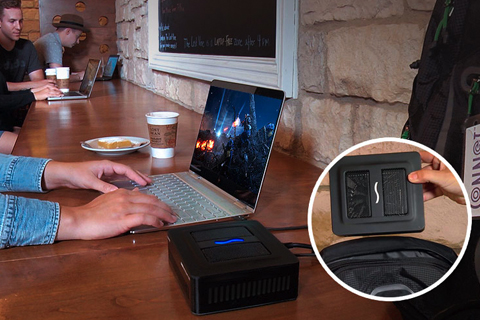

The eGFX Breakaway Puck conveniently packs with your notebook in a backpack or computer bag when you need GPU acceleration while on the road. Connected to your computer with a single 0.5-meter Thunderbolt 3 (40Gbps) cable (included), the Puck provides 45W of Power Delivery, which means it will power and charge your computer while connected, even when not in use, allowing you to leave your computer’s power brick behind. Whether you’re looking for a ultra-convenient way to game with an ultrabook at a LAN party, or you’re a pro who needs an extra computational power boost for on-location rendering, color grading and video editing, the Puck injects extra GPU power to go.
Small
Measuring a compact 6 inches wide by 5.1 inches deep by 2 inches tall, the eGFX Breakaway Puck has a minimal footprint on the desktop, and is the right size to compliment your thin/light notebook.
Zero Desktop Footprint (with Optional VESA Mounting Bracket)
Using the optional VESA Mounting Bracket Kit, you can free up desk space and mount the eGFX Breakaway Puck to the back of a monitor with open VESA mounting holes.
Multi-Display Graphics Dock for Ultrabooks
When you choose an Ultrabook, you don’t get all the same capabilities as a desktop computer can offer, such as connecting multiple displays. But, of course, you wouldn’t want to carry a desktop computer in your backpack. Why choose between the ultimate in notebook portability and multi-display support? With its three DisplayPort ports and one HDMI port, the eGFX Breakaway Puck leverages AMD’s Eyefinity multi-display technology to support up to four 4K displays with its single Radeon GPU!
40Gbps Thunderbolt 3 Performance
Thunderbolt 3 is a leap forward in every way. Whether you’re editing 4K video at high frame rates or blasting aliens out of the sky, you can now transform your notebook into a true desktop experience. With up to 2750 MB/s available bandwidth(1), the Breakaway Puck exploits its 40Gbps Thunderbolt 3 interface to offer the best-possible eGPU experience.
| Part Number | GPU-RX560-TB3 |
| Hardware | |
| Ports | Portable external GPU system |
| Video Memory | 4 GB GDDR5 |
| Connectivity |
|
| External Connectors |
|
| Supported Technologies |
|
| Power Delivery | Provides laptop charging up to 45W |
| Power Adapter | Universal 160W, 100-240V AC, 50-60 Hz |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Dimensions (WxDxH) | 6 x 5.12 x 2 in. (15.24 x 13 x 5.1 cm) |
| Weight | 4.15 lbs (1.88 kg) |
| RoHS Compliant | Yes |
Windows Compatibility
- eGFX-enabled Windows PC with a Thunderbolt 3 port
- Windows 10 (64-bit Edition Version 1809 or greater)
Mac Compatibility
- Mac with Thunderbolt 3 ports and macOS 10.13.6+
- Automatically accelerates eGPU connected monitors, and games and select apps run on those monitors
- One eGFX Breakaway Puck supports up to four external 4k monitors @60Hz
- Mac with Thunderbolt 3 ports and macOS 10.14.1+ Additional Features
- Accelerate games and applications run on the internal display (or Thunderbolt Display) by selecting the App, selecting “Get Info”, and checking “Prefer External GPU”
- Windows 10 support under Parallels Desktop 14 for Mac
- Attach two eGFX Breakaway Pucks to support up to eight external 4k monitors @60Hz
