Thunderbolt 4

Expand Your Connectivity to the Max

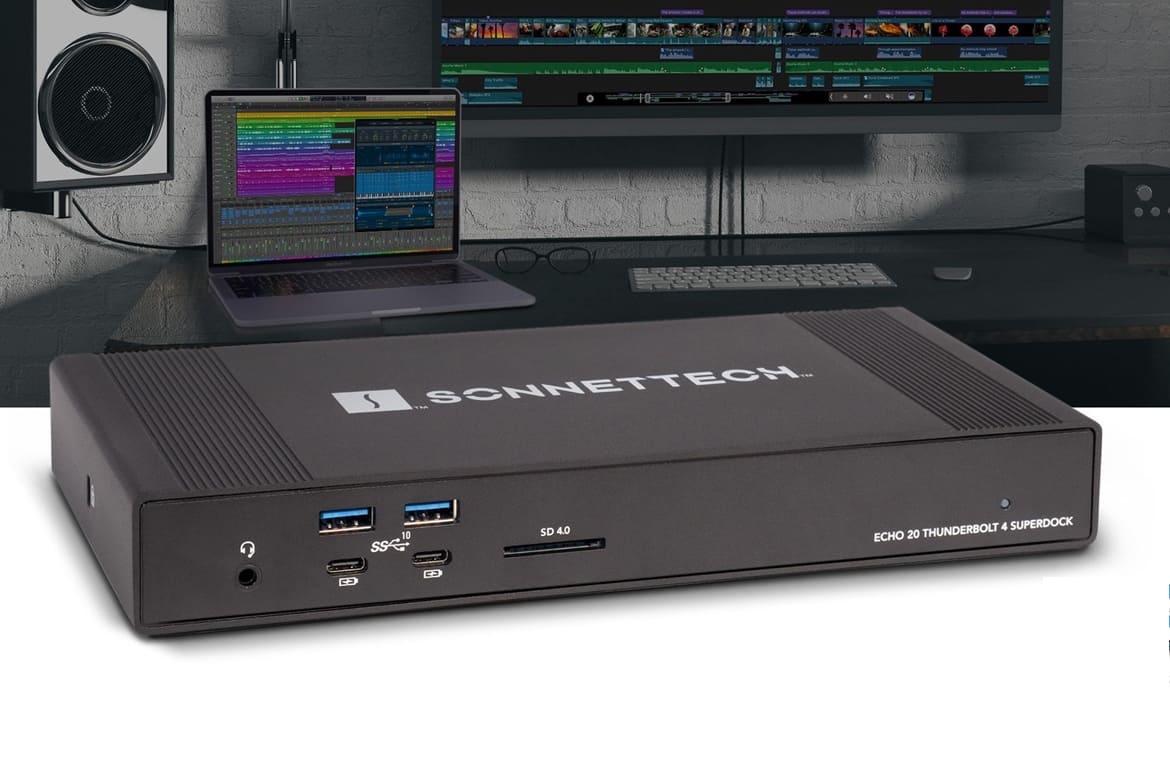

More connections than you expect from a Thunderbolt^™ dock – NVMe SSD storage capability, an HDMI port, ultra-fast 2.5 Gigabit Ethernet support, and more! With this superdock, a single cable connects your computer to your digital world. The Sonnet Echo™ 20 Thunderbolt 4 SuperDock is your universal docking station for today and tomorrow.

Plug In

Your Peripherals and Power Your Computer with One Cable
Connect your Thunderbolt devices, monitor(s), USB peripherals, powered speakers, and Ethernet cable to the dock and then link them all to your computer with a single Thunderbolt cable. Got a laptop computer? You can keep its power adapter in your bag because Thunderbolt Dual 4K HDMI 2.1 Adapter will power it with up to 100W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your computer, and go.
Up to 100W of Charging Power

Internal SSD

Expansion Slot

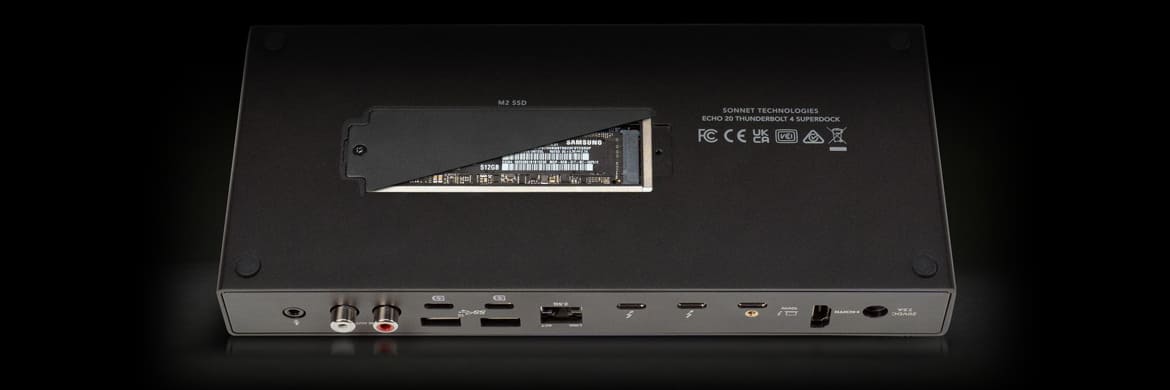

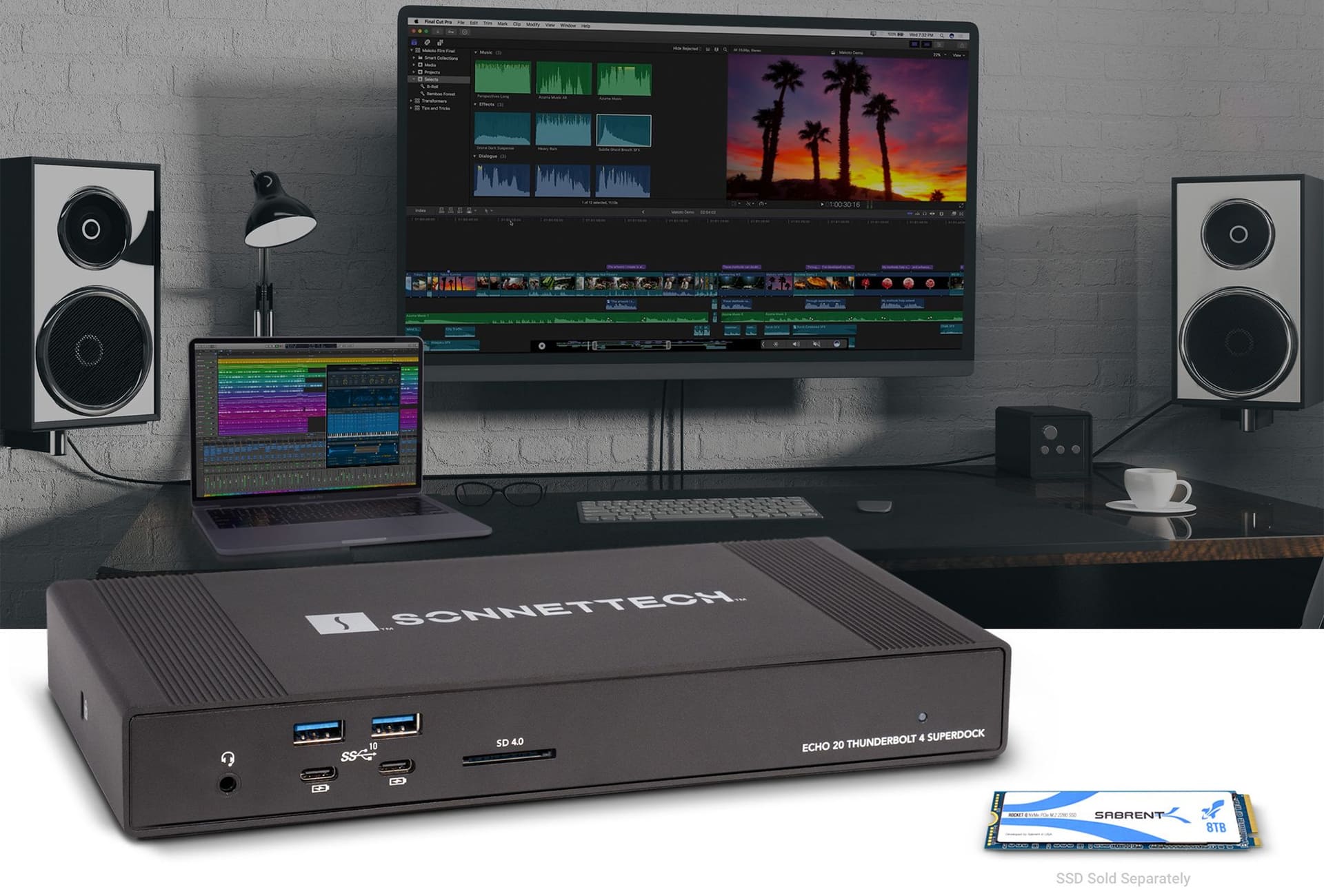

The built-in M.2 NVMe SSD slot enables you to add up to 8TB of SSD storage (SSD sold separately) to your system without connecting a storage device to the Echo dock or the computer. SSD installation is an easy task – simply remove the two screws securing a bottom panel cover, insert the SSD, and reinstall and secure the bottom cover. Transfer and access data at up to 800 MB/s, and effortlessly store large files, media libraries, or your Time Machine® backups.

Onboard

HDMI Display Support

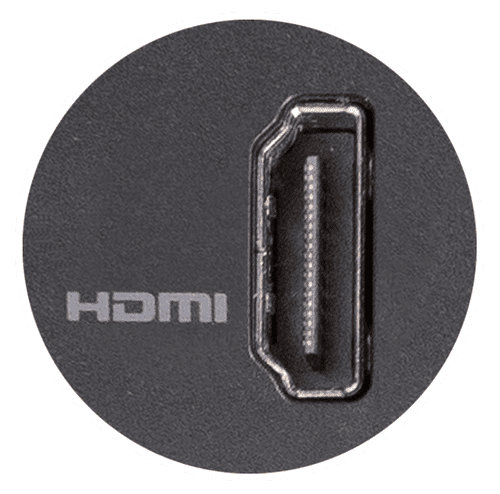

Thunderbolt Dual 4K HDMI 2.1 Adapter features a built-in HDMI port, enabling you to plug in an HDMI display directly to the dock.
No HDMI Adapter Required

Faster

Ethernet Transfers Across Existing Cabling
Featuring 2.5 Gigabit Ethernet, Thunderbolt Dual 4K HDMI 2.1 Adapter supports a 2.5 Gb/s link speed over common Cat 5e (or better) cabling when used with a compatible Ethernet switch or NAS with 2.5Gb Ethernet support, saving you the cost of another adapter. You can get great performance gains – 250 percent the speed of Gigabit Ethernet – without rewiring! Need to connect to a switch without 2.5Gb Ethernet support? The Sonnet dock also supports 1Gb/s and 100Mb/s link speeds.

Dual

Downstream Thunderbolt Ports – Simple Comprehensive Connectivity for Work and PlayThunderbolt Dual 4K HDMI 2.1 Adapter features three Thunderbolt 4 ports: one for connection/power to your computer – ideal for Mac and Windows laptop computers with only one or two Thunderbolt ports because you can connect and charge on the same port – plus two for directly connecting Thunderbolt peripheral devices.

The Thunderbolt peripheral ports also support USB4 and USB 3 peripherals, and even provide 15W power each to support the most demanding bus-powered Thunderbolt and USB peripherals. If your computer supports it, you can even connect another display.

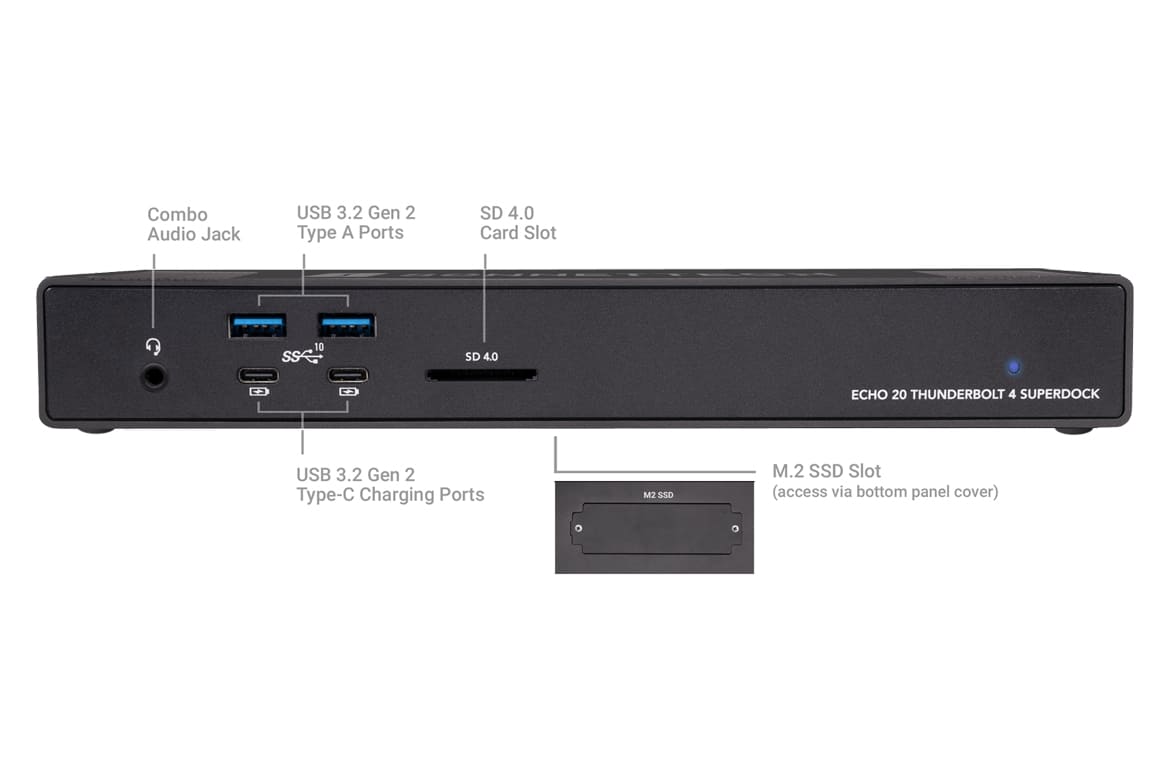

• Combo Audio Jack
  Plug in your headset or headphones
• Two USB 3.2 Gen 2 Type A Ports
  Connect a fast thumb drive, digital camera
• Two USB 3.2 Gen 2 Type-C Charging Ports
  Connect a fast USB-C SSD; connect and charge your phone
• SD 4.0 Card Slot
  Ingest media from SD cards; or microSD cards (with adapter)
• M.2 SSD Slot (beneath cover)
  Install an M.2 NVMe SSD

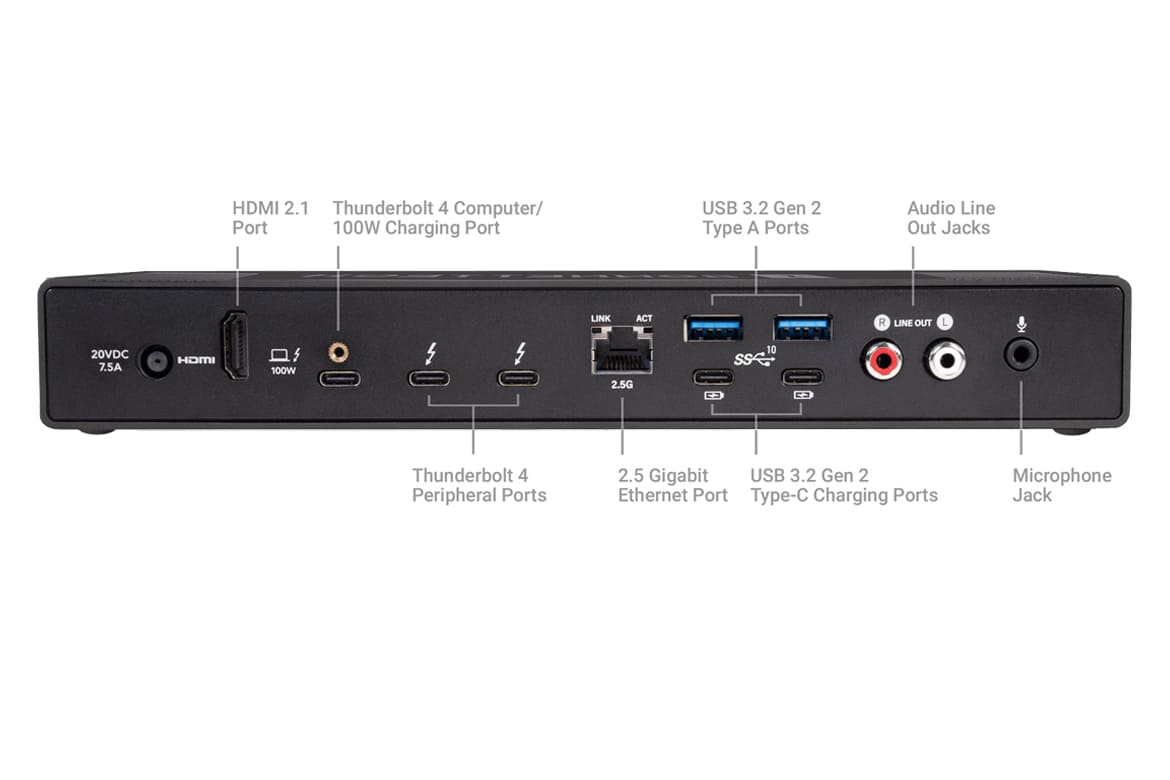

• HDMI 2.1 Port
  Connect a 8K 60Hz display without adapter
• Host Thunderbolt Port
  Connect your computer; charges a laptop with up to 100W of power
• Two Thunderbolt 4 Peripheral Ports
  Connect lightning fast Thunderbolt plus USB devices
• 2.5 Gigabit Ethernet Port
  Connect to a high-speed network
• Two USB 3.2 Gen 2 Type A Ports
  Connect a fast thumb drive, USB video camera, printer, digital camera
• Two USB 3.2 Gen 2 Type-C Charging Ports
  Connect a fast USB-C SSD; connect and charge your phone
• Audio Line Out Jacks
  Connect to powered speakers or an amplifier

Powerful

10Gbps USB-A and USB-C Ports
TThunderbolt Dual 4K HDMI 2.1 Adapter features four USB 3.2 Gen 2 (10Gbps) Type A ports and four USB 3.2 Gen 2 Type-C ports – two each on the front and back – to support super-fast USB NVMe SSDs at up to full speed. And unlike some other docks, Echo 20 doesn’t skimp on power either – each port provides up to 7.5W to ensure that drives with higher peak power requirements can mount and operate without fail. An added benefit for the USB-C ports is they support the Type-C Charging spec, enabling the dock to charge devices even when the computer is off, sleeping, or disconnected.
Each Port Provides Up to 7.5W

Thunderbolt Certified for Mac, Windows, Chromebook, and iPad Pro

Thunderbolt Dual 4K HDMI 2.1 Adapter is certified for use with Apple M series Macs; Thunderbolt 3 Intel Macs; Thunderbolt 4 or USB4 Windows computers; Thunderbolt 3 Windows computers with an Intel 8th Gen (2018) or newer CPU; Thunderbolt 4/USB4 Chromebook; and M series iPad Pro. See Tech Specs for current computer and OS compatibility information.

Single 8K

or Dual 6K 60Hz Displays
Depending on your computer’s video capability and whether you’ve connected a monitor to the built-in HDMI port, the Echo dock’s Thunderbolt ports can support one (always 4K, 5K or 6K, up to 8K) monitor, or up to two 6K monitors. You can plug in Thunderbolt 3 or 4, or USB-C monitors directly. Or, you may connect other display types (HDMI, DisplayPort, etc.) by using a Thunderbolt-compatible adapter (sold separately).

Charge On

Leave the Charger In Your Backpack
Connected to your laptop computer with the included Thunderbolt 4 cable, Thunderbolt Dual 4K HDMI 2.1 Adapter provides up to 100W of power (Power Delivery) from its rear-mounted Computer/Charging port, meaning it can power and charge your computer while connected, even when not in use, allowing you to leave your computer’s power adapter packed away.

Dedicated

RCA Audio Outputs
TThunderbolt Dual 4K HDMI 2.1 Adapter features stereo RCA connections. RCA outputs provide consistent line-level audio, connecting your sweet music library to your pair of powered speakers. RCA outputs are also ideal for direct connection to a receiver, power amplifier, or mixer.

Media Reader

Fast UHS-II SD 4.0 Card Reader
The included SD card slot is compatible with SD™, SDHC™, and SDXC™ memory cards, and supports 320 MB/s read speeds with UHS-II SDXC cards to quickly offload images and video. microSD cards are also supported when used with adapters commonly included with the cards.

Part Number	TB3-DHDMI-21
Hardware
Form Factor	Display adapter
Bus Interface	40Gbps Thunderbolt
External Connectors	Two HDMI Thunderbolt captive cable
Standards	HDMI 2.1 HDCP 2.2
USB 3.2 Gen 2 Type A Ports (Rear Panel)	Connectivity — With USB Type A connector Peripherals Supported — USB 3, 2.0 and 1.1 devices Data Transfer Rate — USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps
USB 3.2 Gen 2 Type A Port (Front Panel)	Connectivity — With USB Type A connector Peripherals Supported — USB 3, 2.0 and 1.1 devices Data Transfer Rate — USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps Charging — 1.5A per port advertised using USB Type-C Charging — 7.5W per port for operation or charging — Supports simultaneous charging and syncing
RJ45 (Ethernet) Port	Network Support — Supports 2500 Mb/s, 1000 Mb/s, and 100 Mb/s network speeds and Auto-MDI/MDI-X Standard— Compliant with 802.3bz-2016 and 10/100/1000 IEEE 802.2 Specifications Network — 2.5 Gigabit Ethernet (2.5GBASE-T, 1000BASE-T, 100BASE-TX) Packets — Maximum packet size: 9000 bytes (Jumbo packets) Chip— Realtek RTL8156
SD Card Slot	Cards Supported — SD, SDHC, SDXC — microSD, microSDHC, and microSDXC cards when used with adapter (sold separately)
Audio Line Out	Connectivity — SD, SDHC, SDXC — RCA R+L connectors
Internal Slot	NVMe M.2 slot (connected at PCIe x1)
Power Delivery	Provides laptop charging up to 100W
Kensington Security Slot™	Supports Standard, MicroSaver®, and MicroSaver 2 Locks
Power Adapter	Universal 150W, 100-240V AC, 50-60 Hz
Operating Temperatures	0°C to 35°C (32°F to 95°F)
Dimensions (WxDxH)	Dock: 9.6 x 4.2 x 1.3 in. (24.3 x 10.6 x 3.3 cm) Power Adapter: 2.6 x 5.4 x 0.9 in. (6.6 x 13.7 x 2.2 cm)
Weight	Dock and Power Supply: 2.55 lbs (1.16 kg) Complete Package: 3.55 lbs (1.51 kg)
Compliance	RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 Safety VCCI-B certified FCC Part 15, Subpart B CISPR 32 / EN 55032 Power Supply (PSE certified; UL certified)
Package Contents	Thunderbolt Dual 4K HDMI 2.1 Adapter Power adaper Power cord 0.7-meter Thunderbolt 4 cable ThunderLok 4 Thunderbolt connector retainer clip Documentation
