Sonnet Echo 11 Thunderbolt 4 Dock

Connect To Your Peripherals and Power Your Computer…With One Cable
Product Highlights
  • Connects Your Peripherals with One Cable—Plug in peripherals to the dock with their cables, connect the dock to your computer with the included Thunderbolt 4 cable
  • Eleven Interfaces—Five USB 3.0, two Thunderbolt 4, Gigabit Ethernet, audio, and HDMI 2.0 ports; SD card slot
  • macOS and Windows Compatible—Works with any Thunderbolt 4 Mac or Windows computer
  • Computer Charging Port—Main Thunderbolt 4 port provides power to computers that accept charging over Thunderbolt 4, supporting them at the maximum power they will accept; leave your computer’s power adapter packed away!
  • USB Charging Port—Front panel USB port can charge an iOS device, or other device that charges via USB, even while the computer is off or disconnected
  • 40Gbps Thunderbolt 4 Interface—Fastest interface available, supports daisy chain connection of additional devices
  • Supports Up to Two 4K Displays—Connect one display to the HDMI 2.0 port, another to the second Thunderbolt 4 port or at the end of the Thunderbolt 4 device chain
  • Wide Range of Second Display Connection Options—Select from a variety of inexpensive Thunderbolt 4 or USB-C to popular display interfaces such as HDMI, DVI, etc.
  • SD Card Slot—Reads SD, SDHC, and SDXC memory cards
  • Backward Compatible with Thunderbolt 2 and Thunderbolt Macs—When used with an Apple Thunderbolt 4 (USB-C) to Thunderbolt 2 Adapter
  • Overview
  • Tech Specs

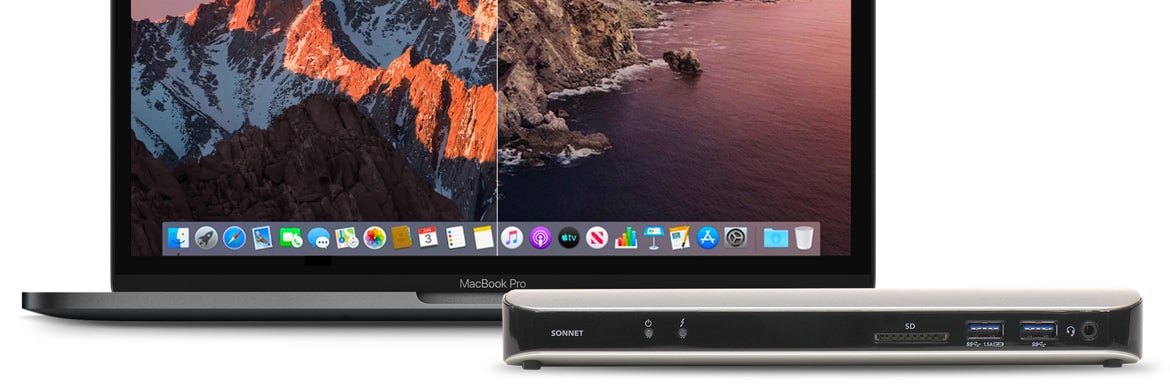

Sonnet’s Echo 11 Thunderbolt 4 Dock connects your peripherals to your computer through a single cable. Simply plug in your devices—such as a printer, keyboard, mouse, cable modem, hard drive, optical drive, USB license dongle, headphones or powered speakers, phone, tablet, and (up to) two 4K displays—to the dock with their supplied cables, and then connect your computer with the included Thunderbolt 4 (40Gbps) cable. The Echo 11 dock even charges compatible computers(5) through the same cable. When it's time to take your computer and go, just unplug the Thunderbolt cable to disconnect from everything at once!

Thunderbolt Certified for Mac® and Windows®
The Echo 11 Thunderbolt 4 Dock works with Mac and Window computers with Thunderbolt 4 ports.

40Gbps Thunderbolt 4—The USB-C That Does It All
The Echo 11 Dock includes two Thunderbolt 4 ports; one for connection to your computer, the other to daisy chain up five additional Thunderbolt peripheral devices to your computer! The Echo 11 includes 10Gbps USB 3.1 Gen 2 support, meaning you can connect another USB device to the second Thunderbolt port using the proper cable or adapter. The Dock’s Thunderbolt 4 peripheral port can also provide up to 15 watts of bus power to devices requiring extra power for even the most demanding bus-powered USB 3.1 or Thunderbolt devices.

Connect a 4K Display or Two
The Echo 11 dock features an HDMI 2.0 port that supports a 4K @ 60Hz (or lower resolution) monitor. To connect an additional display, you can plug in a Thunderbolt 4 monitor to the dock’s second Thunderbolt 4 port or at the end of a Thunderbolt 4 device daisy chain.

Part Number ECHO-DK11-T3
Hardware
Form Factor Thunderbolt 4 dock
External Connectors
  • Two Thunderbolt 4
  • Five USB 3.0
  • One RJ45 (Gigabit Ethernet)
  • One HDMI 2.0
  • One 3.5 mm combination audio headphone/microphone
  • One SD card slot
  • One power
  • 12V power port
Power Adapter Universal 180W, 100-240V, 50-60 Hz
Operating Temperature 0°C to 35°C (32°F to 95°F)
Dimensions (WxDxH) 9.1 x 3.44 x 1.09 in. (23 x 8.73 x 2.77 cm)
Weight 2.6 lbs. (1.18 kg)
RoHS Compliant Yes
HDMI
Standard HDMI 2.0 and HDCP 2.2
Supported Resolutions
  • 3840 x 2160
  • 2560 x 1440
  • 1920 x 1080
  • 1920 x 1440
  • 1920 x 1200
  • 1856 x 1392
  • 1792 x 1344
  • 1680 x 1050
  • 1600 x 1200
  • 1440 x 990
  • 1400 x 1050
  • 1360 x 768
  • 1280 x 1024
  • 1280 x 960
  • 1280 x 720
  • 1152 x 768
  • 1024 x 768
Gigabit Ethernet
Network Connector One RJ45 connector supports 1000 Mb/s, 100 Mb/s, and 10 Mb/s network speeds and Auto-MDI/MDI-X
Standard Compliant with 10/100/1000 IEEE 802.2 Specification
Network Gigabit Ethernet (1000BaseT, 100BaseTX, 10BaseT)
Packets Maximum packet size: 9000 bytes (Jumbo packets)
Wake-on-LAN Supported
Netboot Supported
Chipset Intel i210
Thunderbolt 4
Connectivity Thunderbolt 4
Peripherals Supported Supports all industry standard Thunderbolt devices
Daisy Chain Up to six devices
Hot Plug Supports hot-pluggable device connection
Power Delivery Supports all Thunderbolt-charged laptops at maximum draw (30W, 45W, 60W or 87W)
USB 3.0
Ports Two in front plus three in rear
Cables Supported With standard male USB-A connector
Peripherals Supported Supports all industry standard USB 3.0, 2.0 and 1.1 devices
Data Transfer Rate USB 3.0: 5 Gb/s
Number of Devices Supported Supports hot-pluggable device connection
Charging
  • One front panel port with 7.5W capacity to charge iPad, iPhone, iPod, or other USB Battery Charging 1.2–compliant device
  • Supports charging while sleeping or disconnected from computer
  • Supports simultaneous charging and synching
Video Support (via Thunderbolt 4 Port)
Thunderbolt 4 Thunderbolt 4 cable
DisplayPort USB-C to DisplayPort cable or adapter
mini DisplayPort USB-C to mini DisplayPort cable or adapter
HDMI USB-C to HDMI cable or adapter (with Thunderbolt 4 support)
DVI USB-C to DVI cable or adapter (with Thunderbolt 4 support)
Dual-Link DVI USB-C to HDMI adapter + HDMI to Dual-Link DVI adapter
VGA USB-C to VGA cable or adapter (with Thunderbolt 4 support)
USB-C/DisplayPort USB-C cable with 4K video support
Resolution Dependent on computer video controller specification
Audio Connector
Combination One 3.5 mm jack for stereo headphones, or stereo headphones with monaural analog microphone, or powered speakers

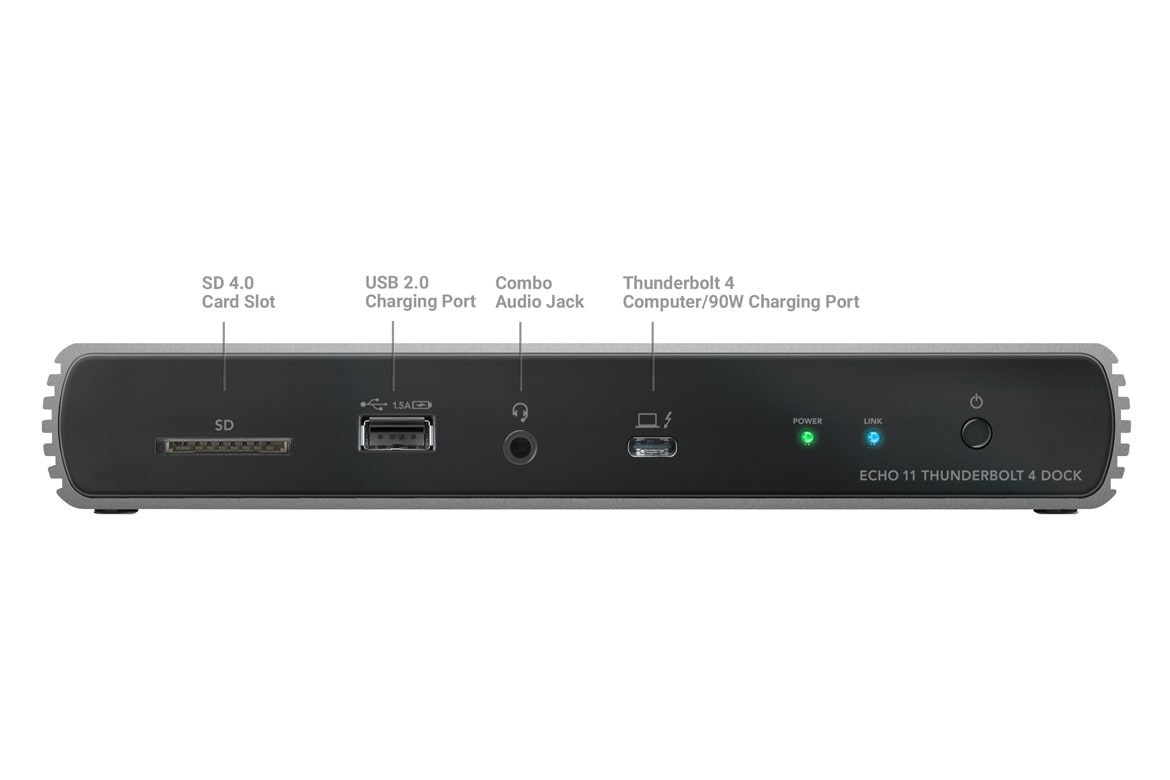

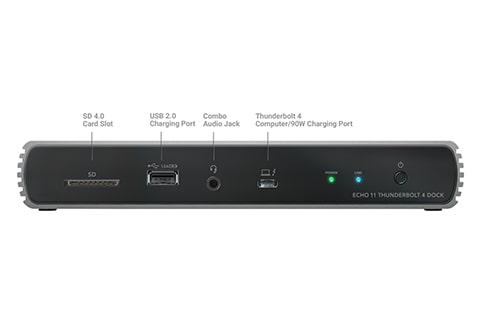

Front Panel Indicators
Power Power LED indicator lights when dock is powered
Thunderbolt 4 Connection LED indicator lights when computer connected to the dock is powered on, and turns off when the computer is sleeping or disconnected.

Connection Condenser
  • Thunderbolt 4 x 2
  • USB 3.0 x 5
  • Gigabit Ethernet
  • HDMI 2.0
  • Combo Audio
  • SD Card Reader
  • Dual 4K Display Support
  • 87W Power Delivery
