Sonnet Echo Express SE IIIe

3-slot Desktop Thunderbolt 3 Expansion System for PCIe Cards
Key Features
  • Connect PCIe Cards —Use multiple high-performance PCIe cards with any computer with a Thunderbolt 3 port.

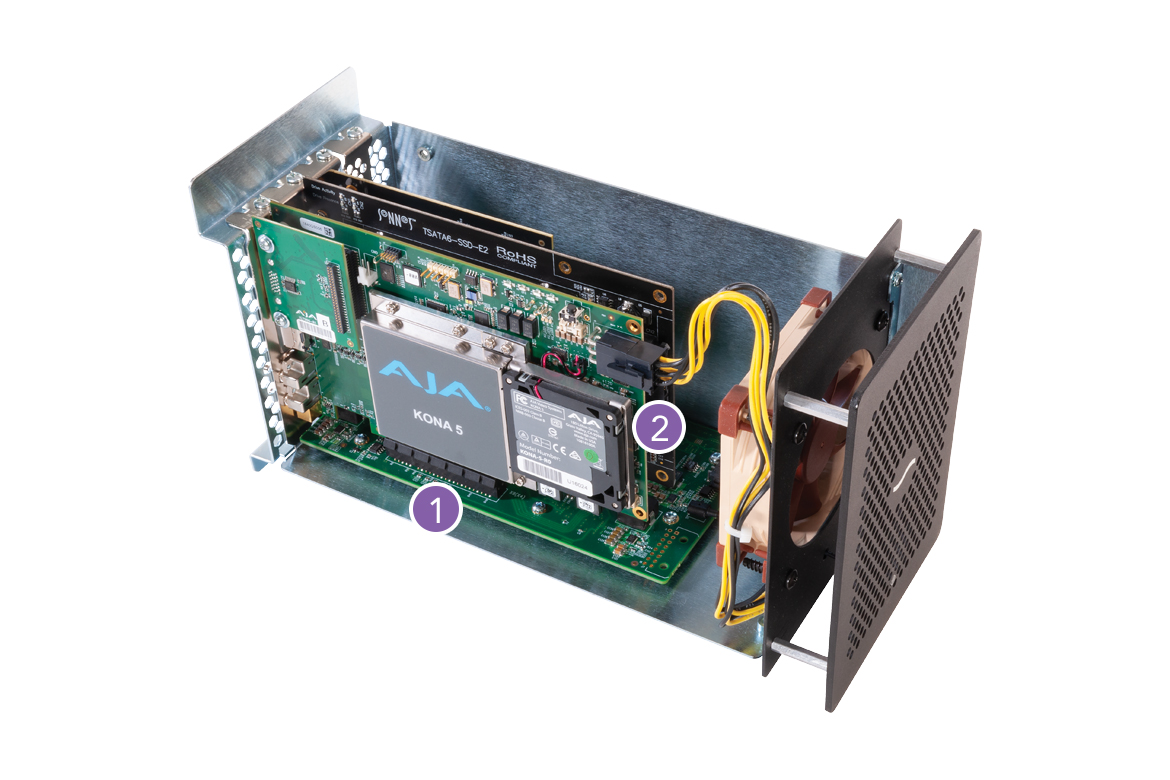

  • Three PCIe 3.0 x8 Slots —Supports three full-height, half-length+ (up to 7.75 inches long), single-width cards, or one double-width card plus one single-width card.
  • 40Gbps Thunderbolt 3 Interface —Offers 2750 MB/s of PCIe bandwidth, doubling the performance capabilities of Thunderbolt 2.
  • Pro Performance. Compact Design. —Takes up little space on the desktop, but large enough to support nearly every Thunderbolt-compatible non-GPU PCIe card at full performance.
  • Two Thunderbolt 3 Ports —One port connects to computer; second port supports daisy-chaining of up to five additional Thunderbolt peripheral devices.
  • Remarkably Quiet —Temperature-controlled, variable-speed fan automatically and quietly cools the cards.Powers on/off automatically with the computer
  • Energy Saver Mode —Powers on/off automatically with the computer.Provides robust and secure protection
  • Rugged Aluminum Housing —Provides robust and secure protection.
  • Pro Power —Auxiliary PCIe power connector for a power-hungry card; daisy chain port provides up to 15W of power to connected peripherals.
  • Overview
  • Tech Specs

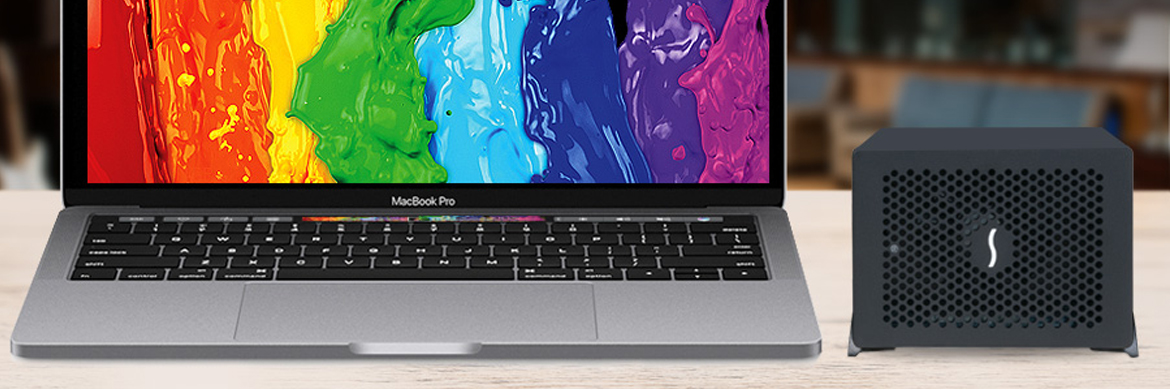

Connect Three Full-height, Half-length+ PCIe Cards to Computers with Thunderbolt 3 Ports

Although thin Mac®, Windows®, and Linux® computers with Thunderbolt™ 3 ports offer processing power to spare, for many users (such as pros in the creative fields) onboard processing power alone is not enough. Sonnet’s Echo™ Express SE IIIe is a compact, desktop Thunderbolt™ 3 to PCIe card expansion system that enables you to connect three professional PCIe cards at the same time to any computer with Thunderbolt 3 ports.

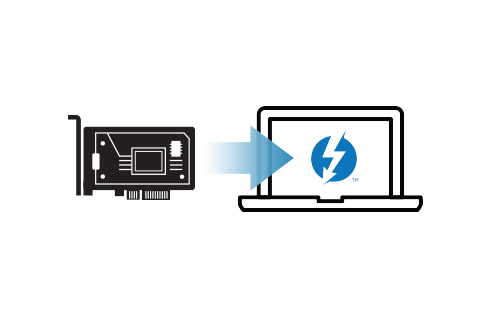

The Thunderbolt 3 Connection
This compact desktop expansion system supports three professional PCIe cards (video capture; audio DSP; 6Gb or 12Gb SAS or SATA host bus adapter; 10Gb, 25Gb, or 40Gb Ethernet; or RAID controller; etc.) and connects them to your computer through a single Thunderbolt 3 cable.

Part Number ECHO-EX-SE3E-T3
Hardware
Form Factor Desktop expansion system
External Connectors
  • Two Thunderbolt 3 ports
  • 12V power port
Internal Connectors
  • 6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard; provides power for PCIe card that requires supplemental power)
Expansion Slot
  • One x8 mechanical (x4 electrical) PCIe 3.0
  • Two x8 mechanical (x8 electrical) PCIe 3.0
PCIe Cards Supported One half-length+ (up to 7.75 inches long), double-width, full-height x8 PCIe card, plus one single-width card or
Three half-length (up to 7.75 inches long), single-width, full-height x8 PCIe cards
Power Adapter Universal 120W, 100-240V, 50-60 Hz
Operating Temperature 0°C to 35°C (32°F to 95°F)
Dimensions (WxDxH) 6.5 x 11 x 4.6 in. (16.5 x 27.9 x 11.7 cm)
Weight 2.6 lbs. (1.18 kg)
RoHS Compliant Yes

Learn more
Dimensions (WxDxH)
  • 6.5 x 11 x 4.6 in. (16.5 x 27.9 x 11.7 cm)

Weight
  • 2.6 lbs. (1.18 kg)

Package Contents
  • Echo Express SE IIIe
  • Universal power adapter
  • Power cord
  • 0.7-meter Thunderbolt 3 (40Gbps) cable
  • ThunderLok 3 Thunderbolt Connector Retainer Clip
  • Documentation
