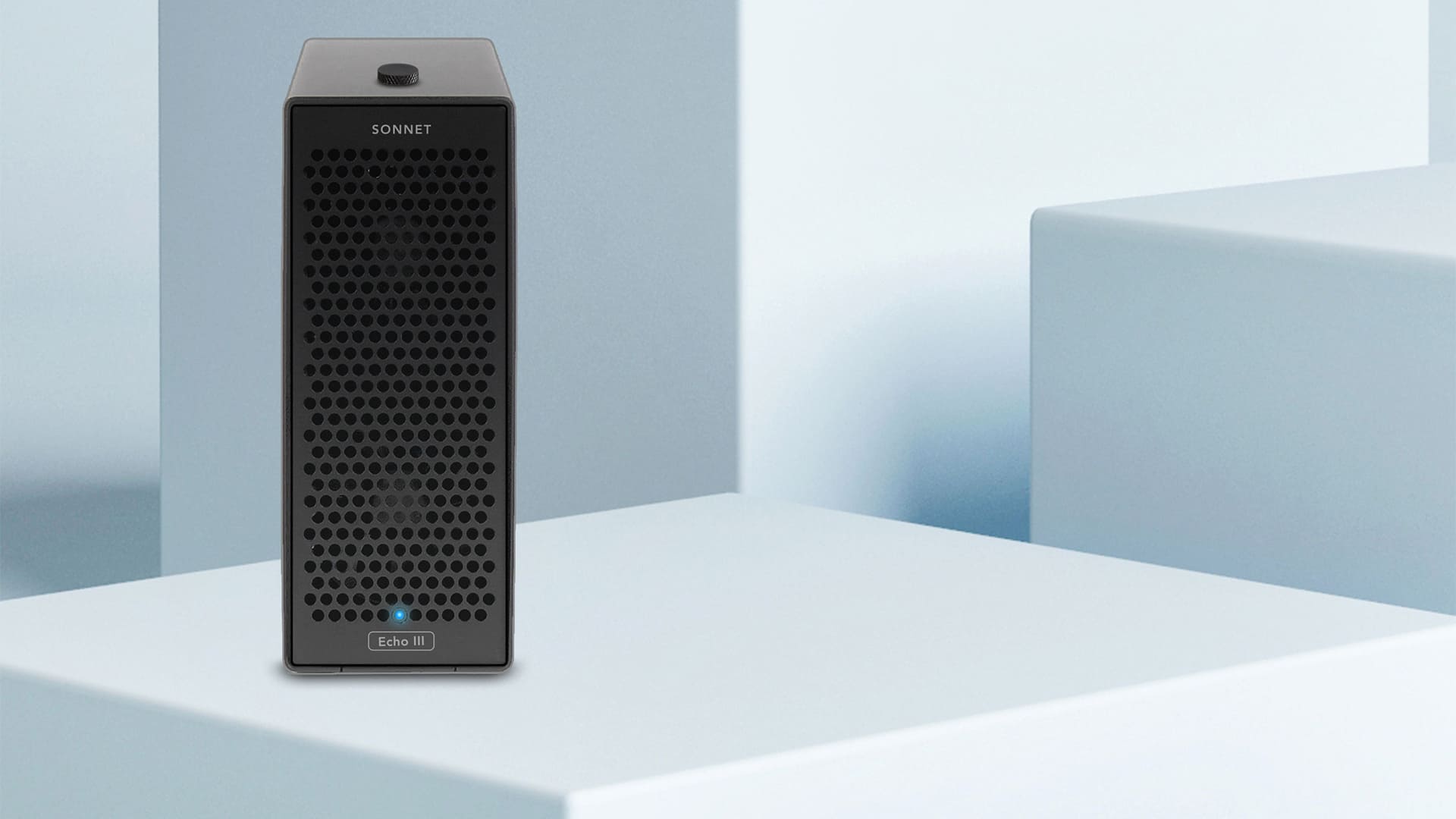

Sonnet Echo III Desktop
Sonnet

Echo III Desktop

3-slot Desktop Thunderbolt to PCIe Card Expansion System for Computers with Thunderbolt 4 or Thunderbolt 3 Ports
Key Features
  • Adds Connectivity & Capabilities —Connects up to three high-performance non-GPU PCIe cards via a Thunderbolt 3 cable to your computer lacking expansion slots.

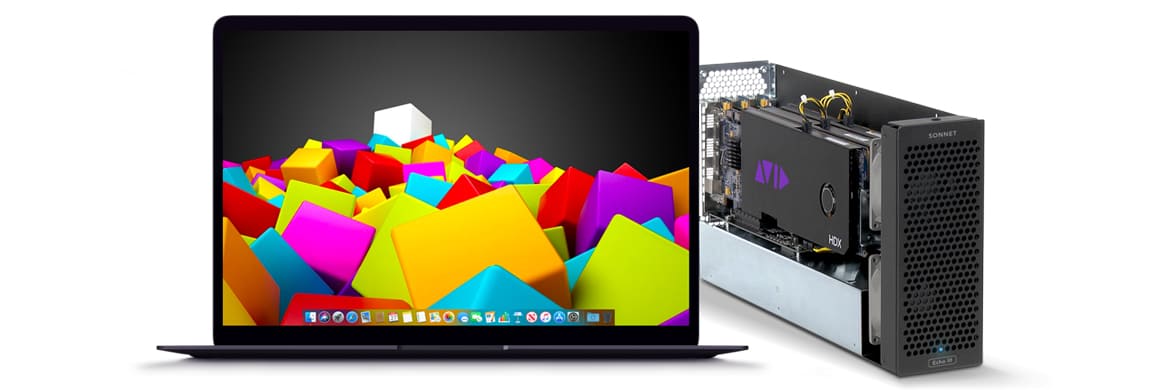

  • Pro Tools | HDX Compatible —HDX compatibility mode enables use of up to three Pro Tools | HDX PCIe cards with no additional parts needed..
  • Broad PCIe Card Compatibility —Every Thunderbolt compatible, non-GPU card supported regardless of length or height.
  • Three PCIe 3.0 Slots —One x16 plus two x8 slots support three full-height, single-width cards, or one double-width card plus one single-width card.
  • Pro Power —Integrated 400W power supply with 75W auxiliary power. Saves energy by powering on/off automatically with the computer.
  • Remarkably Quiet —Dual temperature-controlled, variable-speed Noctua fans rated at 17dBA automatically and quietly cool the cards.
  • 40Gbps Thunderbolt 3 System —Offers 2750 MB/s of PCIe bandwidth for the installed cards
  • Two Thunderbolt Ports —One port connects to computer; second port supports daisy-chaining of up to five additional Thunderbolt peripheral devices.
  • Rugged Aluminum Housing —Provides robust and secure protection.
  • Overview
  • Tech Specs

Connect Three Full-length PCIe Cards to Computers with Thunderbolt 4 or Thunderbolt 3 Ports

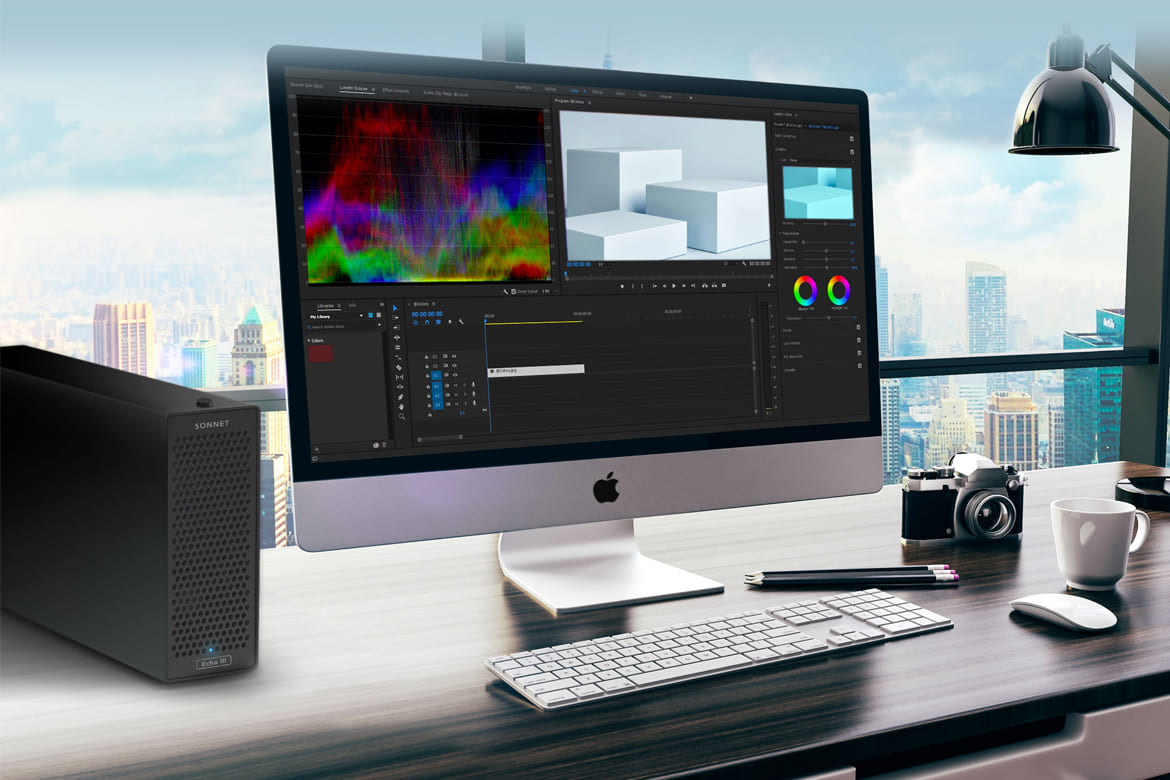

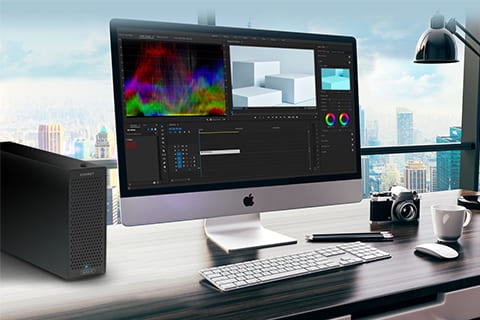

For creative pros using the latest portable, mini desktop and all-in-one computers in their workflows, onboard processing power alone is not enough to get the job done. While these Mac®, Windows®, and Linux® computers include high-performance Thunderbolt™ 4 or Thunderbolt 3 ports to support peripherals, what they lack is PCIe expansion slots to install specialty cards that add needed video and audio inputs, transcode data, and connect to high-speed shared storage and networks. Sonnet has a solution—the Echo™ III Desktop—a professional Thunderbolt to PCIe card expansion system that enables you to connect three (up to) full-length (12.28 inches long) PCIe cards at the same time, via a single cable.

Part Number ECHO-3D-TB3
Hardware
Form Factor Thunderbolt desktop enclosure
External Connectors Two Thunderbolt ports
Internal Connectors 6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard; provides up to 75W of power for PCIe cards that require supplemental power)
Expansion Slot
  • One x8 mechanical (x8 electrical) PCIe 3.0
  • One x16 mechanical (x8 electrical) PCIe 3.0
  • One x8 mechanical (x4 electrical) PCIe 3.0
PCIe Cards Supported
  • Three full-length, full-height, single-width PCIe cards or
  • One full-length, full-height, double-width PCIe card, plus one single-width card
Power Adapter Universal 400W, 115-230V AC, 50-60 Hz
Operating Temperature 0°C to 35°C (32°F to 95°F)

Learn more
Dimensions (WxDxH)
  • 3.5 x 16.7 x 9 in. (8.9 x 42.4 x 22.9 cm)

Weight
  • 9.7 lbs (4.40 kg)

Package Contents
  • Echo III Desktop enclosure
  • Power cord
  • 0.7-meter 40Gbps Thunderbolt cable
  • ThunderLok 3 Thunderbolt connector retainer clip
  • Documentation
