Supports Latest Video Cards

• Supports the latest Thunderbolt-compatible GPU cards
• Supports 2.5-slot width GPU cards
• View PDF of supported GPU cards

800W Future-proof Design

• 800W provides all the power you need for today’s GPU cards and plenty of extra power to support future generation GPU cards with higher power requirements
• Includes two 8-pin (6+2 pin) auxiliary power connectors

Quiet Fans

• Dual Noctua fans offer ultra-quiet operation
• Temperature-controlled, variable-speed
• Rated at 17 dbA

40Gbps Thunderbolt Interface

• 40Gbps Thunderbolt interface offers 2800 MB/s of PCIe bandwidth to the installed GPU card
• Compatible with Thunderbolt 4 and Thunderbolt 3 computers
• Thunderbolt cable included
• ThunderLok 3 Thunderbolt connector retainer clip included

Graphics Workstation Power

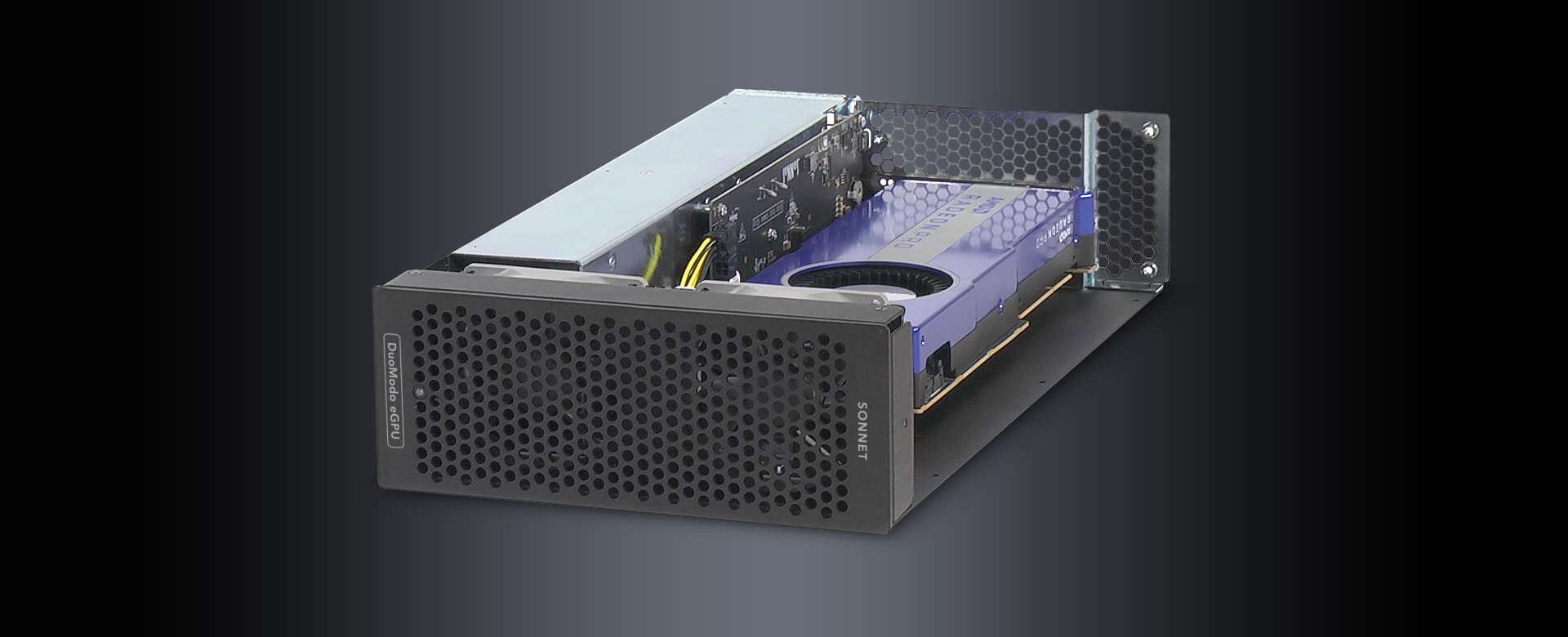

If your workflow includes video editing, rendering, color grading, animating or creating special effects, many of the pro applications you use rely on desktop and workstation graphics (GPU) cards to do the heavy lifting in processing data. Unfortunately, many popular computers are equipped only with integrated graphics processors or low-power discrete GPUs that provide less than ideal performance. Happily, there’s a simple path to greater productivity—add a Sonnet external GPU (eGPU). The DuoModo eGPU Module Thunderbolt to GPU PCIe Card Expansion System boosts your eGPU-compatible computer’s graphics performance by connecting a high-performance desktop or workstation GPU card to your computer via a single cable.

Built for GPU Power

• Provides robust and well-regulated power for current and future GPU cards
• Supports the latest AMD Radeon^™ cards, including the RX 6900 XT and PRO W6800
• Designed to also support overclocked NVIDIA^® cards with high peak power requirements

• 1. Dual Temperature-controlled Noctua Fans – Provides cooling for the installed GPU card (sold separately), and the module's supporting Thunderbolt and power circuitry
• 2. Auxiliary Power Connectors – Includes two 8-pin (6+2 pin) auxiliary power connectors
• 3. 800W Power Supply – Supports cards requiring up to 750W, with power to spare to support future generation GPU cards with higher power requirements

Expansive GPU Card Compatibility

The DuoModo eGPU Module is designed to accommodate the most power-hungry (up to) 2.5-slot width GPU cards. It supports Thunderbolt-compatible cards with popular GPU chipsets—such as AMD Radeon RX series and NVIDIA GeForce^® series and TITAN GPUs. Even pro cards — AMD Radeon Pro and NVIDIA Quadro^® GPUs — are supported! Note that macOS^® supports only AMD GPU cards in eGPU systems, while Windows^® supports AMD and NVIDIA cards.

Demanding 4K to 8K Worflows? Double Your DuoModos.

Many task times on supported applications — such as Adobe^® Premiere^® Pro, DaVinci Resolve^™, and Maxon Cinema4D^™, to name a few — can be cut significantly with one eGPU connected. But, for computers with Intel processors and multiple Thunderbolt ports, times can be slashed when two DuoModo eGPU Modules are employed. Connecting two eGPUs can multiply your computer’s graphics processing power, enabling it to handle today's demanding 4K, 5K, 6K, and 8K workflows more efficiently. Plus, a computer’s onboard discrete GPU can also significantly contribute to the aggregate performance.

Part Number	DM-MOD-GPU
Form Factor	eGPU Module
External Connectors	One Thunderbolt Power (C14-type)
Internal Connectors	Two 8-pin (6+2 pin) power connectors
Expansion Slot	One x16 mechanical (x4 electrical, Thunderbolt spec) PCIe 3.0
GPU Card Supported	One full-length, full-height, 2.5-slot GPU card Maximum GPU card size is 312 mm x 140mm x 58mm
Power Supply	Universal 800W, 100-240V AC, 50-60 Hz Supports cards requiring up to 750W of peak power
Standy Power	Consumes 8.5W (sleep) / 14W (idle)
Operating Temperatures	0°C to 35°C (32°F to 95°F)
Dimensions (WxDxH)	3.3 x 16.6 x 8.5 in. (8.4 x 42.2 x 21.6cm)
Weight	5.8 lbs (2.63 kg)
Compliance	RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 Safety
