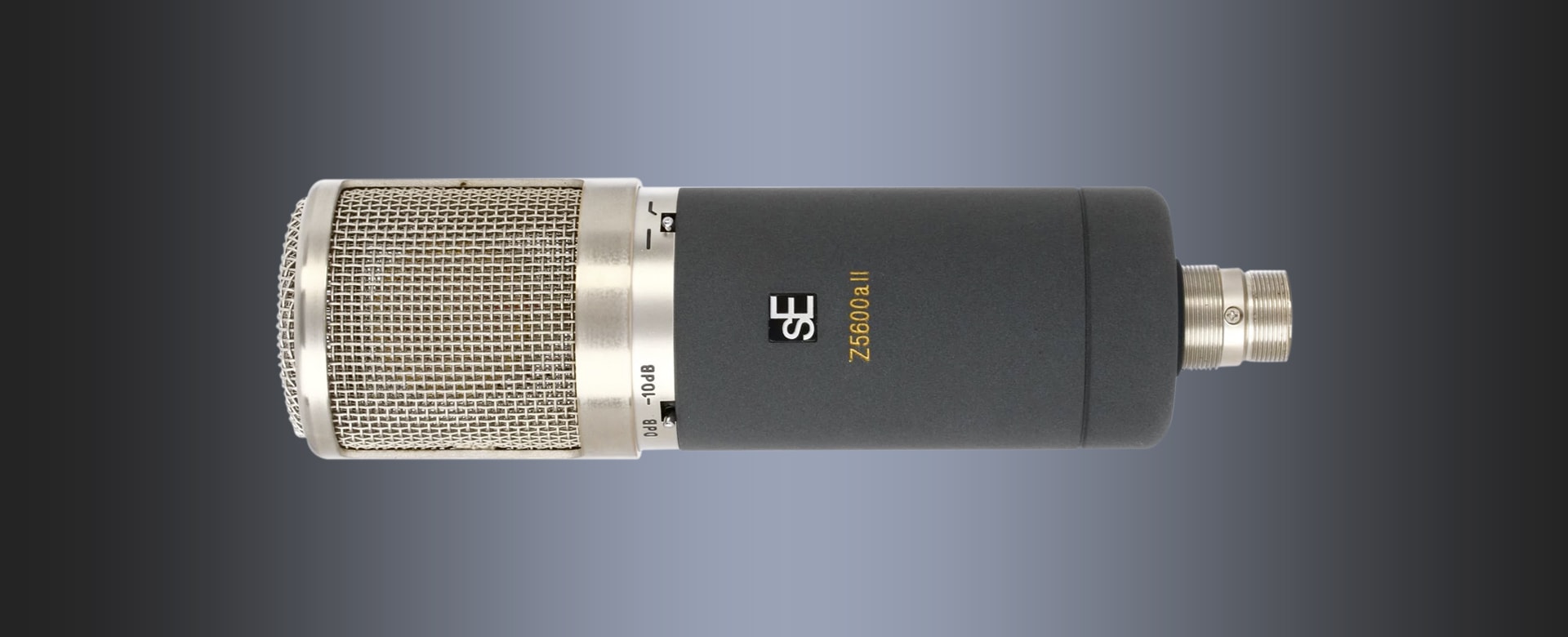

sE Electronics Z5600A-II

Large-diaphragm Tube Condenser Microphone with 9 Switchable Polar Patterns
Product Highlights
  • Versatile large-diaphragm condenser tube microphone
  • Frequency response: 20Hz-20kHz
  • Polar pattern: Cardioid, omni, figure-8, and 6 intermediate stages, all selectable on AC power unit
  • Comes in a wooden presentation case

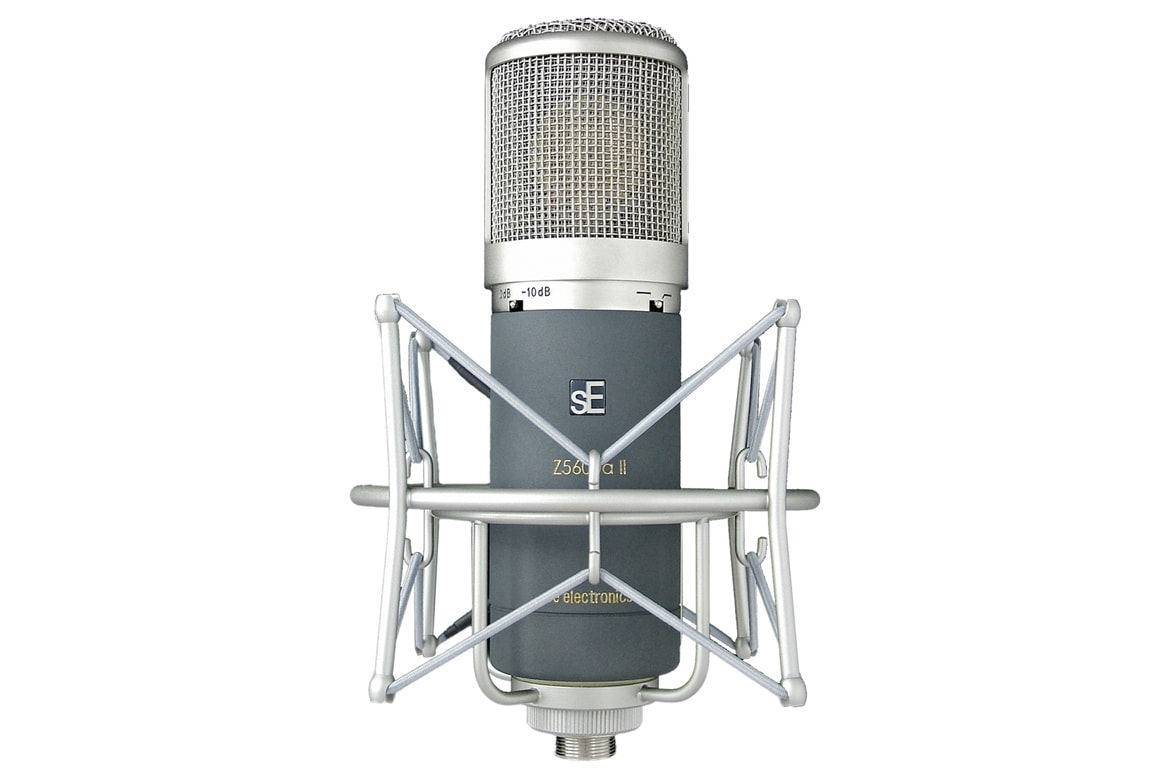

  • Includes an aluminum flight case, a large shockmount, and a brand-new brushed-aluminum PSU with pattern switching and cables

  • Overview
  • Tech Specs

Studio Large-Diaphragm Tube Condenser Microphone

The Z5600A-II Studio Large-Diaphragm Tube Condenser Microphone from sE Electronics is a versatile vacuum-tube condenser microphone that can be used for a wide variety of applications.

The microphone features omnidirectional, cardioid, and figure-8 polar patterns with six intermediate stages between each, a -10 dB pad for minimizing distortion, and a low-frequency roll-off for eliminating hum and noise.

The vacuum-tube output stage provides the warmth and pristine transparency expected of a high-quality tube condenser and is an ideal choice for vocal and instrument recording in any studio environment.


Price: Upon Request

Capsule Type Hand-Crafted True Condenser
Diaphragm 35mm Twin Gold/Mylar
Directional Pattern Cardioid, Omni
Frequency range 20 Hz - 20 kHz
Impedance 200 Ohms
Sensitivity 25.12 mV/Pa (-32 dB)
Max SPL 125/135 dB (0/-10 dB pad) (0.5% THD @ 1kHz)
Signal to Noise Ratio 76 dB
Self Noise 18 dB(A)
Pass Filter Switch 50 Hz
Preattenuation Pad -10 dB
Power requirement Dedicated PSU (included)
Weight (mic) 795g / 28.04oz
Weight (PSU) 1459g / 51.47oz
Tube complement 1x 12AX7/ECC83
Connectors 8-pin army connector to mic, XLR from PSU


Price: Upon Request

Included Accessories
  • Shock Mount
  • Wood Case
  • Flight Case
