sE Electronics X1 R

Passive Ribbon Microphone with 20Hz-16kHz Frequency Response (+/-1dB), and 135dB Maximum SPL
Product Highlights
  • Passive Ribbon Microphone
  • 135 dB SPL Handling
  • Gentle HF Lift
  • For Guitar Cabs, Drum Overheads, Brass
  • For Woodwinds, Strings, Voice Over

  • Overview
  • Tech Specs

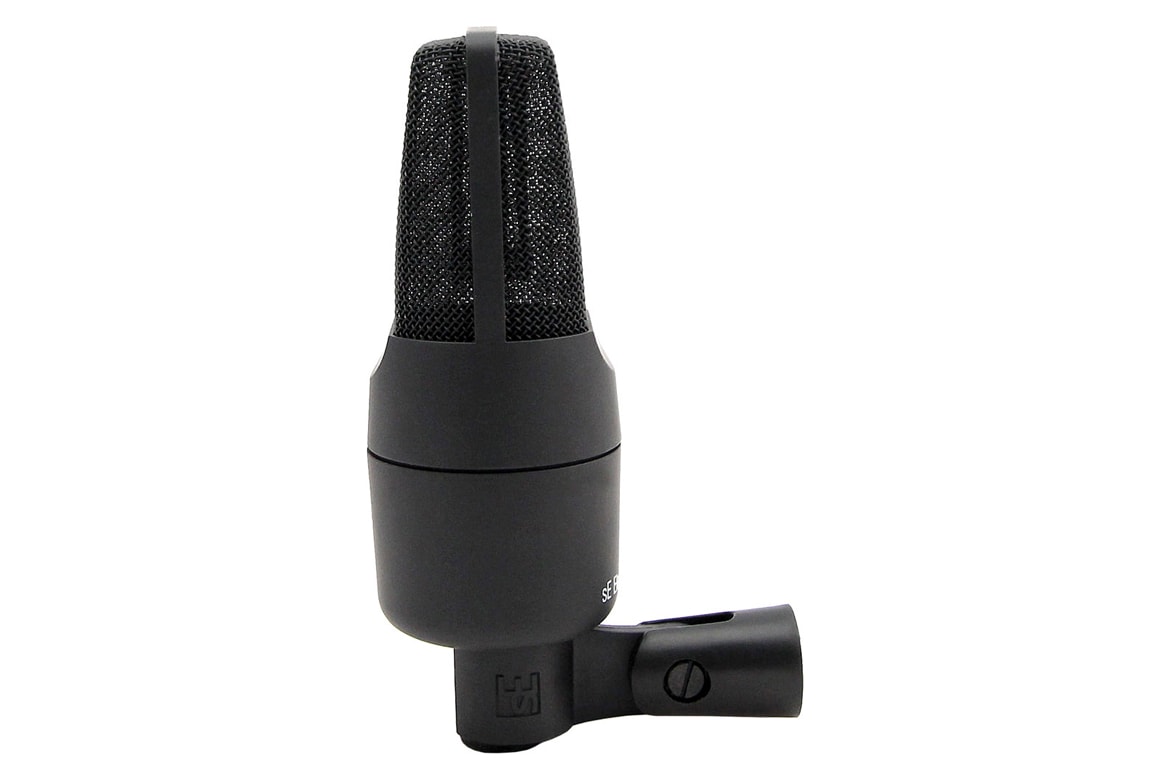

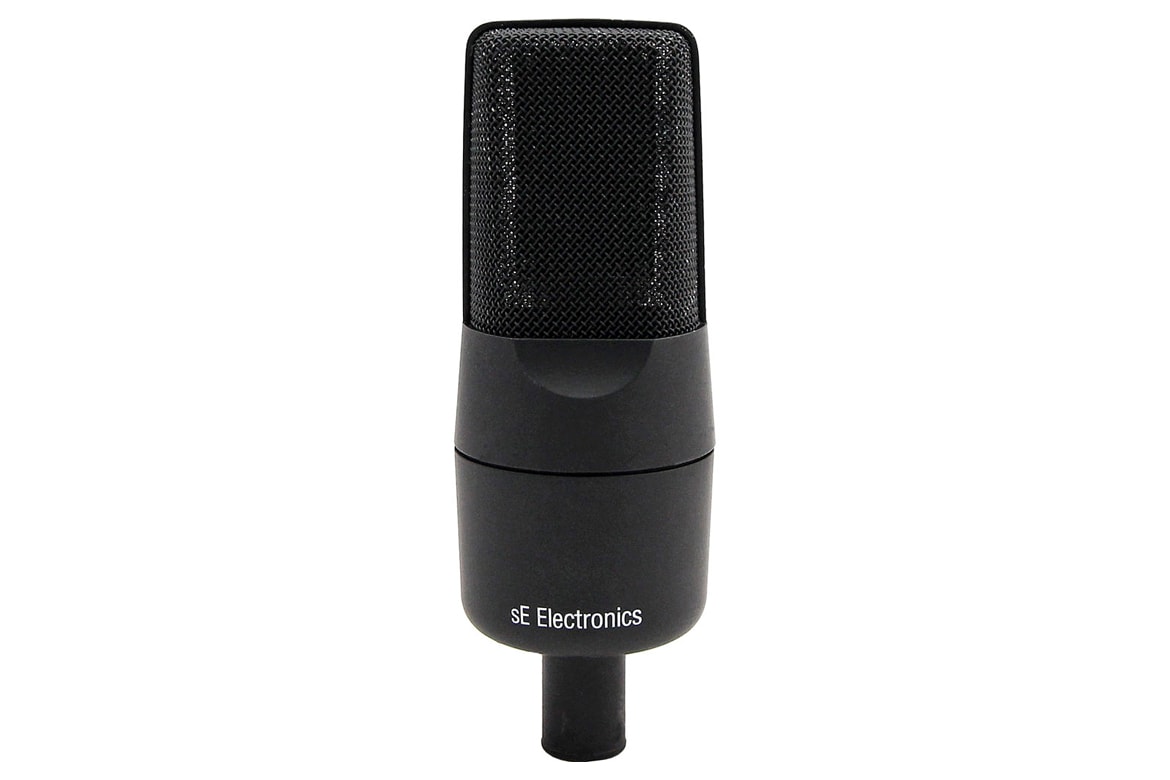

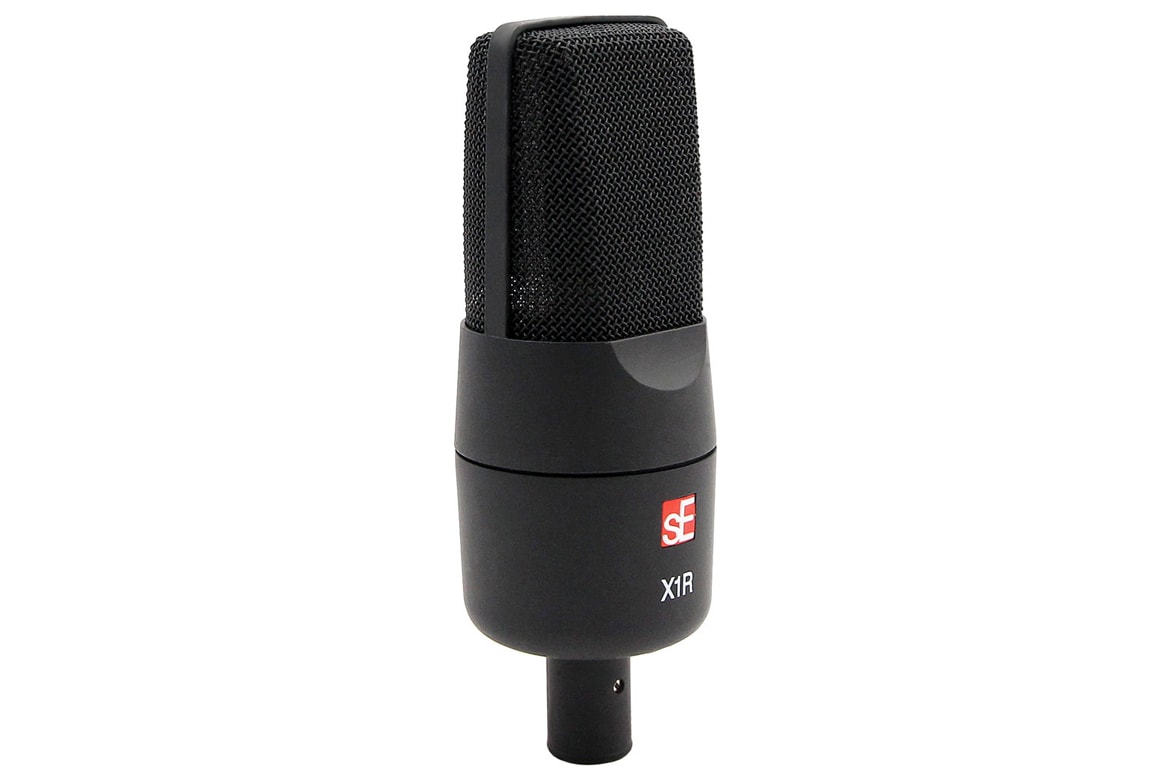

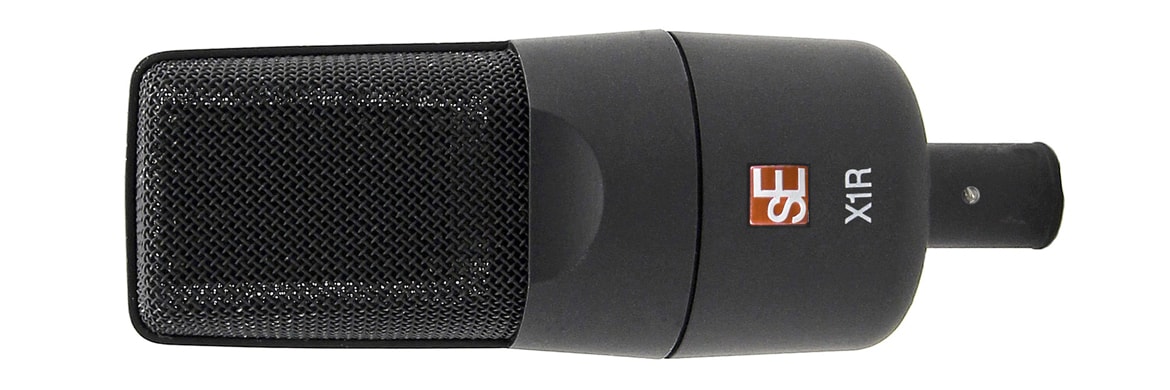

The X1R Ribbon Microphone from sE Electronics is a passive ribbon microphone that features an aluminum ribbon element capable of handling SPLs up to 135 dB. The X1R can be used on a variety of sources, including on guitar cabinets, drum overheads, brass, woodwinds, strings, or in commercial broadcast and voice over applications.

The microphone's element is enclosed by Neodymium magnets and is housed is a chassis whose design is based on sE's X1 cardioid microphone. The X1R has a gentle high-frequency boost and a frequency response up to 16 kHz.

Type Passive ribbon
Element 2μ aluminum ribbon
Frequency Response 20 HZ to 16 kHz, &plusmn1 dB
Sensitivity -55.3 dB 1 V/Pa, ±1 dB
Directional Pattern Figure of 8
Impedance ≤200 Ω
Connector 3 pin
Maximum SPL 135 dB
Weight 1.1 lb (0.5 kg)

Weight
  • 510g / 17.99oz
