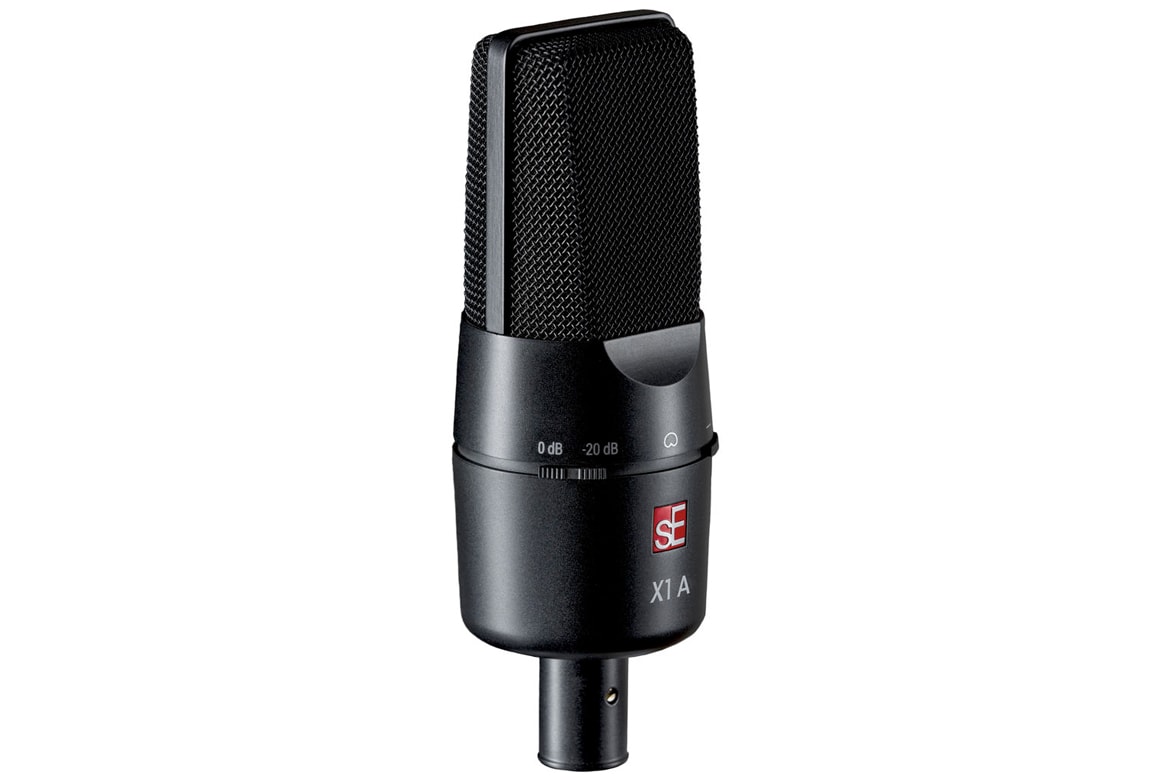

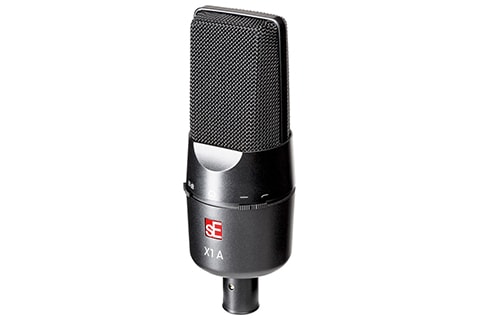

sE Electronics X1 A

Large-diaphragm Cardioid Condenser Microphone with -20dB Pad and 100Hz Highpass Filter
Product Highlights
  • All-Metal housing and premium finish
  • Integrated windscreen
  • Completely new acoustic design
  • Attenuation and Low cut switches
  • Gold-Plated XLR Connector

  • Overview
  • Tech Specs

sE Electronics hits another home run with the X1 A large-diaphragm cardioid condenser microphone. The X1 A's upgraded capsule sounds great. Accuracy, dynamics, well-balanced frequency response - they're all there. Overhauled electronics manifest unbelievable sonic performance, especially at this price. A -20dB pad switch extends your dynamic range; although, given the X1 A's excellent SPL handling, you may not need it very often. A 100Hz highpass filter eliminates rumble and other unwanted low-frequency sounds. A gold-plated XLR connector ensures that the sE Electronics X1 A large-diaphragm cardioid condenser microphone will maintain a solid, reliable connection for years to come.

ALL-METAL HOUSING & PREMIUM FINISH
Unlike the cheaply constructed bodies of some other "entry-level" microphones, the X1 A's all-metal chassis provides efficient rejection of any electrical interference and noise - and the high-quality finish ensures a great look for years to come.

INTEGRATED WINDSCREEN
Eliminates the need for an external pop filter, and provides an extra layer of safety and security for the all-important capsule.

COMPLETELY NEW ACOUSTIC DESIGN
The X1 A's new condenser capsule design is a work of art, delivering stellar sonic performance on any source with incredible speed, accuracy, and well-balanced frequency response.

The electronics have also undergone a complete overhaul, and exhibit better specifications and sound - on and off the test bench - than any other microphone in its class.

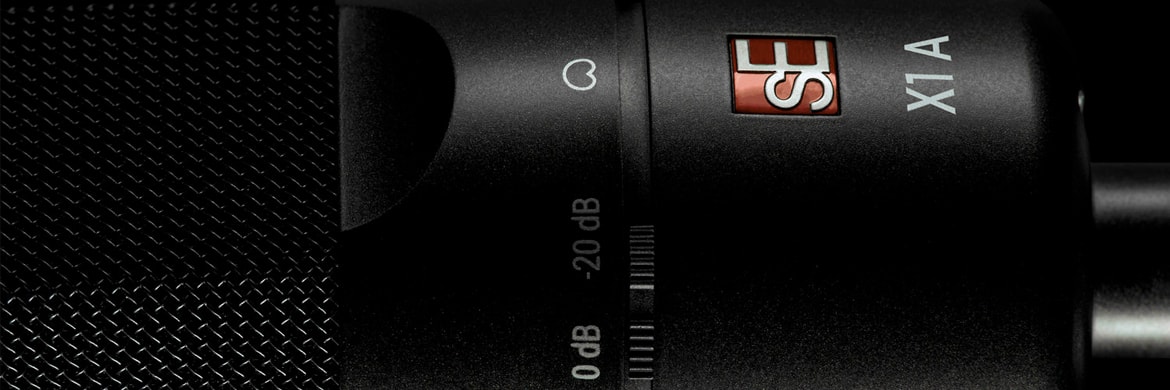

ATTENUATION & LOW CUT SWITCHES
The -20 dB pad switch on the left provides extended dynamic range, enabling a wide range of applications and close-mic techniques for even the loudest instruments...think super-heavy electric guitars, fortissimo brass instruments, and heavy-footed kick drums.

On the right, the 100 Hz low-cut switch helps eliminate low-frequency rumble or footfall noise, and compensates for excessive bass with close-mic techniques (proximity effect).

The X1 A comes complete with a rock-solid, newly designed swivel mic clip and thread adapter to fit with any mic stand.


Price: Upon Request

Capsule Type 2/3" Permanently-Biased Condenser
Directional Pattern Cardioid
Frequency range 20 Hz - 20 kHz
Impedance <50 Ohms
Sensitivity 20 mV/Pa (-34 dB)
Max SPL 130 / 150 dB (0 / 20 dB pad, (0.5% THD @ 1kHz)
Signal to Noise Ratio 78 dB(A)
Equivalent Noise Level 16 dB(A)
Dynamic Range 114 / 134 dB (0 / 20 dB pad)
Low Cut Filter 100 Hz, 6 dB/oct, switchable
Attenuation Pad 20 dB, switchable
Connectivity 3-pin male XLR
Power requirement 48V phantom according to IEC 61938
Recommended Load Impedance >1K Ohms
Current Consumption 4.0 mA


Price: Upon Request

  • Diameter: 58 mm (2.28 in.)
  • Length: 169 mm (6.65 in.)
  • Weight: 390 g / 13.8 oz
