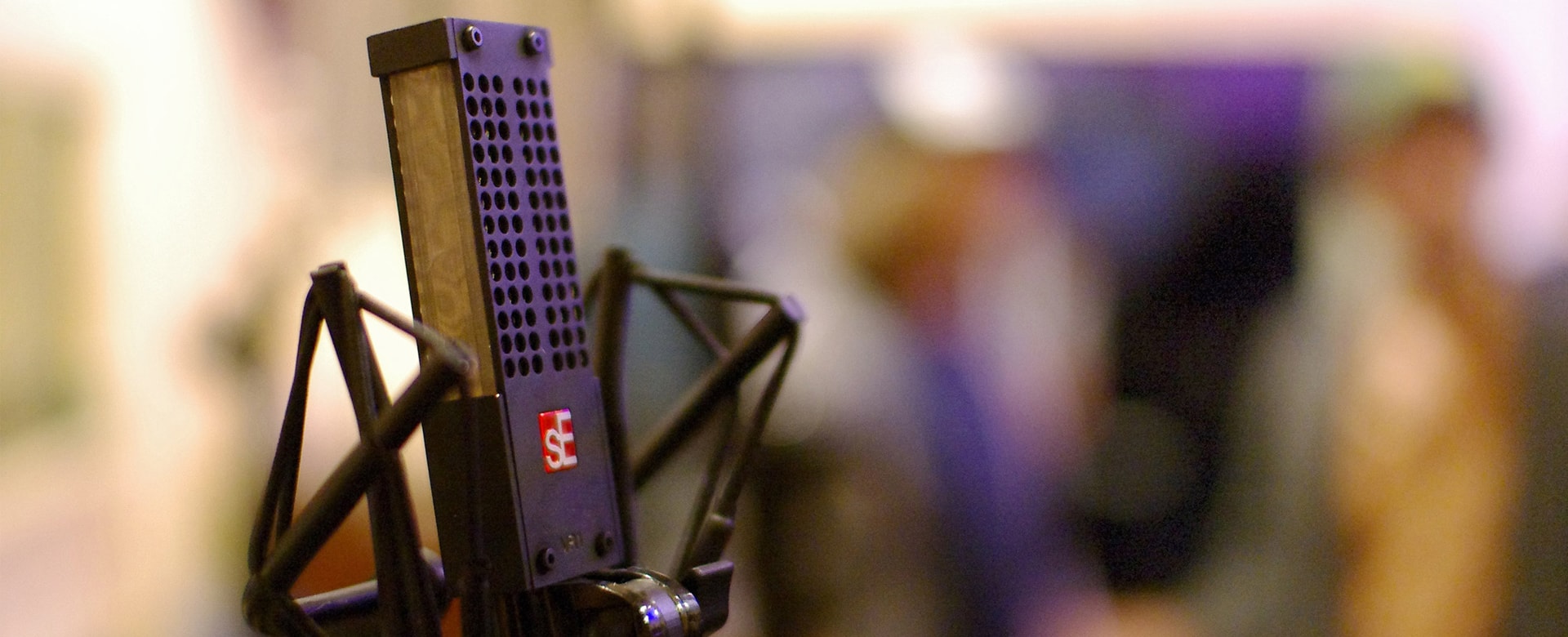

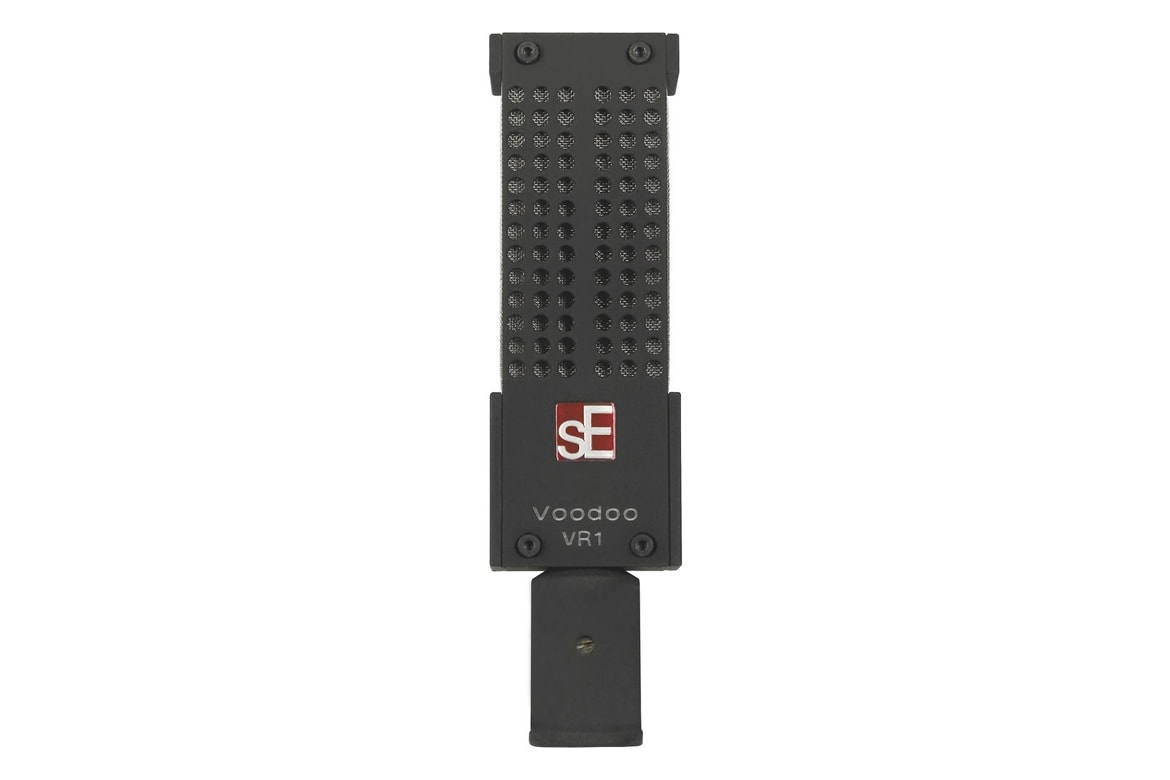

sE Electronics Voodoo VR1
Passive Ribbon Microphone
Product Highlights
- High-quality and affordable passive ribbon microphone
- Full-frequency response is magic on detailed sources
- Designed by company founder Siwei Zou
- Polar Pattern: Figure 8
- Max SPL for 0.5% THD@1000Hz: 135dB
- Phantom power protection
- Rugged design can be used virtually anywhere
- Ruler-flat frequency response from 20Hz to 18kHz +/- 2dB
- Overview
- Tech Specs
The Voodoo VR1 Passive Ribbon Microphone from sE Electronics features a passive ribbon to bring out the edge from your guitar cabs with no muddy highs. It uses proprietary electronics and a long, aluminum ribbon transducer to reproduce signals with a wide frequency response, and pristine detail. The capsule features a figure 8 polar pattern, wide frequency response, and detailed audio response.
| Electronics | Passive |
| Generating Element | Hand-tensioned 2.5µm aluminum ribbon |
| Directional Pattern | Figure-8 |
| Frequency range | 20 Hz - 18 kHz |
| Impedance | 300 Ohms |
| Sensitivity | 1.78 mV/Pa (-55 dB) |
| Max SPL | 135 dB (0.5% THD @ 1kHz) |
| Signal to Noise Ratio | 75 dB |
| Self Noise | 19 dB(A) |
| Matching Connectors | XLR3F |
Weight
- 230g / 8.11oz
