sE Electronics Z5600A-II

Large-diaphragm Dual-tube Cardioid Condenser Microphone with 12AX7 Input Tube and 12AU7 Output Tube
Product Highlights
  • Dual-tube design
  • 12AX7 at input stage
  • 12AU7 at output stage
  • Brings you best of classic tube mic designs with solid state-style top-end

  • Overview
  • Tech Specs

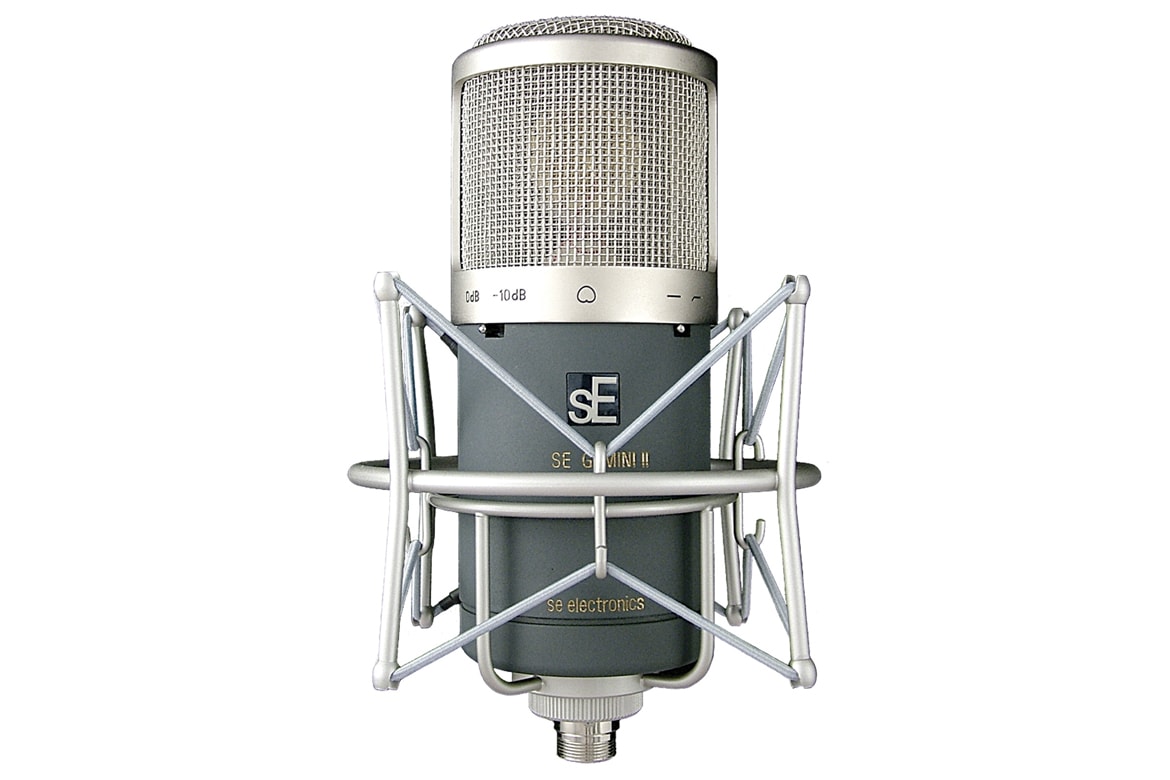

The Gemini II Dual Tube Microphone from sE Electronics is designed for crucial capturing of vocals and instruments in professional recording applications and features a unique dual tube design. The sE-Electronics twin triode valves feature a 12AX7 (ECC83) and 12AU7 (ECC82) tubes that provide pristine warmth and detail at the input and output stages of the microphone.

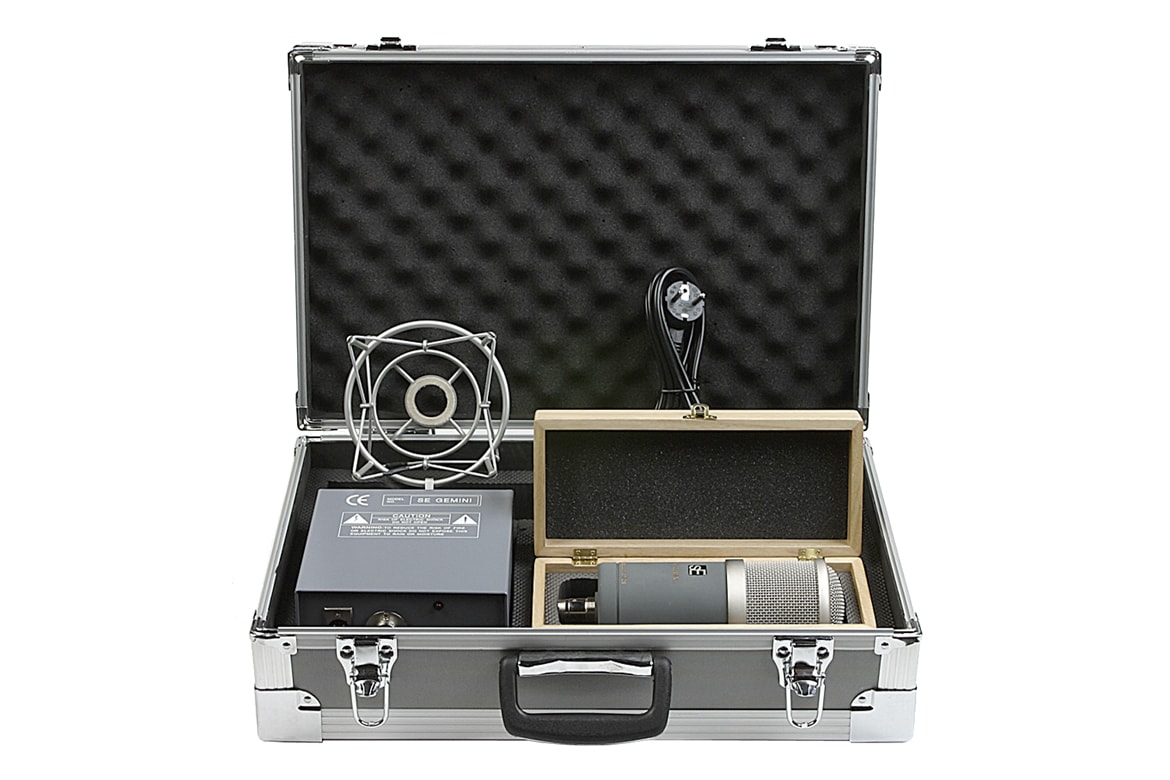

The Gemini II maintains a low noise floor, minimizing the "room noise" associated with most tube microphones. The capsule houses a large diaphragm cardioid element that features a wide 20 Hz to 20 kHz frequency response. The cardioid polar pattern is flexible for most applications as it rejects ambiance and noise at the off-axis sections of the capsule. The Gemini II uses an external Power Supply Unit (PSU) and an 3-pin screw-on terminal ensures a secure connection from the microphone to the PSU. A generous 13 foot (4.2 meter) cable is supplied for flexible placement and a heavy duty, wooden storage case is also supplied.

Transducer Condenser
Polar Pattern Cardioid
Frequency Response 20Hz to 20kHz
Dynamic Range (Typical) No
Signal-to-Noise Ratio 16dB (A weighted)
Maximum Input Sound Level 0.5% THD@1000Hz: 130dB
Power Requirements External PSU included
Output Impedance < / - 200 ohms
Output Connectors 8-pin army connector to PSU
Pad -10dB
Low Frequency Roll-Off Yes, HPF Switch
Dimensions Not Specified By Manufacturer
Weight Not Specified By Manufacturer

Weight
  • Weight (mic): 1180g / 41.60oz
  • Weight (PSU): 1970g / 69.50oz
