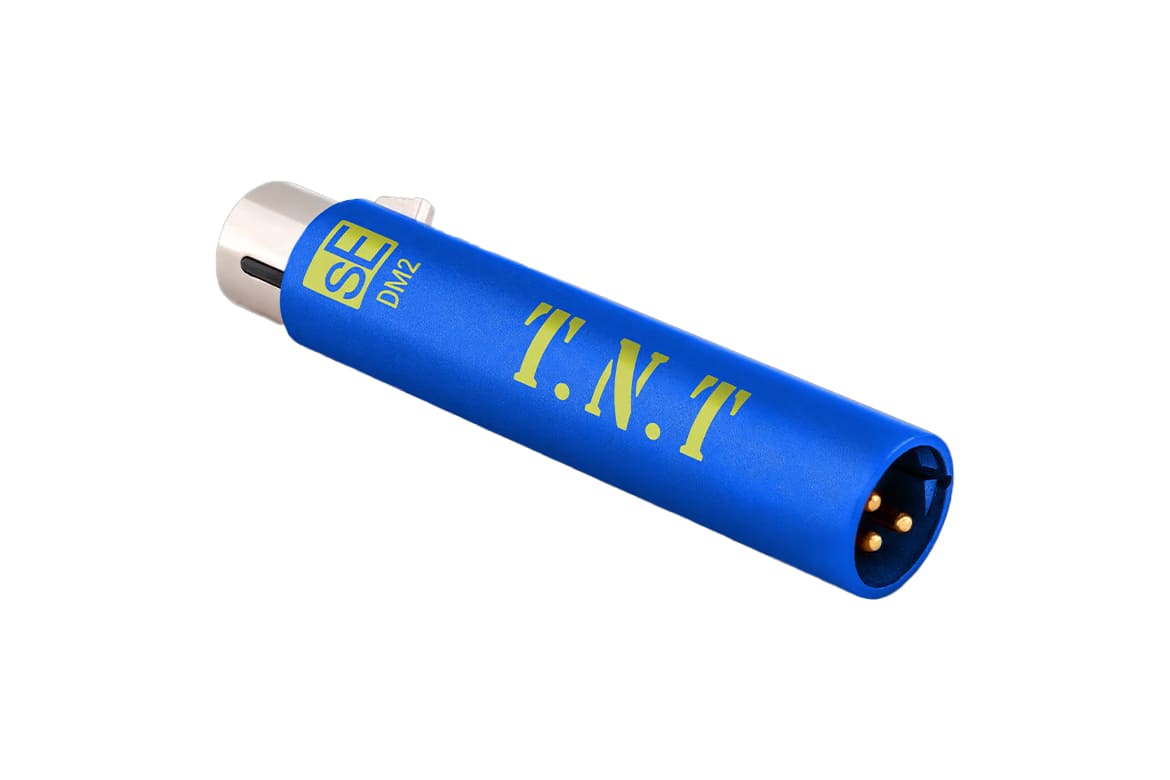

The DM2 TNT lets you choose between a moderate +15dB or explosive +30dB of gain with an ultra-high impedance input and eight load settings to perfectly match any passive microphone.

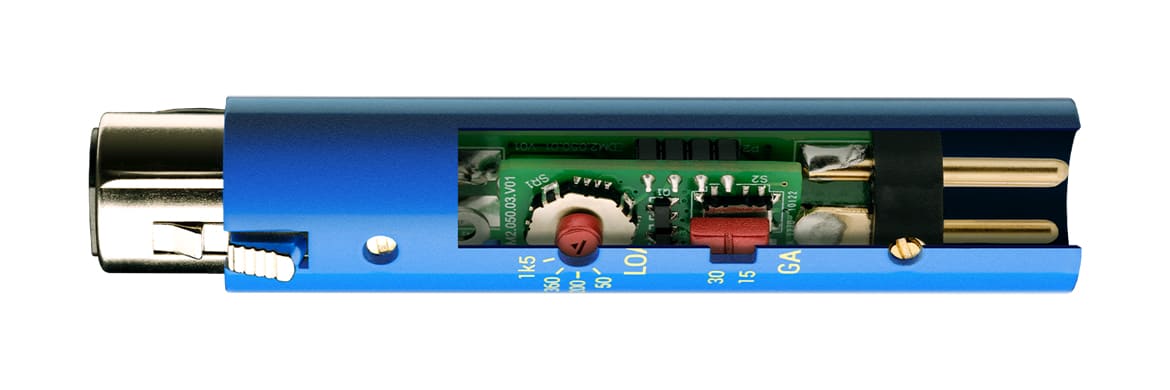

Inside the DM2 TNT

SIGNIFICANTLY IMPROVED LEVEL TO YOUR MIC PREAMP
The DM2 provides switchable +15dB or +30dB of consistent gain regardless of the connected load, thanks to its dedicated buffer amplifier providing you more flexibility for your particular applications.

CLASS-A DESIGN & LOWEST NOISE IN ITS CLASS
Class-A design and specially-selected high-grade FETs enable vastly lower output impedance and the lowest noise in its class providing the gain needed to for a clean sound and much less noise.

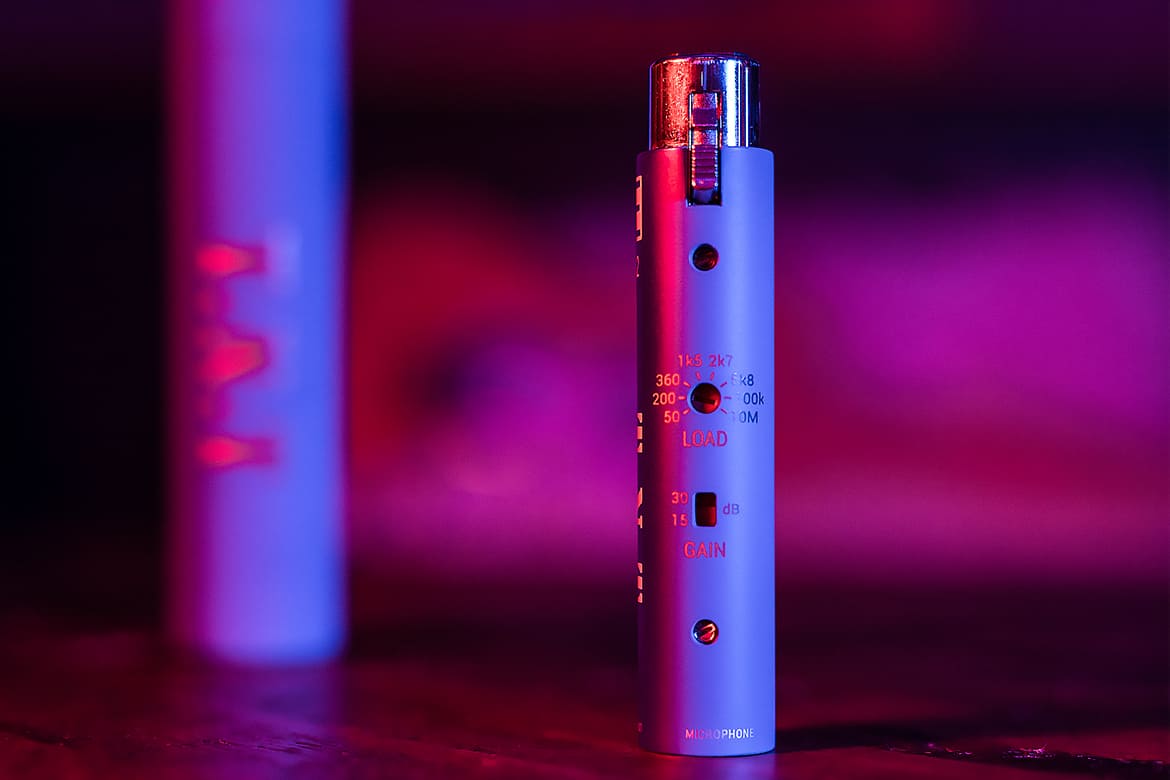

MATCH THE IMPEDANCE OF YOUR FAVORITE MIC
From an unconventionally low 50 ohms to stunningly high 10 mega ohms to match your preamp with any mic accurately to ruthlessly boost the signal independent from load impedance or cable length.

DEDICATED OUTPUT BUFFER AMPLIFIER & RELIABLE SIGNAL CONNECTION
The output impedance is also the lowest in its class, allowing long cable runs while reducing susceptibility to RF interference, buzz and hum with a gold-plated XLR connector for loss-free signal connection.

SLIM, RUGGED ALL-METAL HOUSING & PREMIUM FINISH
Reliable operation in demanding environments & on-stage applications. Robust construction with high-quality manufacturing standards.

Power
Electrical Impedance	135 Ohms
Recommended Load Impedance	>1K Ohms
Connectivity	3-pin male/female XLR connector
Powering	48V Phantom Power (P48 according to IEC 61938)
Sound
Frequency range	10 Hz - 120 kHz (-0.3 dB)
Gain	15 dB / 30 dB
Current consumption	3.1 mA
Max output level (0.5% THD)	9.5 dBV (3.0 V)
Output noise level	1 μV @ 15 dB / 6.6 μV @ 30 dB
