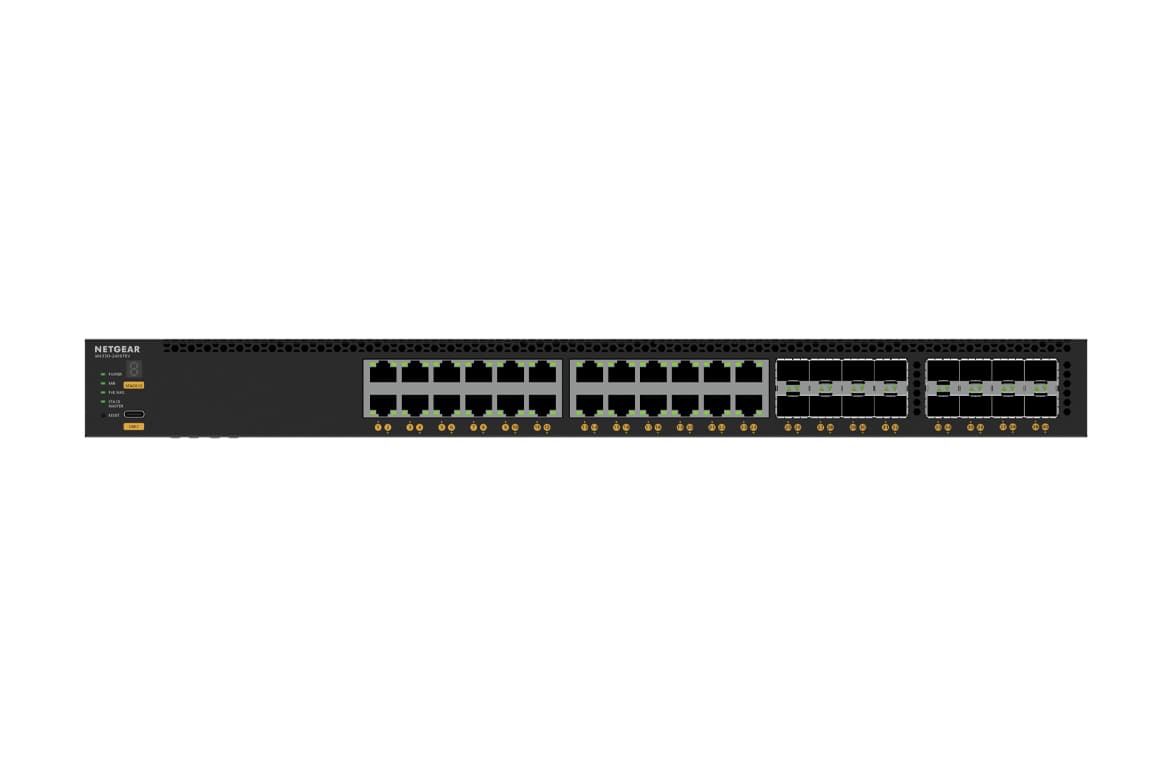

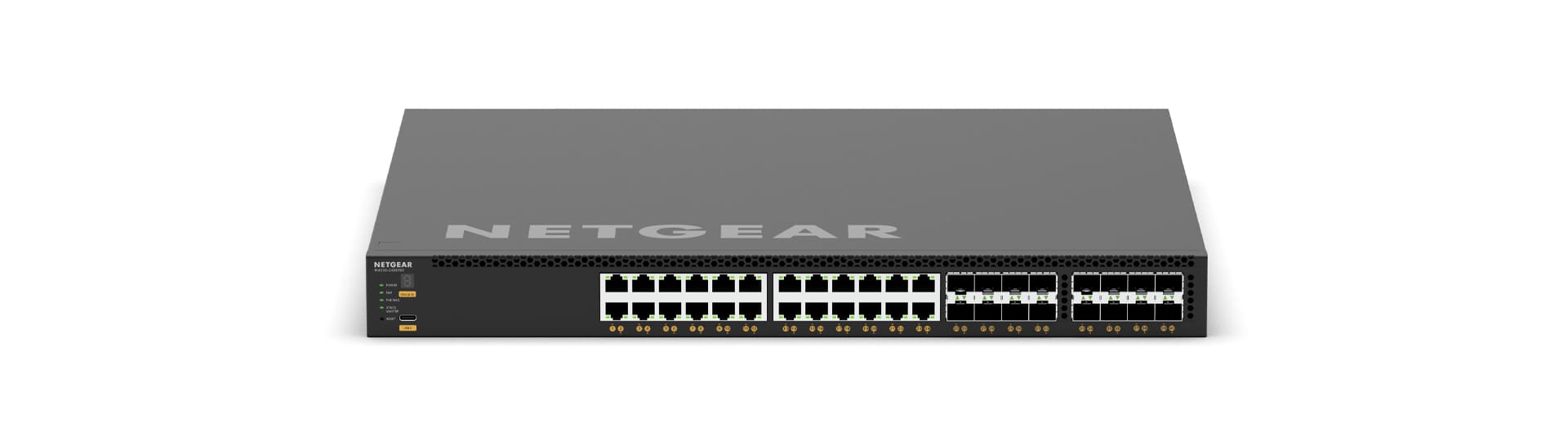

M4350-32F8V Fully Managed Switch (XSM4340FV)
Netgear

M4350-32F8V Fully Managed Switch (XSM4340FV)

36x10G/Multi-Gig PoE++ (280W base, up to 1,760W) and 4xSFP28 25G Managed Switch
Product Highlights
  • 32 x 10G SFP+ Ports
  • 8 x 25G SFP28 Ports
  • 1.04 Tb/s Switching Capacity
  • 773.76 Mpps Forwarding Rate
  • Rackmount Design
  • Intelligent Fan Cooling
  • Secondary PSU Support
  • Optimized for AV-Over-IP Multicasts
  • Netgear Engage Controller Support

  • Overview
  • Tech Specs

Designed primarily for high-bandwidth AV and IT applications, this network switch includes 32 SFP+ ports that support up to 10 Gb/s fiber connections.

With Netgear's IGMP Plus, the M4350-32F8V switch delivers smooth video-over-IP multicasts with little to no setup required. Eight 25G SFP28 ports are available for uplinks and stacking. Installing a separately purchased second power supply provides 1+1 redundancy. This switch works with Netgear's Engage Controller management platform, in addition to standard command line and web-based interfaces.

PerformanceWith a 1.04 Tb/s switching capacity and 773.76 Mpps forwarding rate, this switch is designed to provide smooth and reliable AV broadcasts.

Multicast in an InstantNetgear IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.

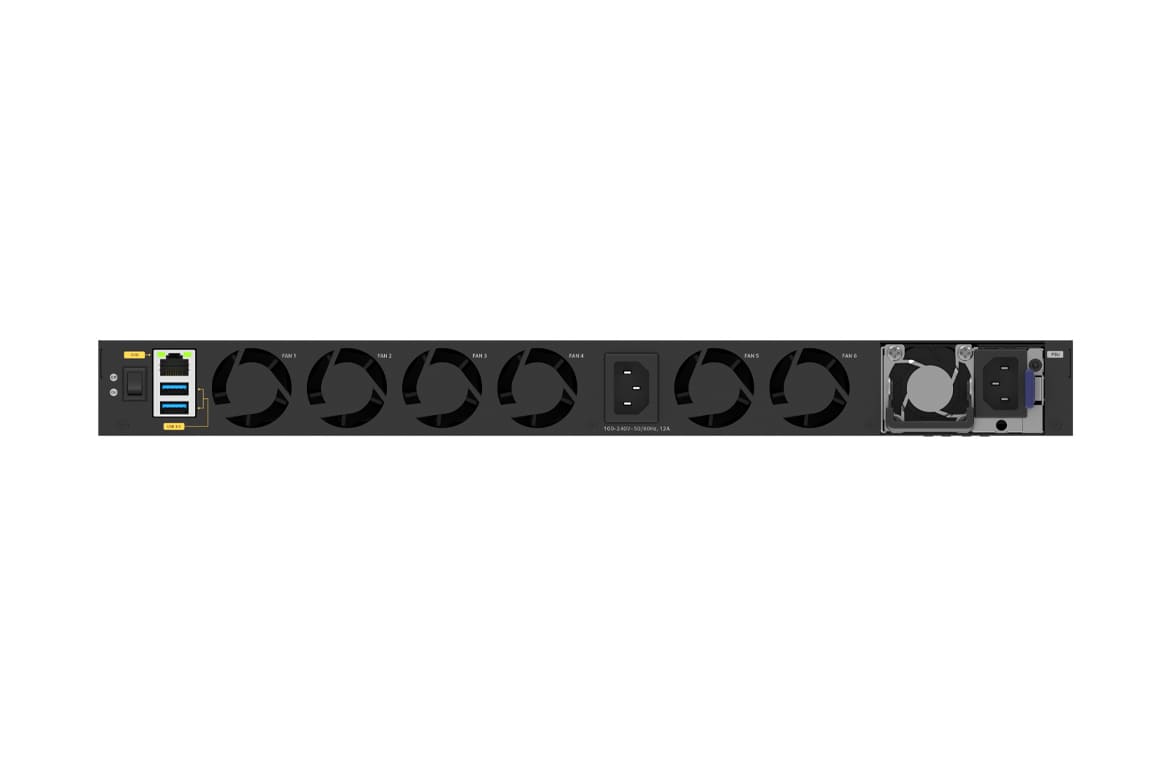

Sleek, Quiet DesignThe intelligent fans may be configured in Quiet Mode help to minimize noise or Cool Mode for maximum cooling. Mounting ears are included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 and M4250 switches, supporting nonstop forwarding stacking, spine and leaf topology, and core to edge connectivity.

Fast, Easy ConfigurationA streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Primary Port Speed 10 Gigabit
Number of Ports 40 (32 x 10G SFP+, 8 x 25G SFP28)
PoE Ports / Budget N/A
IGMP Support Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support Yes, up to 12kb
AVB Support Yes, included
Acoustics Quiet Mode 32.7dB@25°C
Power Consumption 156.4W/491.1Btu/hr
Standby without any port connection: 42.6W/133.76Btu/hr
Power Consumption APS600Wv3
APS1200Wv2
APS2000Wv2

Dimensions
  • Width: 440mm
  • Depth: 400mm
  • Height: 43.2mm
  • Weight: 7.24kg (15.96lb)
