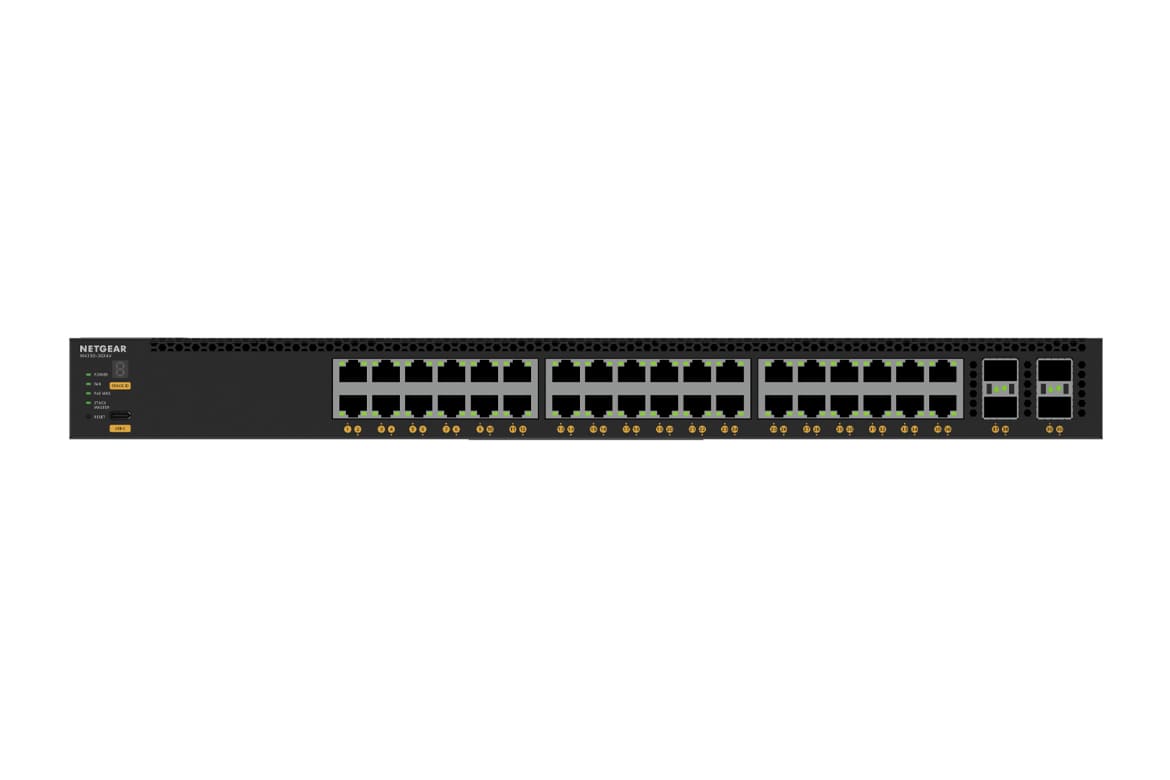

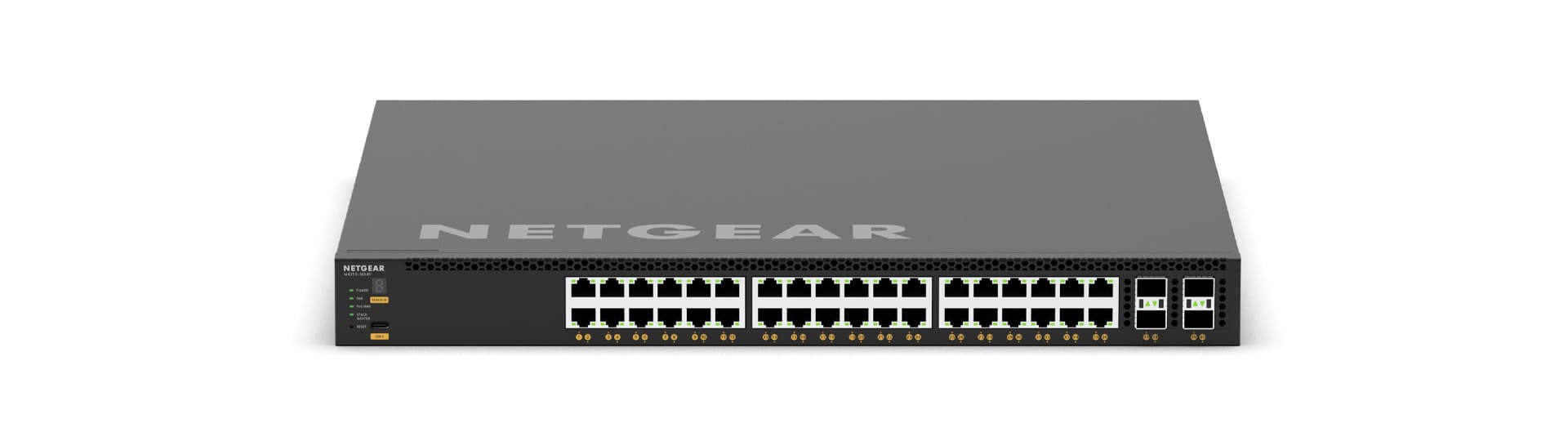

M4350-36X4V Fully Managed Switch (XSM4340CV)
Netgear

M4350-36X4V Fully Managed Switch (XSM4340CV)

36x10G/Multi-Gig PoE++ (280W base, up to 1,760W) and 4xSFP28 25G Managed Switch
Product Highlights
  • 36 x 10G Ethernet PoE++ Ports
  • 4 x 25G SFP28 Ports
  • 920 Gb/s Switching Capacity
  • 684.48 Mpps Forwarding Rate
  • Rackmount Design
  • 280W Power Budget
  • Secondary PSU Slot
  • Intelligent Fan Cooling
  • Optimized for AV-Over-IP Multicasts
  • Netgear Engage Controller Support

  • Overview
  • Tech Specs

Designed primarily for high-bandwidth AV and IT applications, this network switch includes thirty-six 10G Ethernet PoE++ compliant ports, each providing up to 90W of power to compatible devices with a 280W budget.

With Netgear's IGMP Plus, the M4350-36X4V switch delivers smooth video-over-IP multicasts with little to no setup required. Four 25G SFP28 ports are available for fiber uplinks and stacking. Installing a separately purchased second power supply provides 1+1 redundancy and can increase your PoE budget to up to 1760W. This switch works with Netgear's Engage Controller management platform, in addition to standard command line and web-based interfaces.

Performance
With a 920 Gb/s switching capacity and 684.48 Mpps forwarding rate, this switch is designed to provide smooth and reliable AV broadcasts.

Multicast in an Instant
Netgear IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
The intelligent fans may be configured in Quiet Mode help to minimize noise or Cool Mode for maximum cooling. Mounting ears are included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality automatically connects with other M4350 and M4250 switches, supporting nonstop forwarding stacking, spine and leaf topology, and core to edge connectivity.

Fast, Easy Configuration
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Primary Port Speed 10 Gigabit / Multi-Gig
Number of Ports 40 (36 x 10G/Multi-Gig PoE++, 4 x 25G SFP28)
PoE Ports / Budget 36 PoE++ (90W/port), 280W Base, up to 1,760W Budget
IGMP Support Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support Yes, up to 12kb
AVB Support Yes, included
Acoustics Quiet Mode 32.1dB@25°C
Power Consumption With PoE: 454W/1548.14Btu/hr
Without PoE: 148W/464.72Btu/hr
Standby without any port connection: 59.3W/186.2Btu/hr
Power Consumption APS600Wv3
APS1200Wv2
APS2000Wv2

Dimensions
  • Width: 440mm
  • Depth: 400mm
  • Height: 43.2mm
  • Weight: 7.33kg (16.16lb)
