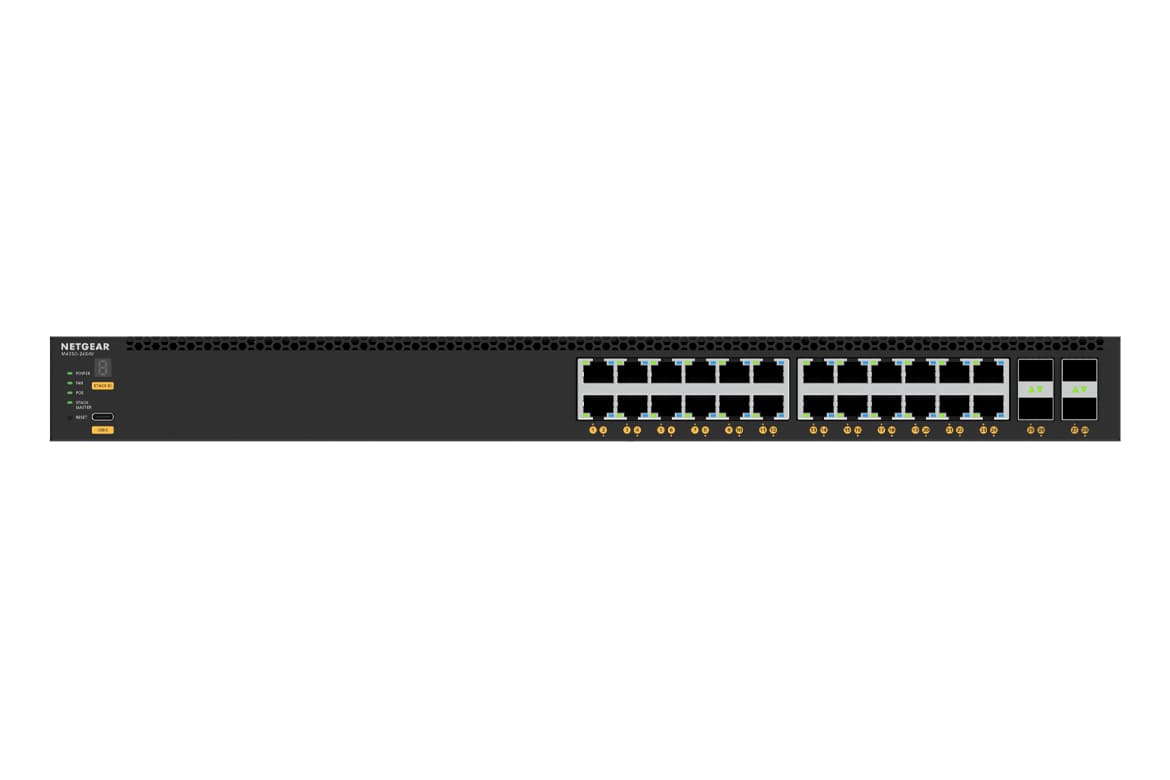

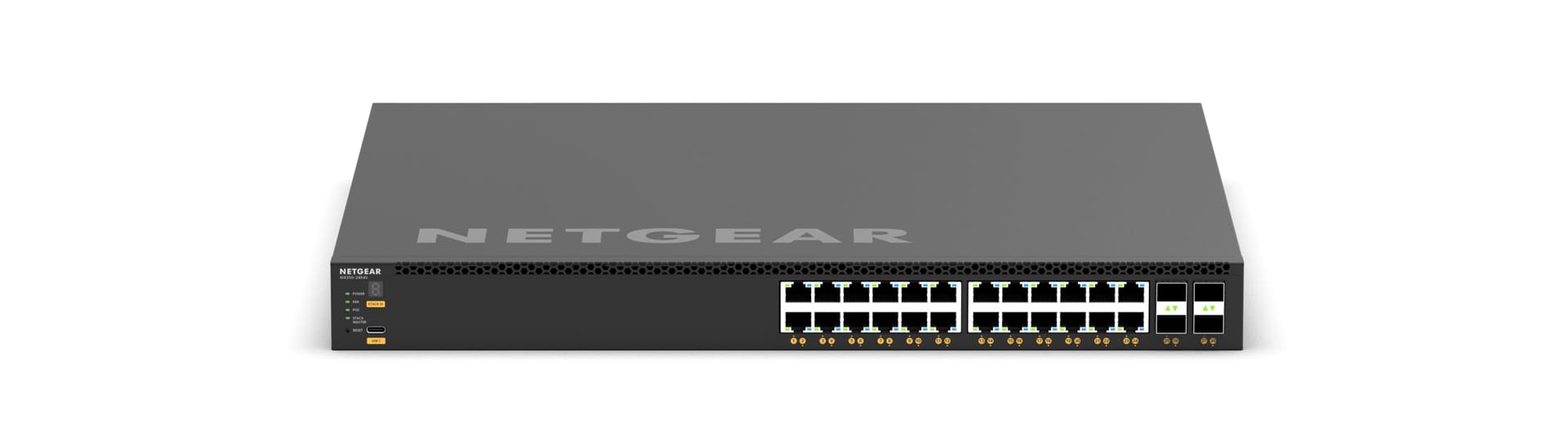

M4350-24X4V Fully Managed Switch (XSM4328CV)
Netgear

M4350-24X4V Fully Managed Switch (XSM4328CV)

24x10G/Multi-Gig PoE+ (576W base, up to 720W) and 4xSFP28 25G (XSM4328CV)
Product Highlights
  • 24 x 10G Ethernet PoE+ Ports
  • 4 x 25G SFP28 Ports
  • 680 Gb/s Switching Capacity
  • 505.92 Mpps Forwarding Rate
  • Rackmount Design
  • 576W Power Budget

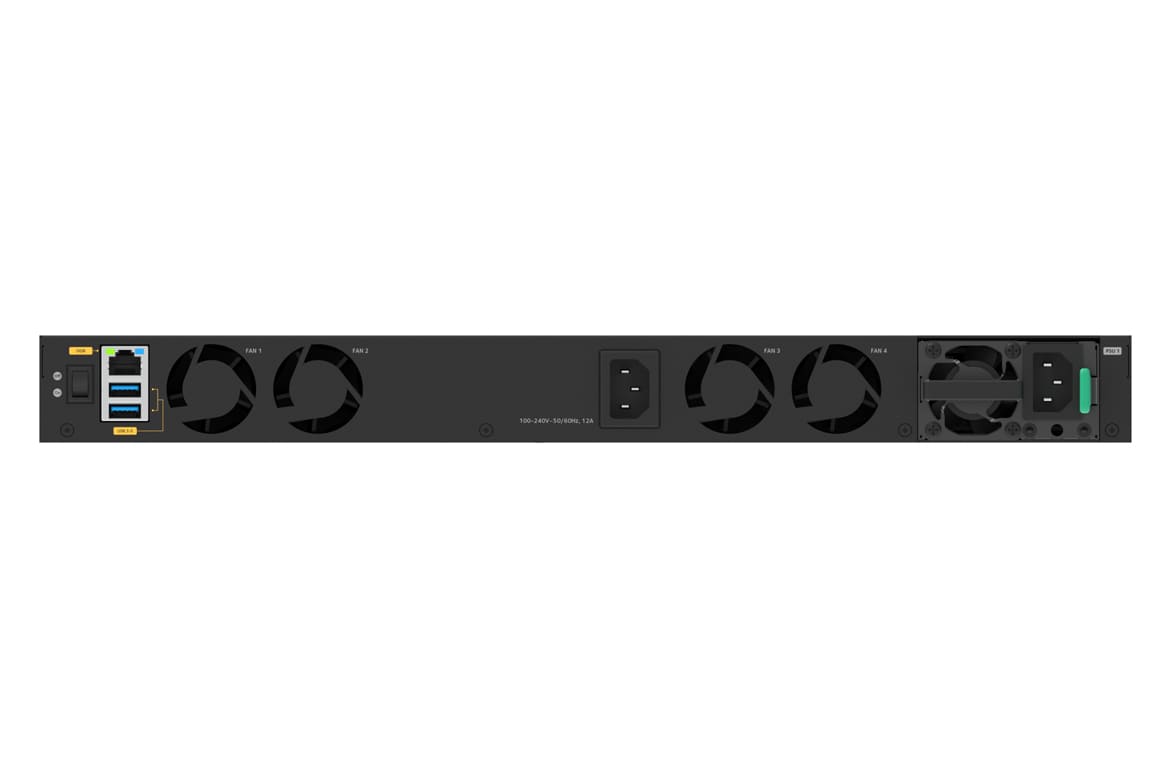

  • Secondary PSU Slot
  • Intelligent Fan Cooling
  • Optimized for AV-Over-IP Multicasts
  • Netgear Engage Controller Support

  • Overview
  • Tech Specs

Designed primarily for high-bandwidth AV and IT applications, this network switch includes twenty-four 10G Ethernet PoE+ compliant ports, each providing up to 30W of power to compatible devices with a 576W budget.

With Netgear's IGMP Plus, the M4350-24X4V switch delivers smooth video-over-IP multicasts with little to no setup required. Four 25G SFP28 ports are available for fiber uplinks and stacking. Installing a separately purchased second power supply provides 1+1 redundancy and can increase your PoE budget to up to 720W. This switch works with Netgear's Engage Controller management platform, in addition to standard command line and web-based interfaces.

Performance
With a 680 Gb/s switching capacity and 505.92 Mpps forwarding rate, this switch is designed to provide smooth and reliable AV broadcasts.

Multicast in an Instant
Netgear IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
The intelligent fans may be configured in Quiet Mode help to minimize noise or Cool Mode for maximum cooling. Mounting ears for rack mounting are included.

Automatic Configuration
Auto-trunk and auto-LAG functionality automatically connects with other M4350 and M4250 switches, supporting nonstop forwarding stacking, spine and leaf topology, and core to edge connectivity.

Fast, Easy Configuration
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Primary Port Speed 10 Gigabit / Multi-Gig
Number of Ports 28 (24 x 10G/Multi-Gig PoE+, 4 x 25G SFP28)
PoE Ports / Budget 24 PoE+ (30W/port), 576W Base, up to 720W Budget
IGMP Support Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support Yes, up to 12kb
AVB Support Yes, included
Acoustics Quiet Mode 34.7dB@25°C
Power Consumption With PoE: 750.1W/2557.84Btu/hr
Without PoE: 119.4W/374.92Btu/hr
Standby without any port connection: 53.6W/168.3Btu/hr
Power Consumption APS350Wv1
APS600Wv2
APS920Wv1
APS2000Wv1

Dimensions
  • Width: 440mm
  • Depth: 400mm
  • Height: 43.2mm
  • Weight: 6.58kg (14.51lb)
