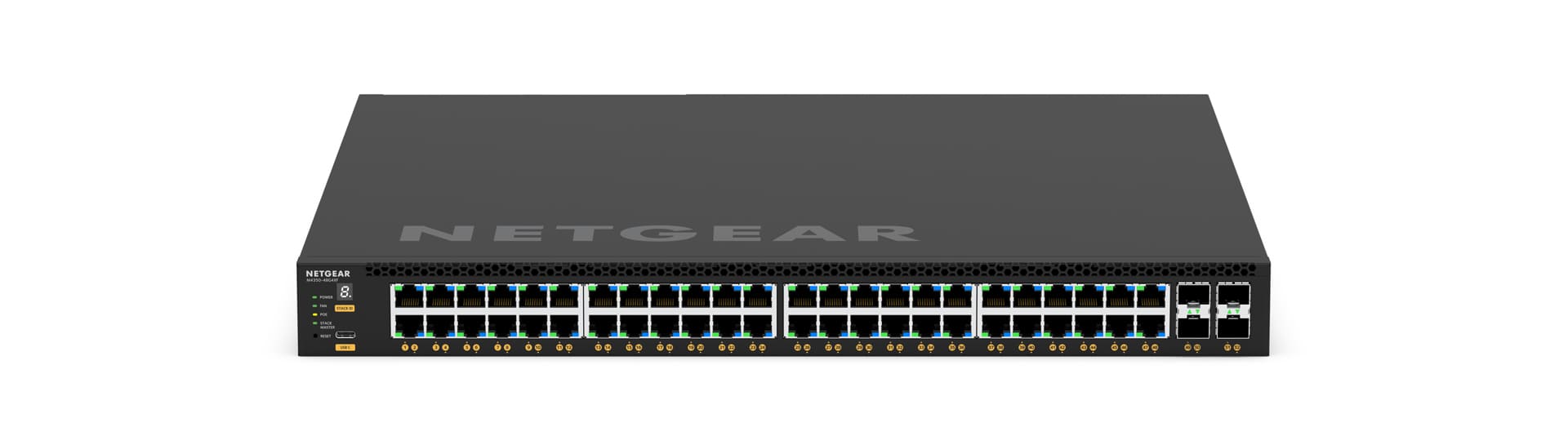

M4350-48G4XF Fully Managed Switch (GSM4352)
Netgear

M4350-48G4XF Fully Managed Switch (GSM4352)

48x1G PoE+ (236W base, up to 1,440W) and 4xSFP+ Managed Switch
Product Highlights

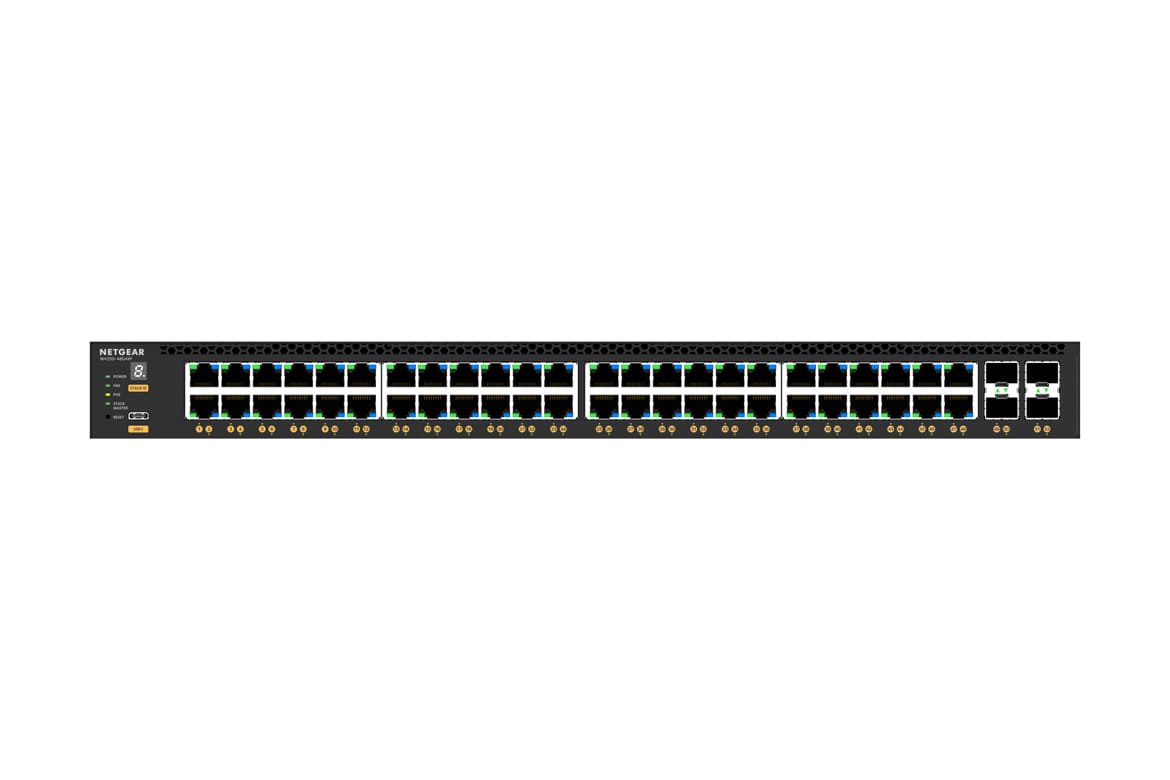

  • 48 x Gigabit Ethernet PoE+ Ports
  • 4 x 10G SFP+ Ports
  • 176 Gb/s Switching Capacity
  • 130.94 Mpps Forwarding Rate
  • Rackmount Design
  • 236W Power Budget

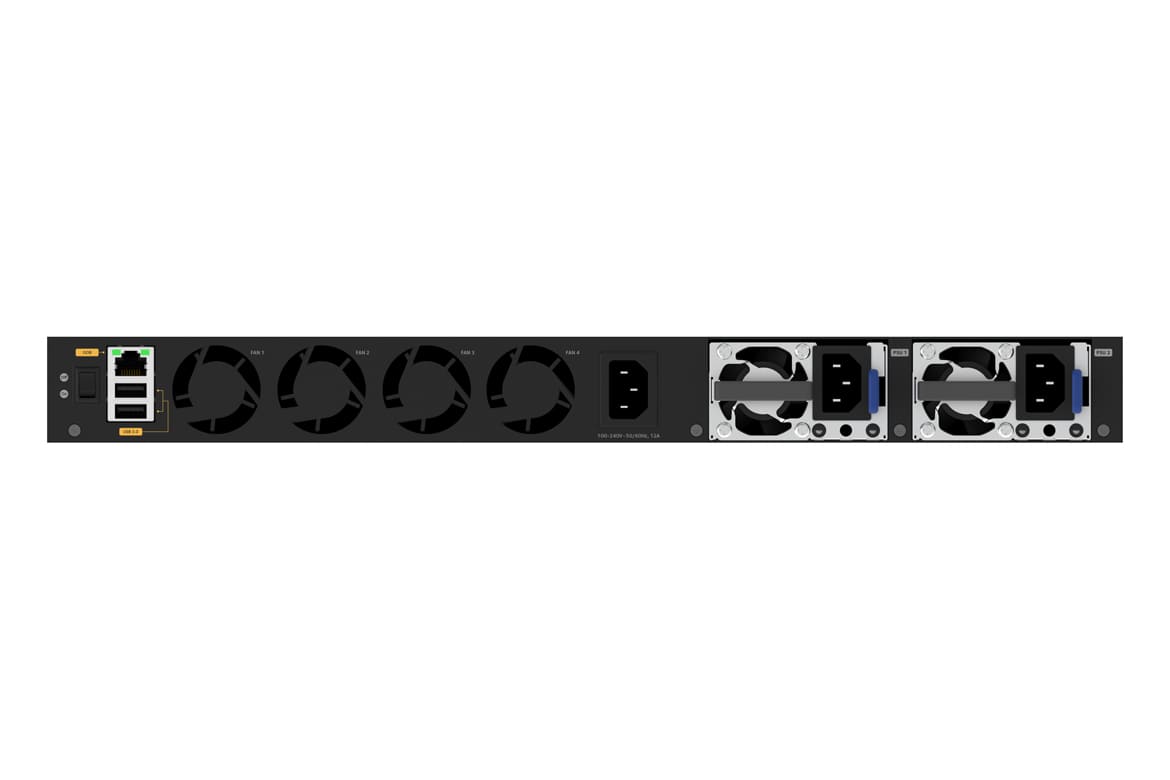

  • 2 x Secondary PSU Slots
  • Intelligent Fan Cooling
  • Optimized for AV-Over-IP Multicasts
  • Netgear Engage Controller Support

  • Overview
  • Tech Specs

Designed primarily for AV and IT applications, this network switch includes 48 Gigabit-speed Ethernet PoE+ compliant ports, each providing up to 30W of power to compatible devices with a 236W budget.

With Netgear's IGMP Plus, the M4350-48G4XF switch delivers smooth video-over-IP multicasts with little to no setup required. Four 10G SFP+ ports are available for fiber uplinks and stacking. Installing up to two separately purchased secondary power supplies provides 1+1 redundancy, EPS share, and can increase your PoE budget to up to 1440W. This switch works with Netgear's Engage Controller management platform, in addition to standard command line and web-based interfaces.

Performance
With a 176 Gb/s switching capacity and 130.94 Mpps forwarding rate, this switch is designed to provide smooth and reliable AV broadcasts.

Multicast in an Instant
Netgear IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
The intelligent fans may be configured in Quiet Mode to help minimize noise or Cool Mode for maximum cooling. Mounting ears are included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 and M4250 switches, supporting nonstop forwarding stacking, spine and leaf topology, and core to edge connectivity.

Fast, Easy ConfigurationA streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Primary Port Speed 1 Gigabit
Number of Ports 52 (48 x 1G PoE+, 4 x 10G SFP+)
PoE Ports / Budget 48 PoE+ (30W/port), 236W Base, up to 1,440W Budget
IGMP Support Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support Yes, up to 12kb
AVB Support Yes, included
Acoustics Quiet Mode 33dB@25°C
Power Consumption With PoE: 348W/1186.68Btu/ hr
Without PoE: 99W/310.86Btu/ hr
Standby without any port connection: 48.5W/152.29Btu/ hr
PSU Compatible Models APS350Wv1
APS600Wv2
APS920Wv1
APS2000Wv1

Dimensions
  • Width: 440mm
  • Depth: 400mm
  • Height: 43.2mm
  • Weight: 7.19kg (15.85lb)
