MOTU UltraLite-mk4

Motu
Product Highlights
  • High-Speed USB 2.0 Computer Interface
  • 192 kHz / 24-Bit Recording
  • 18 Inputs, 22 Outputs
  • 8 Analog Audio Inputs & Outputs
  • 8 Line Outputs, Main Outs & Headphones
  • S/PDIF, Optical, MIDI I/O
  • For Studio/Stage, DAW or Stand-Alone
  • Onboard DSP at 32-Bit Floating Point
  • 48-Channel Mixer with Onboard Metering
  • Low Latency & Class Compliant

  • Overview
  • Tech Specs

18x22 USB Audio Interface with DSP, Mixing and Effects

The latest in MOTU's award-winning UltraLite series, the UltraLite-mk4 is a USB audio interface with 40 simultaneous I/O channels (18 in, 22 out). It also delivers exceptional sound quality, new ultra-low latency drivers and expanded DSP for studio-grade mobile audio recording.

Superb audio quality
UltraLite-mk4 includes renowned ESS Sabre32 DAC technology, delivering 123dB dynamic range and the same proven, award-winning audio quality as MOTU's flagship 1248. Renowned drivers deliver rock-solid performance and industry-leading low latency.

Ultra-low latency
New, optimized drivers for both Mac and PC deliver ultra-low latency performance. With a high-performance DAW such as Digital Performer, the UltraLite-mk4 delivers an astonishing round trip latency (RTL) of 1.83 ms (milliseconds) on OS X and 1.84 ms on Windows over USB (at 96 kHz with a 32-sample host buffer).

Built for studio and stage
Housed in a compact, aluminum-alloy enclosure you can take anywhere, the UltraLite-mk4 is equally well-suited for studio and stage, with or without a computer. As an interface or mixer, the UltraLite-mk4 provides 18 ins and 22 outs, for a total of 40 simultaneous I/O channels.

All the I/O you need
Connect all of your audio gear, including speakers, headphones, mics, guitars, synths, keyboards, drum machines, effects processors and even MIDI devices.

Large console-style mixing
Record, monitor, route and process all live inputs using the on-board 48-channel, console-style mixer, with no latency and no processor strain on your computer.

Modeled analog EQ and compression
Further sculpt your sound with 4-band parametric EQ featuring filter types carefully modeled after British analog console EQs. Choose between two forms of compression: a conventional compressor and the Leveler™, an accurate model of the legendary LA-2A™ optical compressor that provides vintage, musical automatic gain control.

Mobile recording and mixing
After recording and mixing in the studio, take the UltraLite-mk4 on the road with your laptop for mobile recording and live mixing.

Web app control from any device
The software that you use to control the UltraLite-mk4 doesn't reside on your hard drive. It's a web app served from the hardware itself. This means you can control the UltraLite-mk4 on-board DSP, mixing, device settings, and network audio routing from your favorite web browser on a laptop, tablet or smartphone connected by wire or Wi-Fi to your local area network. Use any web client on any platform - Mac, Windows, Linux, iOS, Android - as long as it shares the same network.

Touch Console
Designed specifically for touchscreen operation, Touch Console delivers a whole new mixing experience. Access Touch Console from your tablet or smartphone to effortlessly control the powerful 48-channel mixer and effects in the UltraLite-mk4. With large targets for your fingers, multi-touch operation and intuitive design, you can tap, swipe and pinch your way to a perfect mix, every time.

Solid Metal Chassis
The UltraLite-mk4 aluminum chassis is lightweight, yet incredibly sturdy and durable, and designed to withstand the rigors of the studio, stage, and tour bus. In a world awash with cheap plastic, the cool touch of the UltraLite-mk4's metal exterior in your hands is a reassuring reminder that you are holding quality engineering and construction built to last.

Sample Rates 44.1, 48, 88.2, 96, 176.4, 192 kHz
Mic/guitar inputs 2 x combo XLR/TRS mic/guitar inputs
Preamp gain: 0 to +60 dB (digitally controlled)Instrument gain: 0 to +30 dB (digitally controlled)

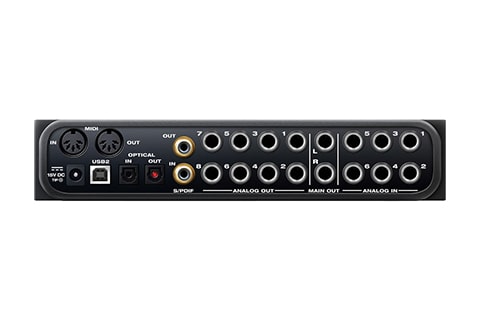

Analog Inputs 6 x 1/4" TRS line inputs (balanced/unbalanced)
Max level: +24 dBu (digitally adjustable -96 to +22)
Analog Outputs 10 x 1/4" TRS line out (balanced, DC coupled)
Max level: +20 dBu (digitally adjustable -4 to +20)
1 x 1/4" TRS stereo headphone
Digital I/O 1 bank (8 ch) of ADAT optical at 1x sample rates
1 bank (4 ch) of SMUX optical at 2x sample rates
Switchable to stereo TOSLink (optical S/PDIF)
1 x stereo S/PDIF on RCA (up to 96 kHz)
Total I/O 18 in / 22 out (40 total) at 1x sample rates
14 in / 18 out (32 total) at 2x sample rates
8 in / 12 out (20 total) at 4x sample rates
Computer I/O 1 x USB 2.0 audio class compliant USB 3.0 and iOS compatible
Computer I/O channels 64 in/out at 1x (44.1 to 48 kHz)
32 in/out at 2x (88.2 to 96 kHz)
24 in/out at 4x (176.4 to 192 kHz)
MIDI I/O 1 x MIDI IN
1 x MIDI OUT
16 MIDI channels to/from computer host
Headphone 1 x 1/4" TRS stereo phone (assignable)
Phantom power 2 x individual +48V

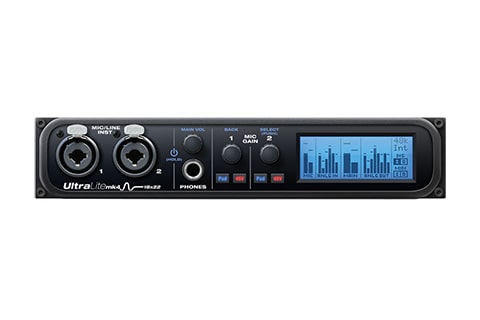

Front panel 1 x 1/4" TRS headphone output
2 x XLR/TRS combo inputs
1 x digital rotary encoders • main/phone vol/pwr
2 x digital rotary encoders • mic/instr input gain
4 x switches • (2) Pad and (2) 48V Phantom pwr
128 x 48 pixel LCD for level meters / menu nav
Power External 12-18V DC power supply
1.0A max • tip pos or neg
Mac System Requirements (width x depth x height, enclosure only)
8.6 x 7 x 1.75 inches
22 x 17.75 x 4.5 cm
2.3 lbs / 1.04 kg

Mac System Requirements
  • 1 GHz Intel-based Mac or faster
  • 2 GB RAM; 4 GB or more recommended
  • Mac OS X version 10.8 or later
  • Available USB 2.0 or 3.0 port
  • A large hard drive (at least 500 GB for recording)

Windows System Requirements
  • 1 GHz Pentium-based PC compatible or faster
  • 2 GB RAM; 4 GB or more recommended
  • Windows 7, 8 or 10
  • Available USB 2.0 or 3.0 port
  • A large hard drive (at least 500 GB for recording)

Web App Support
  • Any web client platform: Mac, Windows, Linux, iOS, Android
  • Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.

Operating Systems
  • For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
  • For web app control: Mac, Windows, Linux, iOS, Android
