Product Highlights
- 2 Mic Inputs
- 2 Guitar Inputs
- 6 Line Inputs
- 8 Line Outputs
- 8-Channel Optical I/O
- Headphone Out
- USB 2.0
- Built-In DSP Mixing with EQ & Dynamics
- Wi-Fi Control
- AVB Audio Networking
- Overview
- Tech Specs

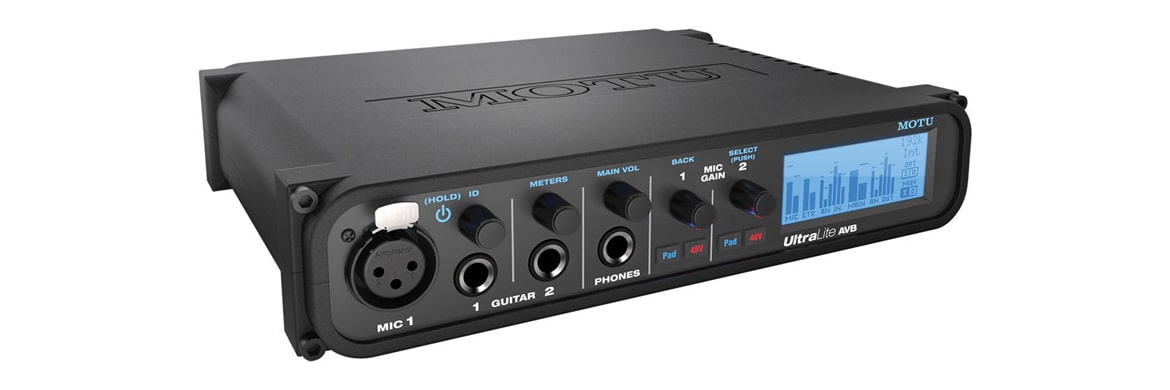

18 x 18 USB / AVB Audio Interface with DSP Mixing, Wi-Fi Control and Audio Networking
The latest in MOTU's popular, award-winning UltraLite interface series, the UltraLite AVB is an 18-input, 18-output audio interface with DSP mixing, wi-fi control, AVB audio networking and best-in-class analog audio quality for on-the-go mobile audio recording.
36 simultaneous audio channels

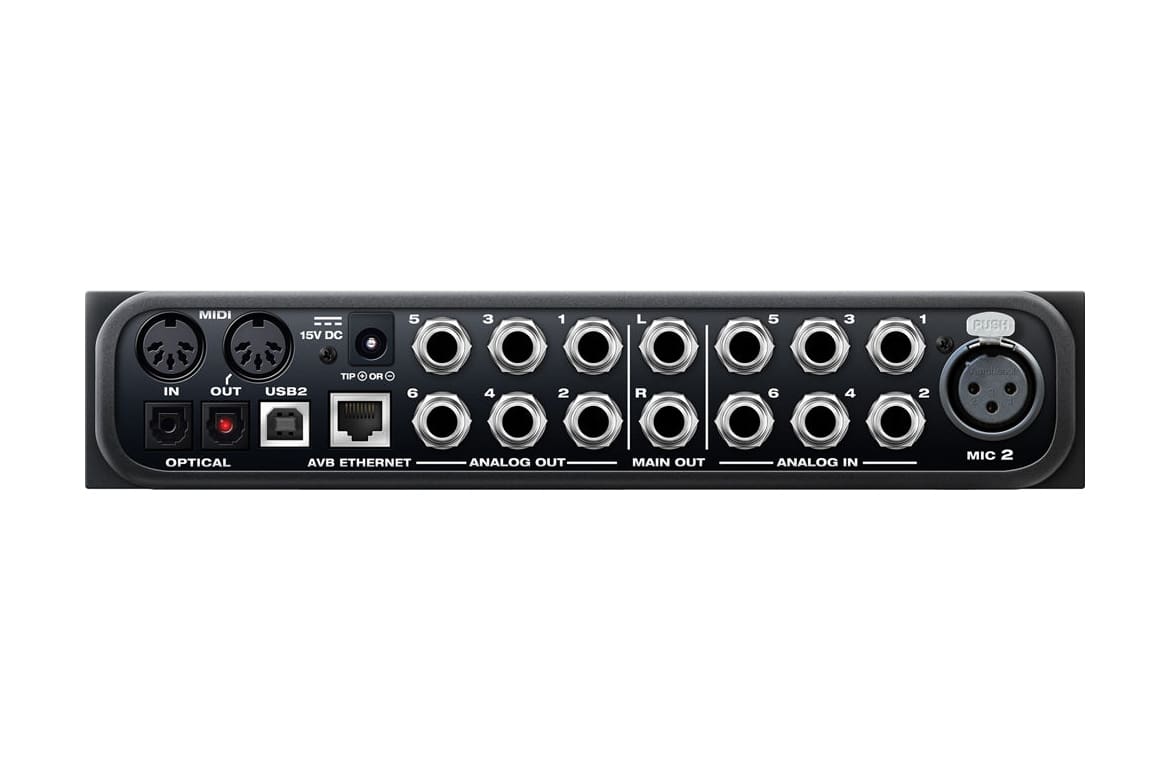

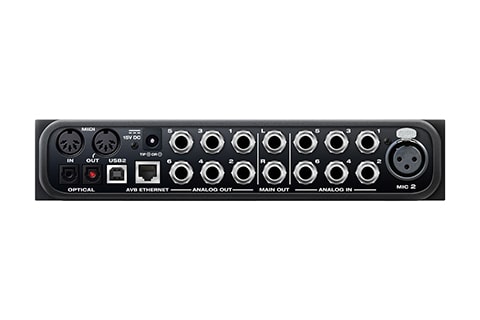

The most I/O ever offered in the UltraLite seriesYou get 2 mic inputs, 2 guitar inputs, 6 line inputs, 8 line outputs, headphone out and 8-channel optical I/O for a total of 18 inputs and 18 outputs, simultaneously. The optical ports also support stereo TOSLink (optical S/PDIF).

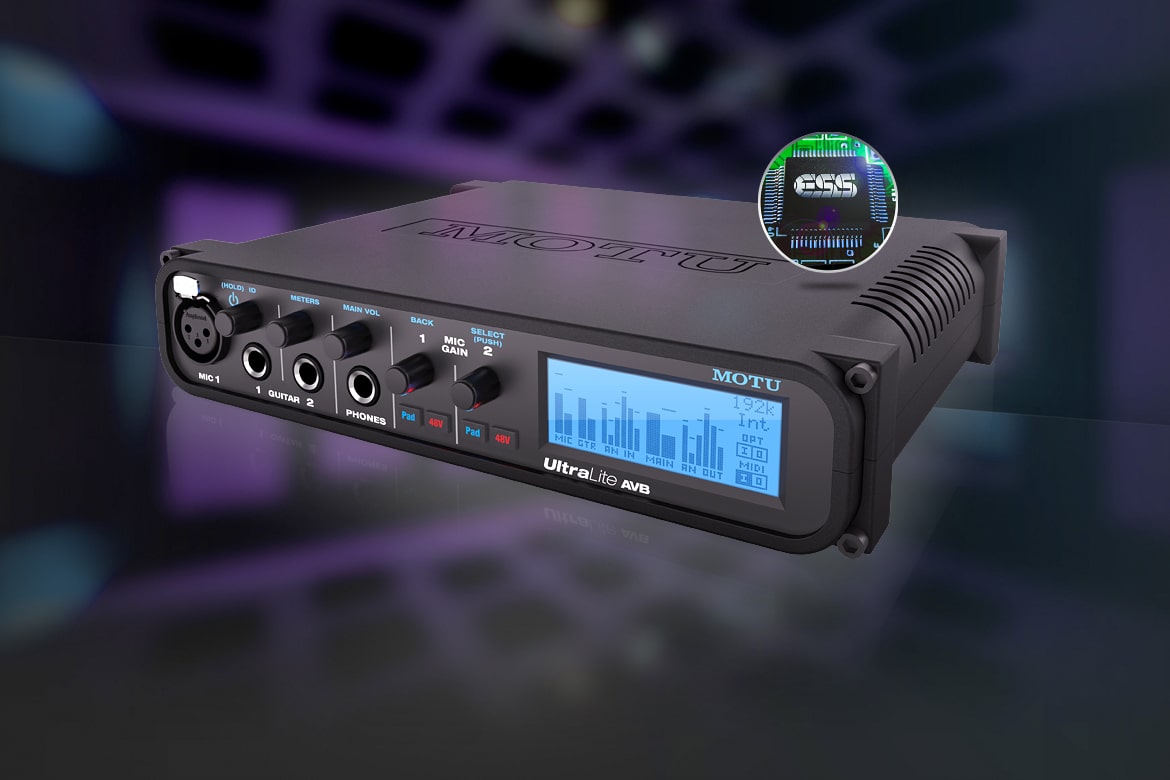

Best-in-class analog audio quality
Performance suitable for the most demanding situationsThe UltraLite AVB sets a new standard for analog audio performance in a mobile audio interface. The eight balanced analog outputs deliver a stunning 117 dB dynamic range. This level of measured performance had previously only been available in audio interfaces that cost thousands of dollars.
Universal connectivity
Class compliant USB 2.0 plus audio over EthernetThe UltraLite AVB connects to your computer with audio class compliant hi-speed USB 2.0 (compatible with USB 3.0 and iOS) for across-the-board compatibility now and in the future. Alternately, if you have a Mac running OS X Yosemite (10.10) or later, you can use a standard Ethernet cable for operation as an audio interface. Either way, the UltraLite AVB is compatible with all audio software.
DSP-powered mixing
Console-style mixing with 48 channels and 12 bussesThe mixer in the UltraLite AVB is a complete departure from earlier models. In fact, it's identical to the mixer found in MOTU's flagship 1248 and 16A interfaces. If you know your way around a large-format mixing console, you'll feel right at home. If you've ever wished to mix on a large console, the driver's seat is now yours.
Modeled analog EQ and compression
Vintage processing with 32-bit float precisionBritish analog mixing consoles are renowned for their musical EQ profiles. The UltraLite AVB meticulously models these classic EQs to give you the very same, magical EQ response found on these coveted desks. Each input channel also provides a classic compressor with peak/RMS operation.
Groups and the Main Mix bus are equipped with MOTU's Leveler™, an accurate model of the legendary Teletronix™ LA-2A™ optical leveling amplifier, known for its highly sought-after Automatic Gain Control (AGC) characteristics.
Web app control from any device
Control everything from your laptop, tablet and smartphoneThe software that you use to control the UltraLite AVB doesn't reside on your hard drive. It's a web app served from the hardware itself. This means you can control the UltraLite AVB on-board DSP, mixing, device settings, and network audio routing from your favorite web browser on a laptop, tablet or smartphone connected by wire or Wi-Fi to your local area network. Use any web client on any platform - Mac, Windows, Linux, iOS, Android - as long as it shares the same network.
Touch Console
The art of the mix on your touchscreenDesigned specifically for touchscreen operation, Touch Console™ delivers a whole new mixing experience. Access Touch Console from your tablet or smartphone to effortlessly control the powerful 48-channel mixer and effects in the UltraLite AVB. With large targets for your fingers, multi-touch operation and intuitive design, you can tap, swipe and pinch your way to a perfect mix, every time.
Stand-alone mixing with wireless control
Control everything from your iPad or iPhoneConnect an Apple Airport™ or other Wi-Fi router directly to the UltraLite with a standard Ethernet cable and control the UltraLite AVB's powerful mixing and DSP effects from your smartphone or tablet, without a computer. Great for live sound mixing!
Comprehensive metering
View all I/O activity at a glanceThe large backlit 128 x 48 pixel LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.
Sample Rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
Mic Input | 2 x XLR mic inputs Preamp gain: 0 to +56 dB (digitally controlled) |
Analog Inputs | 2 x 1/4" hi-Z guitar inputs (front panel) 6 x 1/4" TRS line inputs (balanced/unbalanced) Max level: +24 dBu (digitally adjustable -96 to +22) |
Analog Outputs | 8 x 1/4" TRS line out (balanced, DC coupled) Max level: +20 dBu (digitally adjustable -4 to +20) 1 x 1/4" TRS stereo headphone |
Digital I/O | 1 bank (8 ch) of ADAT optical at 1x sample rates 1 bank (4 ch) of SMUX optical at 2x sample rates Switchable to stereo TOSLink (optical S/PDIF) |
Total I/O Channels | 18 inputs and 18 outputs (36 total) at 1x sample rates 14 inputs and 14 outputs (28 total) at 2x sample rates 10 inputs and 10 outputs (20 total) at 4x sample rates |
Computer I/O | 1 x USB 2.0 audio class compliant USB 3.0 and iOS compatible 1 x AVB Ethernet (requires OS X Yosemite) |
Computer I/O channels | USB 2.0 (44.1 to 48 kHz): 64 in/out USB 2.0 (88.2 to 96 kHz): 32 in/out USB 2.0 (176.4 to 192 kHz): 24 in/out AVB Ethernet: 16 to 128 in/out, depending on host computer speed |
MIDI I/O | 1 x MIDI IN 1 x MIDI OUT 16 MIDI channels to/from computer host |
Headphone | 1 x 1/4" TRS stereo phone (assignable) |
Phantom Power | 2 x individual +48V |
Network I/O | 1 x RJ45 AVB/TSN Ethernet (100 Mbps) |
AVB streams (8 channels per stream) | 3 in / 3 out @ 44.1 or 48 kHz 2 in / 2 out @ 88.2 or 96 kHz 1 in / 1 out @ 176.4 or 192 kHz |

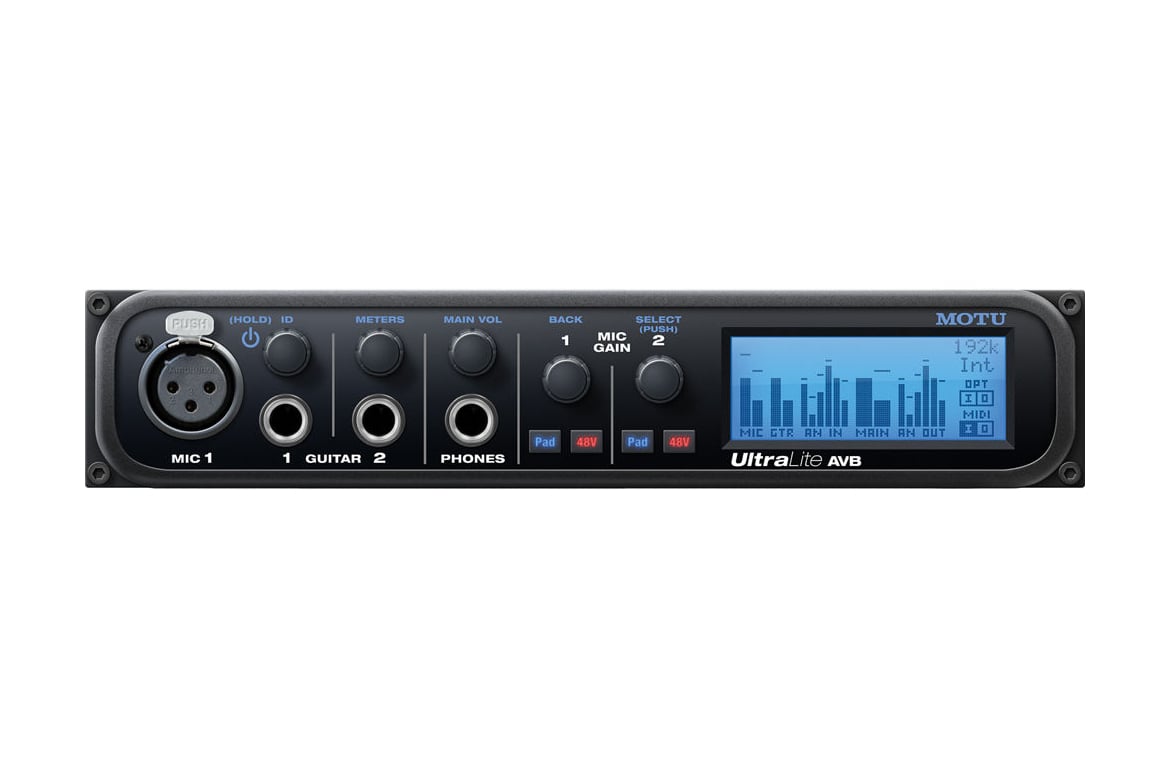

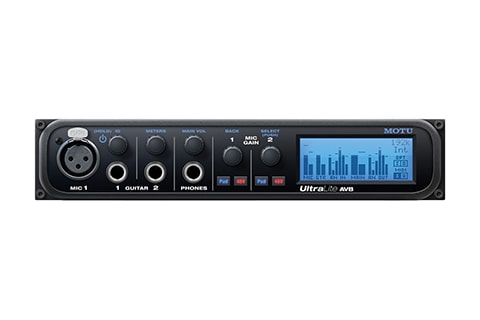

Front Panel | 1 x 1/4" TRS headphone output 2 x TRS hi-Z guitar input 1 x digital rotary encoders • main/phone volume 2 x digital rotary encoders • guitar input gain/power 2 x digital rotary encoders • mic preamp gain 4 x switches • (2) Pad and (2) 48V Phantom switch 128 x 48 pixel LCD for level meters / menu nav |
Power | External 12-18V DC power supply 1.0A max tip pos or neg |
Dimensions and weight | (width x depth x height, enclosure only) 8.6 x 7 x 1.75 inches 22 x 17.75 x 4.5 cm 2.5 lbs / 1.13 kg |
Mac System Requirements
- 1 GHz Intel-based Mac or faster
- 2 GB RAM; 4 GB or more recommended
- Mac OS X version 10.11 or later
- Available high-speed USB 2.0 or AVB Ethernet port*
- A large hard drive (at least 500 GB for recording)
- *AVB Ethernet audio interface operation requires OS X Yosemite
Windows System Requirements
- 1 GHz Pentium-based PC compatible or faster
- 2 GB RAM; 4 GB or more recommended
- Windows 7, 8 or 10
- Available USB 2.0 or 3.0 port
- Available Ethernet port for firmware updates
- A large hard drive (at least 500 GB for recording)
Web App Support
- Any web client platform: Mac, Windows, Linux, iOS, Android
- Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
- Web client must be connected to the same network as the MOTU AVB interface by wire or Wi-Fi.
Operating Systems
- For computer audio I/O: Mac OS X 10.11 or later; Windows 7 or later
- For web app control: Mac, Windows, Linux, iOS, Android
