Product Highlights
- 3-in-1 Product
- 16 Microphone Inputs
- Digital Mixer with Onboard DSP
- Modeled Vintage Effects
- 32-bit Floating Point Processing
- Web App Control
- Wireless Standalone Use
- AVB Audio Networking
- AudioDesk Software
- Mac OS X, Windows
- Overview
- Tech Specs

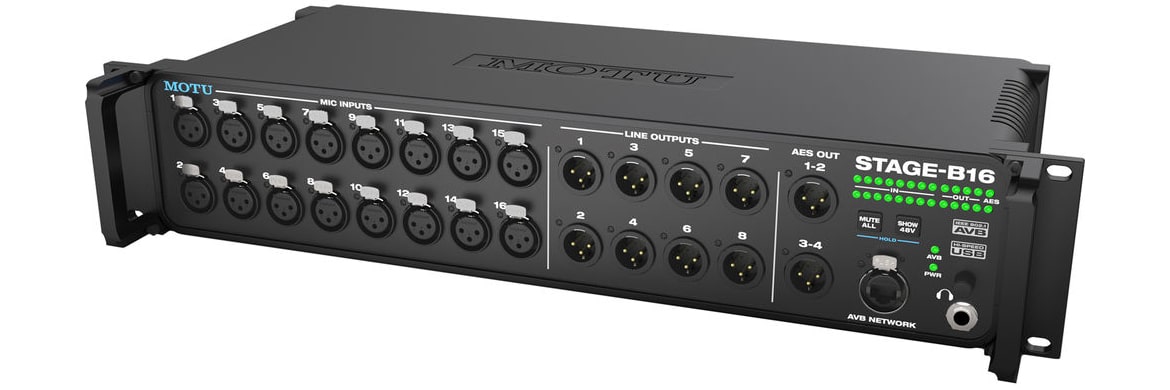

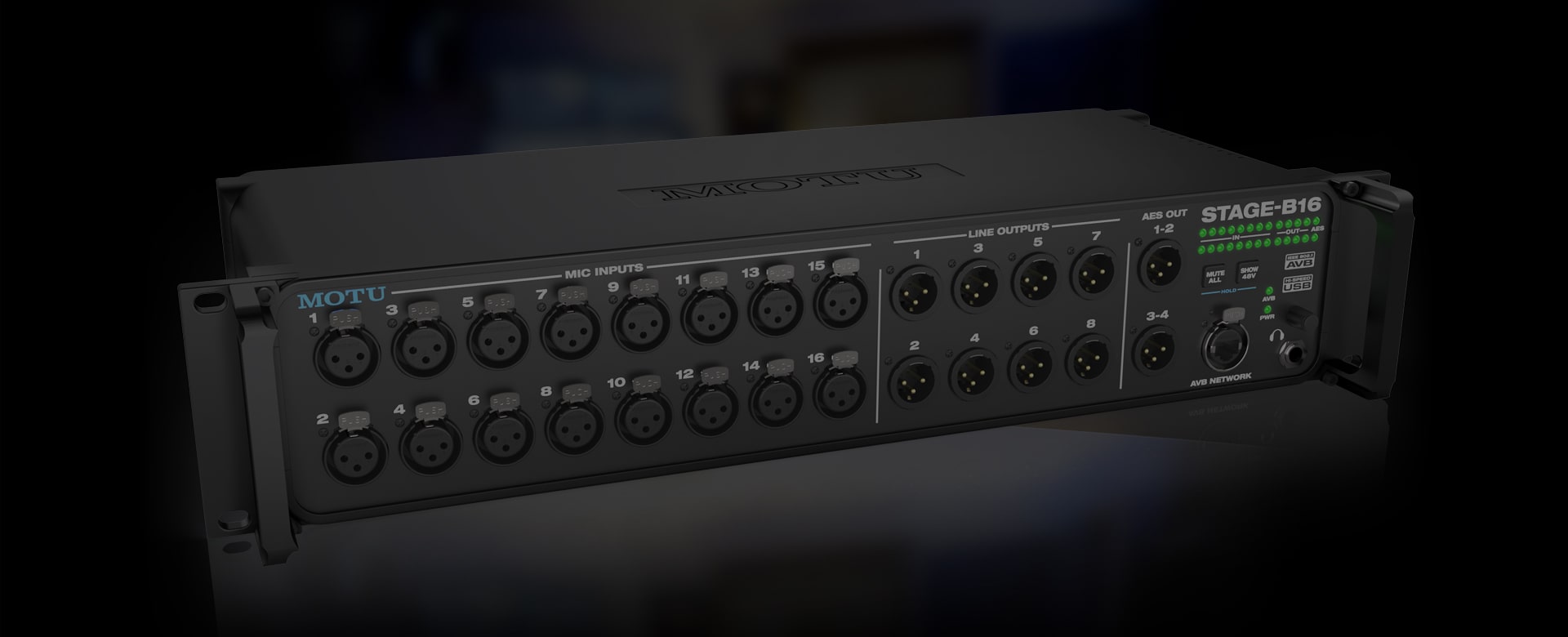

16-Channel Stage Box and Audio Interface with DSP, mixing, Wi-Fi control and studio-quality analog performance
From the most critical and demanding studio environments to the world's biggest stages, the Stage-B16 delivers the same superb analog quality as MOTU's new line of award-winning audio interfaces, in a rugged stage box form factor with powerful, flexible AVB networking.
Three products in one
Stage box16-input stage box with AVB Ethernet "digital snake" connectivity.
Rackmount Mixer
DSP-equipped 48-input 12-bus digital mixer with wireless control.
Audio interface
Universally compatible USB audio interface for Mac and Windows.
Studio-quality analog performance up to 192 kHz
Performance suitable for the most demanding situationsThe Stage-B16 sets a new standard for analog audio performance in a stage box. The 8 XLR analog outputs deliver a stunning 123 dB DR, a level of measured performance normally found only in products costing thousands.
The ultimate stage box
Run 16 mic signals to front of house — or anywhere in the networkThe Stage-B16 sets a new standard for what it means to be a stage box. With AVB networking technology, you can run mic signals over standard Ethernet cabling to a front-of-house mixing console up to 100 meters away, plus any other destinations on the network, such as the monitor mix console or a computer-based recording rig. For small- to mid-sized applications, the Stage-B16 takes care of all live sound mixing duties, controlled wirelessly from your laptop, tablet or smartphone — all with audio quality that's so good, it belongs in a world-class recording studio.
DSP-powered mixing
Console-style mixing with 48 channels and 12 bussesThe mixer in the Stage-B16 is identical to the mixer found in MOTU's flagship 1248 and 16A interfaces. If you know your way around a large-format mixing console, you'll feel right at home. If you've ever wished to mix on a large console, the driver's seat is now yours.
Web app control from any device
Control everything from your laptop, tablet and smartphoneThe software that you use to control the Stage-B16 doesn't reside on your hard drive. It's a web app served from the hardware itself. This means you can control the Stage-B16 on-board DSP, mixing, device settings, and network audio routing from your favorite web browser on a laptop, tablet or smartphone connected by wire or Wi-Fi to your local area network. Use any web client on any platform - Mac, Windows, Linux, iOS, Android - as long as it shares the same network.
Touch Console
The art of the mix on your touchscreenDesigned specifically for touchscreen operation, Touch Console™ delivers a whole new mixing experience. Access Touch Console from your tablet or smartphone to effortlessly control the powerful 48-channel mixer and effects in the Stage-B16. With large targets for your fingers, multi-touch operation and intuitive design, you can tap, swipe and pinch your way to a perfect mix, every time.
Stand-alone mixing with wireless control
Control everything from your iPad or iPhoneConnect an Apple Airport™ or other Wi-Fi router directly to the Stage-B16 with a standard Ethernet cable and control the Stage-B16's powerful mixing and DSP effects from your smartphone or tablet, without a computer. Great for live sound mixing!
Universal connectivity
Class compliant USB 2.0 plus audio over EthernetThe Stage-B16 connects to your computer with audio class compliant hi-speed USB 2.0 (compatible with USB 3.0 and iOS) for across-the-board compatibility now and in the future. Alternately, if you have a Mac running OS X Yosemite (10.10) or later, you can use a standard Ethernet cable for operation as an audio interface. Either way, the Stage-B16 is compatible with all audio software.
Sample Rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
Mic inputs | 16 x XLR mic inputs Preamp gain: 0 to +63 dB (digitally controlled) |
Analog Outputs | 8 x XLR line out Max level: +20 dBu (digitally adjustable -4 to +20) 1 x 1/4" TRS stereo headphone |
Digital Outputs | 2 x XLR female AES/EBU out (4 ch) up to 96 kHz |
Total I/O | 16 in and 12 out (28 total) at 1x sample rates 16 in and 12 out (28 total) at 2x sample rates 16 in and 8 out (24 total) at 4x sample rates |

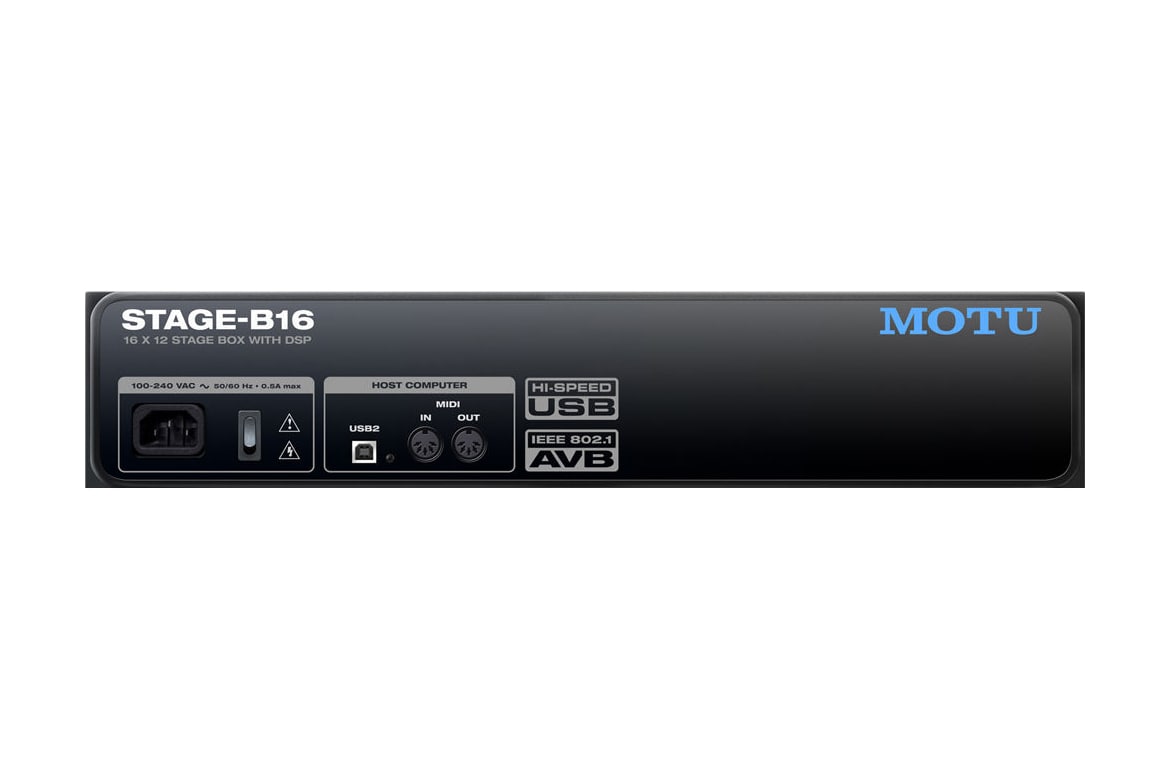

Computer I/O | 1 x USB 2.0 audio class compliant USB 3.0 and iOS compatible 1 x AVB Ethernet (requires OS X Yosemite) |
Computer I/O channels | USB 2.0 (44.1 to 48 kHz): 64 in/out USB 2.0 (88.2 to 96 kHz): 32 in/out USB 2.0 (176.4 to 192 kHz): 24 in/out AVB Ethernet: 16 to 128 in/out, depending on host computer speed |
MIDI I/O | 1 x MIDI IN 1 x MIDI OUT 16 MIDI channels to/from computer host |
Headphone | 1 x 1/4" TRS stereo phone (assignable) |
Phantom power | 16 x individual +48V |
Network I/O | 1 x RJ45 AVB/TSN Ethernet (100 Mbps) |
AVB streams (8 channels per stream) | 3 in / 3 out @ 44.1 or 48 kHz 2 in / 2 out @ 88.2 or 96 kHz 1 in / 1 out @ 176.4 or 192 kHz |

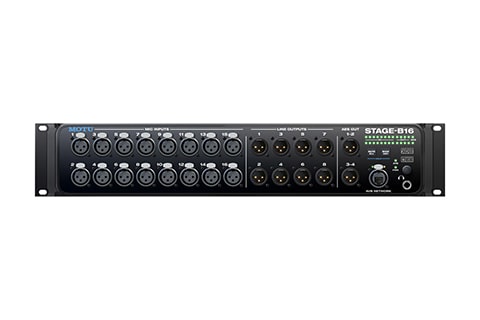

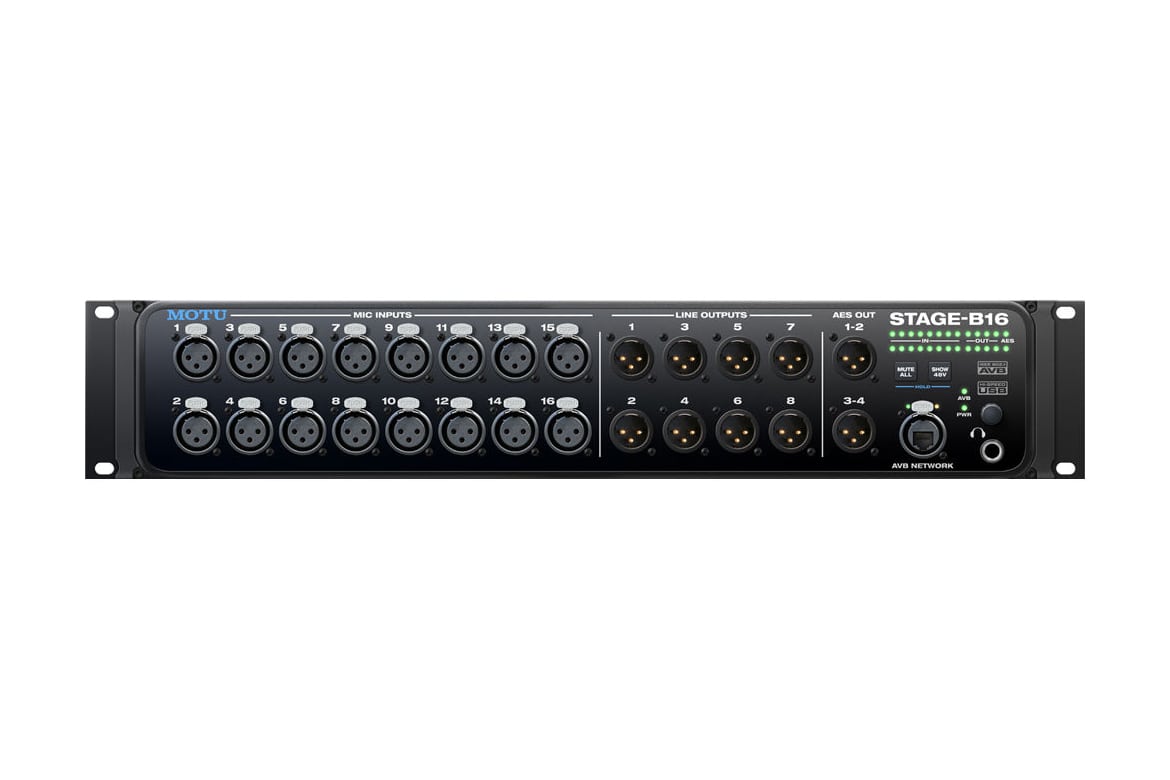

Front panel | 1 x 1/4" TRS headphone output 1 x digital rotary encoder • phone volume 2 x switches • (1) Mute All and (1) Show 48V 16 x activity LEDs • (16) input, (8) output, (2) AES 1 x female Ethernet 'EtherCon' port 2 x male XLR AES/EBU outputs (4 channels) 8 x male XLR analog outputs 16 x female XLR mic inputs with indiv. 48V/pad Rack-mount brackets and handles (optional) |
Power | International 100-240V autoswitching supply 50-60 Hz • 0.5A max |
Dimensions and weight | (width x depth x height, enclosure only) 19 x 7 x 3.5 inches 48.3 x 17.75 x 8.89 cm 5.0 lbs / 2.27 kg with rack brackets removed: 17.25 inches (43.8 cm) wide 4.7 lbs / 2.13 kg |
Mac System Requirements
- 1 GHz Intel-based Mac or faster
- 2 GB RAM; 4 GB or more recommended
- Mac OS X version 10.8 or later
- Available high-speed USB 2.0 or AVB Ethernet port*
- A large hard drive (at least 500 GB for recording)
- *AVB Ethernet audio interface operation requires OS X Yosemite
Windows System Requirements
- 1 GHz Pentium-based PC compatible or faster
- 2 GB RAM; 4 GB or more recommended
- Windows 10, 8 or 7
- Available USB 2.0 or 3.0 port
- Available Ethernet port for firmware updates
- A large hard drive (at least 500 GB for recording)
Web App Support
- Any web client platform: Mac, Windows, Linux, iOS, Android
- Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
- Web client must be connected to the same network as the MOTU AVB interface by wire or Wi-Fi.
Operating Systems
- For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
- For web app control: Mac, Windows, Linux, iOS, Android
