24 x 16 x 8 monitor mixer, 6-channel headphone amp and USB/AVB audio interface with 48-channel mixing and AVB audio networking

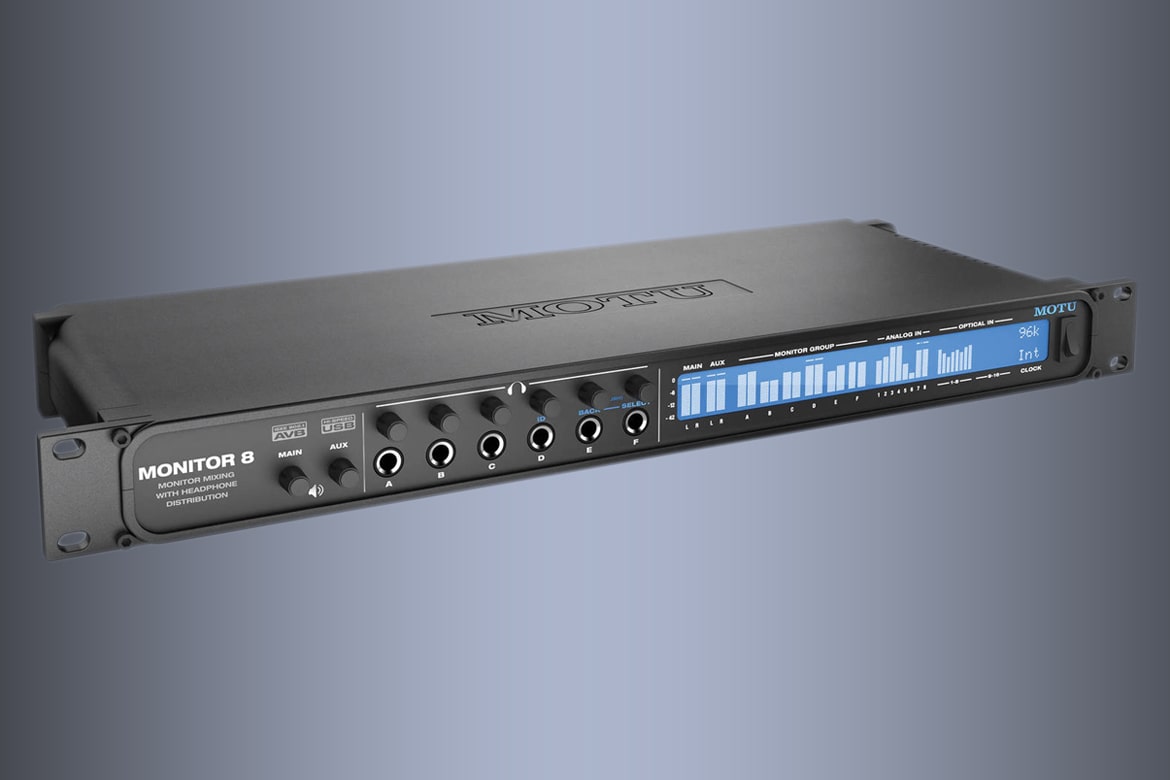

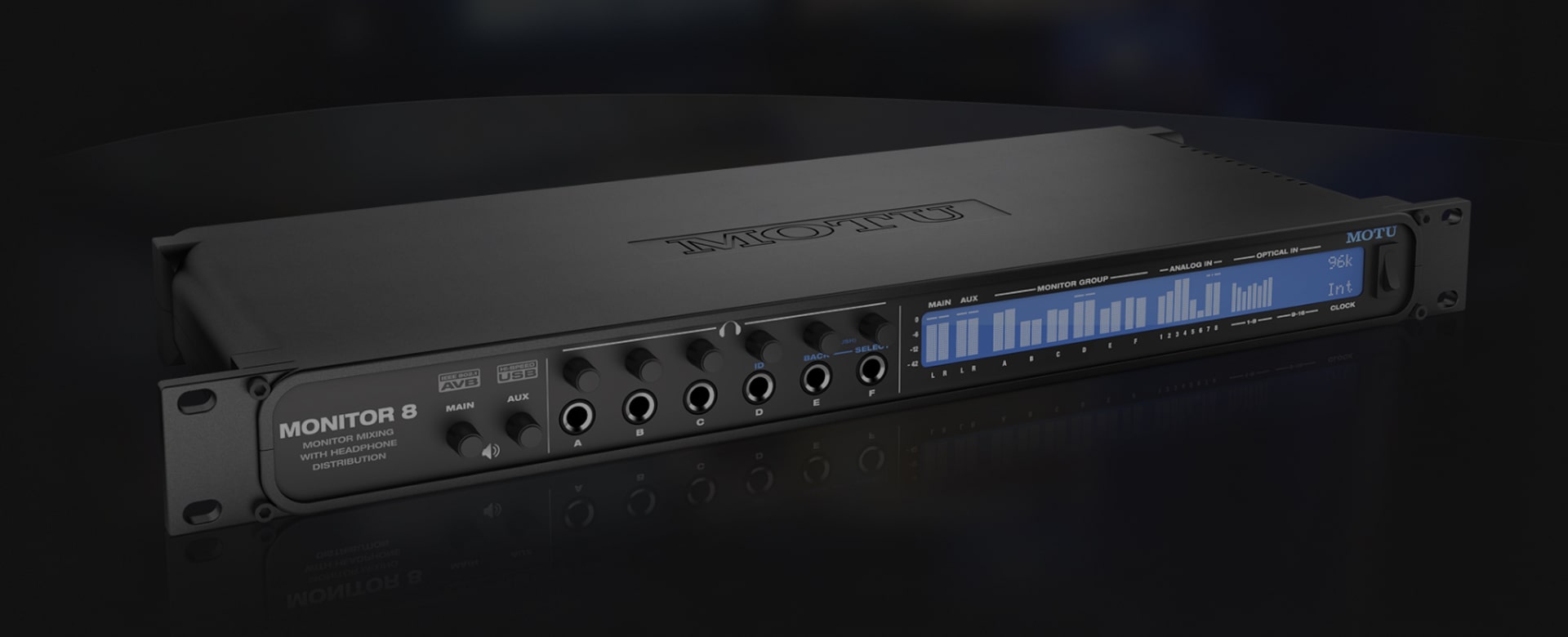

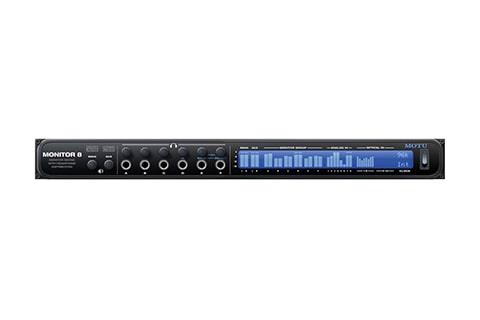

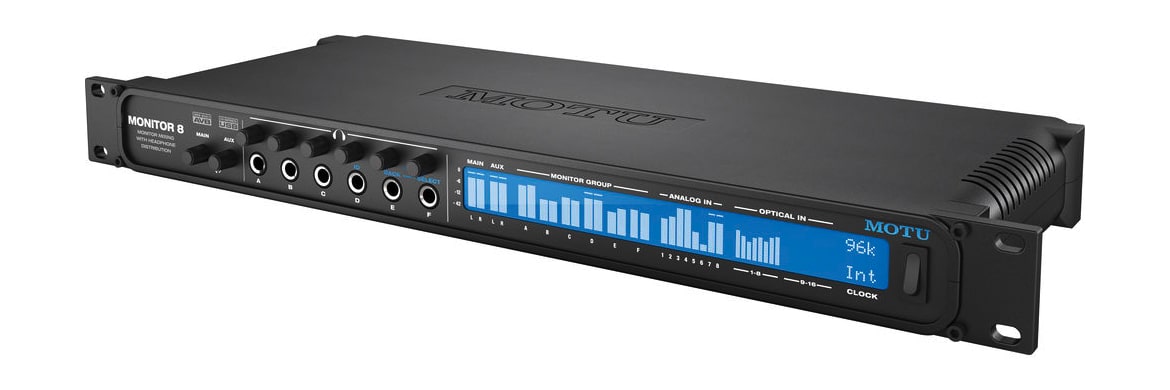

The Monitor 8 from MOTU is a single rack space 24 x 16 x 8 monitor mixer, 6-channel headphone amplifier and a USB 2.0 audio interface with industry-standard AVB networking for sub-millisecond network latency. The unit mixes 24 physical channels, multi-channel computer audio, and 64 AVB audio network channels to eight stereo bus outputs (Main, Aux, and monitor groups A-F). Each group output provides multiple mirrored outputs, which can be fed to in-ear monitoring systems or other stereo destinations. The Monitor 8 connects to a computer through USB 2.0, which provides more than enough bandwidth for the twenty-four channels, and, when connected through AVB networking, supports hundreds of network channels.

All devices on an AVB network can stream audio to and from a computer, and everything can be controlled simultaneously from any computers, tablets, and smartphones connected to the network. The interface delivers excellent analog performance with digitally controlled analog trim on the analog inputs, and includes a forty-eight-channel software mixer modeled after large format mixing consoles, DSP effects with 32-bit floating point precision, flexible matrix-style routing and splitting, stand-alone operation, and Wi-Fi control.

• Three products in one: 24 x 16 x 8 monitor mixer, 6-channel headphone amp and USB/AVB audio interface
• Employs the same analog design as MOTU's 1248, 8M and 16A audio interfaces
• Mix 24 physical inputs, multi-channel computer audio, and 64 AVB audio network channels to eight stereo bus outputs (Main, Aux, and monitor groups A thru F). Inputs include 8 channels of balanced (TRS) analog and 16 channels (2 banks) of ADAT optical

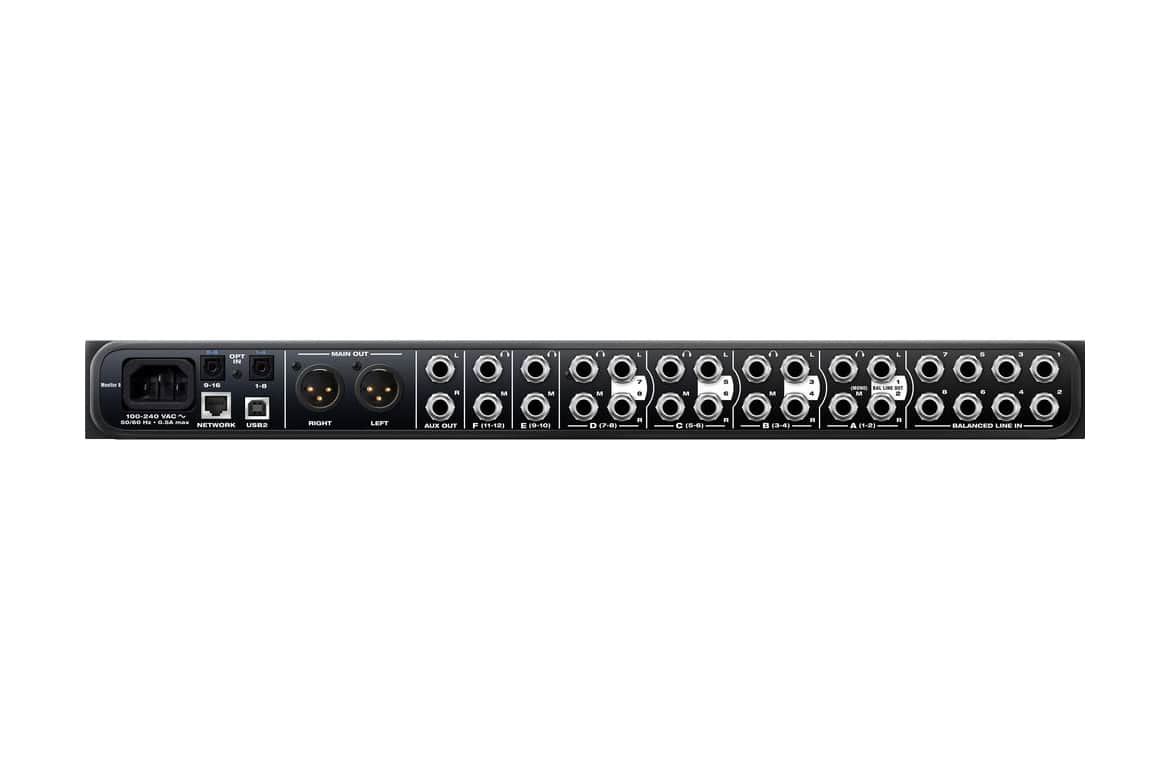

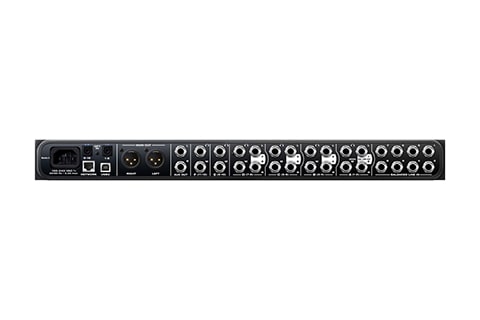

• Each group provides multiple mirrored outputs, including 2 x 1/4" phones (front and rear panel), summed 1/4" mono out for stage monitors, and for groups A-D, balanced stereo 1/4" outs, which can be fed to in-ear monitoring systems or other stereo destinations
• Connects to a computer with audio class compliant high-speed USB 2.0 (compatible with USB 3.0 and iOS)
• Discovery app and web app software works alongside any host audio software
• On-board DSP with mixing and effects
• Flexible forty-eight input digital mixer modeled after large format mixing consoles, with twelve stereo busses and DSP effects, including reverb, four-band EQ, gate and compression
• DSP-driven mixing and effects engine delivers virtually unlimited headroom utilizing 32-bit floating point processing
• Modeled vintage effects processing with compression modeled after the legendary LA-2A compressor and EQ modeled after British analog console EQs
• Add a second MOTU AVB interface (24Ai, 24Ao, 1248, 8M or 16A) with a simple Cat-5e Ethernet cable
• Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately)
• Build an AVB network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point)
• Stream hundreds of audio channels among devices and computers on the network
• Matrix routing and splitting allows for sending any input to any output, or multiple outputs, including routing to and from the computer, plus any devices on the AVB network
• Control on-board DSP, mixing, device settings and network audio routing from web app software running in a preferred browser on a laptop, tablet or smart phone connected by wire or Wi-Fi to a local area network
• Standalone mixing with wireless control - connect an Apple Airport or other Wi-Fi router directly to the 24Ai with a standard Ethernet cable and control mixing and DSP effects from a smart phone or tablet, without a computer, great for live sound mixing
• Use the 24Ai as a twenty-four channel optical expander for other gear (24 channels at 44.1/48 kHz or 12 channels at 88.2/96 kHz)
• Large backlit 324 x 24 LCD allow for viewing all signal activity at a glance with detailed metering for all analog and digital I/O
• Access hardware settings from a simple and convenient menu
• Includes AudioDesk workstation software with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering
