MOTU Micro Lite
Product Highlights
- MIDI connectivity - Five MIDI inputs and outputs provide 80 MIDI channels.
- Expansion - MOTU MIDI interfaces grow with you. Expansion is simple. Add additional MIDI ports by plugging in another MOTU MIDI interface.
- Compatibility - Works with your favorite software. Includes drivers for Mac OS X and Windows 10/8/7/Vista.
- USB-powered - Bus-powered from USB connection. No additional power necessary.
- Rack mountable - With rack ears attached, fits one half of a standard 19 inch (48.26 cm) rack at 1U high. Excluding rack ears, chassis dimensions are 9.5 x 7 x 1.75 inches (24.13 x 17.78 x 4.45 cm).
- Overview
- Tech Specs
5x5 MIDI interface for Mac OS X and Windows with all the MIDI I/O you need at a great price
Built from the same technology found in MOTU’s flagship MIDI Timepiece, the micro lite is a professional MIDI interface that provides portable, plug-and-play connectivity to any USB-equipped Mac or Windows computer.

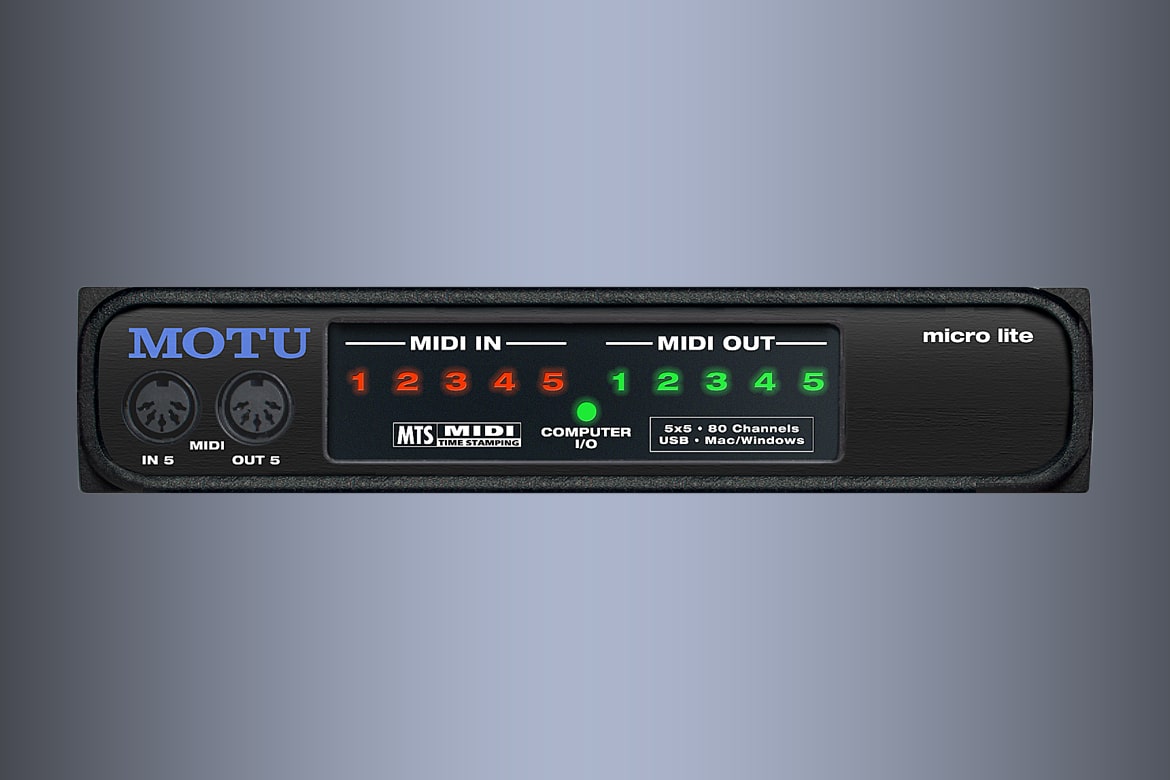

The micro lite provides 5 MIDI IN, 5 MIDI OUT, 80 MIDI channels and compatibility with all Mac and Windows software. Large front-panel LEDs illuminate to indicate MIDI activity.
The micro lite takes full advantage of USB, giving you high-speed MIDI throughput, sub-millisecond timing accuracy, support for “hot-swapping” and plug-and-play expansion. Need to connect another sound module or synth? No problem. Just add another MOTU USB MIDI interface via any available USB port. And the micro lite is powered by the USB port — no wall wart or AC plug.
With its attractive yet rugged metal casing, the micro lite slides easily into a shoulder bag or briefcase for ultra-compact portability and convenient desktop operation. Removable rack attachments, as well as a custom center-joint fastener, are included and allow you to easily mount two micro lites side by side in a standard 19-inch equipment rack.
| Connection | USB |
| MIDI In | 5 |
| MIDI Out | 5 |
| Activity Indicators | In and Out on each port |
| Multiple Units | Yes (USB) |
| Stand-Alone | No |
| Bypass/Panic | No |
| Synchronizer | No |
| System Requirements | USB equipped Mac or PC |
| Specialties | Compact housing for portability and convenient desktop operation |
Mac System Requirements
- A Mac with an Intel processor
- 1 GB RAM; 2 GB or more recommended
- Mac OS X version 10.6 or later required
- Available Thunderbolt or high-speed USB 2.0 (or 3.0) port
- USB cable included; Thunderbolt cable purchased separately
- A large hard drive (preferably at least 250 GB)
Windows System Requirements
- 1 GHz Pentium-based PC compatible or faster
- 1 GB RAM; 2 GB or more recommended
- Windows 10, 8, 7 or Vista, 32- or 64-bit; Vista SP 2 or later required
- Available Thunderbolt or high-speed USB 2.0 (or 3.0) port
- USB cable included; Thunderbolt cable purchased separately
- A large hard drive (preferably at least 250 GB)
Operating Systems
- Mac OS X version 10.6 or later
- Windows 10, 8, 7 or Vista (SP2 or later is required)
64-bit operation
- Available for Mac OS X 10.6 or later
- Available for 64-bit versions of Windows 10, 8, 7 or Vista
- Requires a 64-bit CPU
