Product Highlights
- Eight Combo Mic/Line/Instr With +48V
- AVB Up to 256 Thunderbolt Channels
- 48 Channel Software Mixer with DSP
- Remote Control Using Web Application
- 2x 8-Channel ADAT Optical and RCA S/PDIF
- USB 2.0 Audio Compatibility
- DSP Modeled EQ and Compression
- V-Limit Prevents Digital Clipping
- Digital Routing Through CAT-5e or CAT-6
- Standalone Mixer Operation
- Overview
- Tech Specs
The world's first Thunderbolt™ audio interface with 8 pritine mic preamp, 48 channel mixing and AVB audio networking

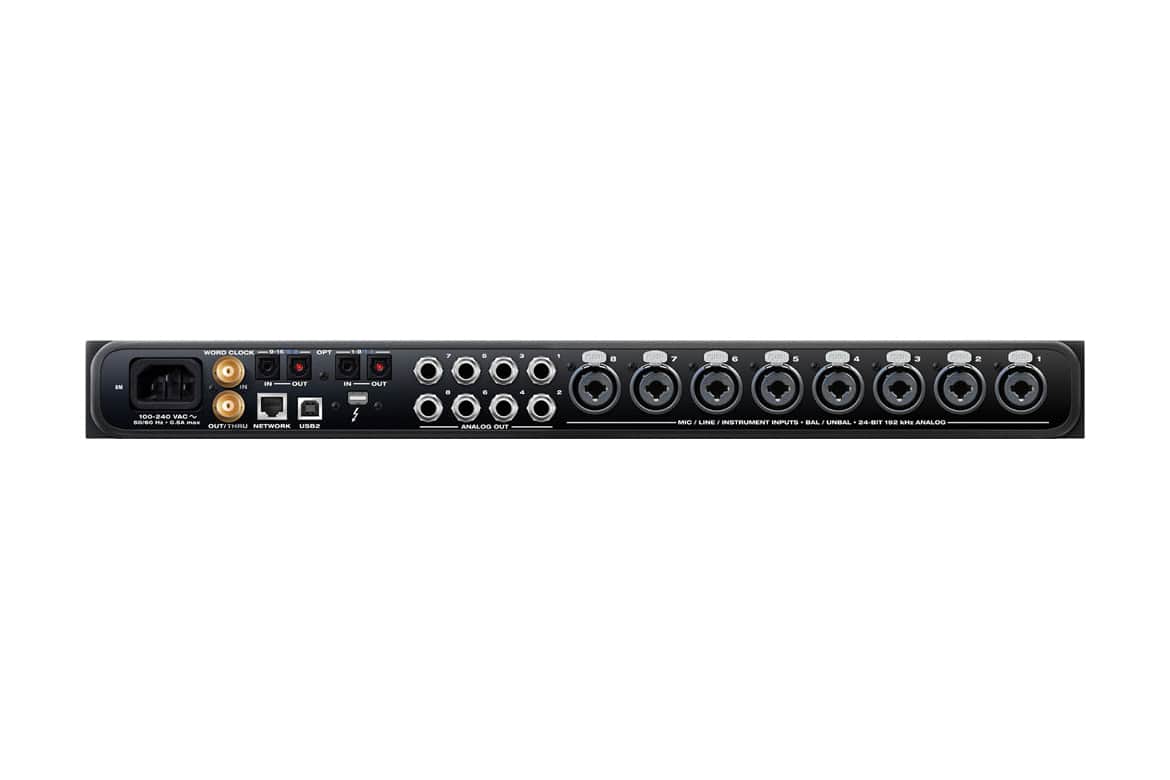

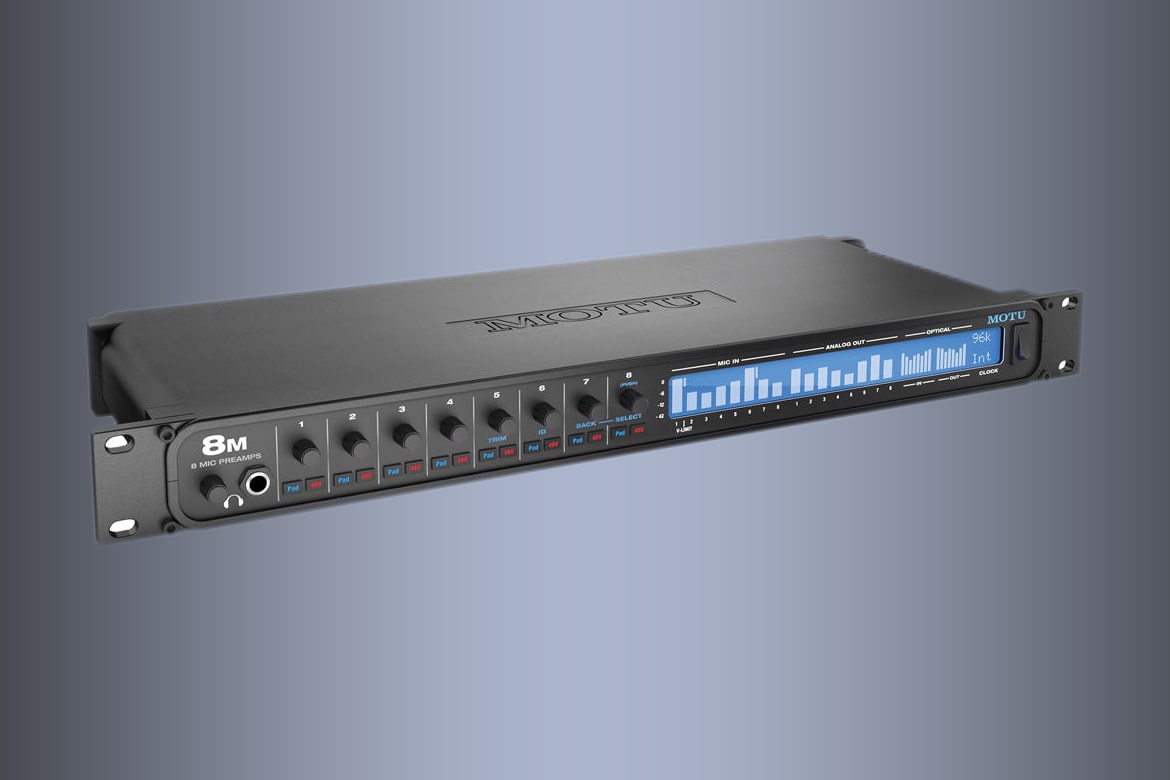

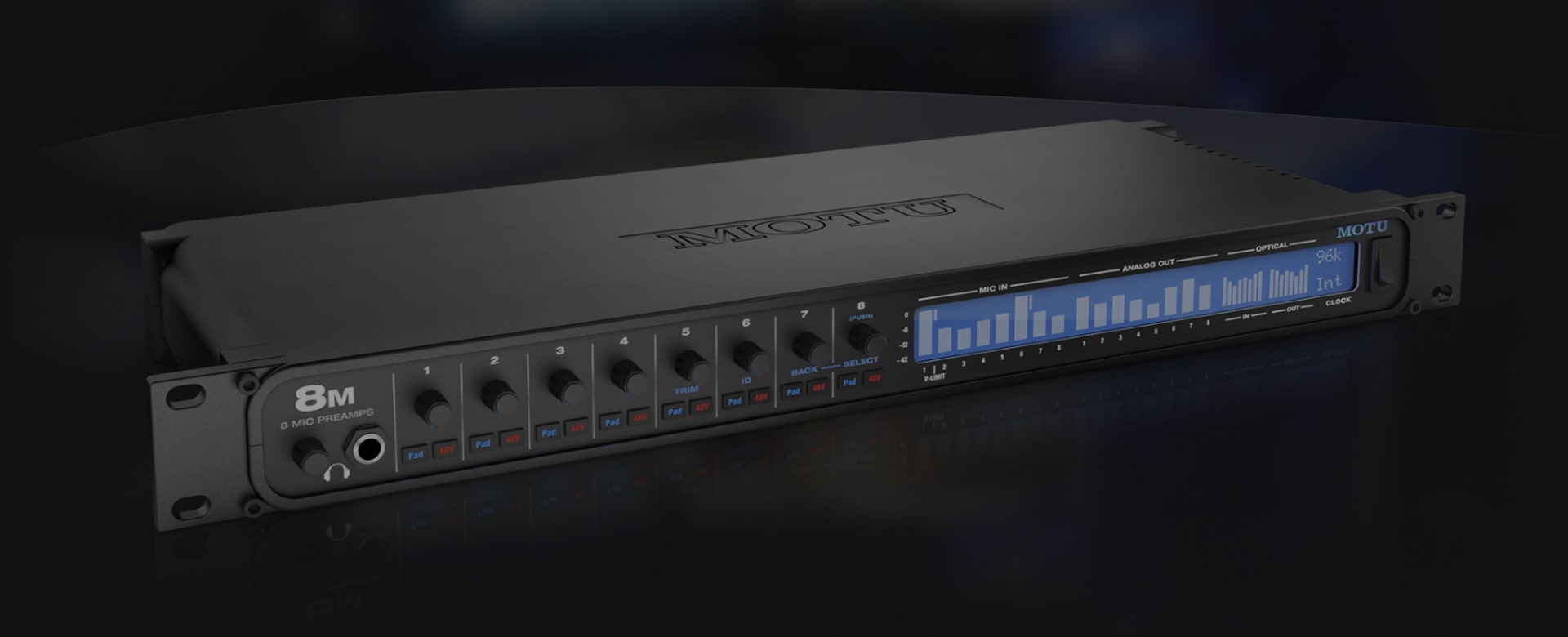

The MOTU 8M is designed for studio recording, installed sound, and live sound reinforcement applications such as mixing a band in a club or music venue. The 1U 19" rackmountable device features eight balanced combination microphone/line/instrument inputs with individually switchable +48V phantom power and pads, v-limiting circuitry to prevent clipping, 8 analog outs, one front panel stereo headphone output with gain control, 2 x 8-channel ADAT optical, and RCA S/PDIF (with sample rate conversion). Additional I/O can be added to the system through AVB networking.
Audio Quality
Provides 123 dB dynamic range and a THD+N of -110 dB (0.0003%) at -1 dBFS, un-weighted, 1 kHz
Universal Connectivity
Connects to computer with Thunderbolt or high-speed USB 2.0 (compatible with USB 3.0) with class-compliant firmware and industry standard drivers to work with any audio software
On-Board DSP With Mixing And Effects
Provides flexible 48 input digital mixer modeled after large format mixing consoles with 12 stereo busses and DSP effects including reverb, 4-band EQ, gate, and compression
32-Bit Floating Point Processing
Provides ample headroom for mixing and effects DSP
Modeled Vintage Effects Processing
Provides classic reverb, compression modeled after historic LA-2A compressor, and EQ modeled after analog console EQs
System Expansion and Audio Networking
Allows you to add a 2nd MOTU AVB interface (1248, 8M, or 16A) with a Cat-5e or Cat-6 Ethernet cable and up to five devices using a MOTU AVB Switch (sold separately). Multiple interfaces can be networked together with over 100 meter cable runs to stream audio between devices and computers on the network.
Matrix Routing and Splitting
Provides flexible digital matrix routing and splitting for any analog or digital input, computer channel or network stream to any computer, output, or network devices. A single input can be split to multiple output destinations
256 Channels of Network Audio I/O To Host Computer
Allows monitoring and recording of up to 128 network audio channels in and 128 network channels out through a Thunderbolt connection to a host computer
Web App Control
Controls on-board DSP, mixing, device settings, and network audio routing from web app software running in a web browser on a computer, laptop, tablet, or Smartphone connected by a wire or Wi-Fi to your local area network
Standalone Mixing With Wireless Control
Allows you to connect an Apple Airport or other Wi-Fi router directly to the audio interface with a standard Ethernet cable and control the device's mixing and DSP effects from a smartphone or tablet, without a computer such as in live sound mixing applications
ADAT Digital I/O
Allows connection of outboard digital processors, digital mixers or other gear, 16 channels at 44.1/48 kHz or 8 channels at 88.2/96 kHz

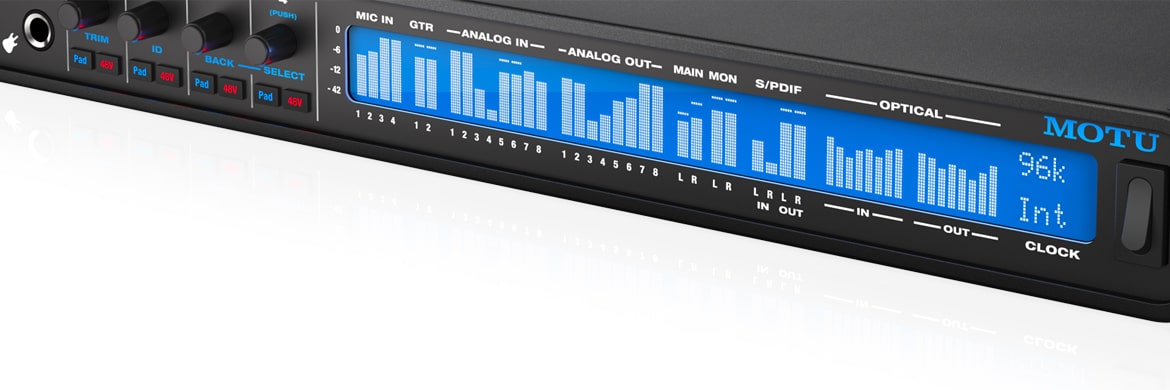

Comprehensive MeteringFeatures large backlit 324 x 24 LCD that allows you to view all signal activity at a glance with detailed metering of analog and digital I/O, as well as access to hardware settings from font panel GUI.
Sample Rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
Analog Inputs | 8 x XLR/TRS combo-style mic/line/instrument inputs Preamp gain: 0 to +53 dB (digitally controlled) TRS max level with pad: +17 dbU (V-limit at +7) |
Analog Outputs | 8 x 1/4" TRS line out (balanced, DC coupled) Max level: +20 dBu (digitally adjustable -4 to +20) 1 x 1/4" TRS stereo headphone |
Digital I/O | 2 banks (16 ch) of ADAT optical at 1x sample rates 1 bank (8 ch) of SMUX optical at 2x sample rates Stereo TOSLink (optical S/PDIF) on Bank A (optional) |
Total I/O Channels | 24 inputs and 26 outputs (50 total) at 1x sample rates 16 inputs and 18 outputs (34 total) at 2x sample rates 8 inputs and 10 outputs (18 total) at 4x sample rates |
Computer I/O | 1 x Thunderbolt (compatible with 1 and 2) 1 x USB 2.0 audio class compliant USB 3.0 and iOS compatible 1 x AVB Ethernet (requires OS X Yosemite) |
Computer I/O channels | Thunderbolt (44.1 to 96 kHz): 128 in/out Thunderbolt (176.4 to 192 kHz): 64 in/out USB 2.0 (44.1 to 48 kHz): 64 in/out USB 2.0 (88.2 to 96 kHz): 32 in/out USB 2.0 (176.4 to 192 kHz): 24 in/out AVB Ethernet: 16 to 128 in/out, depending on host computer speed |
Sync I/O | 1 x word clock in 1 x word clock out |
Network I/O | 1 x RJ45 AVB/TSN Ethernet (1 Gbps) |
AVB streams (8 channels per stream) | 16 in / 16 out @ 44.1 or 48 kHz 16 in / 16 out @ 88.2 or 96 kHz 8 in / 8 out @ 176.4 or 192 kHz |
Headphone | 1 x 1/4" TRS stereo phone (assignable) |
Phantom power | 8 x individual +48V |

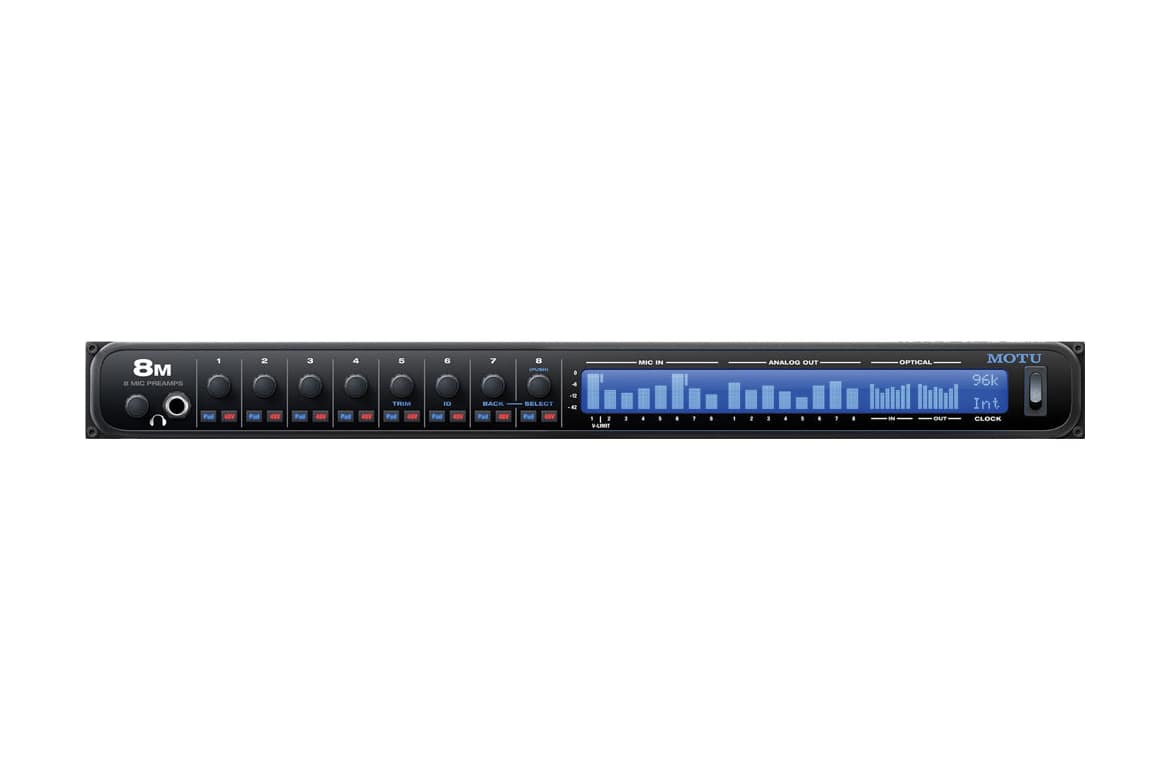

Front Panel | 1 x 1/4" TRS headphone output 1 x digital rotary encoder • phone volume 8 x digital rotary encoders • mic preamp gain 16 x switches • (8) Pad and (8) 48V Phantom switch 324 x 24 pixel LCD for level meters / menu nav 1 x AC power switch |
Power | International 100-240V autoswitching supply 50-60 Hz • 0.5A max |
Dimensions and weight | (width x depth x height, enclosure only) 19 x 7 x 1.75 inches 48.3 x 17.75 x 4.5 cm 4.6 lbs / 2.08 kg with rack brackets removed: 17.25 inches (43.8 cm) wide 4.5 lbs / 2.04 kg |
Mac System Requirements
- 1 GHz Intel-based Mac or faster
- 2 GB RAM; 4 GB or more recommended
- Mac OS X version 10.8 or later
- Available Thunderbolt, USB 2.0 or AVB Ethernet port*
- A large hard drive (at least 500 GB for recording)
- *AVB Ethernet audio interface operation requires OS X Yosemite
Windows System Requirements
- 1 GHz Pentium-based PC compatible or faster
- 2 GB RAM; 4 GB or more recommended
- Windows 7, 8 or 10
- Available USB 2.0 or 3.0 port
- Available Ethernet port for firmware updates
- A large hard drive (at least 500 GB for recording)
Web App Support
- Any web client platform: Mac, Windows, Linux, iOS, Android
- Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
- Web client must be connected to the same network as the MOTU AVB interface by wire or Wi-Fi.
Operating Systems
- For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
- For web app control: Mac, Windows, Linux, iOS, Android
