AES3 / SPDIF / USB / AVB-TSN audio interface with DSP and mixing

The 8D provides four channels of professional AES3 (AES/EBU) digital I/O, plus four channels of standard S/PDIF digital audio I/O, with sample rate conversion on all inputs.

Professional digital I/O with SRC
The 8D provides universal connectivity to your Mac or PC through USB or AVB/TSN. Renowned drivers deliver industry-leading ultra-low latency and proven, rock solid performance.

High-performance computer connectivity
New, optimized drivers for both Mac and PC deliver ultra-low latency performance. With a high-performance DAW such as Digital Performer, the 8D delivers an astonishing round trip latency (RTL) of 1.70 ms (milliseconds) on OS X and 1.71 ms on Windows over USB (at 96 kHz with a 32-sample host buffer).

A flexible digital converter, router, and splitter
Send any input to any output, or split to multiple output channels. Convert any format to any other (AES3, S/PDIF, AVB-TSN and USB). Includes routing to and from the computer, plus any devices on the AVB-TSN network.

DSP mixing and effects processing
The 8D's 48-input digital mixer delivers 7 stereo aux busses, 3 groups, access to 64 network inputs, and DSP effects, including classic reverb, EQ modeled after British analog console EQs and compression modeled after the legendary LA-2A compressor. If you know your way around a large-format mixing console, you'll feel right at home. With 32-bit floating point processing, the 8D's DSP engine delivers virtually unlimited headroom and the utmost in sound quality.

Stand-alone operation with wireless control
Connect an Apple^® Airport^™ or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.

Web app control from any device
The software that you use to control the 8D doesn't reside on your hard drive. It's a web app served from the hardware itself. This means you can control the 8D on-board DSP, mixing, device settings, and network audio routing from your favorite web browser on a laptop, tablet or smartphone connected by wire or Wi-Fi to your local area network. Use any web client on any platform - Mac, Windows, Linux, iOS, Android - as long as it shares the same network.

Touch Console
Designed specifically for touchscreen operation, Touch Console™ delivers a whole new mixing experience. Access Touch Console from your tablet or smartphone to effortlessly control the powerful 48-channel mixer and effects in the 8D. With large targets for your fingers, multi-touch operation and intuitive design, you can tap, swipe and pinch your way to a perfect mix, every time.

Click here to learn more Comprehensive Metering

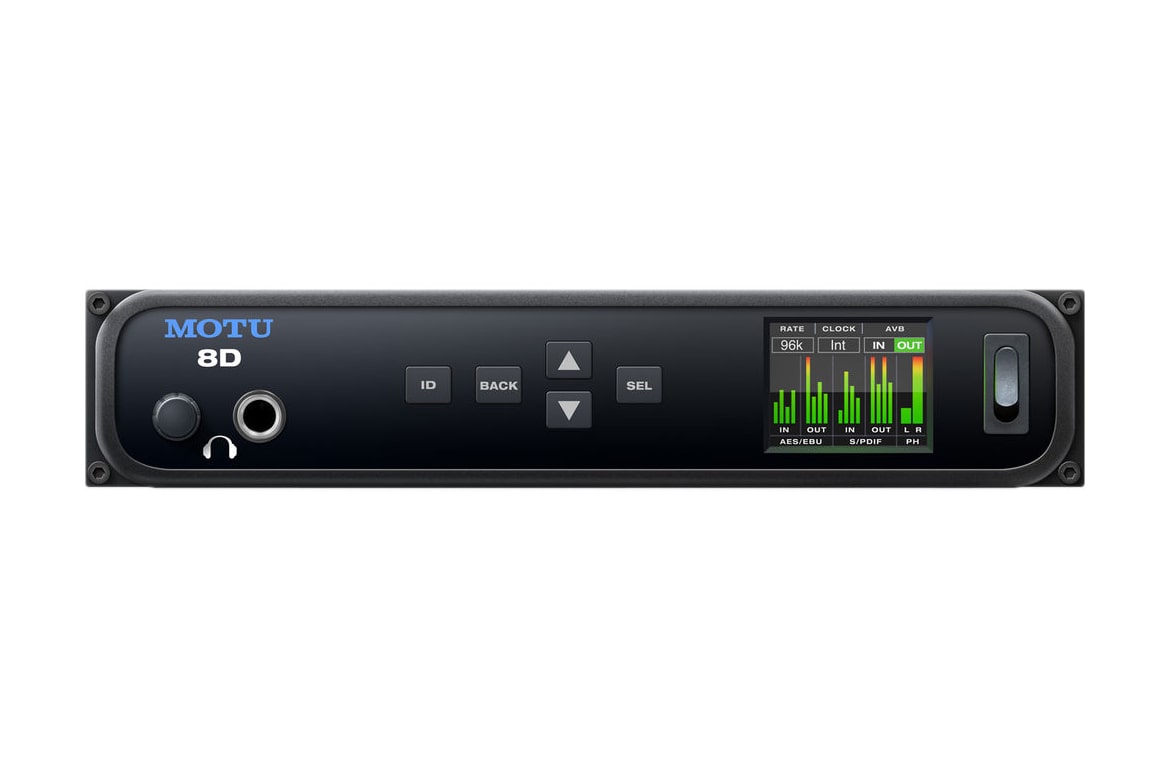

The full-color LCD lets you view all signal activity at a glance with detailed metering for all I/O. Access hardware settings from a simple and convenient menu.

Word Clock

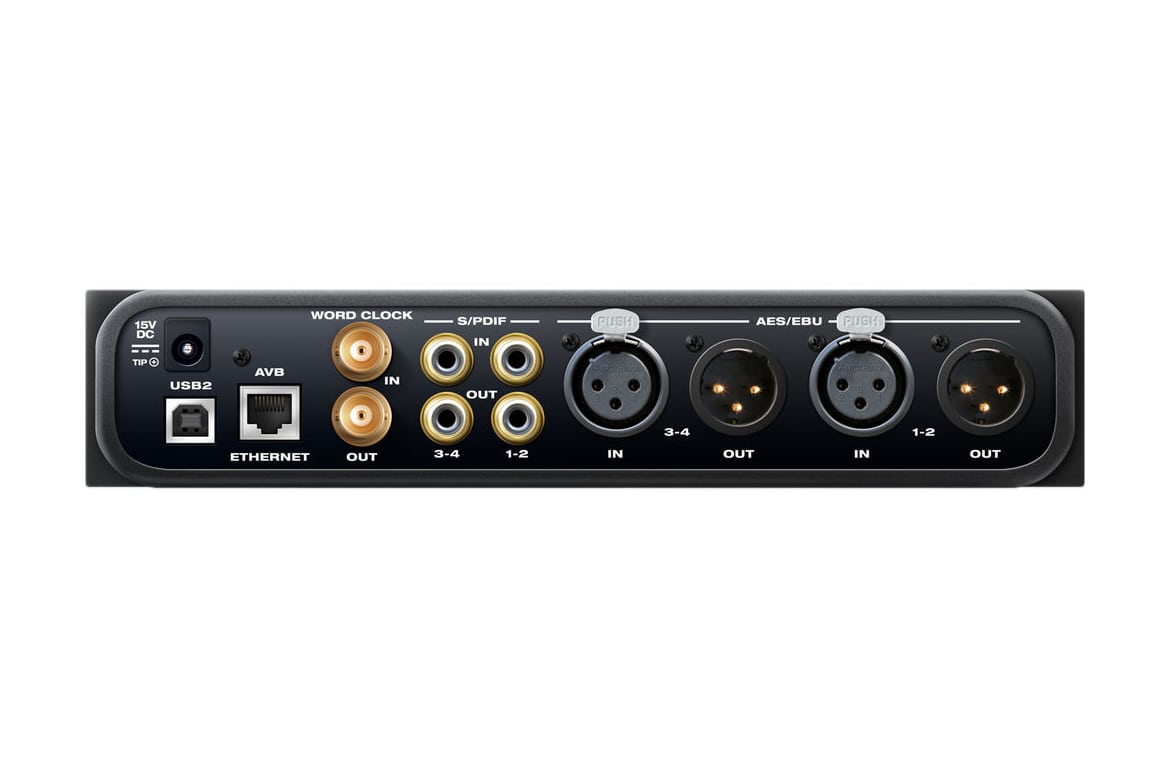

Standard word clock input and output allows you to resolve the 8D to other digital audio gear or house sync.

Convenient headphone monitoring
Use the assignable front-panel headphone output with volume control to monitor any stereo channel pair.
