MOTU 828x

MOTU 828x

Motu
Product Highlights
  • Compatible with Thunderbolt and USB 2.0
  • 28 Inputs
  • 30 Outputs
  • 24-bit 192 kHz Resolution
  • Two Microphone Preamps with +48V
  • Onboard Digital Mixer With Effects
  • Standalone Analog Mixer Operation
  • Built-In Instrument Tuner
  • SMPTE Time Code Sync
  • Analysis Tools and Oscilloscope

  • Overview
  • Tech Specs

Professional 28x30 Audio Interface with Thunderbolt Technology

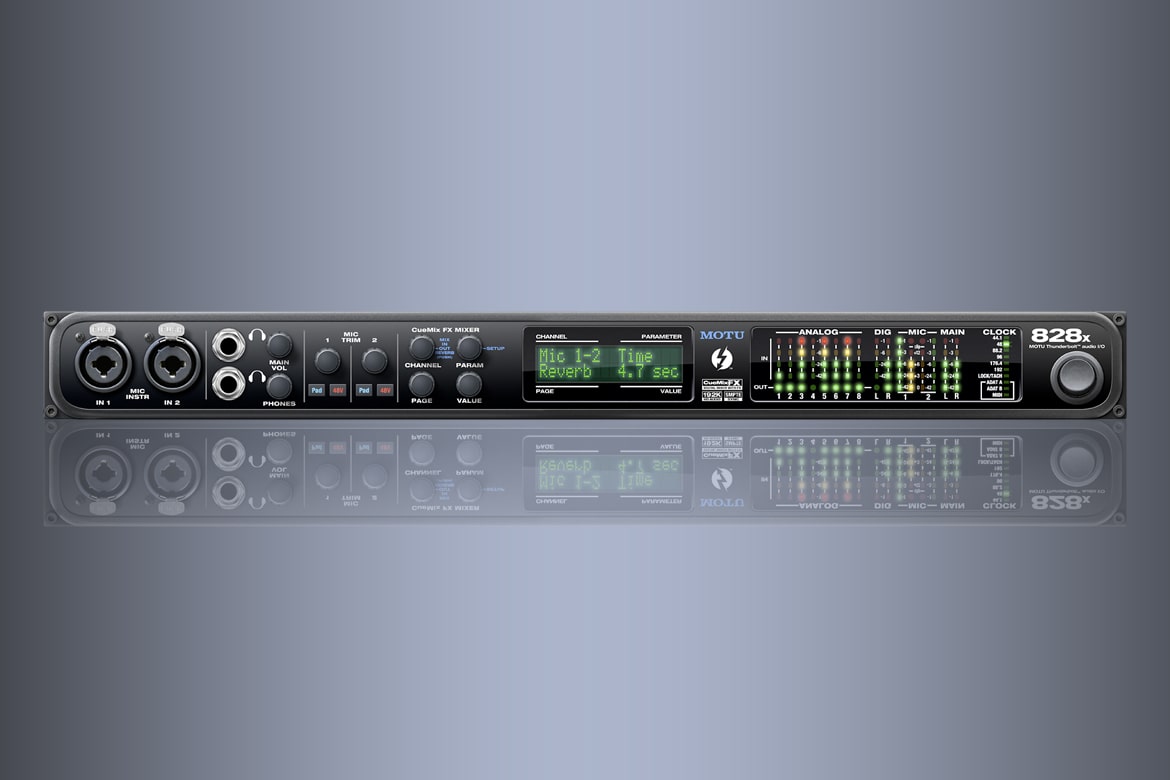

The MOTU 828x Professional 28x30 Audio Interface with Thunderbolt Technology is a 1RU 19" rack mountable digital audio interface that can connect to your 32- or 64-bit Mac or PC computer over Thunderbolt 1, Thunderbolt 2, or USB 2.0 (compatible with USB 3.0 ports). Up to six Thunderbolt devices such as displays and hard drives can be daisy chained together with the audio interface at the end of the chain.

The interface offers eight channels of 192 kHz analog recording and playback, combined with 16 channels of ADAT optical digital I/O (8 channels at 96 kHz), stereo S/PDIF, MIDI I/O, word clock, two headphone jacks, and stereo XLR main outs. Equally suited for the studio and stage, the interface can also function without a computer connection as a standalone mixer with effects such as reverb, EQ, and classic compression.

Two front panel microphone/guitar inputs feature high-quality preamps, plus a V-Limit hardware limiter for overload protection. Additional protection is available via MOTU's Soft Clip function. Each microphone input is equipped with individually switchable 48V phantom power and a 20 dB pad. Each microphone input also has a rear panel send that allows for inserting outboard gear before the analog to digital conversion.

An additional 8 balanced analog inputs enable connection to most studio gear, including microphones, guitars, synthesizers, keyboards, drum machines, and effects processors. In turn, these can all be recorded, monitored, routed and processed using the professional on-board CueMix FX digital mixer, with minimal latency and processor strain on the computer.

Additionally, the interface includes a built-in chromatic tuner and audio analysis tools such as a Fast Fourier Transform function, spectrogram, and X-Y phase alignment plot. The mixer can be remotely controlled using an iPad and TouchOSC software (sold separately). The interface includes a license for AudioDesk 3 digital workstation software for Mac OS X.

Converters 24-bit
Sample Rate 44.1, 48, 88.2, 96, 176.4, and 192 kHz
Analog inputs 2 x XLR/TRS combo-style mic/guitar inputs
8 x 1/4" TRS line inputs (balanced/unbalanced)
Analog outputs 2 x XLR balanced main out
8 x 1/4" balanced TRS line out
2 x 1/4" TRS stereo headphone
Digital I/O 16 channels of ADAT optical at 1x sample rates
8 channels of SMUX optical at 2x sample rates
2-channel TOSlink (optical S/PDIF) up to 96 kHz
2-channel RCA S/PDIF up to 96 kHz
Total I/O 28 inputs and 30 outputs at 1x sample rates
20 inputs and 22 outputs at 2x sample rates
10 inputs and 10 outputs at 4x sample rates
Computer I/O 1 x Thunderbolt (compatible with 1 and 2)
1 x USB 2.0 (compatible with 3.0)
Sync I/O 1 x SMPTE time code in (LTC)
1 x SMPTE time code out (LTC)
1 x word clock in
1 x word clock out
Headphone output 1 x 1/4" TRS stereo phone (assignable)
1 x 1/4" TRS stereo phone (mirrors main outs)
Phantom power 2 x individual +48V
Front panel 2 x XLR/TRS combo mic/guitar in
2 x 1/4" TRS phone
2 x digital rotary encoders - phone/main volume
2 x digital rotary encoders - mic trim
4 x switches - Pad and 48V Phantom
4 x digital rotary encoders for LCD control
2 x 16 character LCD
8 x 4-segment ladder LEDs - 1/4-inch analog in
8 x activity LED - 1/4-inch analog out
2 x 4-segment ladder LEDs - RCA S/PDIF in
2 x activity LED - RCA S/PDIF out
2 x 10-segment LEDs - mic in with V-Limit
2 x 5-segment ladder LEDs - main outs
6 x LED - sample rate indicator
1 x LED - LOCK/TACH indicator
2 x activity LEDs - optical bank A/B
1 x activity LED - MIDI in/out
1 x AC power switch
Power International 100-240V autoswitching supply
50-60 Hz • 20 Watts

Mac System Requirements
  • A Mac with an Intel processor
  • 1 GB RAM; 2 GB or more recommended
  • Mac OS X version 10.6 or later required
  • Available Thunderbolt or high-speed USB 2.0 (or 3.0) port
  • USB cable included; Thunderbolt cable purchased separately
  • A large hard drive (preferably at least 250 GB)

Windows System Requirements
  • 1 GHz Pentium-based PC compatible or faster
  • 1 GB RAM; 2 GB or more recommended
  • Windows 10, 8, 7 or Vista, 32- or 64-bit; Vista SP 2 or later required
  • Available Thunderbolt or high-speed USB 2.0 (or 3.0) port
  • USB cable included; Thunderbolt cable purchased separately
  • A large hard drive (preferably at least 250 GB)

Operating Systems
  • Mac OS X version 10.6 or later
  • Windows 10, 8, 7 or Vista (SP2 or later is required)

64-bit operation
  • Available for Mac OS X 10.6 or later
  • Available for 64-bit versions of Windows 10, 8, 7 or Vista
  • Requires a 64-bit CPU
