The world's first Thunderbolt^™ audio interface with 48-channel mixing and AVB networking

The 1248 is the flagship interface for a new line of high-performance audio interfaces that combine superb audio quality and state-of-the-art features.

66 audio channels

All the I/O you need in one rack space

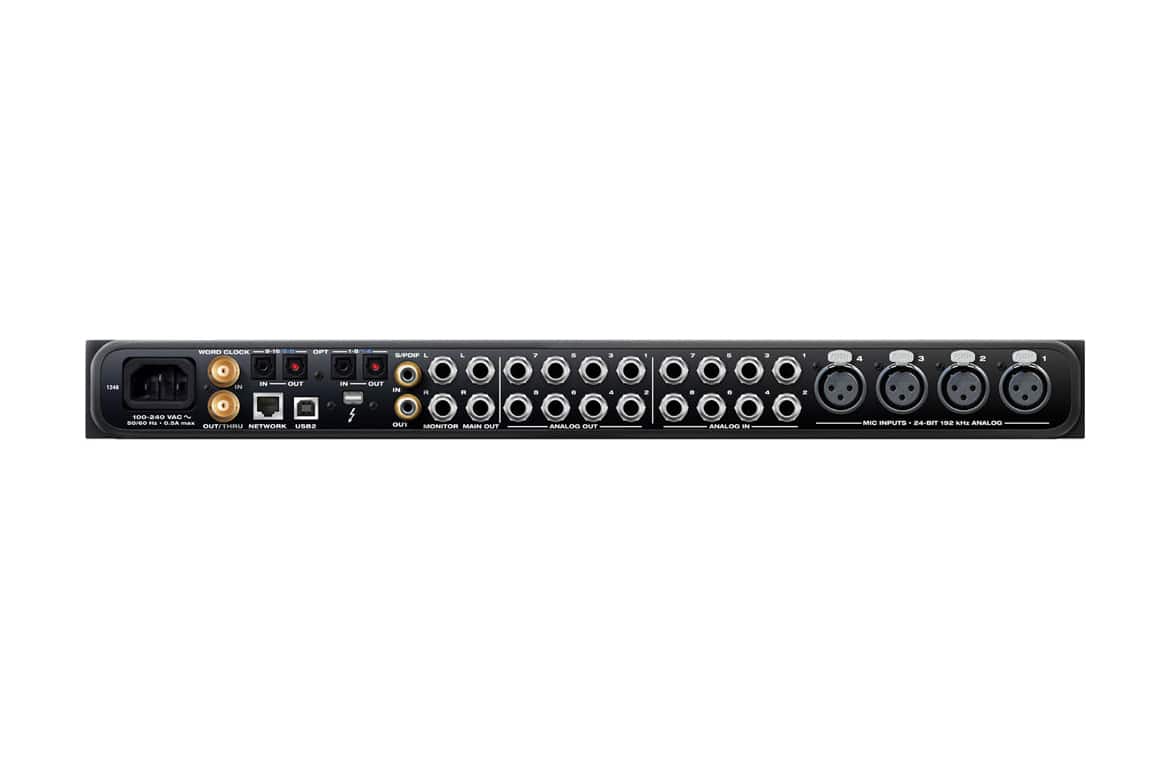

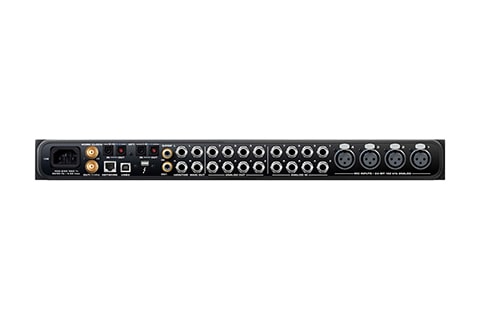

The 1248 provides all the I/O you need for a well-equipped personal studio, including four mic inputs, two dedicated hi-Z guitar inputs, 8 x 12 balanced analog with separate main and monitor outs, 2 x 8-channel ADAT optical, and RCA S/PDIF (with sample rate conversion), for a total of 32 inputs and 34 outputs. Need more I/O? Expansion possibilities are seamless and virtually limitless.

Superb audio quality

Pure sound, without compromise
The 1248 employs latest-generation ESS Sabre32 Ultra™ converters, known for their industry-leading performance, together with expertly engineered analog circuits that reflect more than three decades of pro audio engineering expertise. The result? The 1248 achieves actual, measured performance of 123 dB dynamic range (A-weighted, 20 Hz to 20 kHz) on its balanced TRS analog outputs.

Ultra-low I/O latency

State-of-the-art latency performance
Every digital audio workflow has some latency. The only question is, how much? In the case of the 1248, the answer is, not much at all. In the 1248, latency is measured in a handful of samples, from the time an audio signal first goes digital to its arrival somewhere else (to an output, the mixer, or the computer). By keeping latency this low in the hardware, the 1248 helps minimize latency introduced by your host software. Over Thunderbolt, round trip host latency is an impressive 1.4 ms, from analog in, through the host, to analog out (@ 96 kHz with a 32-sample host buffer).

Thunderbolt technology

Plug-and-play ease with massive bandwidth
Thunderbolt lets you connect displays, hard drives, and other peripherals to your computer, along with the 1248, and the Thunderbolt bus won't even break a sweat. But more importantly, Thunderbolt gives you an astonishing 256 channels of computer I/O (128 in and out). You can use them to route audio to the physical inputs and outputs on the 1248, plus the 48-channel mixer inside the 1248, plus audio network streams. The 1248 is the first and only interface to combine Thunderbolt I/O connectivity with AVB audio networking.

Audio class compliant USB 2.0

Broad compatibility with future-proof connectivity
Don't have a Thunderbolt-equipped computer yet? Hi-speed USB 2.0 provides across-the-board compatibility with pretty much all laptops and desktops. The 1248 is USB audio class compliant, which means you enjoy OS-level USB compatibility and support, including iPad support (with a camera connection kit). Since USB 2.0 devices are compatible with USB 3.0-equipped hosts, your 1248 interface is a future-proof investment in your studio.

48-channel digital mixing

Control up to 12 separate stereo mixes
The 1248 is equipped with a 48-channel digital mixer designed just like a large format mixing console. The 48 inputs can take signal from anywhere: the physical inputs on the 1248 interface itself, audio channels from host software on your computer, audio network streams, or even mixer outputs. The mixer provides 7 stereo aux busses, 3 groups, a reverb bus that can alternately serve as a 4th group, a Main Mix bus and a separate Monitor bus that can serve as a solo bus. In essence: comprehensive and transparent mixing.

Modeled analog EQ and compression

Vintage processing with 32-bit floating point precision
British analog mixing consoles are renowned for their musical EQ profiles. The 1248 meticulously models these classic EQs to give you the very same, magical EQ response found on these coveted desks. Each input channel also provides a classic compressor module with optional peak/RMS operation. Groups and the Main Mix bus are equipped with MOTU's Leveler™, an accurate model of the legendary Teletronix™ LA-2A™ optical leveling amplifier, known for its unique and highly sought-after Automatic Gain Control (AGC) characteristics.

Matrix routing and splitting

Put the ultimate patch-bay at your fingertips
With one click on the 1248's routing grid, you can route any source signal to any destination. Sources can be analog or digital inputs on the interface, computer channels, mixer bus outputs, or audio network streams from other devices on the network. Destinations include interface outputs, host software inputs, mixer inputs, or any other device (or computer) on the AVB network. You can even split any single input (or stereo pair) to unlimited multiple output destinations.

System expansion and audio networking

Expand your system with more I/O and Wi-Fi control
Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately).

Build a network with multiple interfaces, computers, and AVB switches using standard network cabling, with ultra-low network latency, even over long cable runs (hundreds of meters). Stream hundreds of audio channels among devices and computers on the network.

Web app control

Control everything from your laptop, tablet, and smart phone
The software that you use to control the 1248 doesn't reside on your hard drive. It's a web app served from the hardware itself. This means you can control the 1248's on-board DSP, mixing, device settings, and network audio routing from the web app software running in your favorite web browser on a laptop, tablet or smart phone connected by wire or Wi-Fi to your local area network. Use any web client on any platform — Mac, Windows, Linux, iOS, Android — as long as it shares the same network.

Stand-alone mixing with wireless control

Control everything from your iPad or iPhone
Connect an Apple Airport™ or other Wi-Fi router directly to the 1248 with a standard Ethernet cable and control the 1248's powerful mixing and DSP effects from your smart phone or tablet, without a computer. Great for live sound mixing!

Comprehensive metering

View all I/O activity at a glance

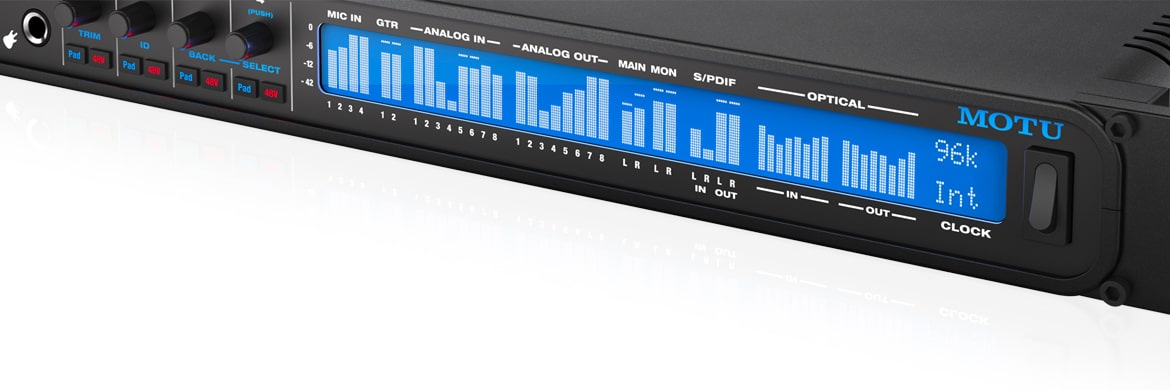

The large backlit 324 x 24 LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.

Quick Setup presets

Completely transform your MOTU interface with one click

The 1248 is so flexible, it can serve many roles — in the studio, on stage, and throughout an installation. The Quick Setup menu lets you instantly reconfigure the 1248 for many common situations, from operation as a standard audio interface to serving as a network "snake" from one location to another. Once a preset is chosen, you can easily customize the routing grid and mixer settings to further suit your specific needs — and then save your own custom presets.

Sample Rates	44.1, 48, 88.2, 96, 176.4, 192 kHz
Mic Inputs	4 x XLR mic inputs Preamp gain: 0 to +63 dB (digitally controlled)
Analog Inputs	2 x 1/4" hi-Z guitar inputs (front panel) 8 x 1/4" TRS line inputs (balanced/unbalanced) Max level: +24 dBu (digitally adjustable +2 to +24)
Analog Outputs	12 x 1/4" TRS line out (balanced, DC coupled) Max level: +20 dBu (digitally adjustable -4 to +20) 2 x 1/4" TRS stereo headphone
Digital I/O	2 banks (16 ch) of ADAT optical at 1x sample rates 1 bank (8 ch) of SMUX optical at 2x sample rates Stereo RCA S/PDIF up to 96 kHz (with SRC on input) Stereo TOSLink (optical S/PDIF) on Bank A (optional)
Total I/O	32 inputs and 34 outputs (66 total) at 1x sample rates 24 inputs and 26 outputs (50 total) at 2x sample rates 14 inputs and 16 outputs (30 total) at 4x sample rates
Computer I/O	1 x Thunderbolt (compatible with 1 and 2) 1 x USB 2.0 audio class compliant USB 3.0 and iOS compatible 1 x AVB Ethernet (requires OS X Yosemite)
Computer I/O channels	Thunderbolt (44.1 to 96 kHz): 128 in/out Thunderbolt (176.4 to 192 kHz): 64 in/out USB 2.0 (44.1 to 48 kHz): 64 in/out USB 2.0 (88.2 to 96 kHz): 32 in/out USB 2.0 (176.4 to 192 kHz): 24 in/out AVB Ethernet: 16 to 128 in/out, depending on host computer speed
Sync	1 x word clock in 1 x word clock out
Network I/O	1 x RJ45 AVB/TSN Ethernet (1 Gbps)
AVB streams (8 channels per stream)	16 in / 16 out @ 44.1 or 48 kHz 16 in / 16 out @ 88.2 or 96 kHz 8 in / 8 out @ 176.4 or 192 kHz
Headphone	2 x 1/4" TRS stereo phone (assignable)
Phantom Power	4 x individual +48V

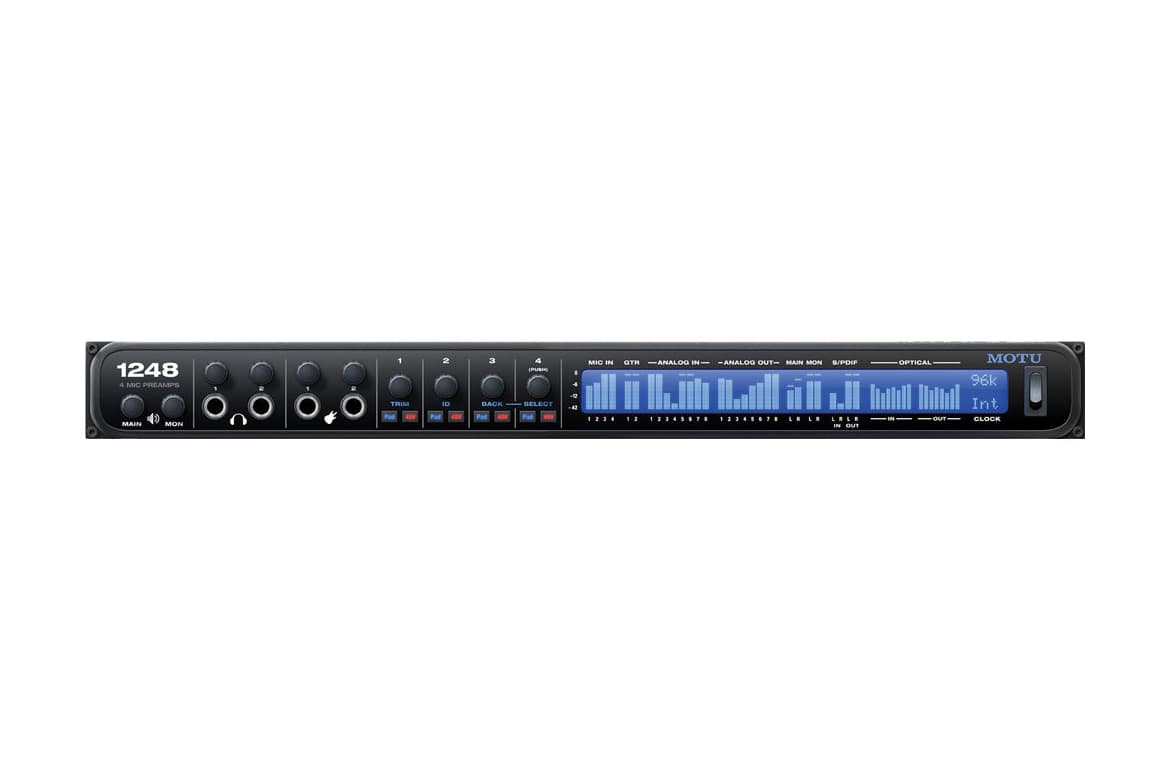

Front Panel	2 x 1/4" TRS headphone output 2 x TRS hi-Z guitar input 2 x digital rotary encoders • main/monitor volume 2 x digital rotary encoders • phone volume 2 x digital rotary encoders • guitar input gain 4 x digital rotary encoders • mic preamp gain 8 x switches • (4) Pad and (4) 48V Phantom switch 324 x 24 pixel LCD for level meters / menu nav 1 x AC power switch
Power	International 100-240V autoswitching supply 50-60 Hz • 0.5A max
Dimensions and weight	(width x depth x height, enclosure only) 19 x 7 x 1.75 inches 48.3 x 17.75 x 4.5 cm 4.6 lbs / 2.08 kg with rack brackets removed: 17.25 inches (43.8 cm) wide 4.5 lbs / 2.04 kg
