Professional Video Streaming and Recording Appliance
Simultaneously stream and record video from SDI and HDMI sources with the Matrox Monarch HDX. Expanding on the Monarch HD, the Monarch HDX adds SDI I/O to the already available HDMI I/O and dual-channel operation with independent H.264 encoders. This functionality makes it suitable for broadcast and other professional workflows that require streaming and recording of content, such as houses of worship and universities.
Having discrete encoders allows for each channel to function separately. You can stream to two different locations, record proxy and master files from the same input, and record two inputs simultaneously. You can also use one encoder for streaming video live while the other encoder records a high-quality copy of the broadcast for playback after the live stream. Whether you use it for live streaming or recording, the Monarch HDX can be integrated into SD or HD productions.

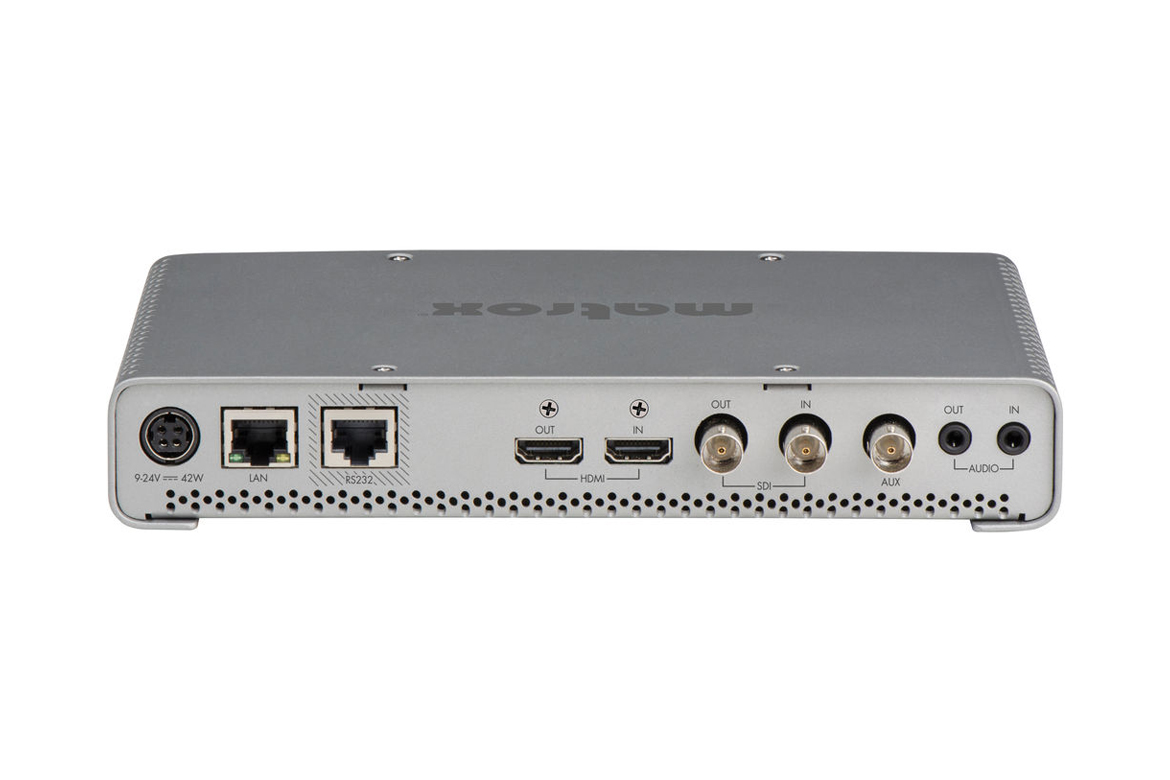

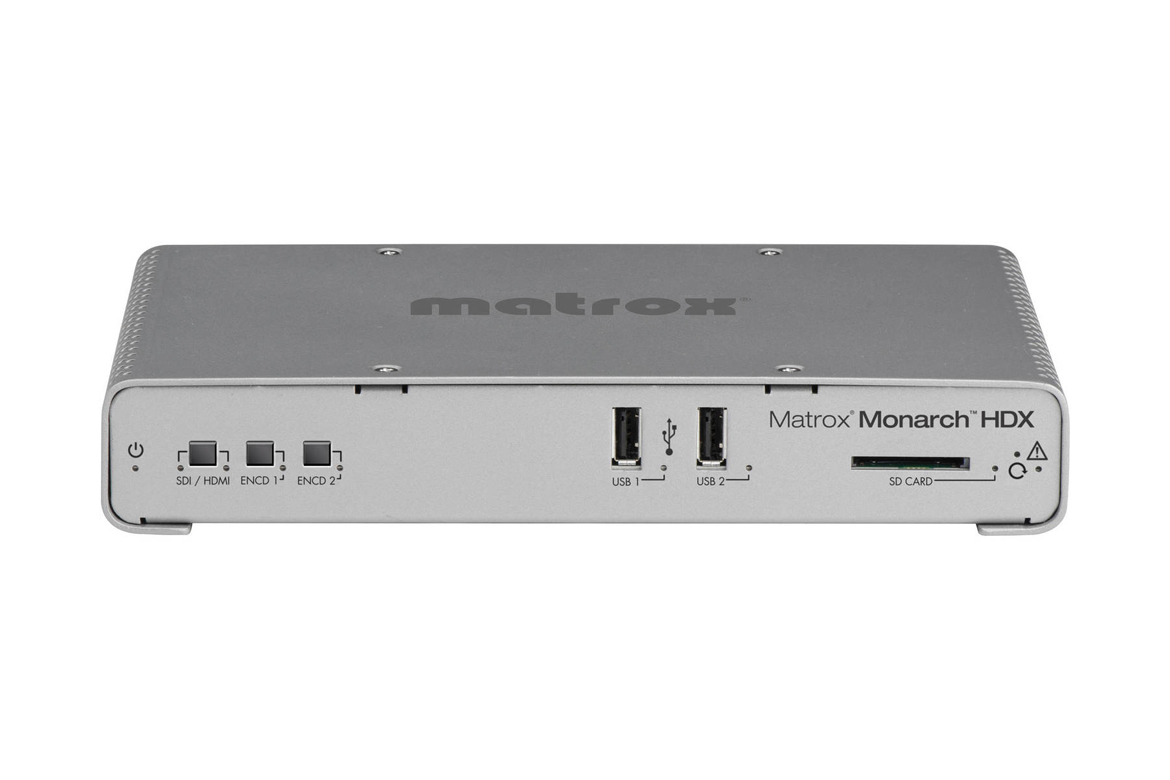

| Inputs and Outputs | |
| Supported HDMI Video Input | Progressive 1920x1080 @ 60/59.94/50/30/29.97/25/24/23.98 Frames per second 1280x720 @ 60/59.94/50 Frames per second Interlaced 1920x1080i 29.97/25 Frames per second |
| Supported SDI Video Input | Progressive 1920x1080 @ 60/59.94/50/30/29.97/25/24/23.98 Frames per second 1280x720 @ 60/59.94/50 Frames per second Interlaced 1920x1080i @ 29.97/25 Frames per second 720x486i @ 29.97 Frames per second 720x576i @ 25 Frames per second Compliant with SMPTE 259M/292M/424M (Level A) / 425M Closed Captioning embedded in VANC of SD or HD SDI signals per SMPTE 334-1 or Captions found in Line 21 of SD signals per EIA-608 are embedded in the essence of H.264 as SEI NAL Units (CEA-608) as per SCTE 128-1 specification |
| SDI Video Output | 0 frame latency passthrough of Input signal. Output is a clean distribution of SDI incoming signal. Hardware bypass relay present in SDI signal path is "closed" on power failure. |
| Audio Input | Processes the first two channels of audio embedded in HDMI or SDI input signals. Unbalanced analog stereo input via 1/8” (3.5mm) jack. Line Level |
| Audio Output | Passthrough of 8 channel of embedded audio channels in HDMI and SDI signals. Unbalanced analog stereo output via 1/8” (3.5mm) jack—passthrough of input. Line Level |
| Extra features | Video Input Format is Auto-Detected in SDI and HDMI. All outputs are active regardless of audio and video input selection. |
| Frame Synchronization | |
| Frame Synchronization | The Monarch HDX contains frame synchronization circuitry designed to compensate for disruptions of the input signal. This circuitry is in place for both SDI and HDMI inputs. Streaming and recording operations will proceed cleanly with repeated or dropped frames. |
| H.264/MPEG-4 Part 10 (AVC) Video Encoder | |
| Resolutions | Selectable encoding resolutions ranging from: 128x128 to 1920x1080 |
| Bit Rates Ranges | Single Encoder - Streaming mode: 20 Mbps Single Encoder - Recording mode: 30 Mbps Dual Encoder - Maximum of 10 Mbps for streaming channels Maximum of 30 Mbps combined for both channels |
| Encode Frame Rates | Encode frame rates selection includes; 60/50, 30/25/24 and 15/12.5. Single Encoder – Maximum of 1080p60 fps Dual Encoder – Maximum of 720p60 fps or 1080p30 fps |
| Encoding Profiles | Baseline, Main and High |
| Encoding Controls | 2.0, 3.0, 3.1, 4.0, 4.1 Level Support GOP Size Variable bit rate support Average max/min data rate controls Deblocking Filter |
| MPEG-4 AAC Audio Encoder | |
| Standard | AAC-LCS |
| Sample Frequency | 32, 44.1 and 48 kHz when digitized from an analog source |
| Channels | 2 channels Stereo (L/R) |
| Bit Rates | Range from 32 kbps to 256 kbps Note that audio codec settings are applied to both encoders. |
| Scaler | |
| | High Quality multi-tap 10 bit Down Scaler and De-Interlacer Available to both streaming and recording operations |
| H.264 Input preview Stream | |
| Resolution | 320x180 |
| Average Bitrate | 100-300 kbps |
| Stream Type | RTSP |
| Recording File Format | |
| File Type | Industry Standard MP4 and MOV files with two channels of embedded AAC audio |
| Recording Lengths | Maximum file length of 300 minutes-irrespective of storage type used. File splitting feature allows a user to record continuously for long periods by defining file segment sizes. The Monarch LCS will create these sequential file segments over the course of the recording operation without losing a single frame of video. File segment can have a length of 1 to 300 minutes. |
| Network Interfaces | |
| Connector | RJ45 providing 10/100/1000 Base-T Ethernet with Static or DHCP addressing |
| Protocols | RTMP, RTSP/RTP IPv4 Support Unicast and Multi Unicast (number of clients may vary from 3 to 10) |
| User Interface | |
| Computer Based control | HTTP via standard PC or Mac web browser using Monarch HDX Command Center. |
| Physical Interface | On Device push buttons for independent streaming and recording with Start/Stop control |
| Storage Types for File Recording | |
| 2 x USB 2.0 | Support for NTFS (3.1) and FAT32 file system The Monarch LCS will support writing to USB3 devices at USB2 speeds. Also note, there is a very high variability in the performance capabilities of “thumb” drives (even USB3 versions). Many are optimized for “read” operations while the Monarch LCS requires sustained “write” capabilities. For best results, Matrox recommends using powered USB drives. If small portable media is required, SD cards may be more suitable. |
| 1 x SD card Slot | Supports SD and SDHC cards. Only NTFS formatted SDXC cards are supported. (Class 10 highly recommended). |
| Network Mapped Drive | Support for writing to shared folders in computers found on a network using Windows Share protocols (suitable for Windows system) as well as NFS protocols (suitable for Mac and Linux systems). |
| Physical | |
| Dimensions | Length (shell) - 5.6" (14.2cm), Length (shell +BNCs) - 6"(15.3cm), Width - 8.5" (21.6 cm), Height (shell) - 1.4"(3.6cm), Height (Shell + pads) - 1.5" (3.81cm) |
| Weight | 1.3 lbs, 0.6 kg |
| Operating conditions | 32 to 104 deg. F (0 to 40 deg. C), 20 to 80% relative humidity (non-condensing) |
| Power |
|
| Power Supply |
|
| Transport and Storage | Max Operating Altitude: 3000 meters Max Transport altitude: 12,000 meters Storage Humidity 5 to 95% relative humidity (non-condensing) |
| Regulatory |
|
| Kit Contents | |
| In the box |
|
| Ordering Information | |
| MHLCS/I | Matrox Monarch HDX part number |
| MRCH/RACK/KIT | Monarch Rack Mount Kit. Can fit up to two Monarch HDX units in a 1RU space. |
| PWR/SUP/MHLS | Monarch HDX power supply unit. Does not include IEC-C8 power cord. These cables must be sourced locally. |
Product Highlights
- Dual-Channel H.264 Video Encoder
- SDI and HDMI I/O
- Supports HD and SD Resolutions
- 0 Frame Latency on SDI Loopthrough
- Discrete Processing on Each Channel
- Supports Flash and Wowza Platforms
- Independent H.264 Preview Stream
- Storage and Control over Network
- Recallable Presets
