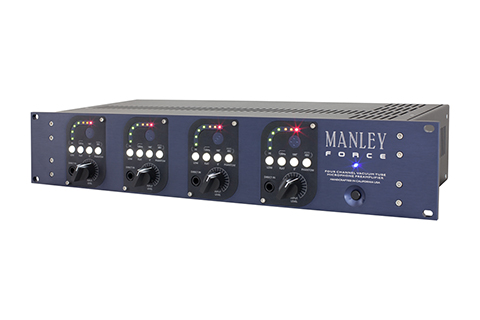

Manley Force®
4-Channel Microphone Preamplifier
Taking the preamp section from their Core channel strip, the Force 4-Channel Vacuum Tube Microphone Preamplifier from Manley Labs provides you with 4 tube-driven microphone preamps in a single 2RU unit. Each of the 4 independent preamps gives you up to 95 dB of gain, along with independently selectable 48V phantom power, phase reverse, and a high-pass filter at 120 Hz. The selectable Hi/Low button acts as a 20 dB pad for louder sources.

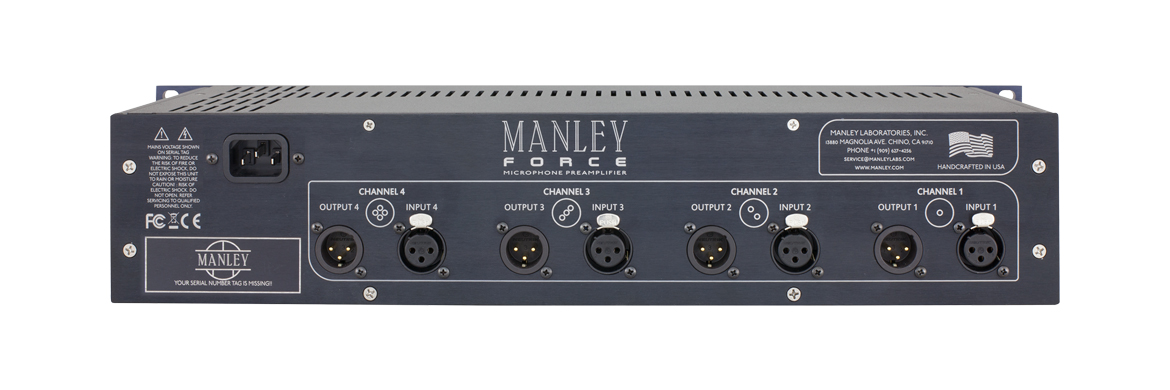

The output section of each preamp features a 12AX7 dual triode Class A amplifying stage. Gold-plated, rear-panel XLR connections provide mic-level inputs featuring Manley's famous Iron transformers. Your Hi-Z and line-level sources make their way via the front-panel 1/4" inputs.
Product Highlights
- Mic Preamp from Core Channel Strip
- Mic, Hi-Z, & Line Inputs
- up to 95 dB of Gain
- High-Pass Filter at 120 Hz
- Phase Reverse
- 48V Phantom Power
- 7-Way LED Metering
