M-Game Solo
M-Audio

M-GAME SOLO

USB Streaming Mixer/Interface with LED lightening, voice effects and sampler
Product Highlights
  • USB AND CONSOLE CONNECTION
    No more buzzing, hum, or strange cable setups.
  • INSTANT VOICE AND SOUND EFFECTS
    Trigger samples and apply voice effects.
  • MUTE AND #$%& BUTTON
    Mic mute button with assignable audio samples, censoring has never sounded so good.
  • 5 INDIVIDUAL FADERS PLUS HEADPHONE AND MAIN SPEAKER OUT VOLUME
    Independent level controls for microphone, game, chat, samples, headphones and more.
  • CENTER CONTROL KNOB
    Easily control Headphone and Speaker Volume.
  • CRYSTAL CLEAR MIC TECHNOLOGY
    Enhance microphone quality by configuring Gate, Compressor, EQ, High-Pass Filter, Phantom Power, Mic-Booster and De-esser FX.
  • CRYSTAL PREAMP CIRCUITRY
    XLR mic connection with 110dB dynamic range.
  • FOOTSWITCH CONNECTION
    Assign to any shortcut hot key or macro.

  • Overview
  • Tech Specs

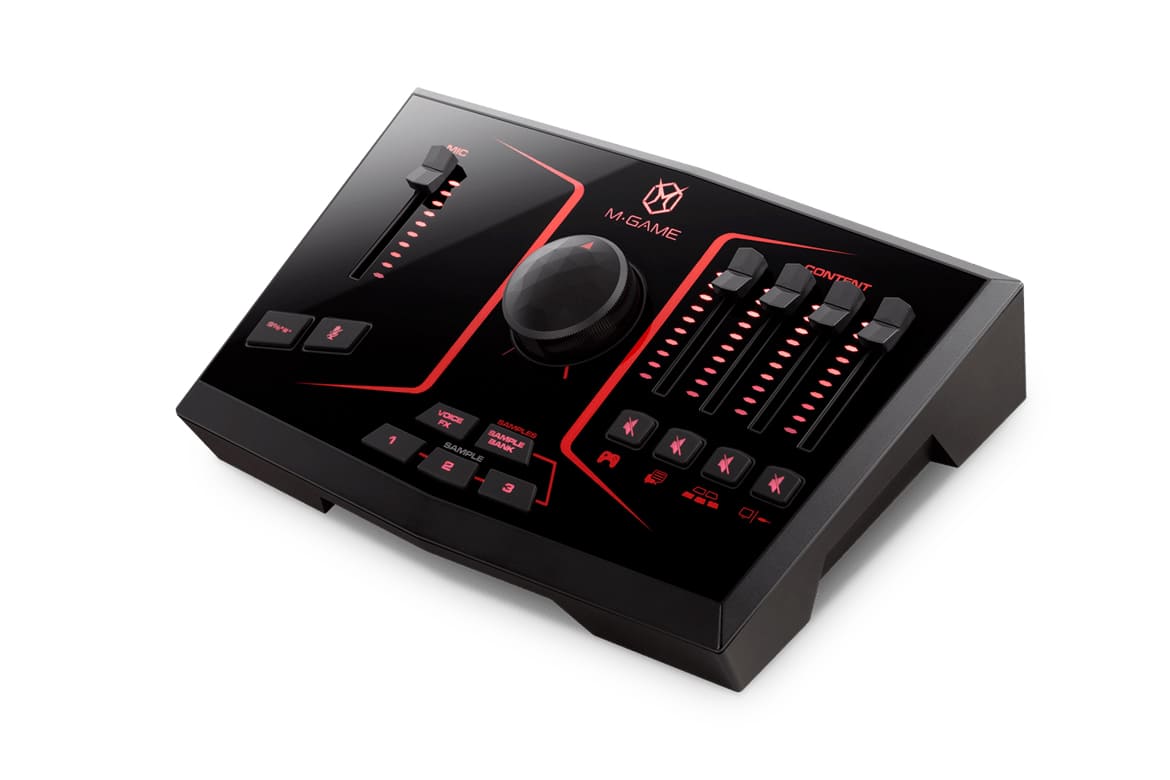

M-GAME SOLO is a USB streaming audio interface/mixer with LED lighting, sampler, and voice shaping and effects combined with a professional audio interface and physical mixing control surface.

With M-GAME SOLO, you can easily create an entertaining and customizable livestreaming set-up with tools at your fingertips that will enhance your gaming experience and wow your audience.

FOCUS ON THE GAME, NOT YOUR AUDIO
Control and mix your audio on the fly. Intuitive and easy to use controls allows you to keep your attention on your stream and game and not worry about audio complications.

SIMPLIFY YOUR SETUP, NOT YOUR CONTENT
Spend less time worrying about how to control all of your audio and more time entertaining your audience.

CUSTOMIZABLE TO ELEVATE YOUR STREAMING EXPERIENCE
Customize the brightness and pattern of your LEDs. Import, create, edit and assign images to your samples and voice effects. Personalize your sound with virtual mix controls for your stream, headphones, chat and more.

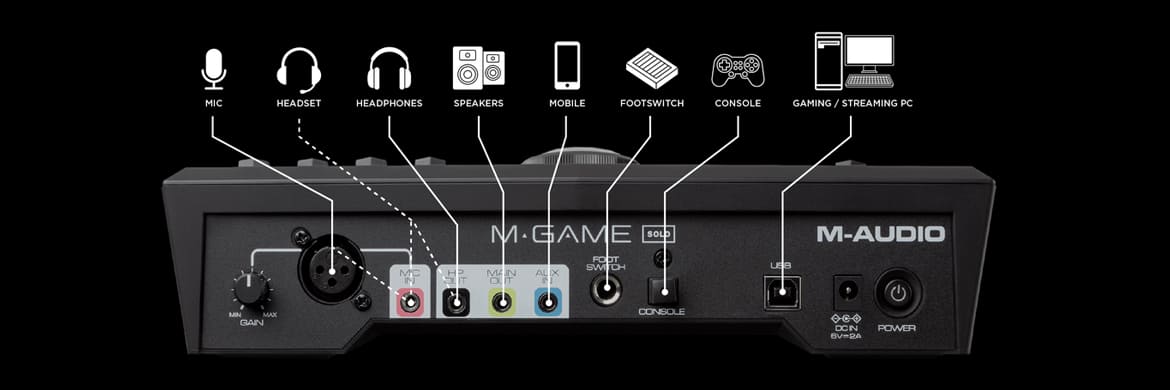

Connections
Game USB Bit Depth: 24-bit
Sample Rate: 48kHz
Connector Type: USB Type B
Stream USB Bit Depth: 24-bit
Sample Rate: 48kHz
Connector Type: USB Type B
Console Connector Type Optical(PCM)
Headphone Out Connector Type: 1/8" TRS
Headphone Mic in Connector Type: 1/8" TRS
XLR in Connector Type: XLR
AUX in Connector Type: 1/8" TRS
Footswitch Connector Type: 1/4" TRS (for single and dual footswitches)
Power Connector Type: 6V DC In 2A (5.5mm barrel radius, 10mm barrel length)
Main and Headphone Outputs
Power Output 42 mW RMS (per channel into 32 Ω)
Dynamic Range 113 dB (A-weighted)
Frequency Response 20 Hz – 20 kHz (+0.1/-0.2 dB)
THD+N 0.005%, 1 kHz, 10mW (per channel into 32 Ω)
Max Output Level +6.0 dBu (unloaded)
Output Impedance 10 Ω
Mic Input (balanced XLR)
Frequency Response 20 Hz – 20 kHz (+0.4/-1.8 dB)
Signal-to-Noise Ratio 109 dB (1 kHz, +4 dBu, A-weighted)
Dynamic Range 110 dB (A-weighted)
THD+N 0.0015% (1 kHz, +4 dBu, -1 dBFS)
Max Input Level +5 dBu
Sensitivity -54 dBu
Preamp EIN -130 dBu
Gain Range 59 dB (+24dB of digital mic boost)
Mic Input (Unbalanced TRS)
Frequency Response 20 Hz – 20 kHz (+0.4/-1.9 dB)
Signal-to-Noise Ratio 105 dB (1 kHz, +4 dBu, A-weighted)
Dynamic Range 109 dB (A-weighted)
THD+N 0.0033% (1 kHz, +4 dBu, -1 dBFS)
Max Input Level +5 dBu
Sensitivity -54 dBu
Preamp EIN -127 dBu
Gain Range 59 dB (+24dB of digital mic boost)
Mic Input (Unbalanced TRS)
Frequency Response 20 Hz – 20 kHz (+0.4/-1.9 dB)
Signal-to-Noise Ratio 105 dB (1 kHz, +4 dBu, A-weighted)
Dynamic Range 109 dB (A-weighted)
THD+N 0.0033% (1 kHz, +4 dBu, -1 dBFS)
Max Input Level +5 dBu
Sensitivity -54 dBu
Preamp EIN -127 dBu
Gain Range 59 dB (+24dB of digital mic boost)

Power

  • 6V DC In 2A
    (5.5mm barrel radius, 10mm barrel length)

Dimensions (width x depth x height)

  • 10.74” x 6.6” x 2.64”
  • 27.27 x 16.76 x 6.7 cm

Weight

  • 2.88lbs. (1.31kg)
