M-Audio AIR 192|8
M-Audio

AIR 192|8

2-In/4-Out 24/192 Audio MIDI Interface
Product Highlights
  • 24-bit/192kHz resolution for professional recording and monitoring
  • Hi-Speed USB circuitry for fastest connection, with class-leading round-trip latency of 2.59ms*
  • Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
  • VU LED meters for dialing in the perfect level
  • Flexible inputs: (2) XLR+¼” TRS combo with -10dB mic pad or ¼” instrument inputs
  • Use any combination of TRS combo or ¼” instrument input on the two channels:(2) TRS, (2) instrument or (1) of each
  • MIDI input/output for connecting virtually any external MIDI gear
  • Stereo ¼” and RCA outs with direct mono/stereo switch
  • (2) RCA assignable auxiliary outputs; ¼” headphone output with independent source and level controls
  • Rugged metal chassis; large central control for easy volume adjustment
  • USB/Direct knob for balancing between the input signal and the computer signal
  • *Round trip latency is dependent on buffer settings, and computer hardware
  • Overview
  • Tech Specs

No-compromise professional studio quality and features at an amazing value!
With the AIR 192|8, you can create 24-bit/192kHz studio-quality recordings with an intuitive and easy-to-use audio interface. The AIR 192|8’s flexible inputs enable you to record up to 2 channels at once with its 2 dedicated XLR+¼” balanced combo inputs with switchable -10dB mic pad, and 2 all-new ¼” instrument inputs that have a specially designed gain and impedance stage to provide the most accurate representation of a guitar or bass plugged directly into the interface. The (2) ¼” and (4) RCA outputs with USB/Direct control, and Direct Mono/Stereo switch provide multiple output options for connecting to outboard gear, DJ mixers, or studio monitors. The headphone output with independent level, USB/Direct, and switchable 1/2 or 3/4 audio stream controls are perfect for discretely listening to a cue mix, sub mix, or main mix. MIDI In and Out connections are included for connecting synths, sequencers and external MIDI gear.

Two onboard Crystal preamps
The AIR 192|8's low-noise Crystal preamps build a solid foundation for any style recording. Clean and uncolored, M-Audio's Crystal preamps are a blank slate for your creative mix decisions down the road.

Latest-gen A/D converters
High headroom and low distortion are yours at every stage of the recording process, thanks to the AIR 192|8's current-gen A/D converters.

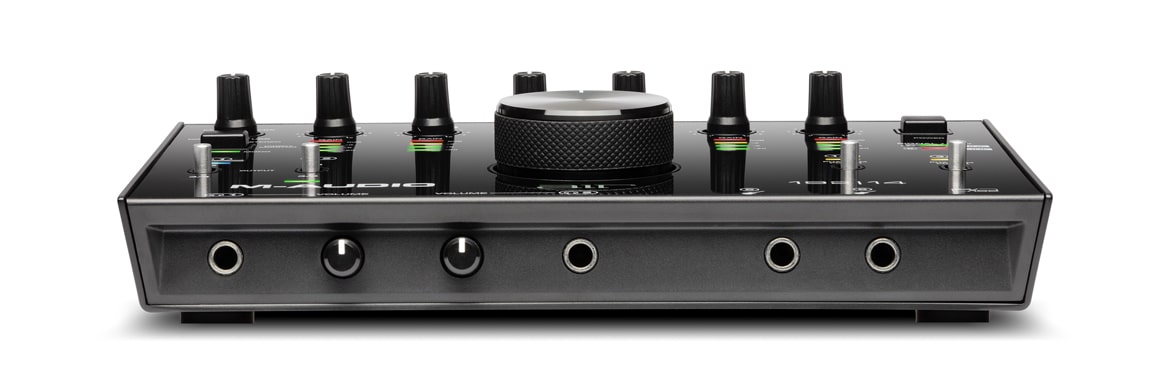

Direct inputs for guitar and bass
Twin front-mounted 1/4" instrument inputs streamline the M-Audio AIR 192|8 for guitar and bass players. The included Eleven Lite FX suite gives you several virtual amp, cab, and stomp options to choose from, so you can leave your amp and pedalboard behind.

MIDI I/O for outboard gear
Take advantage of the included AIR virtual instrument suites when you pair your MIDI-equipped controller with the M-Audio AIR 192|8. Two 5-pin MIDI to 1/8" adapters are included.

Rugged tabletop form factor
The M-Audio AIR 192|8's desk-friendly form factor puts all essential controls right at your fingertips, with an ergonomic tilt that improves visibility for desktop and remote use. A feature we at Sweetwater have enjoyed in all recent AIR interfaces is the large central volume knob, which is unmistakable and easy to access for setting desired monitoring levels. The all-metal chassis feels great underhand and is sure to hold up to location recording.

High-speed USB-C
USB-C protocol (also compatible with USB 2.0) gives the AIR 192|8 fast round-trip speeds — as low as 2.59ms — to minimize latency when you're tracking and monitoring.

Mic Inputs 1-2 (balanced XLR)
Frequency Response 20 Hz – 20 kHz (+0.1 dB)
Dynamic Range 104 dB (A-weighted)
Signal-to-Noise Ratio 104 dB (+1.0 dBu, A-weighted)
THD+N 0.001% (1kHz, +0.8dBu, -1dBFS)
PREAMP EIN -126dBu (150 ύ, unweighted)
MAX INPUT LEVEL +1.8 dBu
Gain Range 60dB
Line Input 1-2 (balanced 1/4" TRS)
Frequency Response 20Hz – 20kHz (+/-0.1dB)
Signal-to-Noise Ratio 101dB (1kHz, +4dBu, A-weighted)
THD+N 0.002% (1kHz, +19.7dBu, -1dBFS)
Max Input Level +20.7dBu
Dynamic Range 106dB (A-weighted)
Inst Input 1-2 (unbalanced 1/4" TS)
Frequency Response 20Hz – 20kHz (+/-0.1dB)
Dynamic Range 106dB (A-weighted)
Signal-to-Noise Ratio 98dB (+4dBu, A-weighted)
THD+N 0.001% (1kHz, +5.8dBu, -1dBFS)
Max Input Level +6.8dBu
Input Impedance ~1MΩ
Gain Range 24 dB
Main TRS Outputs, 1/L & 2/R (balanced 1/4" TRS)
Frequency Response 20Hz – 20kHz (+/-0.1dB)
Dynamic Range 109dB (A-weighted)
THD+N 0.003% (1kHz, -1dBFS)
Max Otput Level +13dBu
Main & Aux RCA Outputs 1 - 4 (Unbalanced RCA)
Frequency Response 20Hz - 20kHz (+/-0.1dB)
Dynamic Range 109dB (A-weighted)
THD+N 0.003% (1kHz, -1dBFS)
Max Otput Level +7dBu
Headphone Outputs (Stereo 1/4" TRS)
Dynamic Range 101dB
THD+N 0.008% (1kHz, -1dBFS, 36mW)
Mac Power 36mW (32-ohm load)
Min Impedance 32-ohm

Software Package

  • Ableton Live Lite
  • Creative FX Collection Plus
  • Xpand!2
  • Mini Grand
  • DB33
  • Strike
  • Touch Loops
  • Revalver - 2x Amps, 3x Cabs, 3x Mics, 3x Effects

    MPC Beats
  • 3 Virtual Instruments - TubeSynth, Electric, Bassline
  • 80 FX Plugins - AIR Channel Strip, Half Time
  • 2GB of factory content with bonus F9 instruments library
