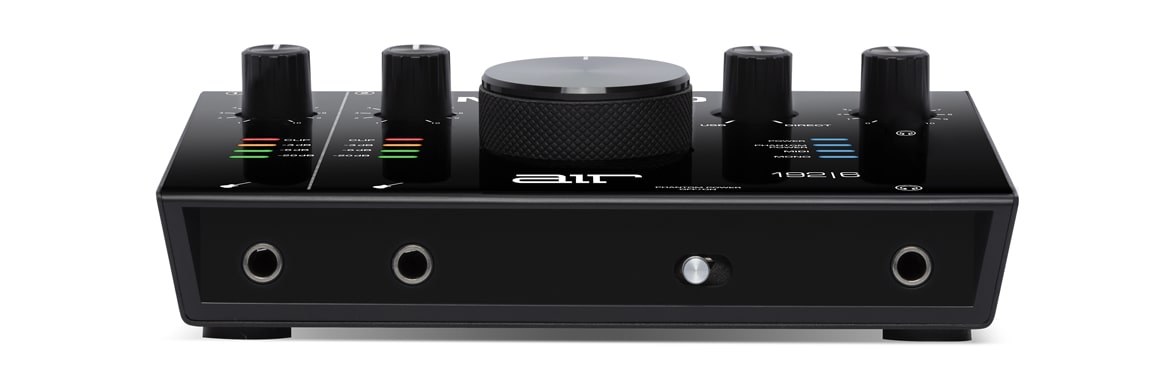

M-Audio AIR 192|6
M-Audio

AIR 192|6

2-In/2-Out 24/192 USB Audio/MIDI Interface
Product Highlights
  • 24-bit/192kHz resolution for professional recording and monitoring
  • Hi-Speed USB circuitry for fastest connection, with class-leading round-trip latency of 2.59ms*
  • Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
  • VU LED meters for dialing in the perfect level

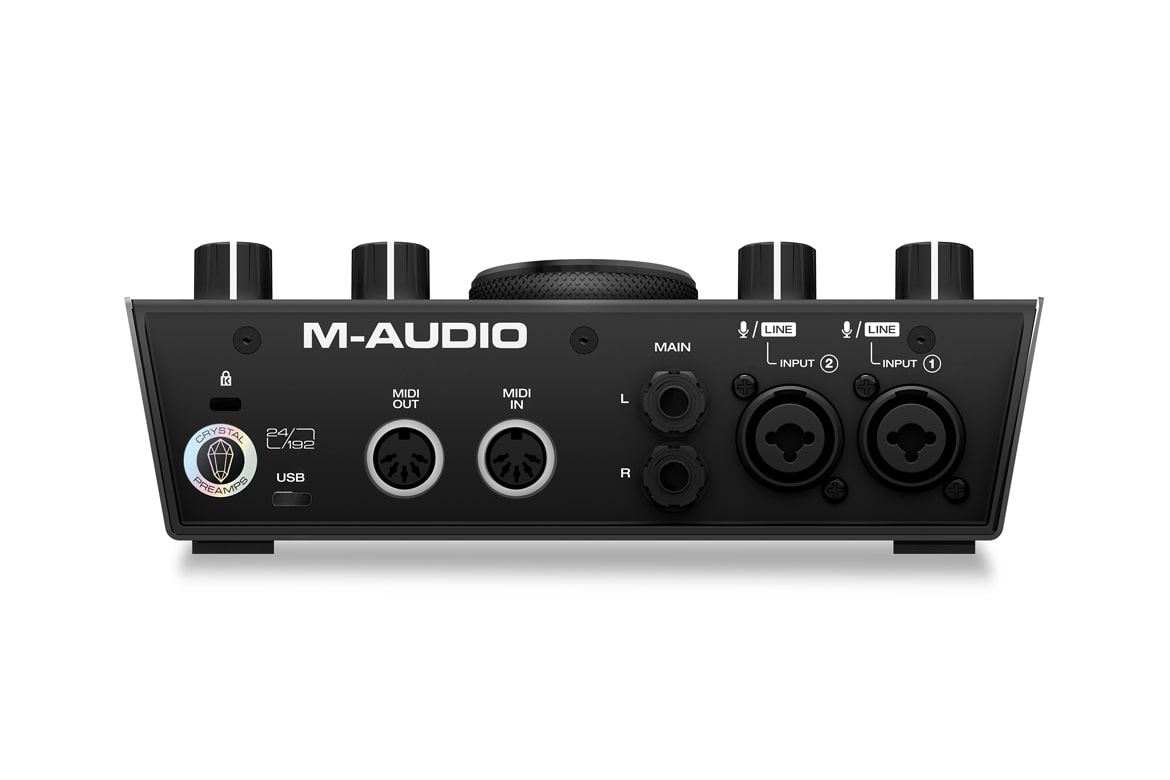

  • Flexible inputs: (2) XLR+¼” TRS combo or ¼” instrument inputs
  • Use any combination of TRS combo or ¼” instrument input on the two channels:(2) TRS, (2) instrument or (1) of each
  • 5-pin MIDI input/output for connecting virtually any external MIDI gear
  • Stereo ¼” outs; ¼” headphone out with independent level control
  • Rugged metal chassis; large central control for easy volume adjustment
  • USB/Direct knob for balancing between the input signal and the computer signal
  • *Round trip latency is dependent on buffer settings, and computer hardware.
  • Overview
  • Tech Specs

Sets the new standard with professional studio-quality and features!

With the AIR 192|6, you can create 24-bit/192kHz studio-quality recordings with an intuitive and easy-to-use audio interface. The AIR 192|6 enables you to record up to 2 channels at once with its 2 dedicated XLR+¼” balanced combo inputs, and 2 all-new ¼” instrument inputs that have a specially designed gain and impedance stage to provide the most accurate representation of a guitar or bass plugged directly into the interface. 5-pin MIDI In and Out connections are included for connecting synths, sequencers and other external MIDI gear.

Two onboard Crystal preamps
The AIR 192|6's low-noise Crystal preamps build a solid foundation for any style recording. Clean and uncolored, M-Audio's Crystal preamps are a blank slate for your creative mix decisions down the road.

Latest-gen A/D converters
High headroom and low distortion are yours at every stage of the recording process, thanks to the AIR 192|6's current-gen A/D converters.

Direct inputs for guitar and bass
Twin front-mounted 1/4" instrument inputs streamline the M-Audio AIR192|6 for guitar and bass players. The included Eleven Lite FX suite gives you several virtual amp, cab, and stomp options to choose from, so you can leave your amp and pedalboard behind.

5-pin MIDI I/O for outboard gear
Take advantage of the included AIR virtual instrument suites when you pair your MIDI-equipped controller with the M-Audio AIR192|6. Its two 5-pin DIN connectors are compatible with all your pro MIDI gear.

Rugged tabletop form factor
The M-Audio AIR192|6's desk-friendly form factor puts all essential controls right at your fingertips, with an ergonomic tilt that improves visibility for desktop and remote use. A feature we at Sweetwater have enjoyed in all recent AIR interfaces is the large central volume knob, which is unmistakable and easy to access for setting desired monitoring levels. The all-metal chassis feels great underhand and is sure to hold up to location recording.

High-speed USB-C
USB-C protocol (also compatible with USB 2.0) gives the AIR192|6 fast round-trip speeds — as low as 2.59ms — to minimize latency when you're tracking and monitoring.

Mic Input 1 (balanced XLR)
Frequency Response 20 Hz – 20 kHz (+0.1 dB)
Dynamic Range 104 dB (A-weighted)
Signal-to-Noise Ratio 104 dB (+1.0 dBu, A-weighted)
THD+N 0.002%
PREAMP EIN -128 dBu (max gain, 150 ύ source, A-weighted)
MAX INPUT LEVEL +1.5 dBu
Gain Range 55 dB
Line Input 1-2 (balanced 1/4" [6.35 mm] TRS)
Frequency Response 20 Hz – 20 kHz (+0.05 dB)
Signal-to-Noise Ratio 101 dB (1 kHz, +4 dBu, A-weighted)
THD+N 0.002%
Max Input Level 16 dBu
Gain Range 55 dB
Inst Input 1-2 (unbalanced 1/4" [6.35 mm] TS)
Frequency Response 20 Hz – 20 kHz (+0.05 dB)
Dynamic Range 100 dB (A-weighted)
Signal-to-Noise Ratio 98 dB (+ 4 dBu, A-weighted)
THD+N 0.005%
Max Input Level 6 dBu
Input Impedance 1 MΩ
Gain Range 24 dB
Main Outputs, L and R (balanced 1/4" [6.35 mm] TRS)
Frequency Response 20 Hz – 20 kHz (+0.05 dB)
Dynamic Range / Signal-to-Noise Ratio 106 dB (A-weighted)
THD+N 0.005%
Max Otput Level +13 dBu (1 kHz, -1 dBFS)
Headphone Output (1/4” [6.35 mm] TRS)
THD+N 0.005%
Output Impedance 10 Ω
General
Power USB-bus-powered
Dimensions (width x depth x height) 8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm)
Weight 2.1 lbs. 0.95 kg

Software Package

  • Ableton Live Lite
  • Creative FX Collection
  • Xpand!2
  • Mini Grand
  • DB33
  • Touch Loops
  • Revalver - 2x Amps, 3x Cabs, 3x Mics, 3x Effects

    MPC Beats
  • 3 Virtual Instruments - TubeSynth, Electric, Bassline
  • 80 FX Plugins - AIR Channel Strip, Half Time
  • 2GB of factory content with bonus F9 instruments library
