M-Audio AIR 192|4 Vocal Studio Pro
M-Audio

AIR 192|4 Vocal Studio Pro

Vocal Recording Package with 2x2 USB Audio Interface, Large-diaphragm Condenser Microphone, Headphones, XLR Cable, and Software Suite - Mac/PC
Product Highlights
  • 24-bit/192kHz resolution for professional recording and monitoring
  • Hi-Speed USB circuitry gives you the fastest connection, with a class-leading round trip latency of only 2.59ms*
  • Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
  • VU LED meters for dialing in the perfect level
  • (1) XLR+¼” TRS combo input with dedicated signal circuit and (1) ¼” instrument input with dedicated signal circuit for the most accurate sound available
  • Stereo ¼” outs; ¼” headphone out with independent level control
  • Rugged metal chassis; large central control for easy volume adjustment
  • USB/Direct knob for balancing between the input signal and the computer signal
  • NOVA Black condenser microphone
  • HDH40 monitoring headphones
  • *Round trip latency is dependent on buffer settings, and computer hardware
  • Overview
  • Tech Specs

Studio Grade Production – Simplified!
Enter the world of studio-based recording with the AIR 192|4 Vocal Studio Pro—the ultimate all-in-one solution for computer recording projects. Combining the critically acclaimed AIR 192|4 interface, HDH40 headphones, a Nova Black condenser microphone, XLR cable and the premium AIR Series Software Suite, laying down vocal tracks, recording electric and acoustic instruments and adding voice-overs to multimedia projects has never been easier. With the AIR 192|4 Vocal Studio Pro, the combination of high-performance hardware and easy-to-use software results in pro-grade audio capture for every recording scenario.

More Than Just an Interface
This is the creative center of your recording setup: The simple-to-use, style-infused AIR 192|4 audio interface is the perfect tool to record and produce natural-sounding 24-bit/192kHz studio-quality recordings. Combining one XLR+¼” balanced combo input and an all-new dedicated ¼” instrument input, the AIR 192|4 enables you to record two channels simultaneously.

Crystal Preamps, Pristine A/D Converters and Premium Components
Fusing an elegant pro-grade metal chassis, USB & USC-C connection cables, our exclusive Crystal low-noise pre-amps and pristine A/D converters that deliver the highest audio performance in their class, the AIR 192|4 provides all the tools you need to capture that initial idea and transform it into a finished masterpiece with ease. Take your music to the next level and start recording now!

Professional Recording—Done!

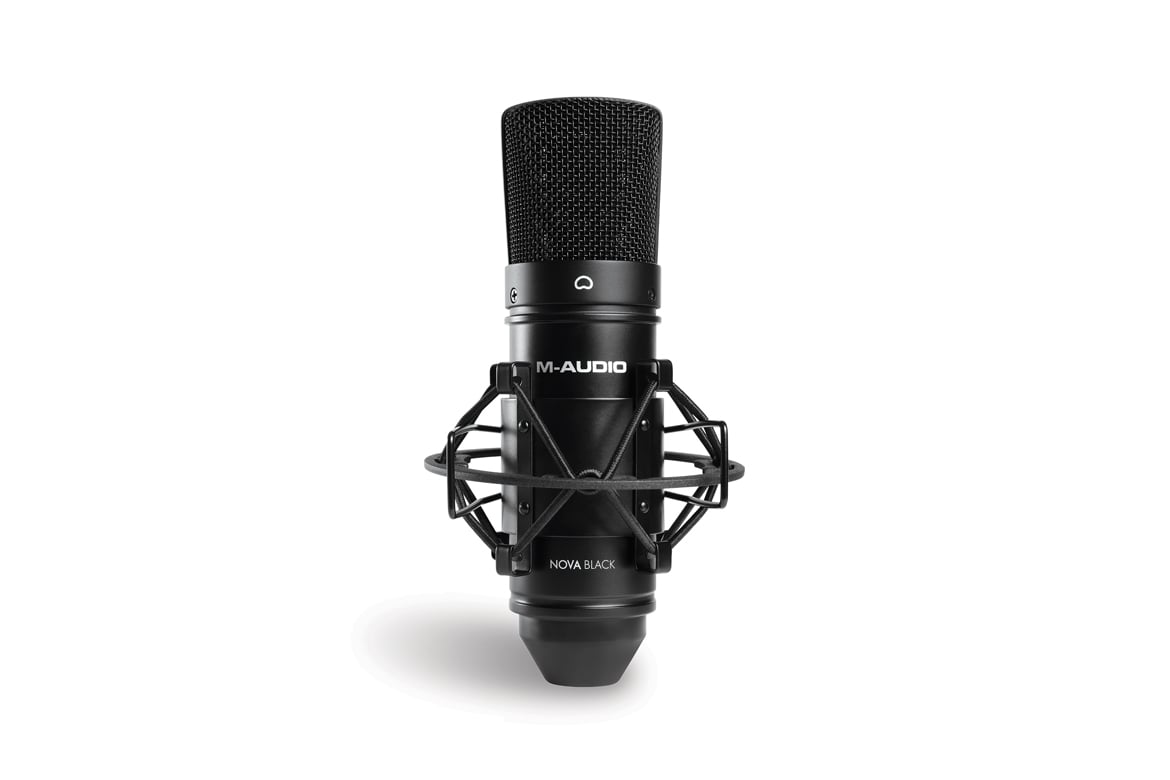

Studio-grade recording demands the right tools for the job. M-Audio’s Nova Black large-diaphragm condenser microphone is perfect for podcasting applications or capturing high-quality audio from vocalists, instruments, percussion and more.

At the heart of the Nova Black microphone is an 18mm pure aluminum condenser capsule with a directional cardioid polar pattern. This delivers wide range frequency response (20–20kHz, resulting in a microphone that captures even the most subtle nuances.

Thanks to an included windscreen, a purpose-designed shock-mount for mounting to a traditional mic stand and an XLR cable, everything you need to get connected and start recording is included.

Hear Every Detail

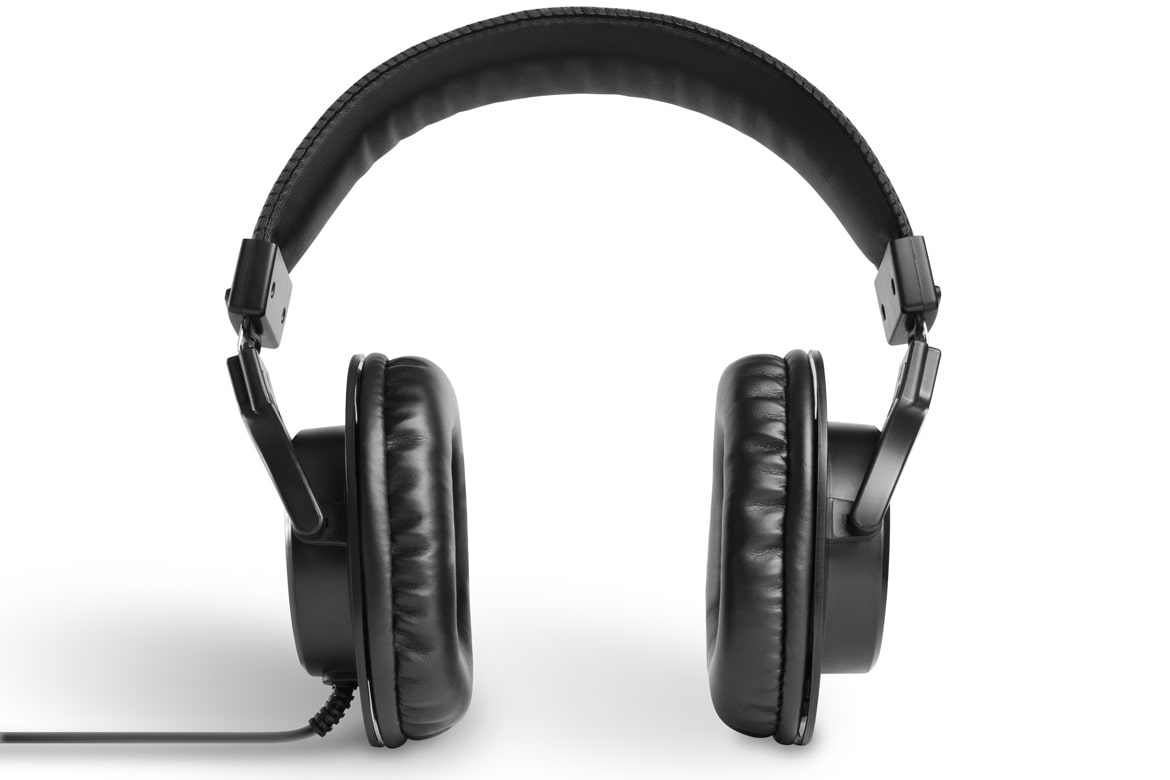

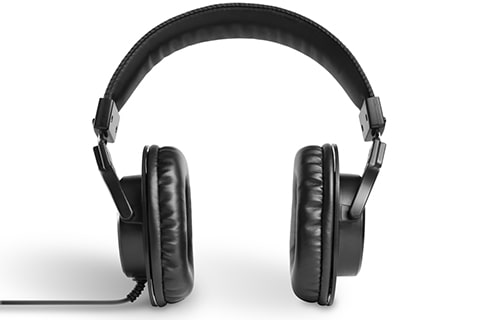

Professional recording demands uncompromised accuracy when it comes to monitoring. M-Audio’s HDH40 headphones combine premium transducer elements with a durable, rugged design to deliver superb sound reproduction and the outstanding acoustic isolation required in professional recording and monitoring environments. With the HDH40, you can concentrate on what’s important—your production!


Price: AED 995*
*Prices are excluding VAT

NOVA Black Microphone
Type Back Electret condenser microphone
Element 18 mm pure aluminum diaphragm capsule
Polar Pattern Cardioid
Frequency Response 20 Hz – 20 kHz
Sensitivity -38 dB (0 dB = 1 V/Pa @ 1 kHz)
Rated Impedance 200Ω
Maximum SPL 136 dB
Phantom Power Required +48 V
S/N Ratio 77 dB
Current Consumption 3 mA
HDH40 Headphones
Acoustic Design Dynamic, Closed
Driver 40 mm, neodymium
Frequency Response 15 Hz – 22 kHz
Sensitivity 95 dB ±3 dB
Rated Impedance 32Ω
Earpad Leatherette
Cable Length 9.8 ft. / 3 m
Mic Input 1 (balanced XLR)
Frequency Response 20 Hz – 20 kHz (+0.1 dB)
Dynamic Range 104 dB (A-weighted)
Signal-to-Noise Ratio 104 dB (+1.0 dBu, A-weighted)
THD+N 0.003%
PREAMP EIN -128 dBu (max gain, 150 Ω source, A-weighted)
MAX INPUT LEVEL +1.5 dBu
Gain Range 55 dB
Line Input 1 (balanced 1/4" [6.35 mm] TRS)
Frequency Response 20 Hz – 20 kHz (+0.05 dB)
Signal-to-Noise Ratio 101 dB (1 kHz, +4 dBu, A-weighted)
THD+N 0.003%
Max Input Level 16 dBu
Gain Range 55 dB
Inst Input 2 (unbalanced 1/4" [6.35 mm] TS)
Frequency Response 20 Hz – 20 kHz (+0.05 dB)
Dynamic Range 100 dB (A-weighted)
Signal-to-Noise Ratio 102 dB (+ 4 dBu, A-weighted)
THD+N 0.004%
Max Input Level 6 dBu
Input Impedance 1 MΩ
Gain Range 24 dB
Main Outputs, L and R (balanced, differential 1/4" [6.35 mm] TRS)
Frequency Response 20 Hz – 20 kHz (+0.06 dB)
Dynamic Range / Signal-to-Noise Ratio 102 dB (A-weighted)
THD+N 0.005%
Max Otput Level +7 dBu (1 kHz, -1 dBFS)
Headphone Output (impedance-balanced 1/4” [6.35 mm] TRS)
THD+N 0.005%
Output Impedance 10 Ω


Price: AED 995*
*Prices are excluding VAT

Minimum System Requirements
  • OSX: 10.8
  • Windows: 7 (32 or 64 bit)
  • Standard USB 2.0 or USB-C Port

General
  • POWER: USB-bus-powered
  • DIMENSIONS (WIDTH X DEPTH X HEIGHT): 8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm)
  • WEIGHT: 2.0 lbs. 0.9 kg
