Lynx HILO [USB] (Black)

Overview
Tech Specs

Reference A/D D/A Converter System with LT-USB USB Card

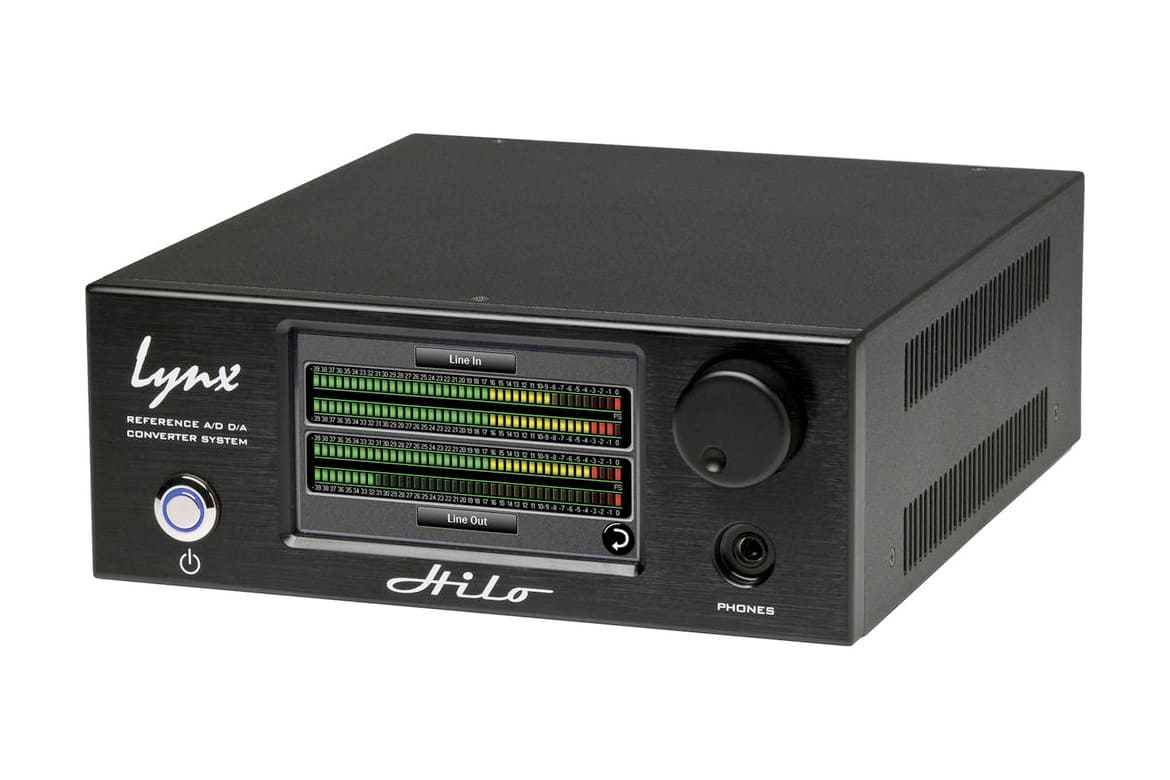

The black Hilo Reference A/D D/A Converter System from Lynx Studio Technology offers two channels of mastering-quality 24-bit/192 kHz analog to digital conversion, up to six channels of digital to analog conversion, a secondary monitor output, and a world-class independent headphone amplifier, in a compact, half-rack size. Lightweight (at 6.75 lb) and portable, it provides audio professionals and audiophiles alike with pristine, open, and transparent audio quality, whether working in the studio, in the field, or as part of a home theater setup.

A/D Converters	2 x channels, 24-bit
D/A Converters	6 x channels, 24-bit
Sample Rates	All standard rates up to 192 kHz using SynchcroLock sample clock generator
Line Input L/R	Connectors: 2 x XLR, female THD+N: -114 dB at 1 kHz, -1 dBFS, 20 kHz filter, +22 dBu trim Dynamic Range: 121 dBA, -60 dBFS signal method Frequency Response: ± 0.01 dB, 20 Hz to 20 kHz Crosstalk: 140 dB maximum at 1 kHz, -1 dBFS signal Full-Scale Trim Settings: + 0 dBV, +2 dBV, +4 dBV, +6 dBV, +18 dBu, +20 dBu, +22 dBu, +24 dBu
Line Output L/R	Connectors: 2 x XLR, male Volume control with 0.5 dB increments THD+N: -109 dB at 1 kHz, -1 dBFS, 20 kHz filter, +22 dbu trim Dynamic Range: 121 dBA, -60 dBFS signal method Frequency Response: ± 0.02 dB, 20 Hz to 20 kHz Crosstalk: -135 dB maximum at 1 kHz, -1 dBFS signal Full-Scale Trim Settings: + 0 dBV, +2 dBV, +4 dBV, +6 dBV, +18 dBu, +20 dBu, +22 dBu, +24 dBu
Monitor Output	Connectors: 2 x male XLR THD+N: -107 dB at 1 kHz, -1 dBFS, 20 kHz filter, volume at maximum Dynamic Range: 121 dBA, -60 dBFS signal method Frequency Response: ± 0.02 dB, 20 Hz to 20 kHz Crosstalk: -135 dB maximum at 1 kHz, -1 dBFS signal Output Level at Maximum Volume: +24 dBu or +10 dBu, jumper-selectable
Headphone Output	Connectors: 1 x 1/4" jack, front panel Volume control with 0.5 dB increments THD+N: -107 dB at 1 kHz, -1 dBFS, 20 kHz filter, volume at maximum Dynamic Range: 121 dBA, -60 dBFS signal method Frequency Response: ± 0.02 dB, 20 Hz to 20 kHz Crosstalk: -130 dB maximum at 1 kHz, -1 dBFS signal Output Level at Maximum Volume: +19 dBu

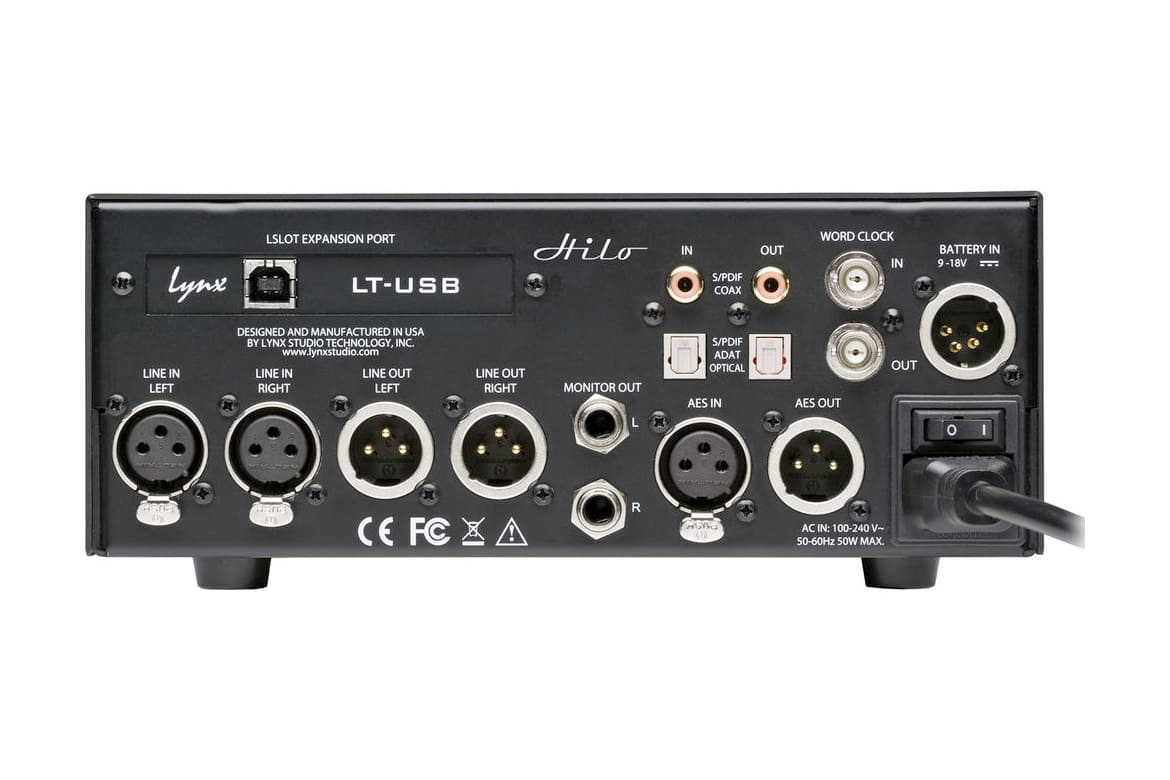

Digital I/O	AES/EBU I/O: transformer-coupled, on XLR connectors Coaxial S/PDIF I/O: transformer-coupled on RCA jacks Optical S/PDIF I/O Optical: on optical connectors ADAT I/O: 8 x channels at 48 kHz, when selected on optical connectors USB 2.0 port
Synchronization Options	Internal External word clock I/O, 75 Ohms TTL signal on BNC connectors AES/EBU or S/PDIF inputs
LCD Display	480 x 282, touchscreen
Power Requirements	AC Power: 110-230 VAC, 30 W Battery Power: 9-18 VDC, on 4-pin XLRV
System Requirements	Windows Intel Core 2 at 1.6 GHz, or AMD equivalent PC or laptop manufactured after January 2006 1 GB RAM One functional USB 2.0 port Windows XP with SP3 (32-bit only), Vista with SP2, Windows 7, 8, 10 Windows 32-/64-bit drivers provided by Lynx Mac OS X Intel processor OS X 10.6.4 or higher 1 GB RAM One functional USB 2.0 port Macintosh OS X drivers provided by Apple iOS For iPad 7 or higher (excludes original iPad) Apple iPad 2 or newer iPad camera kit for USB connection
Dimensions	8.5 x 10 x 3.25" / 216 x 254 x 83 mm Half-rack, 2 RU
Weight	6.75 lb / 3.1 kg

Learn more

Product Highlights

Preinstalled LT-USB USB Interface
2 Channels A/D 24-Bit/192 kHz Conversion
6 Channels of D/A Conversion
Independent Headphone Amplifier
AES/EBU, S/PDIF, ADAT
SynchroLock for Jitter Elimination
Large, Color LCD Touchscreen
LSlot expansion bay
Lightweight (6.75 lb), Half-Rack Size
