Lynx E22 PCI Express Card
- Overview
- Tech Specs
Audio Interface (2 x Analog / 2 x Digital)

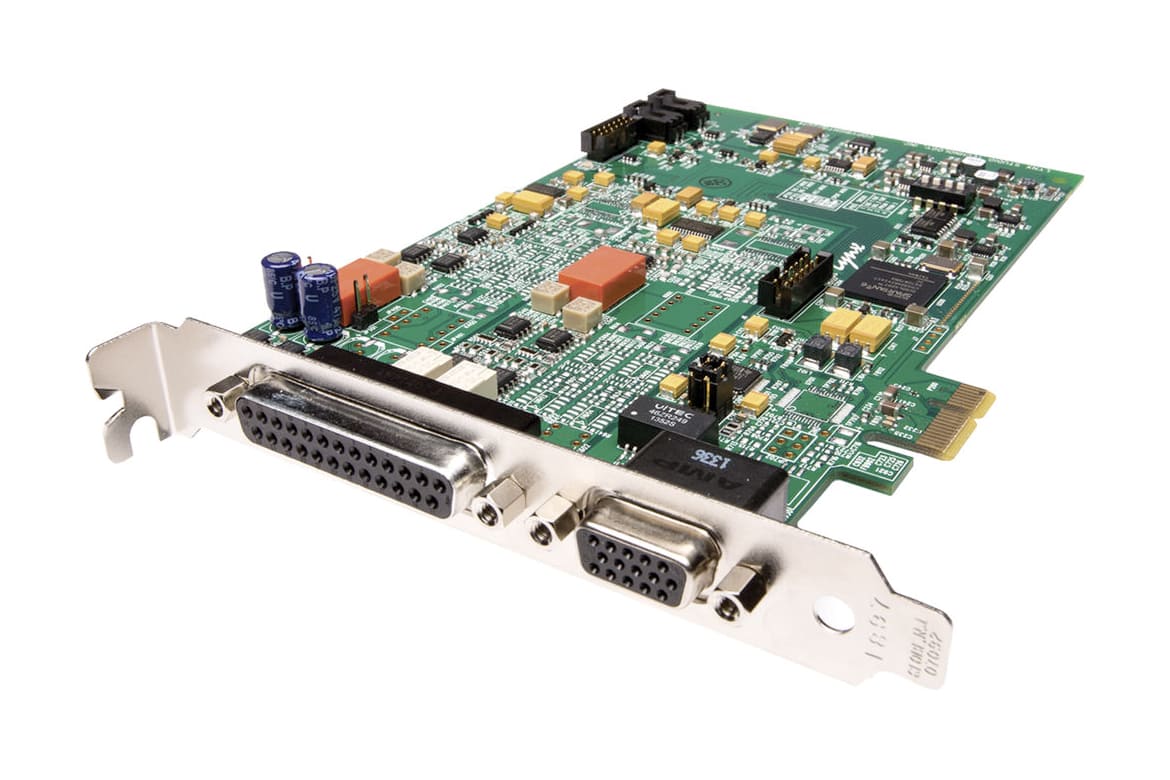

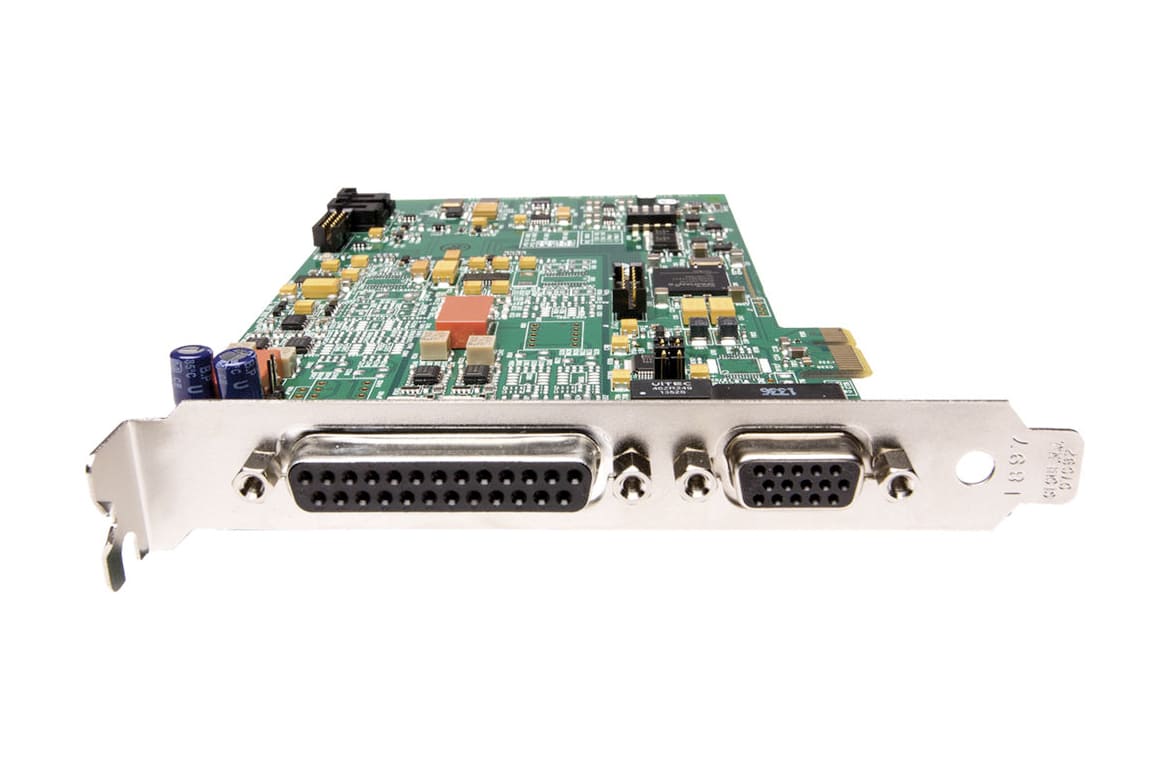

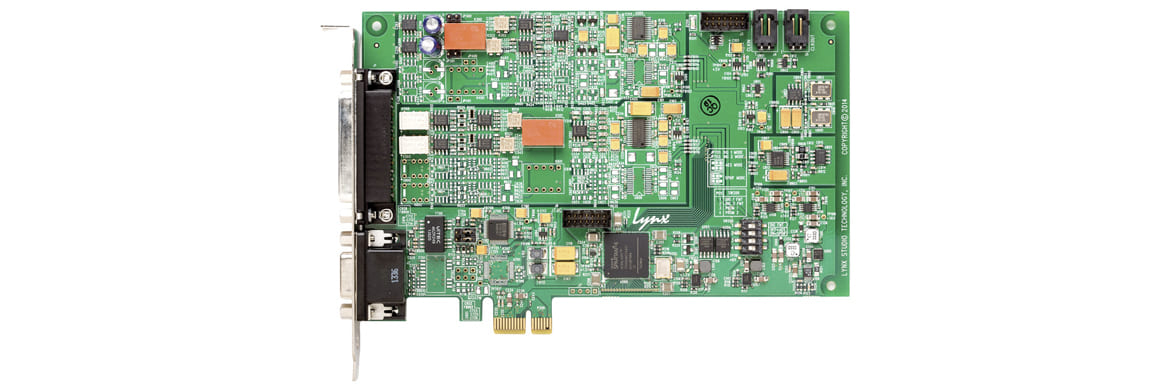

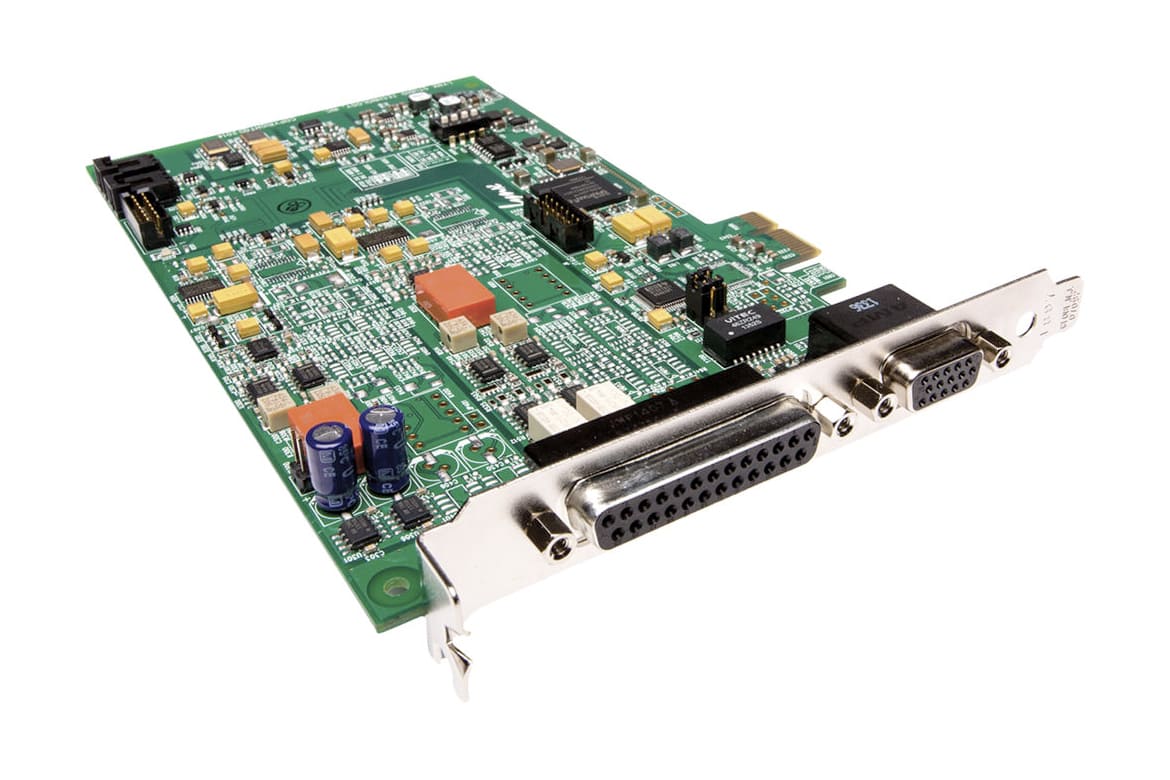

The E22 from Lynx Studio Technology is a PCI Express card that deliverers 2 channels of mastering-quality analog-to-digital and digital-to-analog conversion, as well as 2 channels digital I/O with wordclock. The card is ideal for capturing and archiving historic and classic material, broadcast applications, audio measurement, and audio production, as well as military, medical, and industrial applications that require full audio spectrum capabilities with extreme accuracy and reliability.
| Sample Rates | 44.1, 48, 88.2, 96, 177.4, or 192 kHz |
| Analog In | 2 |
| Analog Outputs | 2 |
| Level | +20 dBu full-scale or variable +8.23 dBu to +24 dBu full-scale; jumper selectable |
| Input Impedance | Balanced Mode: 24 kOhms Unbalanced Mode:12 kOhms |
| Output Impedance | Balanced Mode: 100 ohms Unbalanced Mode: 50 ohms |
| Output Drive | 600 ohm impedance, 0.2 μF capacitance |
| Digital Input Connectors | 2 x XLR AES/EBU on each of the optional breakout cables 1 x BNC Clock |
| Digital Output Connectors | 2 x XLR AES/EBU on each of the optional breakout cables 1 x BNC Clock |
| MIDI In/Out | No |
| Sync In/Out | AES/EBU Wordclock Bracket-mounted, 15-pin, high-density, female D-sub connector |
| Headphone Output | No |
| Frequency Response | 20 - 20 kHz, ± 0.05 dB |
| Dynamic Range | Analog In: 117 dB, A-weighted Analog Out: 120 dB, A-weighted |
| Channel Crosstalk | Analog In: <;-128 dB, 1 kHz signal @ -1 dBFS Analog Out: <-130 dB, 1 kHz signal @ -1 dBFS |
| THD + N | Analog In: -111 dB (0.0003%) @ -1 dBFS, 1 kHz signal, 22 Hz - 22 kHz bandwidth Analog Out: -108 dB (0.0004%)@ -1 dBFS, 1 kHz signal, 22 Hz - 22 kHz bandwidth |
| Power | +3.3 V @ 630 mA +12 V @ 500 mA |
| Mac System Requirements (Intel) | OS X 10.8 or higher (must have Intel processor) 1 GB RAM One functional PCI Express slot A connection to the Internet to download the Lynx Driver (this can be from a different computer than the one that the card is installed into) |
| Windows System Requirements | Windows 7 (32-bit or 64-bit), Windows 8, or greater 1 GHz or faster processor 1 GB RAM One functional PCI Express slot A connection to the Internet to download the Lynx Driver (this can be from a different computer than the one that the card is installed into) |
| Dimensions | 5.0 x 7.4 x 0.75" (127 x 188 x 19 mm) |
| Shipping Weight | 1 lb (454 g) |
Product Highlights
- PCIe Card
- 2 Channels of Analog AD/DA
- 2 Channels of AES3 or S/PDIF I/O
- 24-Bit/192 kHz
- Uses Field Programmable Gate Arrays
- Low Latency Operation
- Mac OS X
- Windows 7/8
- Lynx Mixer Application Included
