Kiloview P3
Kiloview

Kiloview P3 5G Wireless Bonding Encoder

Unlock Seamless Streaming with P3 Anytime, Anywhere!
Product Highlights
  • Four-Channel 5G Cellular Network
  • HDMI Input up to 4K30 Resolution
  • 3G-SDI Input up to 1080p60 Resolution
  • Supports NDI|HX, RTMP, SRT, RTSP & HLS
  • H.265 & H.264 Encoding
  • Wi-Fi and Ethernet Support
  • 4.3" Touchscreen LCD Display
  • Integrated Dual-Battery Module
  • Portable Form Factor

  • Overview
  • Tech Specs

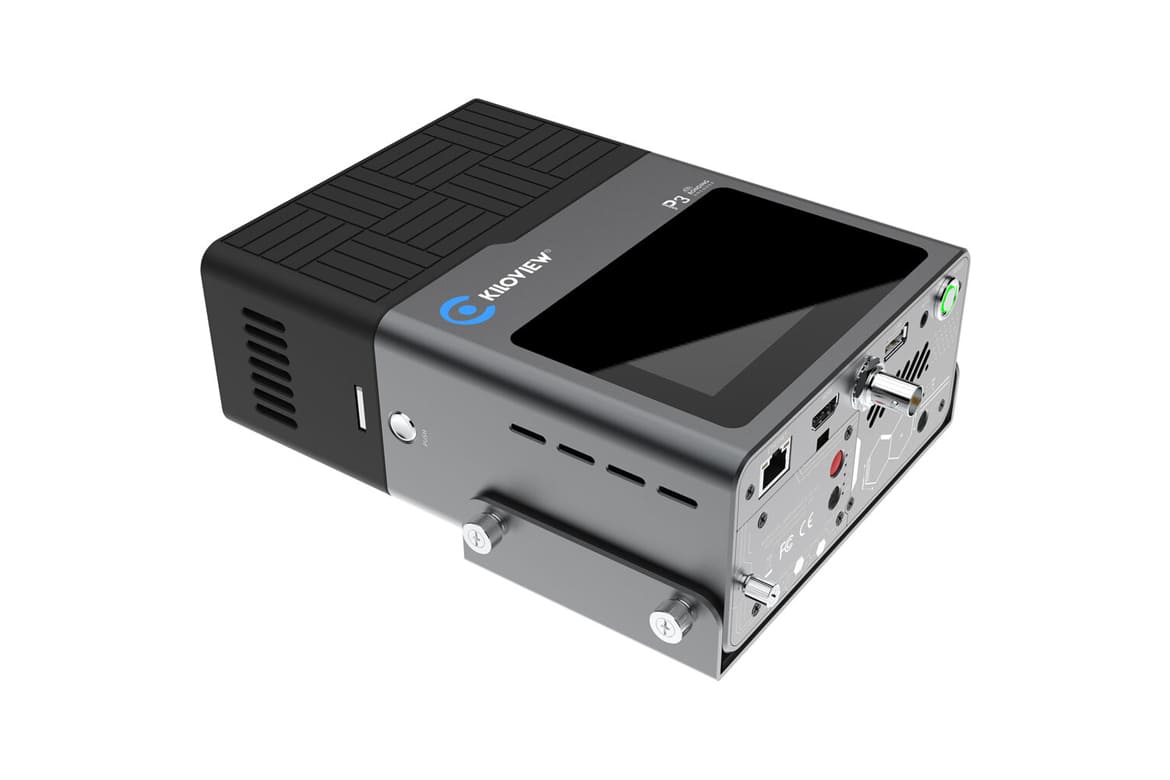

Kiloview P3 is the next-gen of 5G wireless bonding encoder based on KiloLink technology, supporting six network connections: 4-channel 5G cellular, WiFi (2.4G/5G dual-band) and Gigabit Ethernet. With a 3500mAh built-in battery and a 7000mAh external battery, it can guarantee your all-day use. In addition, P3 adopts a modular design, allowing users to choose between 5G/4G modules (WiFi/SD module is included in the package) and battery modules to meet the diversified business scenarios.

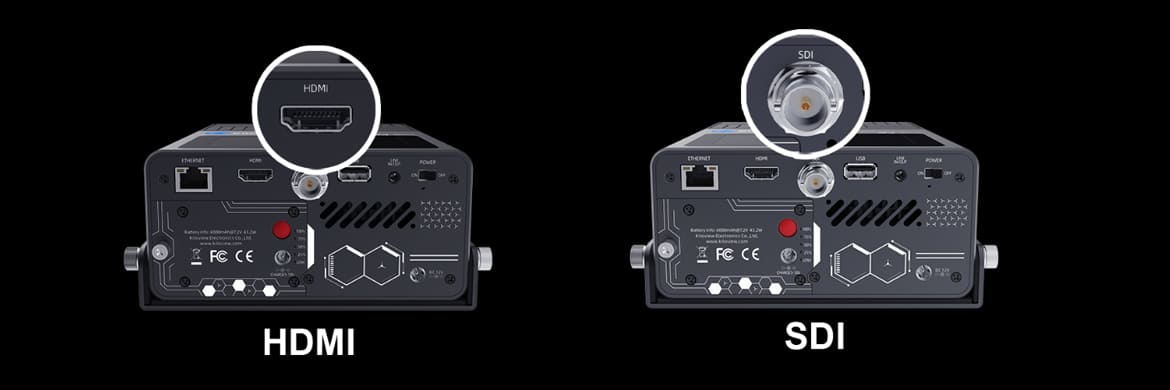

The P3 features 3G-SDI and 4K HDMI video inputs, supporting video inputs up to 4KP30 with H.265/H.264 encoding. With the permanent-free/ private-hostable KiloLink Server Pro, it truly achieves unlimited bonding and seamless streaming experience.

Model P3
Voice Intercom Support
Video Input 1*4KP30 HDMI+1*3G-SDI
Video Encoding H.265/H.264
Resolution Up to 4KP30
Recording/Storage SD card and USB expansion
Protocols NDI HX/SRT/RTMP/RTSP/RTP/HLS/TS-UDP
(with KiloLink Server Pro)
Power Supply DC 12V/3A
Power Consumption 20w
Network 5G / 4G / WiFi / Ethernet
Multi-channel
Audio Encoding
HDMI: 4 channels
SDI: 4 channels
Line in: 2 channels
Modular Design DIY 5G/4G communication modules
WiFi/SD storage modules, and battery modules
Management Web/KiloLink Server Pro
Display 4.3" LCD touchscreen
Button Power
Bonding Performance WiFi/ 4 channels of 5G(Or 4 channels of 4G)
cellular, WiFi (2.4G/5G), Ethernet
Battery Built-in 3500mAh 7.2V 25.2W battery
External 7000mAh 7.2V 50.4W battery
Audio Port 1*3.5mm Line in or SDI/HDMI embedded

Weight
  • 2000g

Dimension (mm)
  • 216.8*143*68mm
