Kiloview N4 HD Video Encoder/Decoder
HD HDMI/NDI Bi-Directional Converter
Product Highlights
- Low-Profile NDI Interface
- HDMI Input and Loopthrough Output
- Supports up to 1080p at 59.94 fps
- PTZ Camera Control
- PoE and DC Power Options
- Tally Communication
- Overview
- Tech Specs

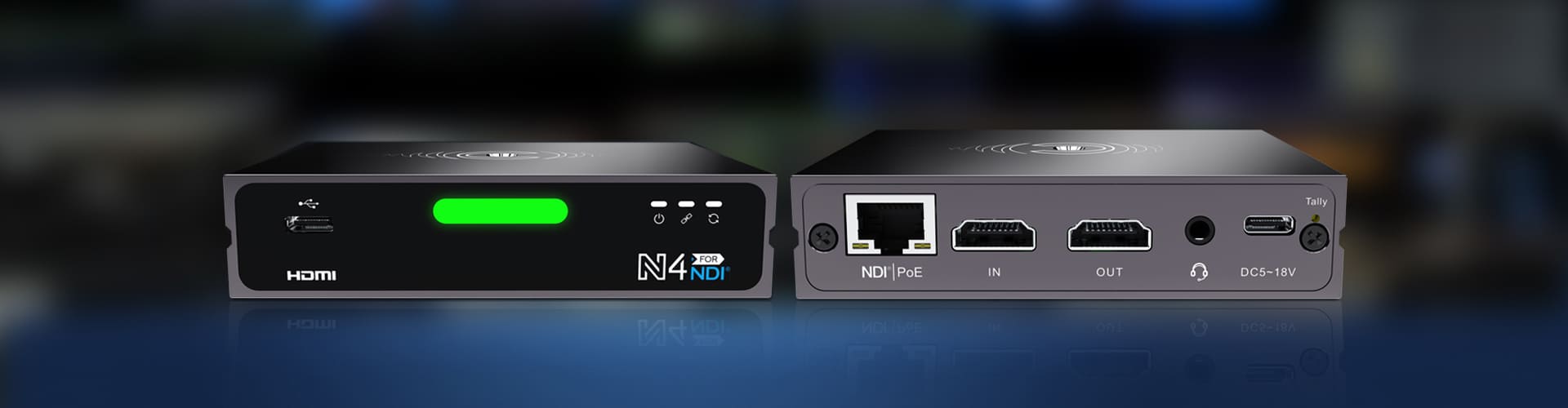

The Most Cost-effective NDI Converter
Kiloview N4 HDMI to NDI codec supports bi-directional conversion between 1080p60 HDMI and Full NDI. It can both encode 1080p60 HDMI signals into Full NDI stream for output and decode Full NDI stream and output 1080p60 HDMI on your screen. Kiloview N4 can help you gain a leading edge in the IP-based high-definition video industry.
High Quality NDI Conversion
The N4 supports HDMI input up to 1080p60 and converts it to full NDI and loop through for monitoring, at the same time it supports full NDI to HDMI output. It’s the most cost-effective NDI converter with high quality.
Both Encoding and Decoding
This tiny device (100*80*28mm) can do both NDI encoding and decoding, so you get two for the price of one. Changing the working mode on the UI to the mode you want, and it can easily accommodate all of your workflows.
Audio Intercom
Kiloview N4 supports 3.5mm analog audio mic in/out or embedded audio. It also supports voice intercom by USB headset between devices directly, or with Kiloview Intercom server.
Video Source Auto-detecting
Thanks to the NDI discovery server, your video can be easily found and connected by users from another network when registered to the designated server.
Seamless Switching without Lagging
With Kiloview’s unique technology, there will be no lag when switching the output NDI videos.
Control with a USB Keypad
In decoder mode, you can preset the NDI sources from number 0-9. When your keypad is ready, you can easily choose the output source with a single press.
Or you can even use the USB Keypad to control a PTZ camera – the cheapest PTZ Keyboard you can get.

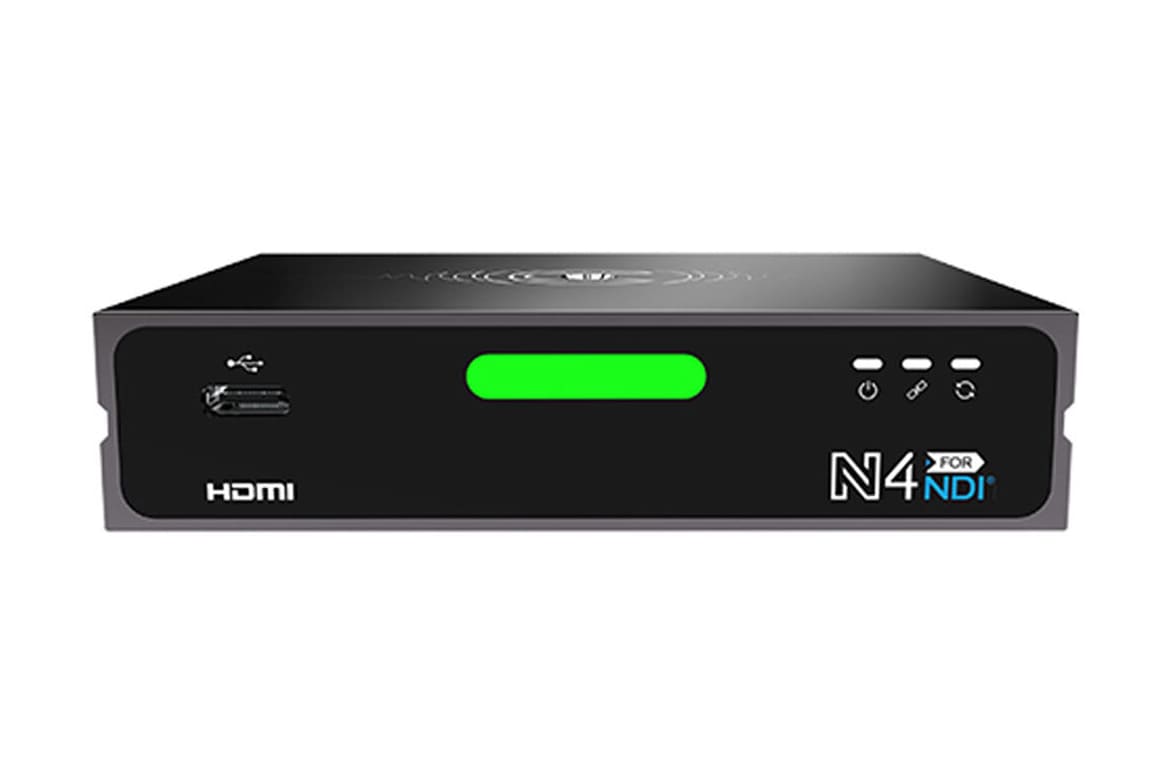

PTZ Control and Big-sized Tally
Kiloview N4 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP, no extra cable required
N4 has a big-sized while bright and distinct Tally for PVW/PGM indication – all is to make perfect cooperation for your team.

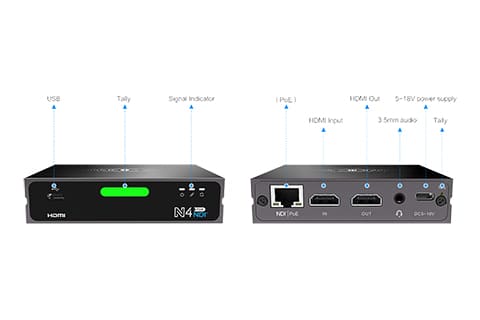

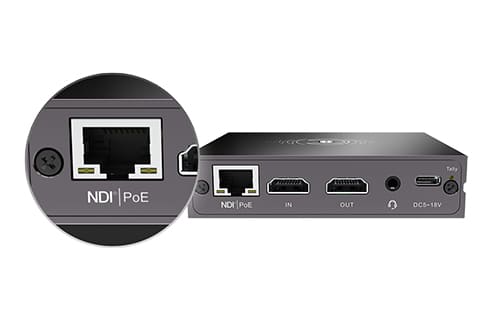

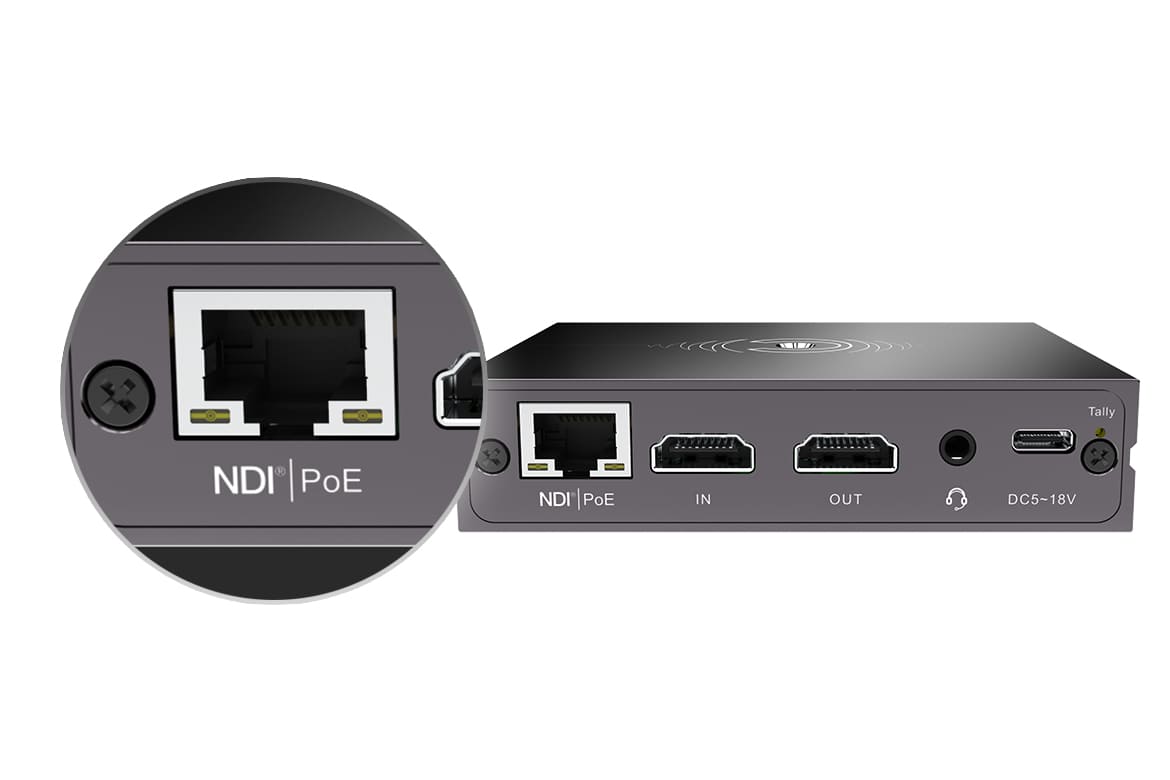

Power and Data
With PoE, the N4 can be powered with a single cable connection. With the design of wide DC input range from 5V to 18V, it can also be easily powered by USB power or camera battery.
| Model | N4 |
| Video input | 1*HDMI |
| Video output | 1*HDMI（Loop or decoding output |
| Audio port | 1*3.5mm |
| Network | 1*RJ45 1000Mbps Ethernet port (with PoE) |
| Video resolution | Up to 1080p60 (backward compatible with SD/HD/VESA) |
| NDI® codec capacity | 1*NDI® encoding or 1x NDI® decoding |
| NDI® codec feature | FULL NDI HD encoding, typical bitrate: 125Mbps@1080p60 |
| LED indicator | Tally light, power light and status connection light |
| Power | PoE, DC, D-Tap (camera) optional. 5-18V wide range supported |
| Voice intercom | Customization |
| PTZ Control | Network PTZ and Serial Port |
| DHCP | Support |
| Management | Web UI and remote management with KILOVIEW KiloLink Server |
| Power consumption | 6w |
| Working Temperature | -20~45°C (Storage temperature: -20~70°C) |
Dimensions
- 100*80*24 mm (3.94”*3.15”*0.94”)
