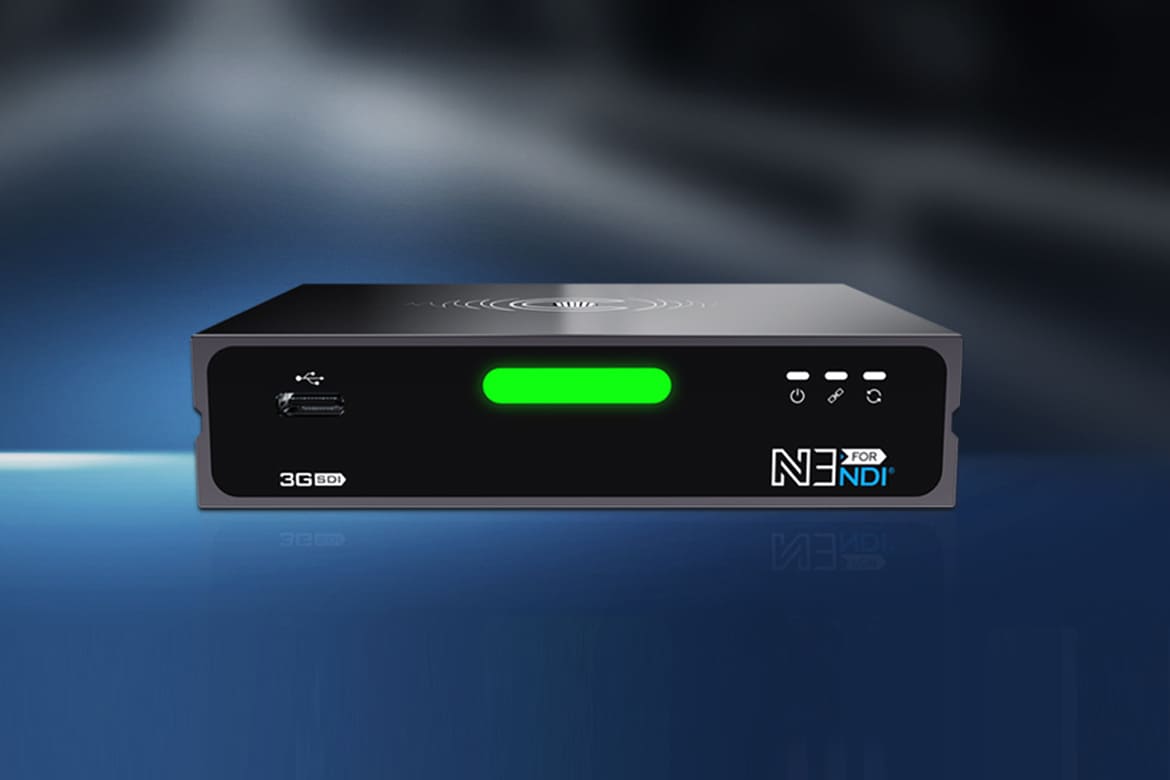

Kiloview N3 HD Video Encoder/Decoder
3G SDI Full NDI Encoder/Decoder. POE. Tally. 1080P60
Product Highlights
- 3G-SDI Video Input, 3G-SDI Loop Output
- Bidirectional 3G-SDI to NDI Converter
- Supports up to 1080p60 Video
- 3.5mm Audio Line Input/Output
- Uses PoE or 5-18 VDC Power Adapter
- Overview
- Tech Specs
A Professional NDI Video Converter
Kiloview N3 3G-SDI/Full NDI converter is a bi-directional converter that supports 3G-SDI video input (encoder) to Full NDI with 3G-SDI loop through for view on monitor, or 3G-SDI video output (decoder) from full NDI.
Featured with powerful functions such as PoE, built-in big tally light, PTZ control, 3.5mm audio line in/out, multi-channel audio, intercom functions, Kiloview N3 is your best choice to get access to the fabulous NDI world for professional broadcast-grade IP production.
Perfect for your video production
The N3 supports up to 3G-SDI HD video input to Full NDI and loop through for monitoring, at the same time it supports Full NDI to 3G-SDI output. It’s a versatile NDI converter.
It's an NDI encoder, it's also an NDI decoder
Both NDI encoding and decoding can work on this tiny device (100*80*28mm), you got two in one. Switching the working mode on the UI to choose the mode you need; it can easily meet all your different workflows.
Audio Intercom
Kiloview N3 supports 3.5mm analog audio line in/out or embedded audio, up to 16CH audio supported. It also supports voice intercom by USB headset between devices directly, or with Kiloview Intercom server.
Control with a USB keypad
In decoder mode, you can preset the NDI sources from number 0-9. Connect the decoder with a USB keypad, you can easily choose the output source with a single press.
Or you can even use the USB Keypad to control a PTZ camera- the cheapest PTZ Keyboard you can get.
PTZ control and Big-sized tally
Kiloview N3 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP, no extra cable required
N3 has a big-sized while bright and distinct Tally for PVW/PGM indication – all is to make perfect cooperation for your team.
Power it as you wish

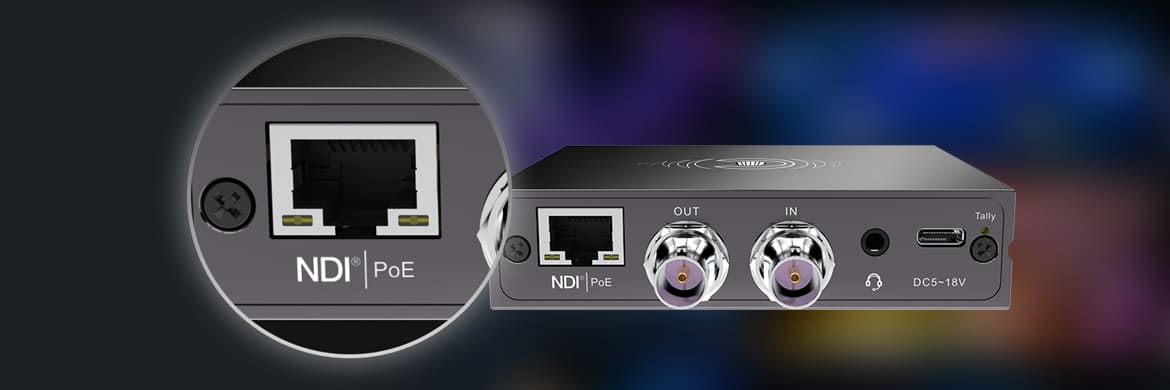

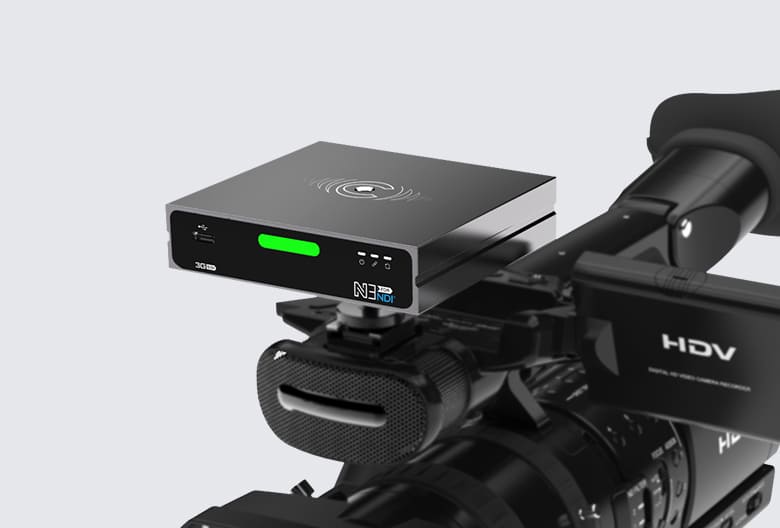

With PoE, the N3 can be powered with a single cable connection. With the design of wide DC input range from 5V to 18V, it can also be easily powered by USB power or camera battery.

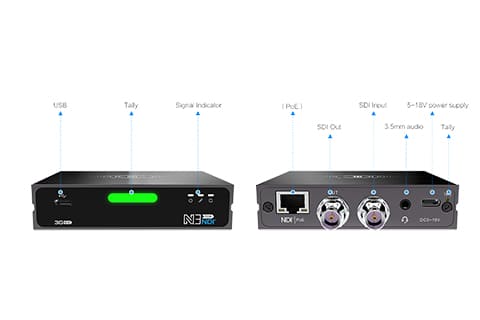

Model | N3 |
Video input | 1*3G-SDI |
Video output | 1*3G-SDI(Loop or decoding output |
Audio port | 1*3.5mm |
Network | 1*RJ45 1000Mbps Ethernet port (with PoE) |
Video resolution | Up to 1080p60 (backward compatible with SD/HD/VESA) |
NDI® codec capacity | 1*NDI® encoding or 1*NDI® decoding |
NDI® codec feature | FULL NDI HD encoding, typical bitrate: 125Mbps@1080p60 |
LED indicator | Tally light, power light and status connection light |
Power | PoE, DC, D-Tap (camera) optional. 5-18V wide range supported |
Voice intercom | Customization |
PTZ Control | Network PTZ and Serial Port |
DHCP | Support |
Management | Web UI and remote management with KILOVIEW KiloLink Server |
Power consumption | 6w |
Working Temperature | -20~45°C (Storage temperature: -20~70°C) |
Dimensions
- 100*80*24mm (3.94”*3.15”*0.94”)/0.2 kg
