M2 H.264 HDMI+VGA Video Encoder

A 2-in-1 Video Encoder
Product Highlights
  • Embedded Audio
  • SDK/API Development
  • 3.5mm Analog Audio Input
  • High-end Chip
  • Dual Interfaces
  • Web-Based Interface
  • USB-extended PTZ
  • Overview
  • Tech Specs

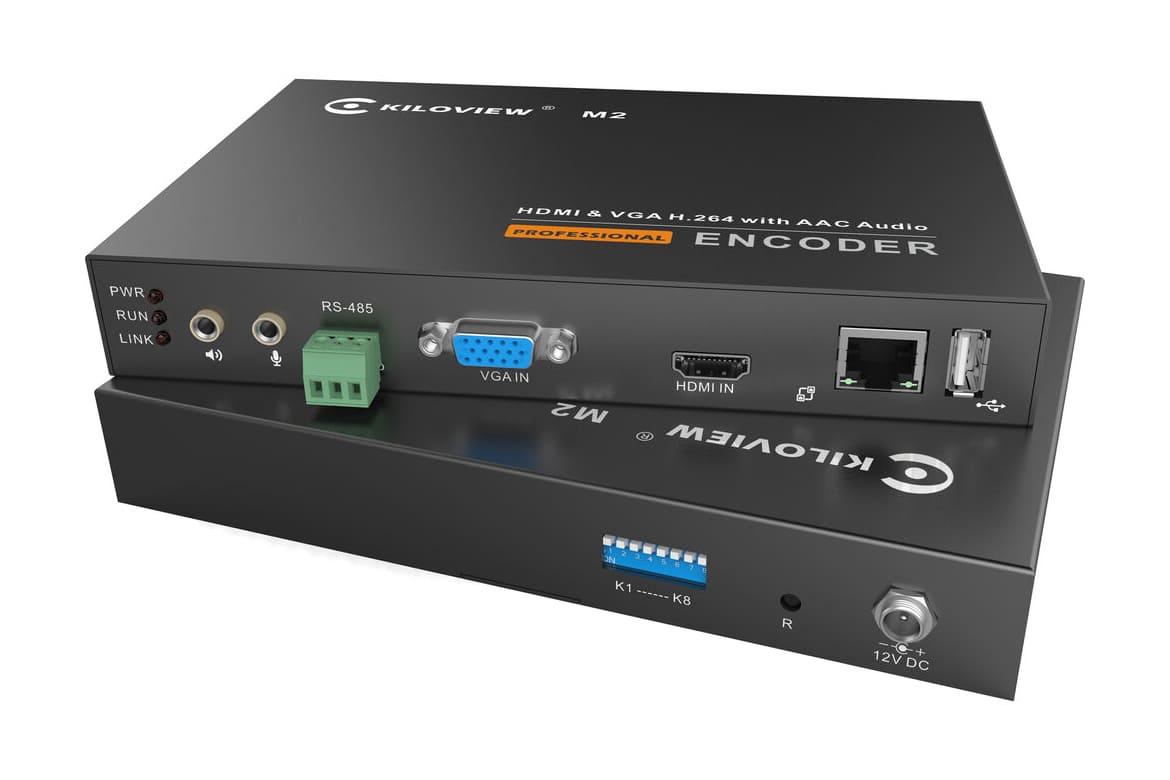

Dual Input Video Encoder
M2 HDMI+VGA dual interface video encoder is a professional video encoding hardware, which encodes VGA or HDMI video source into IP streams for video transmission over the Internet WAN or LAN through a wired network.

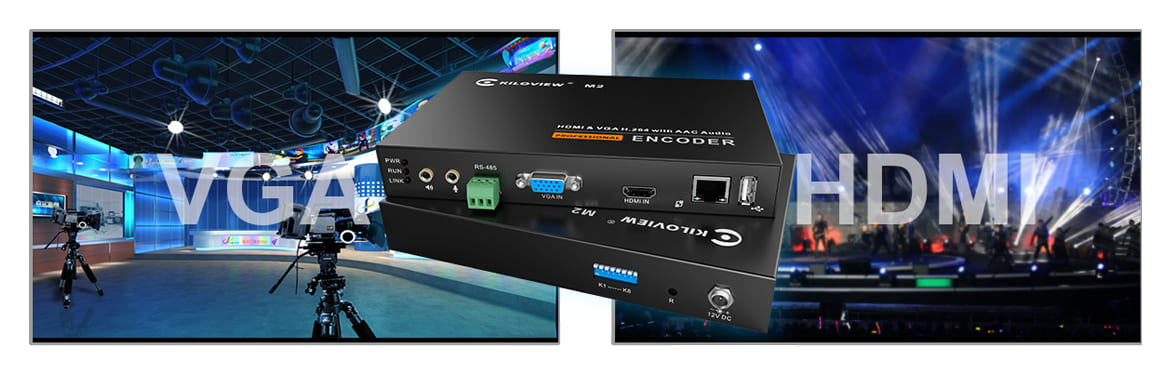

Higher Compatibility
VGA+HDMI dual interface design, compatible with various VGA video sources or HDMI video sources. One device, two functions.

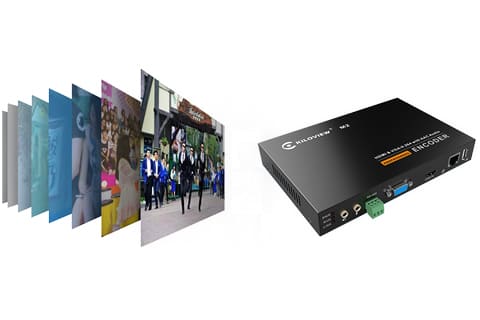

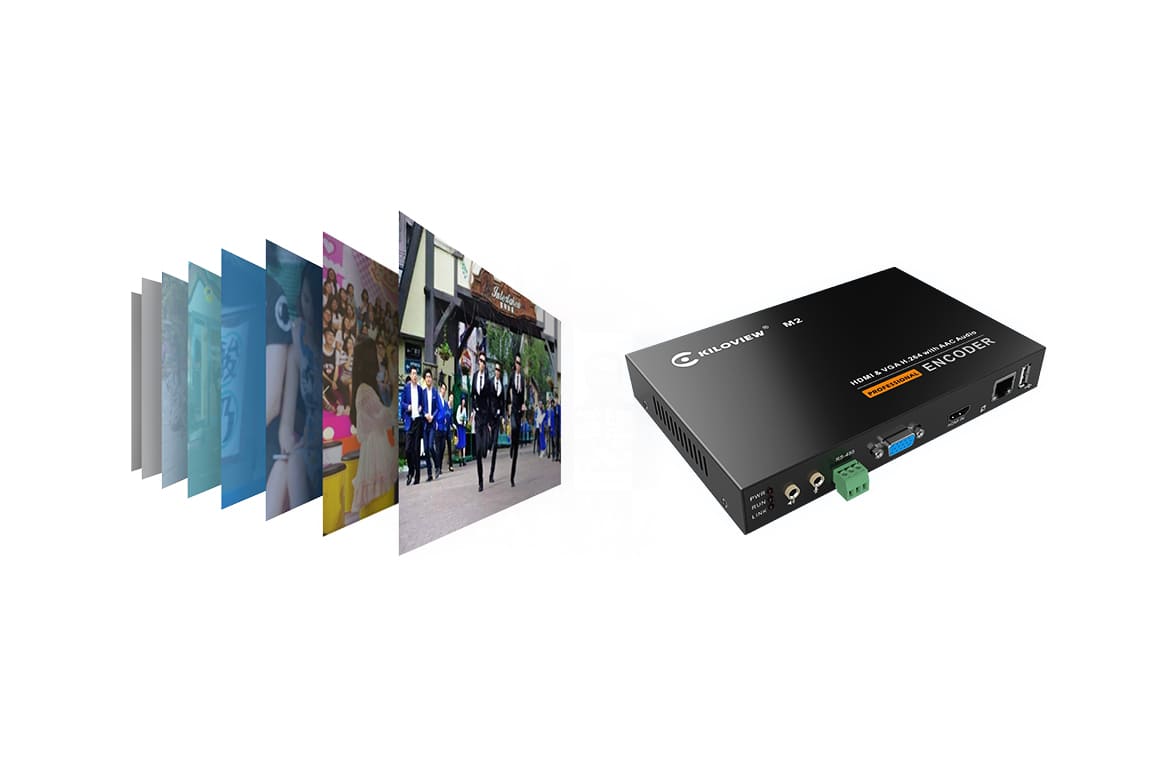

Low Latency, High-Quality Image
M2 series adopt standard H.264 coding algorithm, so they ensure high-quality image and smooth live streaming. They provide you superior video with low-latency, low bitrate and low bandwidth.

Real HD 1080P60
M2 supports video resolution up to 1920*1080P@60FPS to ensure that the image quality is perfect.

All protocols All at the same time
M2 supports full range of protocols including RTSP/ RTMP/ RTMPS/ SRT/ HLS/ TS-UDP/ Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT, all can be handled at the same time. It also supports ONVIF 1.1/2.0 for easy Access To Security Protection System / NVR System.

Multiple Platform Live
Kiloview M2 supports dual stream output. The main code rate up to 1080p60Hz video encoding, and the sub-stream up to 720p 60Hz; Both the main and sub stream can open 8 stream services at the same time (can be pushed to 16 live broadcast platforms at the same time).

LOGO/ Image/ Text Overlay
With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly.

Voice Intercom
M2 supports embedded and 3.5mm analog audio encoding, so you can use KILOVIEW voice intercom software to realize real-time calls.

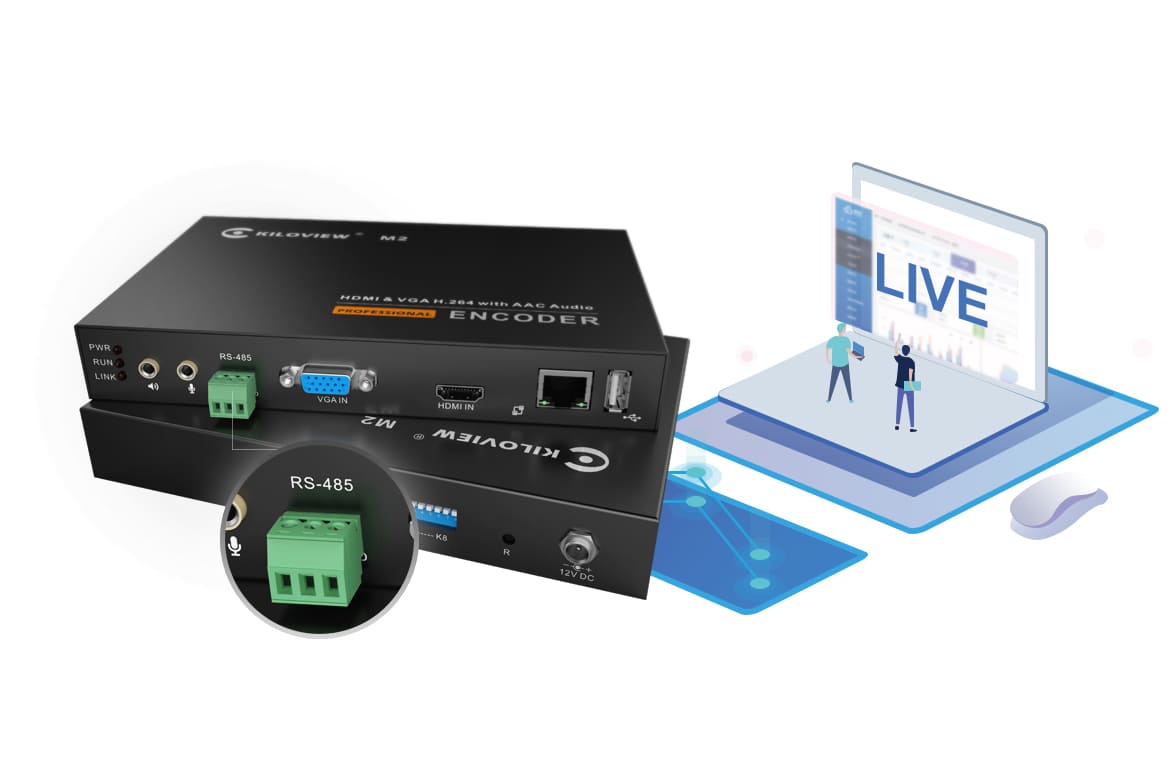

RS-485 Ready for PTZ
M2 comes with RS-485 interface and supports PTZ control, making your PTZ live broadcast more convenient and controllable.

Model M2
Video interface 1*VGA+1*HDMI
Analog audio interface 2*3.5mm audio
USB interface 1*USB 2.0 Type-A
Network support Wired/Satellite
Video resolution Up to 1080p60Hz, details as below:
1080P/1080i/720P/480P/576P/480i/576i (up to 60Hz)
Compatible with VESA display resolution, up to 1920*1200@60Hz
Video encoding H264/AVC, Motion-JPEG
Audio encoding AAC/G.711
Encoding latency <67ms
Media transmission protocols SRT/RTMP/RTP/HLS/TS over UDP/RTSP /Onvif
Management APP/ Web
Power supply DC 12V 1A
Power Consumption 4w
Operating temperature -20°~45°

Dimension
  • 125*89*28mm (4.92”*3.50”*1.10”)

Weight
  • 380g(13.4oz)
